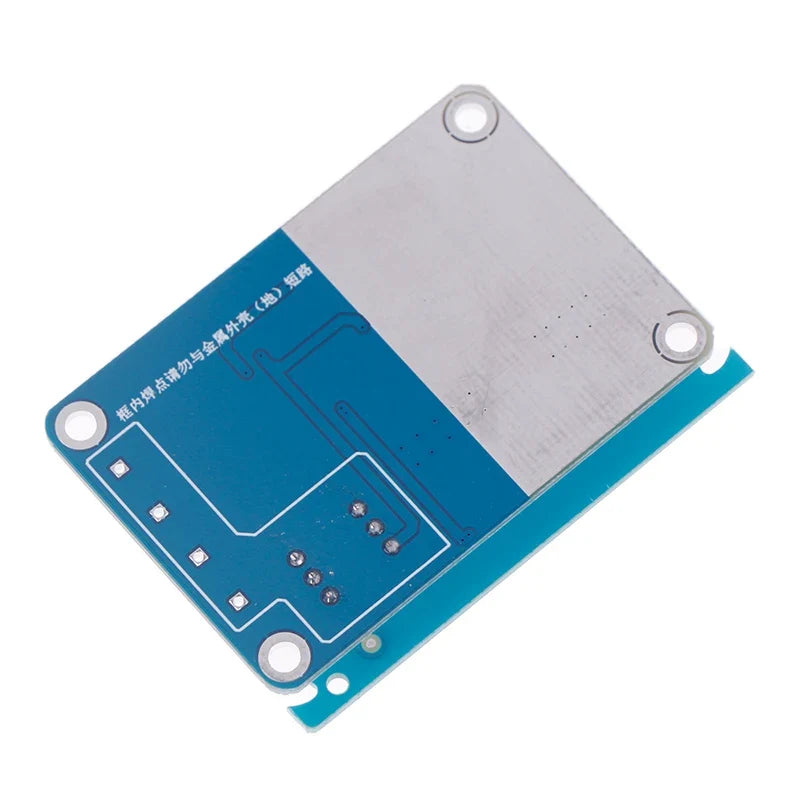

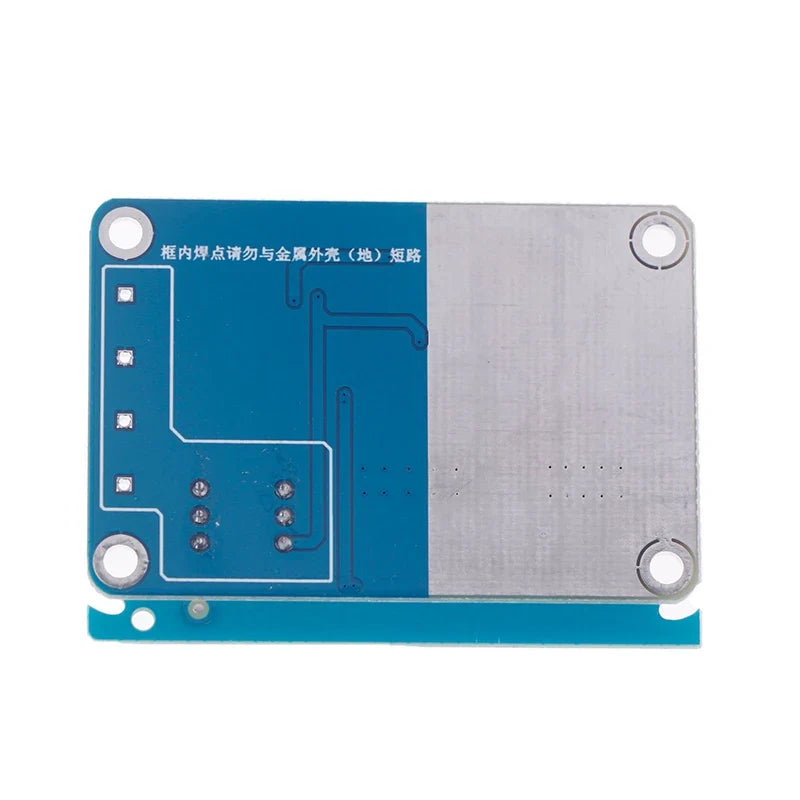

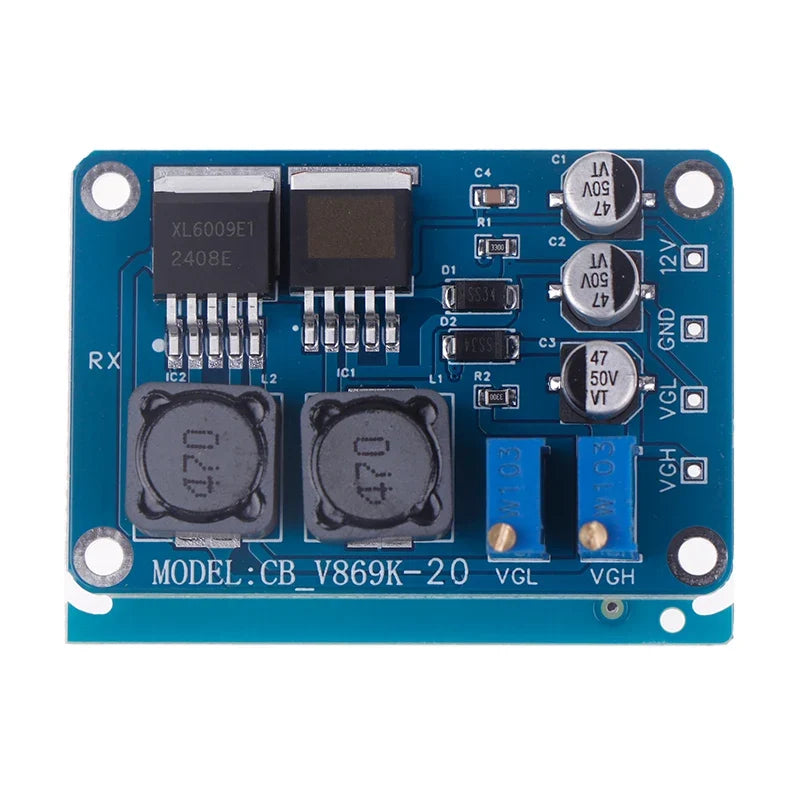

VGH VGL DC Module Board for LCD Panel Repair
Restore your LCD screen's display quality with this compact VGH VGL DC Module Board. Designed for technicians and electronics repair enthusiasts, this small DC board addresses common LCD panel issues including color abnormalities, horizontal lines, and Y-signal irregularities. A reliable technical modification solution that helps bring malfunctioning panels back to proper working order.
Key Features
- Targeted LCD Fix: Corrects color abnormalities, broken Y signals, and horizontal line defects on LCD panels
- Compact Design: Measures just 5.6 × 4.2 cm (approx. 2.2 × 1.65 in) — easy to integrate into tight spaces
- Voltage Regulation: Functions as a precision voltage regulator to stabilize VGH and VGL supply lines
- Durable Construction: Made with quality plastic housing for reliable, lasting performance
- Brand New Condition: 100% new, unused, and quality-checked before dispatch
- Universal Compatibility: Suitable for use during LCD screen technical modification and board-level repair work
Specifications
- Type: DC Voltage Regulator / LCD Repair Module
- Material: Plastic
- Dimensions: 5.6 × 4.2 cm / 2.2 × 1.65 in
- Condition: Brand New
- High-Concern Chemicals: None
- Country of Origin: Made in Mainland China
Package Contents
- 1 × VGH VGL DC Module Small Board
Important Notes
- Product photos are for reference only; please refer to the listed dimensions for accurate sizing.
- Allow ±5–10 mm variance due to manual measurement.
- Actual colour may differ slightly from images due to monitor display variations.
Related Products You May Like
Browse more useful tools and electronics accessories in our store:
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What LCD panel issues does the VGH VGL DC Module Board fix?
A: This DC module board is specifically designed to address common LCD display faults including color abnormalities, broken Y-signal lines, and unwanted horizontal lines on the screen. By regulating the VGH and VGL voltage supply lines, it helps restore normal display output during LCD panel repair and technical modification.
Q: What are the dimensions of the VGH VGL DC small board?
A: The board measures 5.6 × 4.2 cm (approximately 2.2 × 1.65 inches), making it a compact solution that fits easily into most LCD panel repair assemblies. Please allow a tolerance of ±5–10 mm due to manual measurement.
Q: Is this LCD repair DC module compatible with all LCD screens?
A: This DC module board is intended for use as part of a technical modification or board-level repair process on LCD panels that exhibit VGH/VGL voltage-related faults. We recommend verifying your panel's voltage requirements and pinout compatibility before installation, or consulting a qualified electronics technician for guidance.
