UKK80A Terminal Block 80A DIN Rail 1-In Multi-Out Wire Connector
UKK80A Terminal Block 80A DIN Rail 1-In Multi-Out Wire Connector

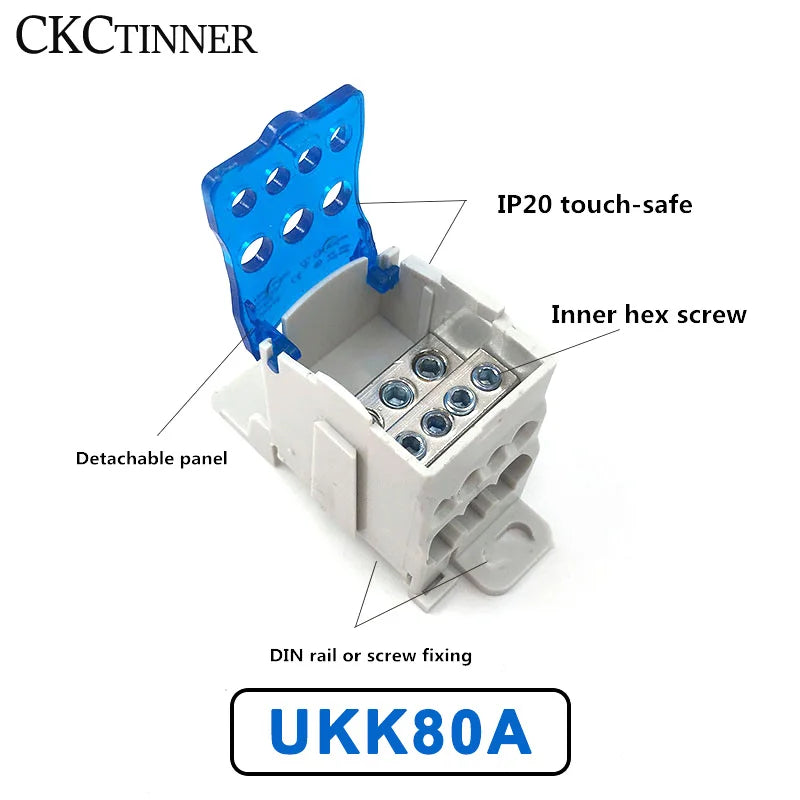

UKK80A Terminal Block – 1-In Multi-Out DIN Rail Distribution Connector
The CKCTINNER UKK80A Terminal Block is a heavy-duty, CE-certified wire distribution connector designed for professional electrical panel wiring. With a 1-in, many-out configuration, it makes distributing power from a single incoming line to multiple outgoing circuits clean, safe, and effortless. Available in Blue, Yellow, Green, and Red for easy colour-coded circuit identification.
Engineered for DIN rail mounting, this terminal block slots securely into any standard DIN rail enclosure, keeping your wiring tidy and accessible. Whether you're building a control panel, distribution board, or industrial automation cabinet, the UKK80A delivers a reliable, organised connection solution.
Made in Mainland China.
Key Specifications
- Model: UKK80A
- Rated Current: 80A
- Rated Voltage: 690V
- Incoming Line: 16mm² × 2
- Outgoing Lines: 2.5–16mm² × 1 | 1.5–10mm² × 4

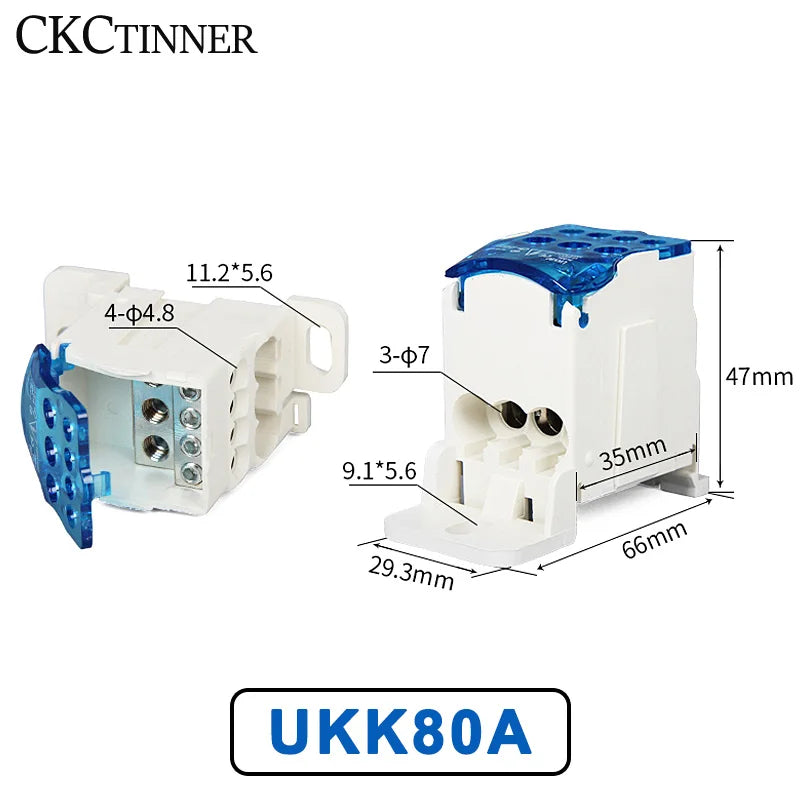

- Dimensions: 65 × 30 × 46 mm
- Certification: CE
- Mounting: DIN Rail
- Available Colours: Blue, Yellow, Green, Red
Why Choose the UKK80A Terminal Block?
- ✅ High-Current Rated: Handles up to 80A / 690V for demanding industrial and commercial applications.
- ✅ 1-In Multi-Out Design: Distribute a single power feed to multiple circuits without complicated wiring splices.
- ✅ CE Certified: Meets European safety and quality standards for electrical components.

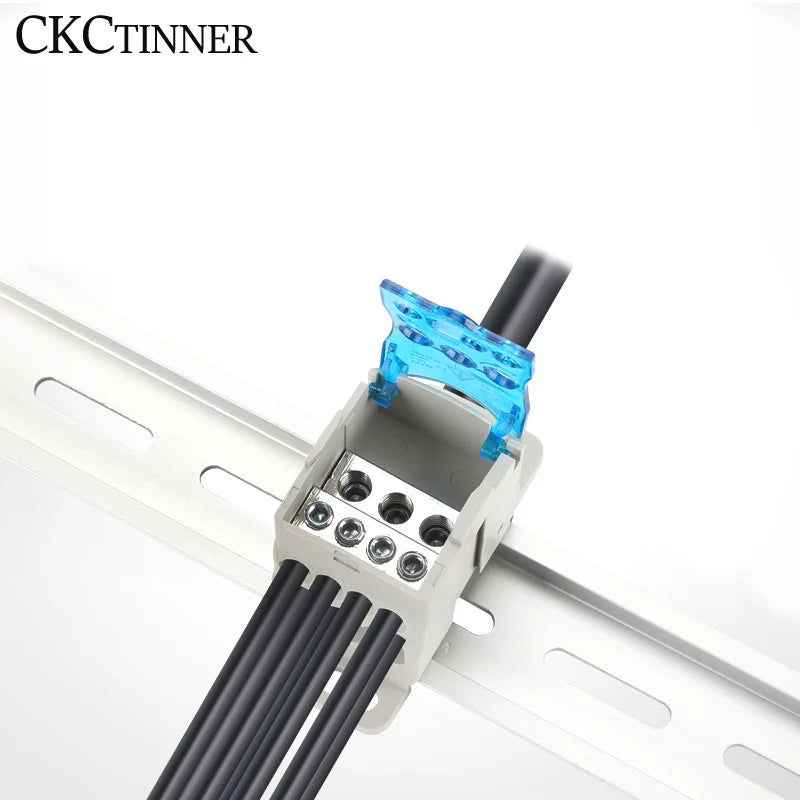

- ✅ DIN Rail Mount: Snaps onto standard DIN rails for fast, tool-free installation.
- ✅ Colour-Coded Options: Blue, Yellow, Green, and Red variants allow intuitive circuit identification and phase colour-coding.
- ✅ Wide Wire Range: Accommodates a broad range of conductor sizes (1.5mm² to 16mm²) for maximum versatility.
- ✅ No High-Concern Chemicals: Manufactured without restricted hazardous substances.
Ideal Applications
- Electrical control panels and distribution boards
- Industrial automation cabinets
- Commercial building wiring systems
- Machine tool and motor control wiring
- DIY electrical enclosures and workshop setups
Related Products You May Find Useful
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the maximum current and voltage rating of the UKK80A terminal block?
A: The UKK80A terminal block is rated for a maximum of 80 Amperes and 690 Volts, making it suitable for heavy-duty industrial, commercial, and high-power distribution applications.
Q: What wire sizes are compatible with the UKK80A terminal block?
A: The incoming line accepts conductors up to 16mm² (×2). The outgoing ports support 2.5–16mm² (×1 port) and 1.5–10mm² (×4 ports), offering flexibility for a wide variety of wire gauges.
Q: Does the UKK80A mount on a standard DIN rail?
A: Yes. The UKK80A is designed specifically for standard DIN rail mounting, allowing it to snap securely into most electrical panel enclosures without additional hardware.
Q: What do the different colours (Blue, Yellow, Green, Red) indicate?
A: The colour options allow electricians to apply standard colour-coded wiring conventions — for example, identifying different phases, neutral, or earth connections — making panel wiring safer, clearer, and easier to maintain.
