Type K PT100 Thermocouple Probe M12 200mm 0–600°C Sensor
Type K PT100 Thermocouple Probe M12 200mm 0–600°C Sensor
CKCTINNER Type K / PT100 Thermocouple Temperature Sensor – M12 Screw Probe
Get precise, reliable temperature readings across a wide 0–600°C range with the CKCTINNER Thermocouple Screw Probe. Designed for industrial and DIY temperature-control applications, this CE-certified sensor features a robust 200 mm stainless-steel probe, an M12×1.5 screw thread for secure mounting, and a fiberglass-insulated cable available in lengths from 1 m up to 5 m — giving you the flexibility to reach any installation point with ease.
Key Features
- Sensor Types: Type K & PT100 (contact us for Type E or CU50 variants)
- Measuring Range: 0–600°C — suitable for high-temperature industrial environments

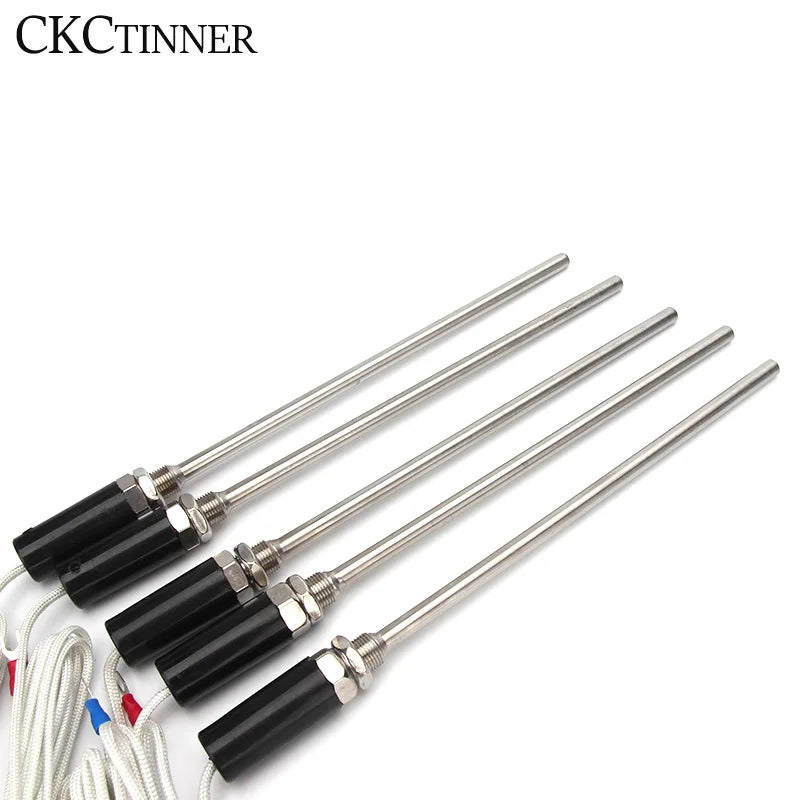

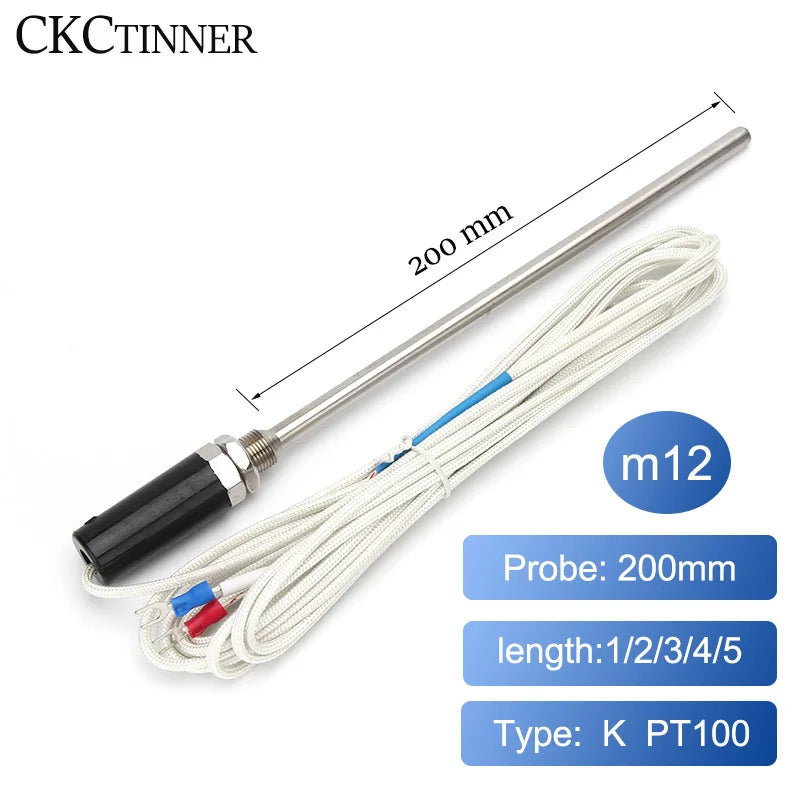

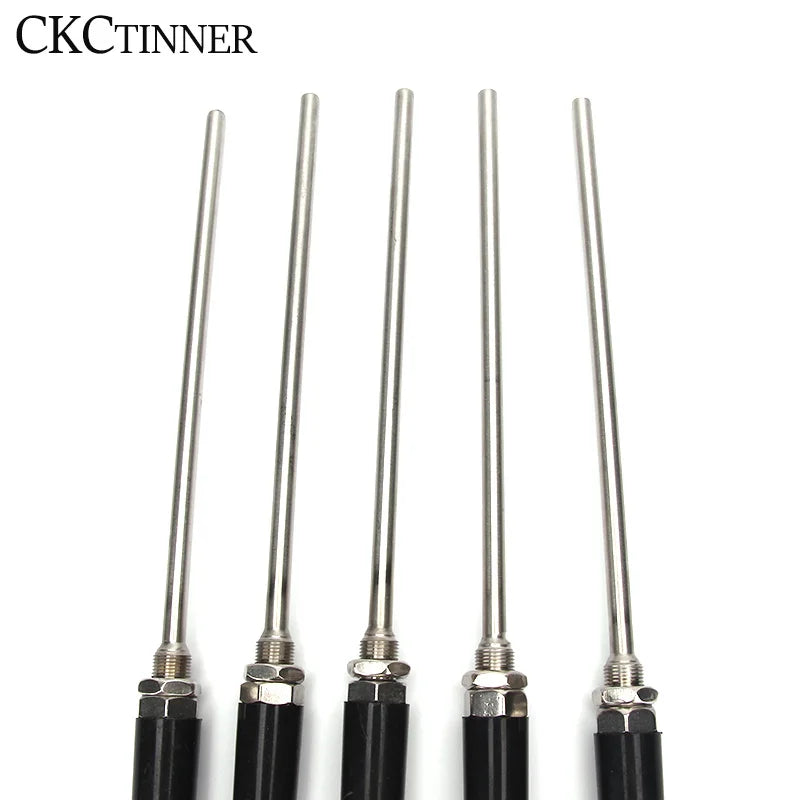

- Probe Length: 200 mm stainless-steel probe
- Thread Size: M12×1.5 — easy threaded installation into most standard ports
- Cable Insulation: Fiberglass inner insulation for heat-resistant performance

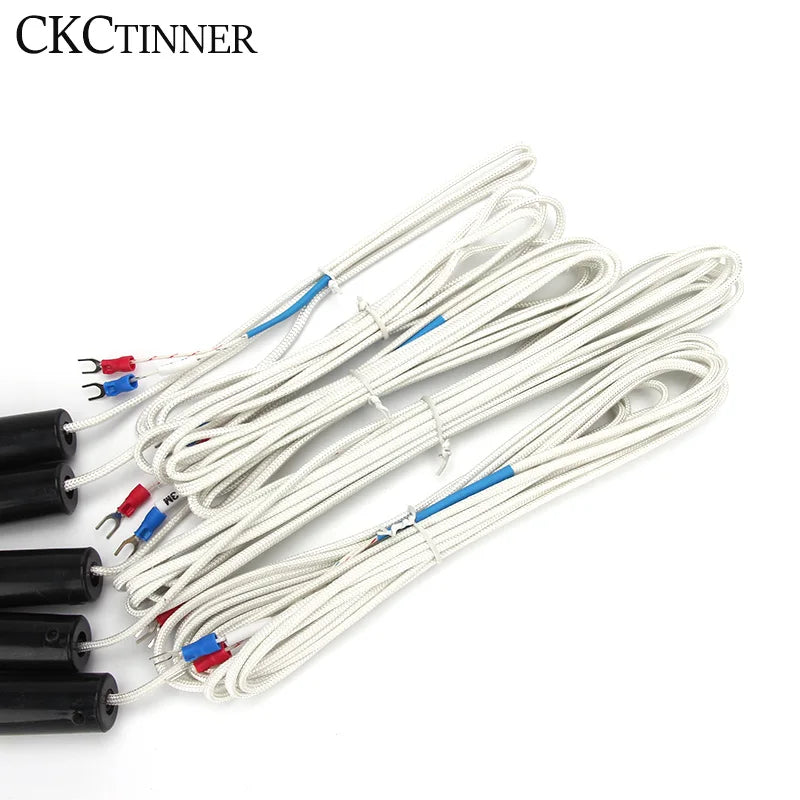

- Cable Lengths: Choose from 1 M, 2 M, 3 M, 4 M, or 5 M to suit your setup
- Certification: CE certified for quality assurance
- No battery required — passive sensor, connects directly to your temperature controller
Specifications at a Glance
| Sensor Type | Type K / PT100 |
| Thread | M12×1.5 |
| Probe Length | 200 mm |
| Operating Temperature | 0–600°C |
| Cable Insulation | Fiberglass |
| Cable Length Options | 1 M / 2 M / 3 M / 4 M / 5 M |
| Certification | CE |
| Country of Origin | Made in China |
What Is It Compatible With?
This thermocouple probe is compatible with most standard temperature controllers, PID controllers, data loggers, and industrial monitoring systems that accept Type K or PT100 inputs. It is ideal for use in ovens, kilns, 3D printers, HVAC systems, boilers, water heaters, and laboratory equipment.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the difference between Type K and PT100 thermocouple sensors?
A: Type K is a thermocouple sensor made from Nickel-Chromium/Nickel-Alumel alloys — it offers a wide temperature range and fast response, making it a popular choice for industrial use. PT100 is a resistance temperature detector (RTD) that uses a platinum element and generally offers slightly higher accuracy. Both types are available with this M12 200 mm screw probe. Contact customer service if you require Type E or CU50 variants.
Q: What cable length should I choose for my temperature controller setup?
A: Choose a cable length based on the distance between your probe mounting point and your temperature controller. Options range from 1 M (compact setups) to 5 M (larger installations or hard-to-reach mounting locations). The fiberglass insulation keeps the cable safe even in high-heat environments.
Q: Is this thermocouple probe compatible with standard PID temperature controllers?
A: Yes. This Type K / PT100 thermocouple screw probe is designed to connect directly to most standard PID controllers, data loggers, and temperature monitoring systems that support K-type or PT100 sensor inputs — no battery required.
Q: What thread size does this probe use for mounting?
A: The probe uses an M12×1.5 screw thread, which is a common standard thread size compatible with a wide range of industrial fittings, tanks, pipes, and equipment ports.
