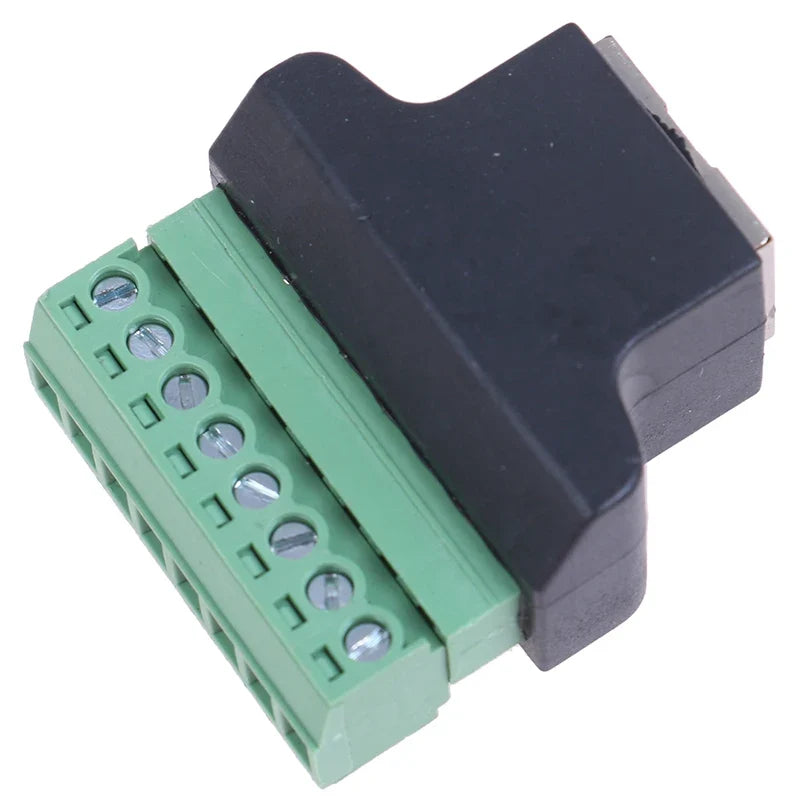

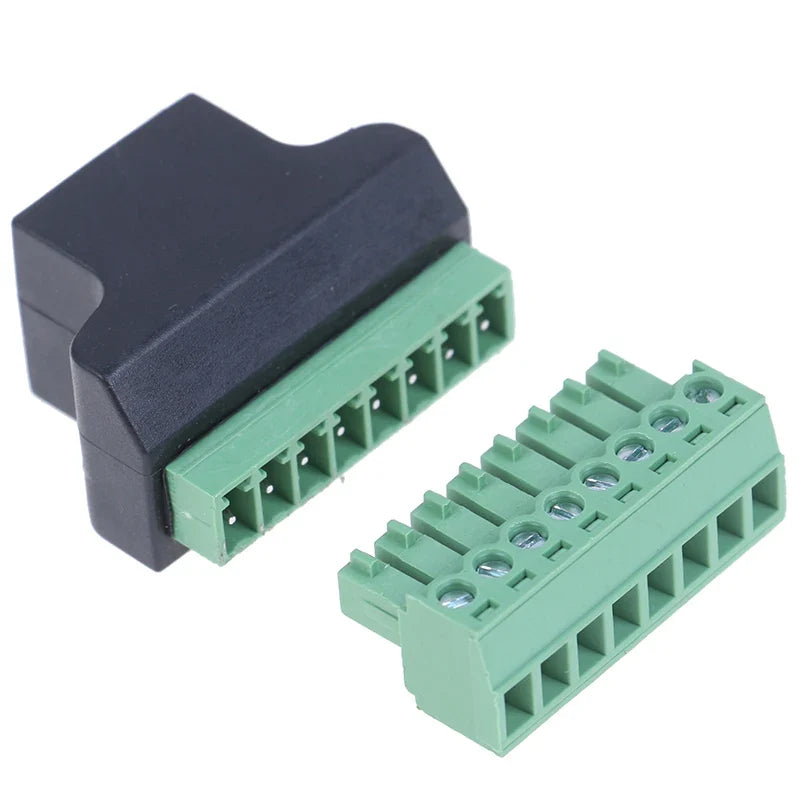

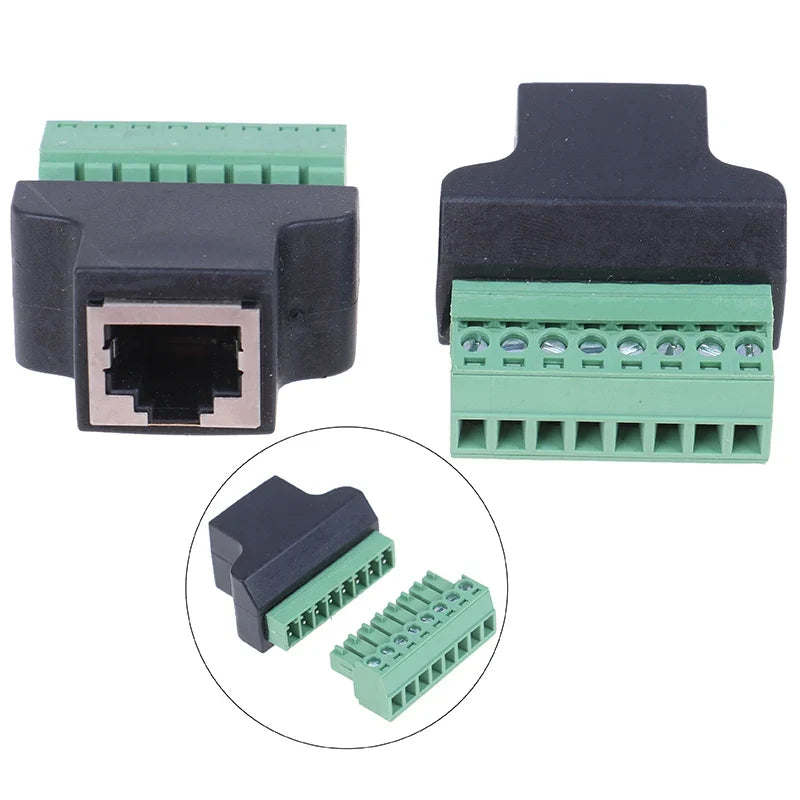

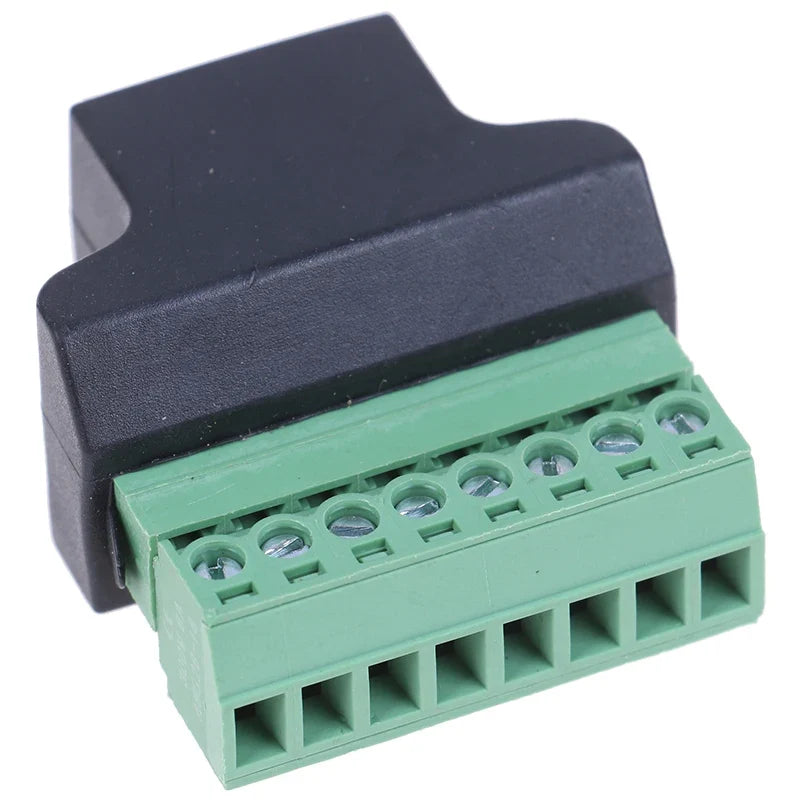

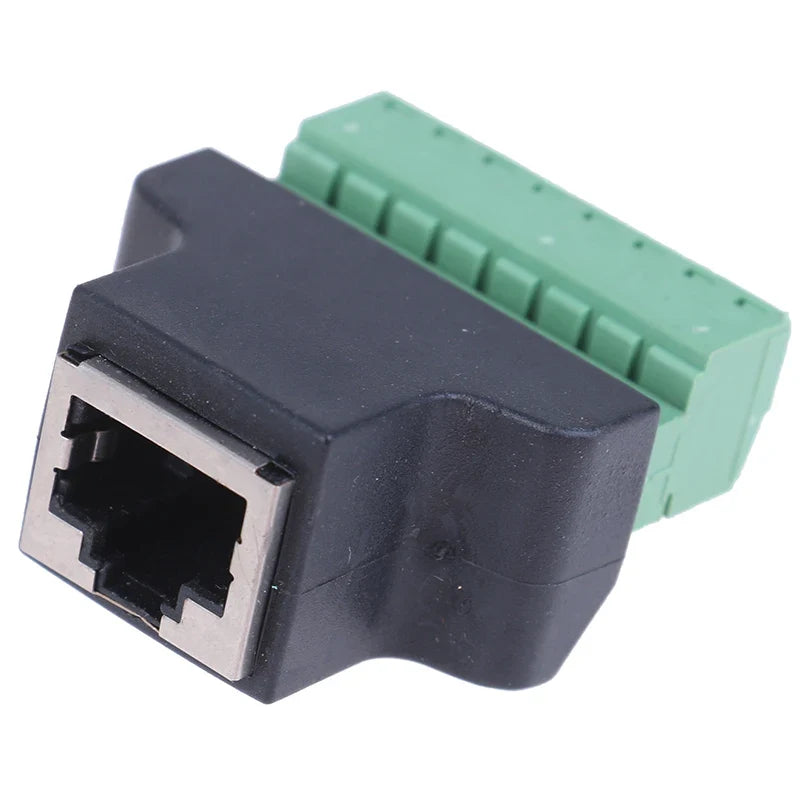

RJ45 Female to Screw Terminal Block Converter Adapter
Simplify your CCTV and DVR wiring with this compact RJ45 to Screw Terminal Adapter. Designed for structured cabling environments, this converter lets you connect an RJ45 female jack directly to an 8-position screw terminal block — making cable termination faster, neater, and more reliable. Made in Mainland China.
Key Features
- EIA/TIA 568B Wiring Standard: Pre-wired in accordance with industry-standard structured cabling specifications for accurate, consistent terminations.
- 8-Pin Screw Terminal Block: Each UTP conductor is landed on a clearly marked screw terminal, matching the corresponding RJ45 input channel for hassle-free installation.
- Heavy-Duty Construction: Built from durable plastic and metal for long-lasting, reliable connections in demanding surveillance and networking setups.
- Compatible with RJ45 Video Port Hubs: Works seamlessly with hubs, switches, and DVR systems that feature standard RJ45 video ports.
- No Assembly Required: Ready to use straight out of the box — simply plug in and connect your conductors to the terminals.
- Compact Size: Measures approximately 38 × 32 × 18 mm (1.50 × 1.26 × 0.71 in) — fits neatly in tight installation spaces.
Specifications
| Type | Cable Adapter / Screw Terminal Converter |
| Connector | RJ45 Female to 8-Pin Screw Terminal |
| Wiring Standard | EIA/TIA 568B |
| Material | Plastic + Metal |
| Color | Black + Green |
| Dimensions | 38 × 32 × 18 mm / 1.50 × 1.26 × 0.71 in (approx.) |
| Model Number | CA3C289 |
| Quantity | 1 x Adapter (no retail packaging) |
| Country of Origin | Made in Mainland China |
Package Includes
- 1 × RJ45 to Screw Terminal Converter Adapter
Note: Please allow 0–1 cm variance due to manual measurement. Actual color may vary slightly from images due to monitor differences. Accessories shown in demo images are not included.
You May Also Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What wiring standard does this RJ45 to screw terminal adapter use?
A: This adapter is wired in accordance with the EIA/TIA 568B structured cabling standard. Each of the 8 UTP conductors is landed on a clearly marked screw terminal corresponding to its RJ45 pin position, ensuring accurate and consistent terminations for CCTV and DVR installations.
Q: Is this adapter compatible with my CCTV DVR system?
A: Yes — this adapter is designed for use with digital DVR systems and hubs that feature standard RJ45 video ports. It converts the RJ45 female jack to an 8-pin screw terminal block, allowing you to connect UTP (unshielded twisted pair) cable conductors directly without a pre-terminated RJ45 plug.
Q: Does the adapter require any tools or assembly to use?
A: No assembly is required. Simply plug the RJ45 female port into your DVR or hub's RJ45 port, then tighten each conductor into the corresponding labeled screw terminal using a small flathead screwdriver. The adapter is compact enough to fit in tight installation spaces.
