Photocell Automatic Light Switch 105–305V 10A IP65 Outdoor
Photocell Automatic Light Switch 105–305V 10A IP65 Outdoor

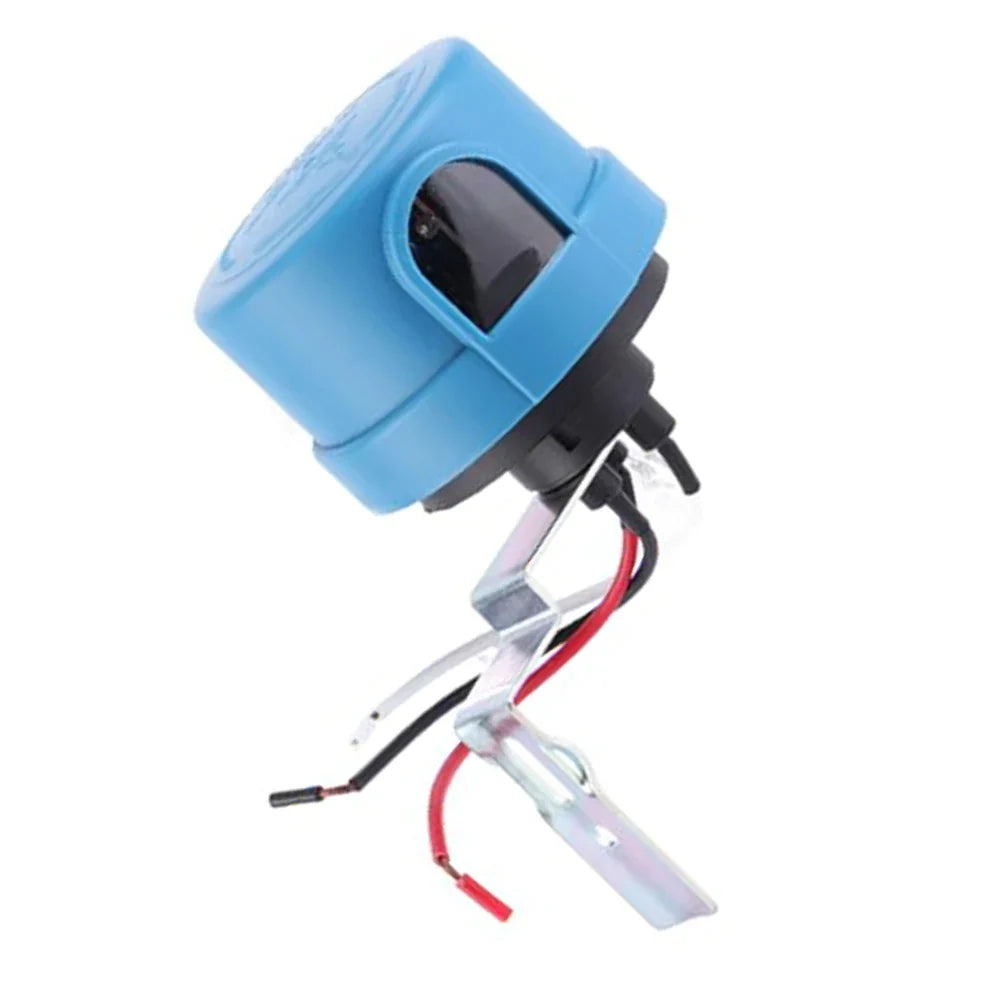

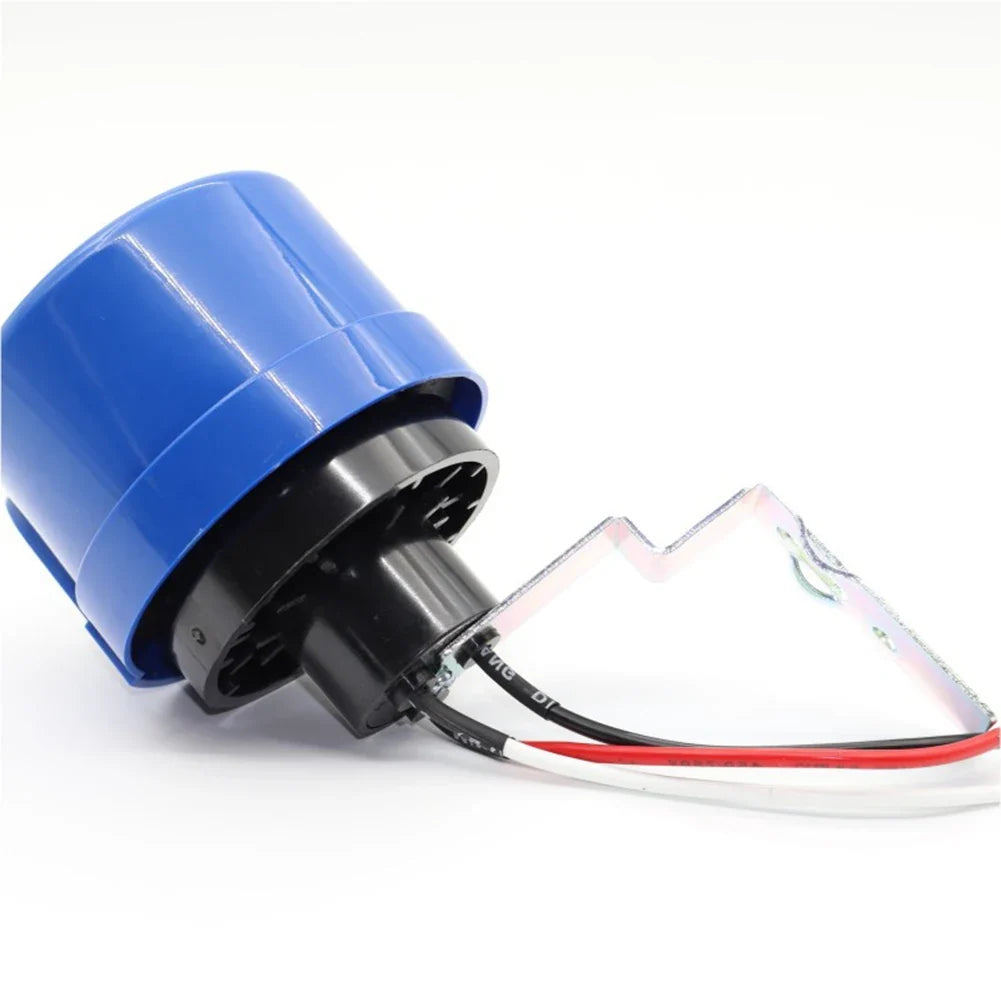

Axl Photocell Automatic Light Control Switch – IP65 Outdoor Rated
Take the guesswork out of outdoor lighting management. The Axl Photocell Automatic Light Control Switch uses a high-sensitivity light sensor to automatically switch your street lights, garden lights, or highway luminaires on at dusk and off at dawn — delivering consistent, hands-free operation and meaningful energy savings every single day.
Key Features
- Wide Voltage Compatibility: Operates across an input range of 105–305V AC, 50/60Hz, making it compatible with a broad range of global electrical systems.
- High-Capacity Rated Load: Supports a rated current of 10A and a load power of up to 1000W, suitable for demanding outdoor lighting setups.
- IP65 Weather Protection: The robust plastic shell carries an IP65 rating — fully dust-tight and protected against water jets — ensuring reliable year-round outdoor performance.
- Wide Operating Temperature Range: Engineered to function in extreme conditions from -40°C to +70°C, ideal for installations in harsh climates.
- 30-Second Delay Closing: Built-in 30-second delay prevents false triggering from brief light fluctuations such as car headlights or camera flashes.
- Twist-Lock Installation: Compact (80×54 mm) and lightweight design with a twist-lock mechanism for quick, tool-free disassembly and reinstallation.
- Versatile Applications: Ideal for street lights, highway lighting, garden and pathway lights, parking lots, and similar outdoor installations.
Specifications
| Input Voltage | 105–305V AC, 50/60Hz |
| Rated Current | 10A |
| Load Power | 1000W max |
| Protection Class | IP65 |
| Operating Temperature | -40°C to +70°C |
| Output Type | Switching output |
| Delay Closing Time | 30 seconds |
| Material | Plastic |
| Size | 80 × 54 mm |
| Color | Blue |
Package Contents
- 1 × Photocell Automatic Light Control Switch
Made in Mainland China.
Please Note: Review specifications carefully before purchase to confirm compatibility with your lighting system's voltage and load requirements. Slight color differences may occur due to monitor settings. Allow minor measurement tolerances for listed dimensions.
You May Also Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage range does this photocell automatic light switch support?
A: This photocell switch supports a wide input voltage range of 105–305V AC at 50/60Hz, making it compatible with most residential, commercial, and street lighting systems around the world.
Q: Is this photocell switch suitable for outdoor use in all weather conditions?
A: Yes. The switch carries an IP65 protection rating, meaning it is fully sealed against dust and resistant to water jets. Combined with an operating temperature range of -40°C to +70°C, it is built to handle demanding outdoor environments year-round.
Q: How does the 30-second delay work, and why is it important?
A: The built-in 30-second delay closing feature prevents the switch from toggling on and off due to brief, temporary light sources such as passing car headlights or flashlights. This protects your lighting fixtures from unnecessary switching cycles and extends their operational life.
Q: How is the photocell switch installed?
A: The switch features a twist-lock mechanism that allows for fast, tool-free installation and removal. Its compact 80×54 mm footprint fits standard mounting sockets commonly used in street light and outdoor fixture installations.
