NE555 Doorbell DIY Kit – Dual Tone PCB Soldering Practice

NE555 Dual Tone Doorbell DIY Soldering Kit

Build your own classic "ding dong" doorbell from scratch with this complete NE555-based DIY electronics kit. Designed for hobbyists, students, and electronics enthusiasts, this hands-on soldering practice kit comes with all the components you need to assemble a fully functional dual-tone doorbell circuit on a pre-etched PCB. Whether you're sharpening your soldering skills or exploring timer IC circuits for the first time, this kit makes learning electronics engaging and rewarding.

Key Features

• NE555 Timer IC Core: Classic and reliable timer IC powers the dual-tone sound generation circuit — a staple component for any electronics toolkit.
• Dual Tone Ding Dong Sound: Produces a satisfying two-tone chime output, just like a traditional doorbell.

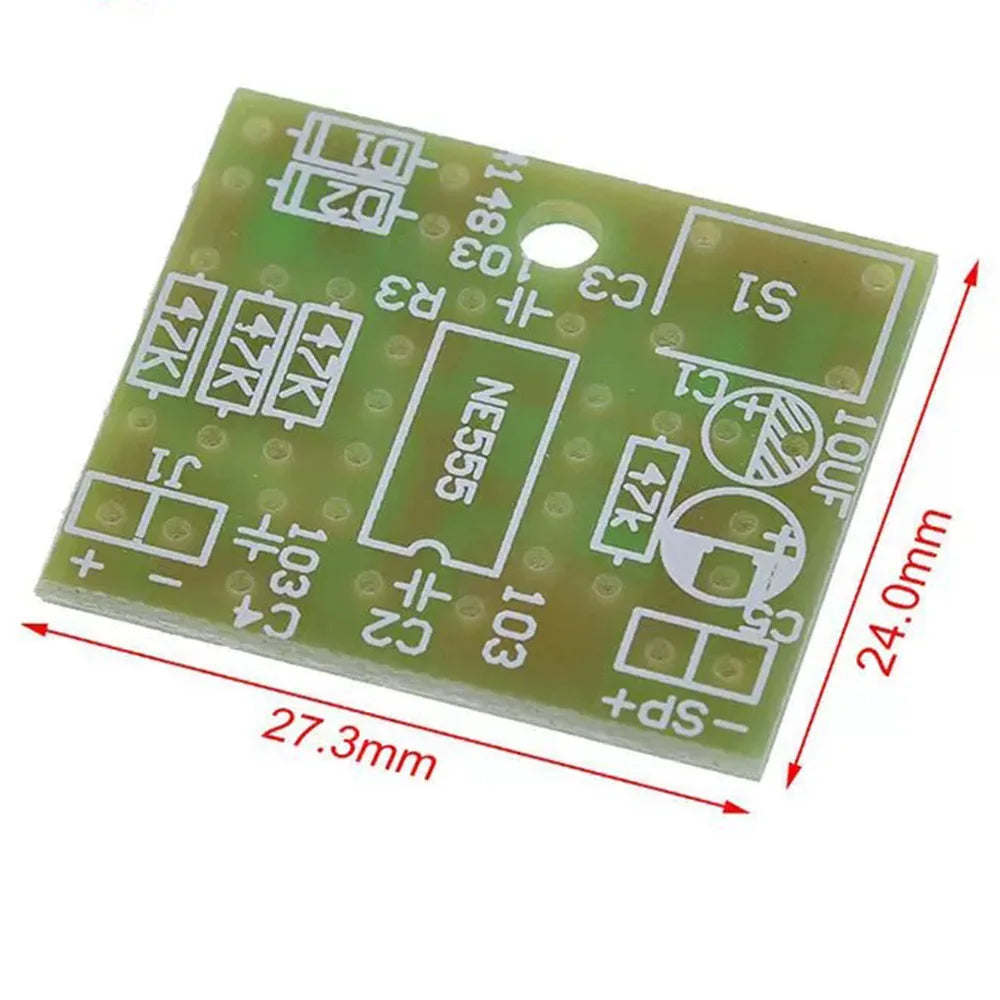

• PCB Soldering Practice: Pre-etched PCB with clearly labeled component placement guides — ideal for beginners and intermediate builders alike.
• Complete Component Set: All resistors, capacitors, transistors, the NE555 IC, speaker, and other necessary parts are included — nothing extra to buy.
• Educational & Fun: Perfect for electronics courses, maker projects, school experiments, or weekend hobby builds.
• Compact & Practical: Once assembled, the circuit functions as a real working doorbell you can install or use as a demo unit.

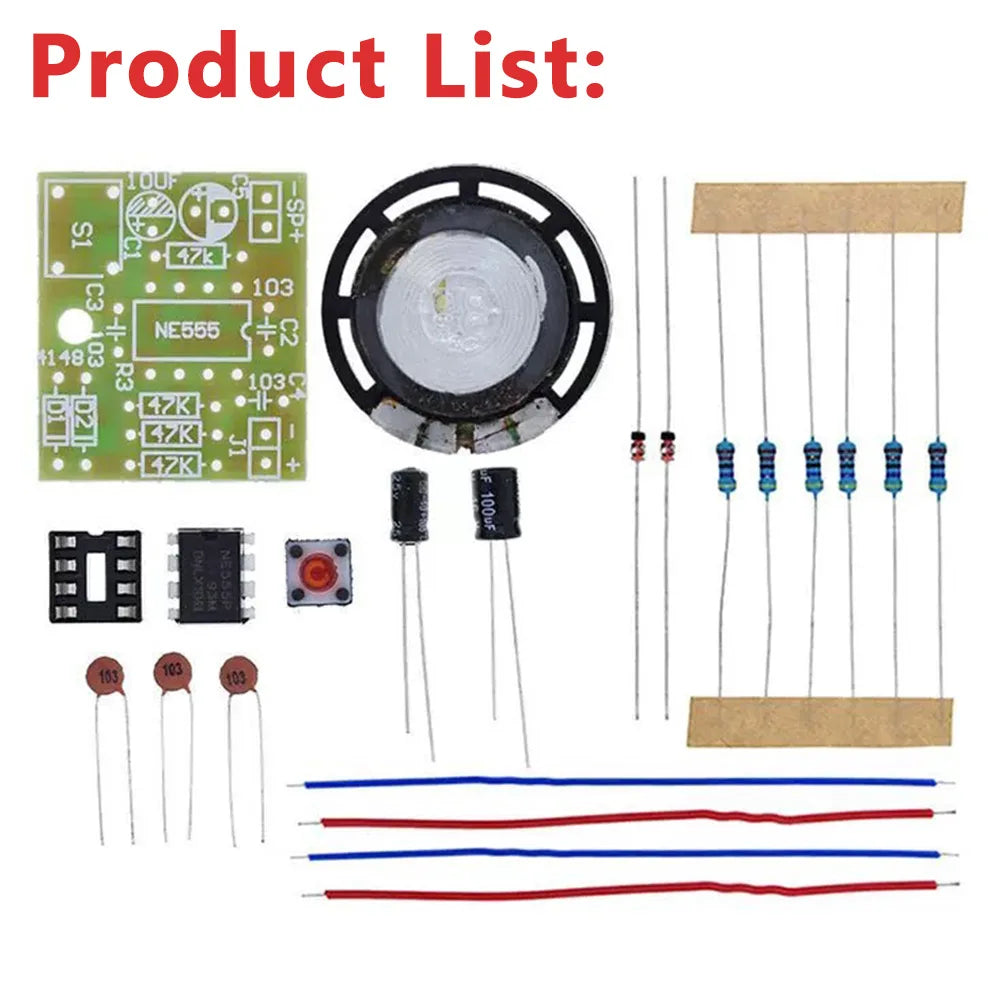

What's in the Box

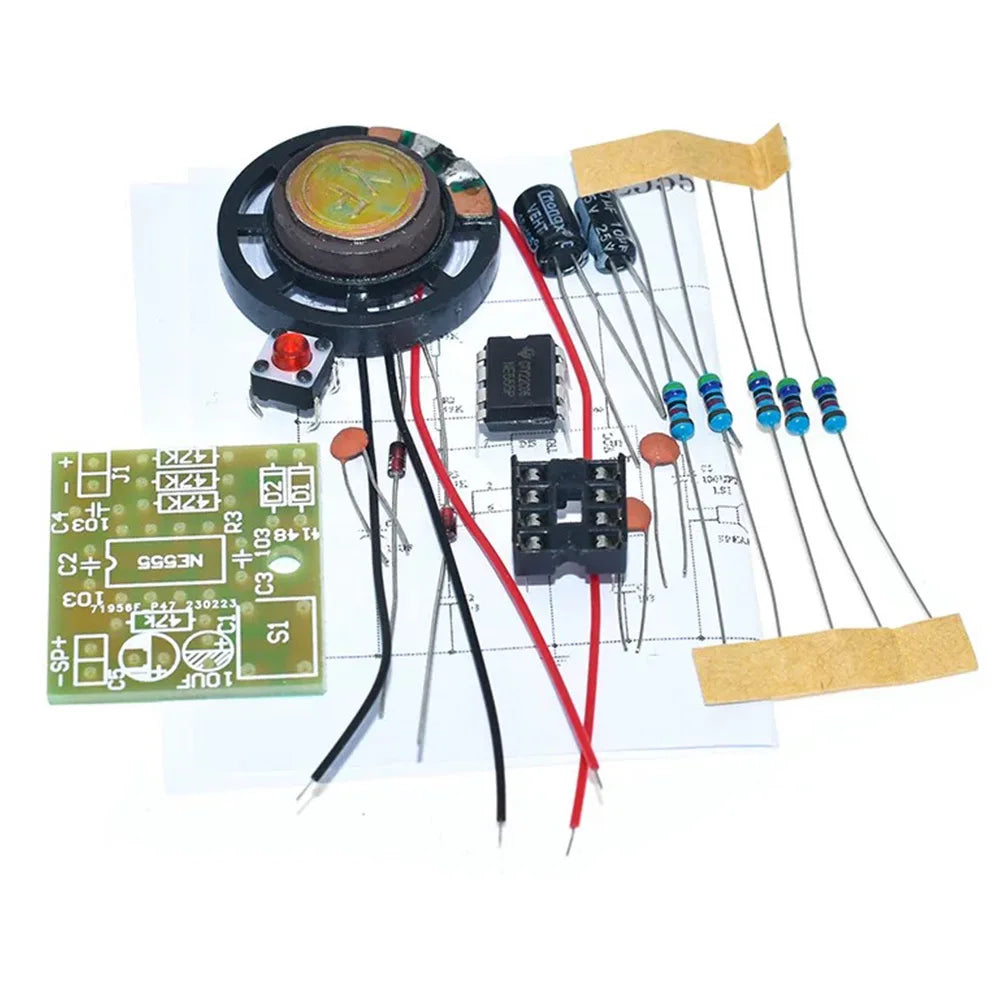

• Pre-etched PCB board
• NE555 timer IC
• Resistors, capacitors, and transistors (as per circuit requirements)
• Miniature speaker
• Push-button switch
• All additional components for complete assembly

Specifications

• Circuit Type: NE555 Dual Tone Doorbell
• Sound Output: Dual Tone (Ding Dong)
• Condition: New
• High-Concern Chemicals: None
• Country of Origin: Made in China

Great for Learners & Makers

This kit is a fantastic starting point for anyone looking to develop practical PCB soldering skills. The NE555 timer is one of the most iconic and widely studied integrated circuits in electronics — assembling this doorbell circuit gives you real-world experience with oscillator design, RC timing networks, and audio output stages. It also makes a thoughtful gift for young engineers or tech-curious students.

Explore more hands-on DIY and hobby kits in our store. You might also enjoy the Electromagnetic Induction Tester – Coil & Circuit Fault Detector for testing your finished circuits, or pick up the 18 Pc Basswood Carving Blocks – Whittling Wood Kit for Carvers for another hands-on creative project.

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: Is this NE555 doorbell DIY kit suitable for beginners?

A: Yes! The kit is designed with beginner-to-intermediate soldering practitioners in mind. The PCB has clearly labeled component positions, making it straightforward to follow along even if you're new to PCB soldering. Basic soldering experience is helpful, but the kit is an excellent learning tool for those just starting out with electronics.

Q: Does the NE555 doorbell kit come with all components needed for assembly?

A: Yes, this is a complete kit. It includes the NE555 timer IC, resistors, capacitors, transistors, a miniature speaker, a push-button switch, and the pre-etched PCB — everything required to build a fully functional dual-tone doorbell circuit. No additional components are needed.

Q: What power source does the assembled NE555 doorbell circuit use?

A: The NE555 doorbell circuit is typically powered by a standard DC power supply or battery (commonly 5V–12V DC). Please refer to the component values included in your kit for the recommended operating voltage for your specific build.
