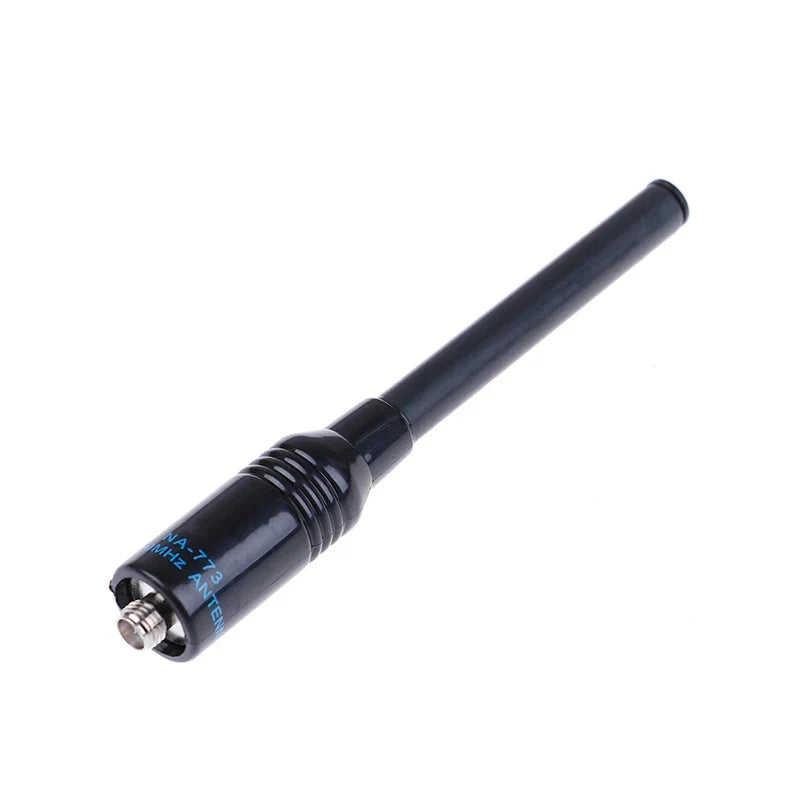

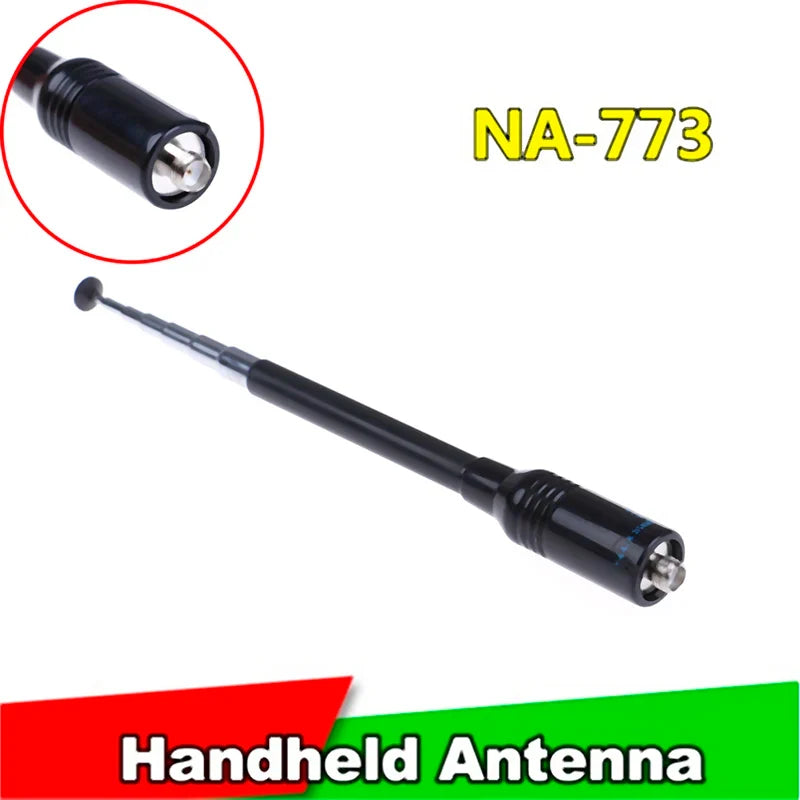

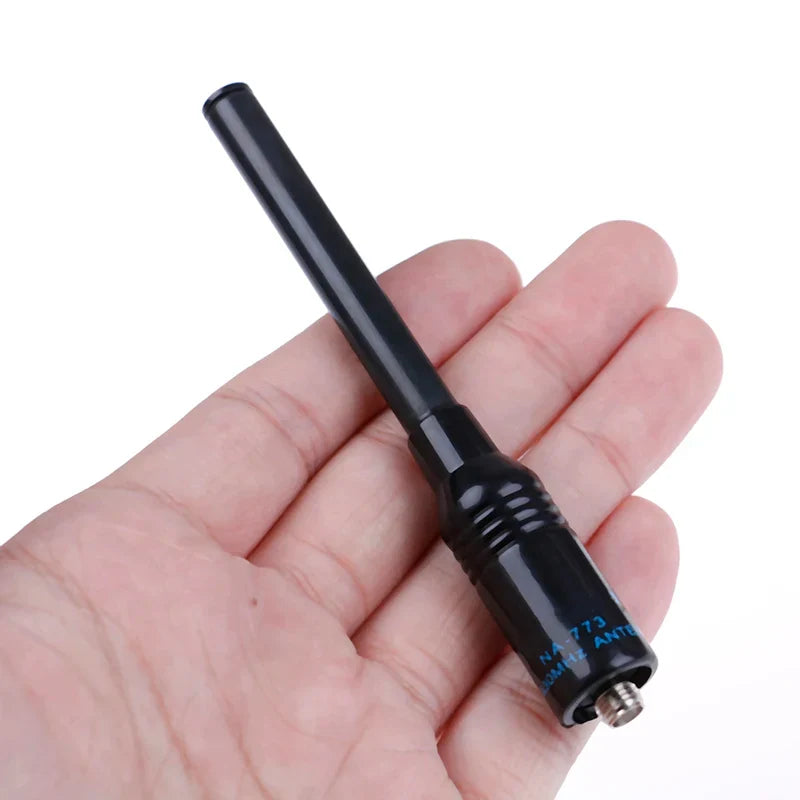

Nagoya NA-773 Dual Band Telescopic Antenna – SMA-F Connector
Upgrade your handheld two-way radio with the Nagoya NA-773 Dual Band Telescopic Antenna. Designed for 144/430 MHz operation, this flexible telescopic antenna delivers improved signal clarity and extended range compared to standard stock antennas. Whether you're an amateur radio operator, outdoor enthusiast, or communication professional, the NA-773 is a trusted upgrade for a wide range of popular handhelds.
Key Features
- Dual Band Coverage: Operates on 144 MHz (VHF) and 430 MHz (UHF) for versatile communication
- SMA-F (SMA Female) Connector: Compatible with Baofeng UV-5R, UV-5RE, BF-888S, Quansheng TG-UV2, Kenwood TK3107, TK3207, and more

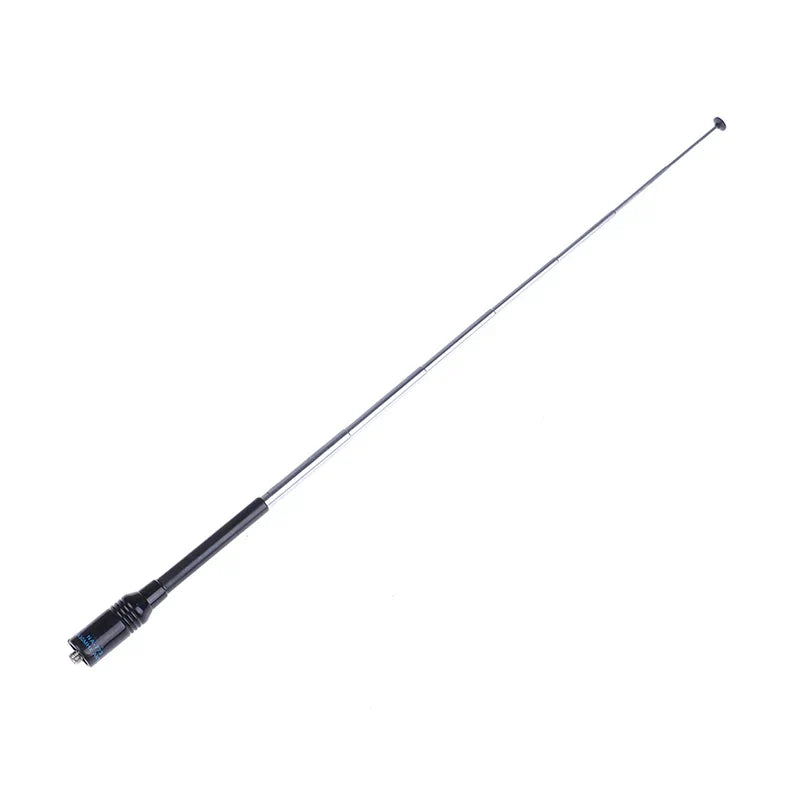

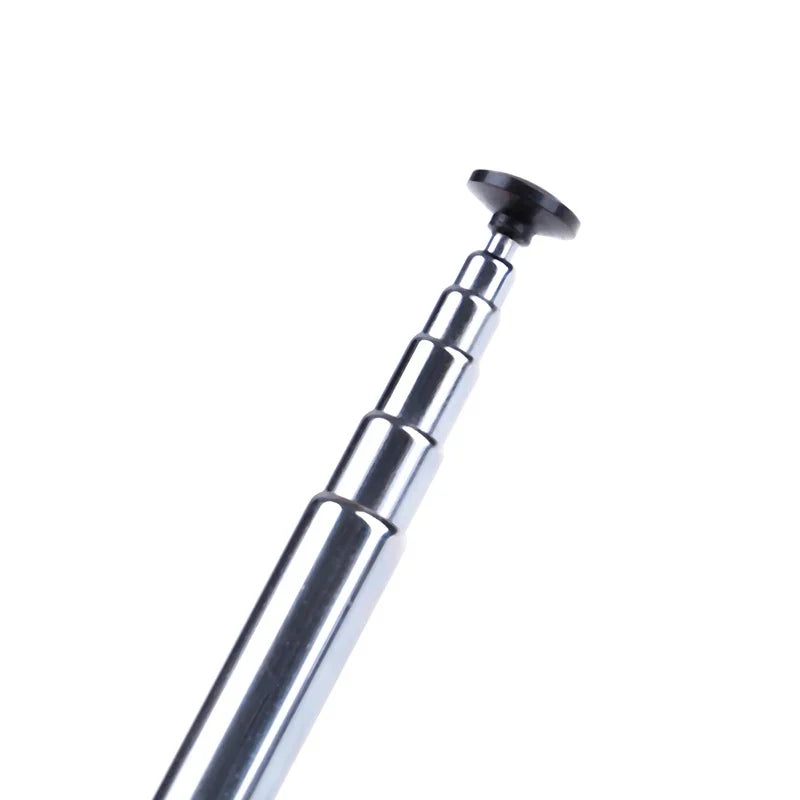

- Telescopic Design: Extends from 11 cm to 34.5 cm for flexible, on-the-go use
- 2.15 dBi Gain: Noticeably better signal performance than factory antennas
- Max Power Handling: Up to 50 Watts
- Low VSWR: Less than 1.5 for efficient power transfer and minimal signal loss
- Durable Build: Sturdy construction designed to withstand regular field use
Specifications
| Model | Nagoya NA-773 |
| Connector Type | SMA-F (SMA Female) |
| Frequency | 144 / 430 MHz |
| Gain | 2.15 dBi |
| Max Power | 50 Watts |
| VSWR | < 1.5 |
| Collapsed Length | 11 cm |
| Extended Length | 34.5 cm |
| Package Contents | 1 x Nagoya NA-773 Antenna |
| Country of Origin | Made in Mainland China |
Compatible Radios
This antenna is compatible with a wide range of SMA-F handheld transceivers, including but not limited to:
- Baofeng UV-5R, UV-5RE, BF-888S
- Quansheng TG-UV2
- Kenwood TK3107, TK3207
- Most other handheld two-way radios with an SMA-F port
Explore More Products
Looking for other useful tools and accessories? Check out our Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool or our Electromagnetic Induction Tester – Coil & Circuit Fault Detector for your workshop needs.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Is the Nagoya NA-773 antenna compatible with Baofeng UV-5R radios?
A: Yes! The Nagoya NA-773 features an SMA-F (SMA Female) connector, making it fully compatible with the Baofeng UV-5R, UV-5RE, BF-888S, and many other popular handheld two-way radios that use the SMA-F port.
Q: What frequency bands does the Nagoya NA-773 support?
A: The NA-773 is a dual band antenna that supports both 144 MHz (VHF) and 430 MHz (UHF) frequencies, giving you coverage across the two most commonly used amateur and commercial handheld radio bands.
Q: How long is the Nagoya NA-773 telescopic antenna when extended?
A: The antenna collapses to a compact 11 cm for easy carrying and extends up to 34.5 cm for optimized signal reception and transmission in the field.
