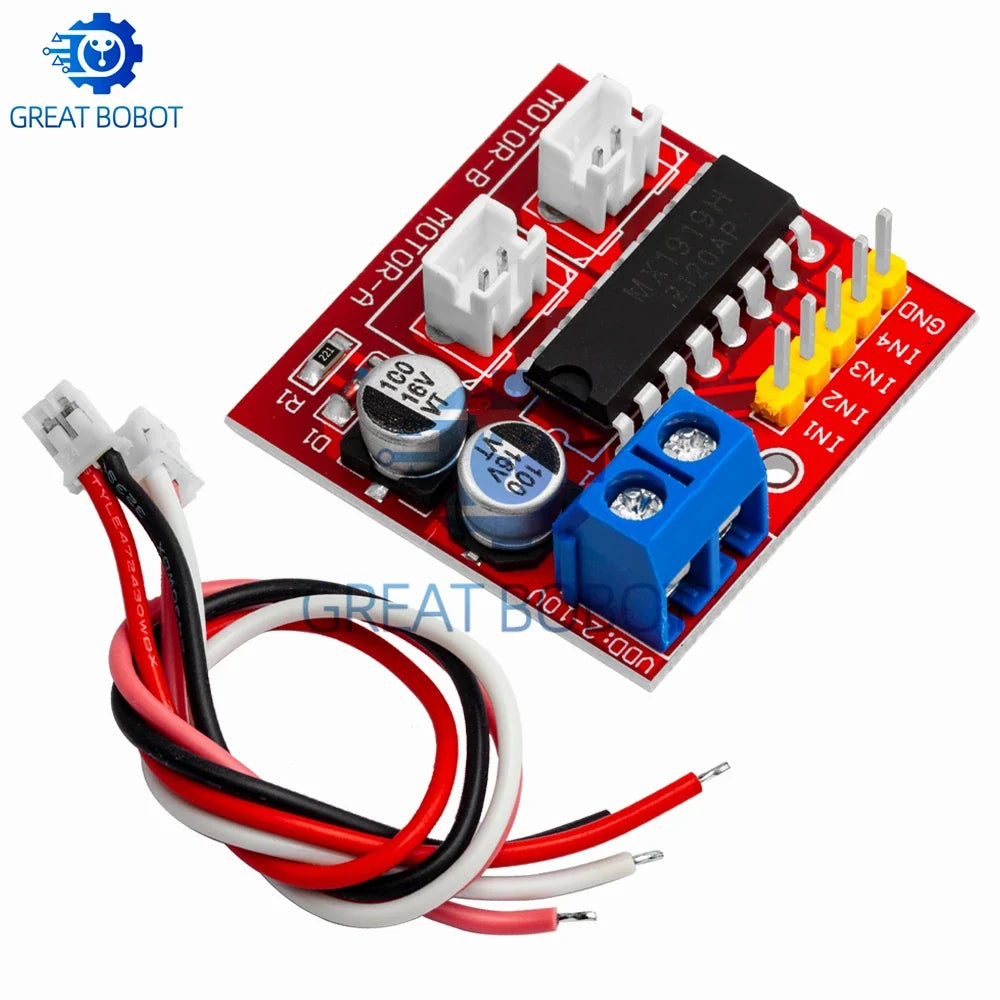

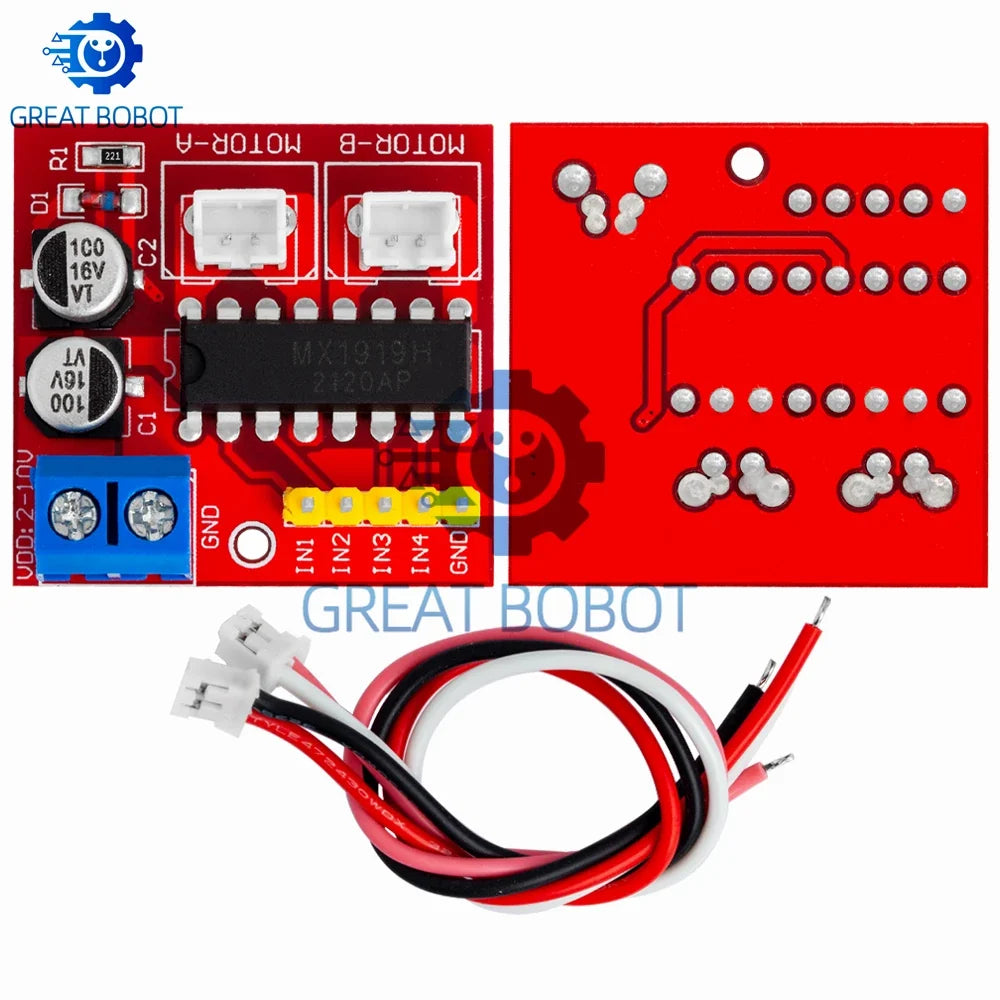

MX1919 2.5A Dual H-Bridge Brushed DC Motor Driver Board
Take your robotics and electronics projects to the next level with this compact, low-power MX1919 Dual H-Bridge DC Motor Drive Controller Module. Designed for makers, hobbyists, and engineers alike, this versatile board lets you control two brushed DC motors independently — perfect for Arduino-based smart cars, robotic arms, automated systems, and DIY electronics builds.
With a wide operating voltage range of 2V–10V and a continuous current capacity of 2.5A per channel, the MX1919 module delivers reliable, efficient motor control in a small SMD form factor. Its low standby power consumption makes it an excellent choice for battery-powered projects where efficiency counts.
Made in Mainland China.
Key Features
- Dual H-Bridge Design: Independently control direction and speed of two DC motors simultaneously
- 2.5A Continuous Output: Handles a wide range of small to mid-size brushed DC motors with ease
- Wide Supply Voltage: Operates from 2V to 10V — compatible with common battery packs and power supplies
- Low Power Consumption: Efficient MX1919 chipset minimises idle current draw, extending battery life
- Wide Operating Temperature: Rated from -40°C to 80°C for reliable performance in varied environments
- SMD Package: Compact board footprint fits neatly into your project enclosure or breadboard setup
- Arduino & Microcontroller Compatible: Integrates seamlessly with Arduino, Raspberry Pi, STM32, and similar platforms
- No High-Concern Chemicals: Built with safe, RoHS-compliant components

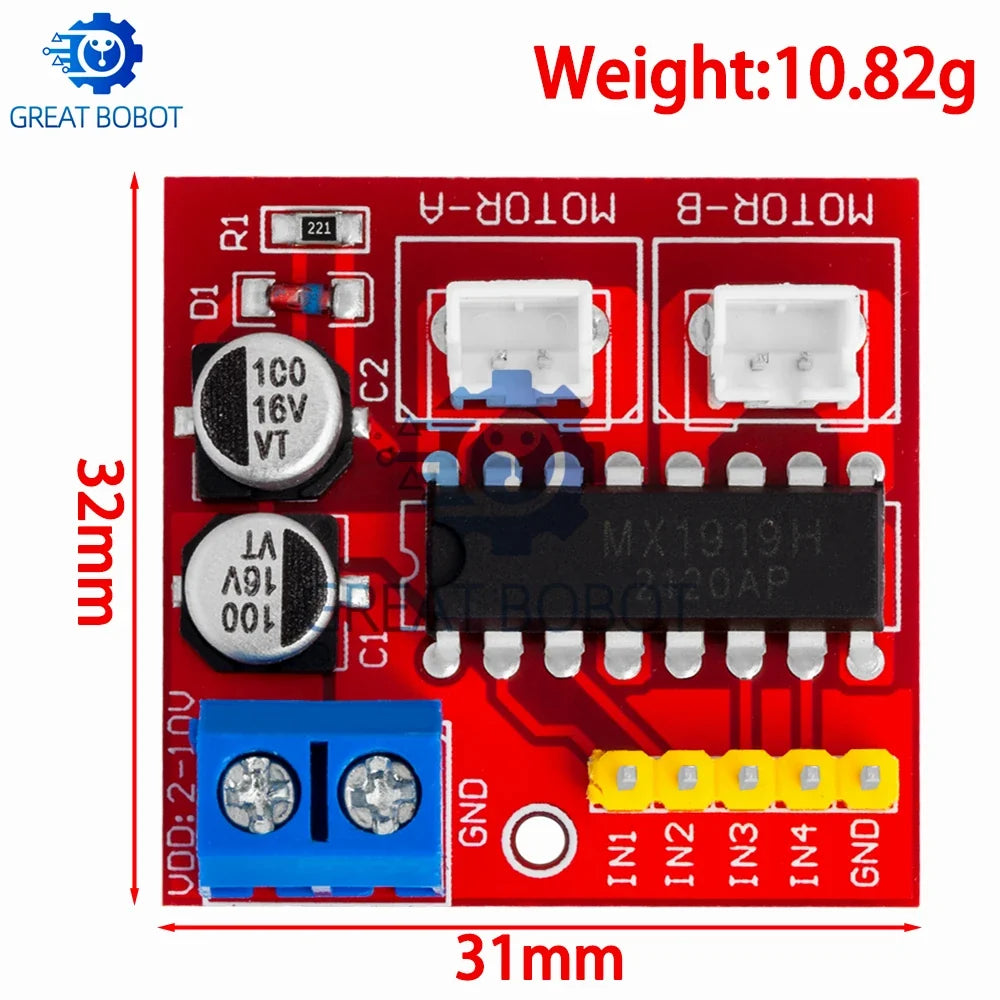

Specifications
- Model: MX1919
- Driver Type: Dual H-Bridge (Brushed DC)
- Supply Voltage: 2V – 10V
- Continuous Current: 2.5A per channel
- Operating Temperature: -40°C to 80°C
- Package Type: SMD
- Quantity: 1 Module
- Condition: Brand New
- Origin: Mainland China
Ideal For
- Arduino and microcontroller-based smart car projects
- DIY robotics and automated rover builds
- Conveyor belt and actuator control systems
- RC vehicle motor control
- Educational electronics and STEM kits
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What types of motors is the MX1919 DC motor driver module compatible with?
A: The MX1919 module is specifically designed for brushed DC motors. It supports dual-motor control via its dual H-bridge configuration, making it ideal for Arduino smart cars, robots, and any project requiring bi-directional control of two independent brushed DC motors.
Q: What is the operating voltage range of the MX1919 motor driver board?
A: The MX1919 motor driver board operates on a supply voltage of 2V to 10V, making it compatible with standard 3.7V LiPo batteries, 5V USB power banks, and common 9V battery packs — great flexibility for portable and battery-powered builds.
Q: Is this motor driver module compatible with Arduino?

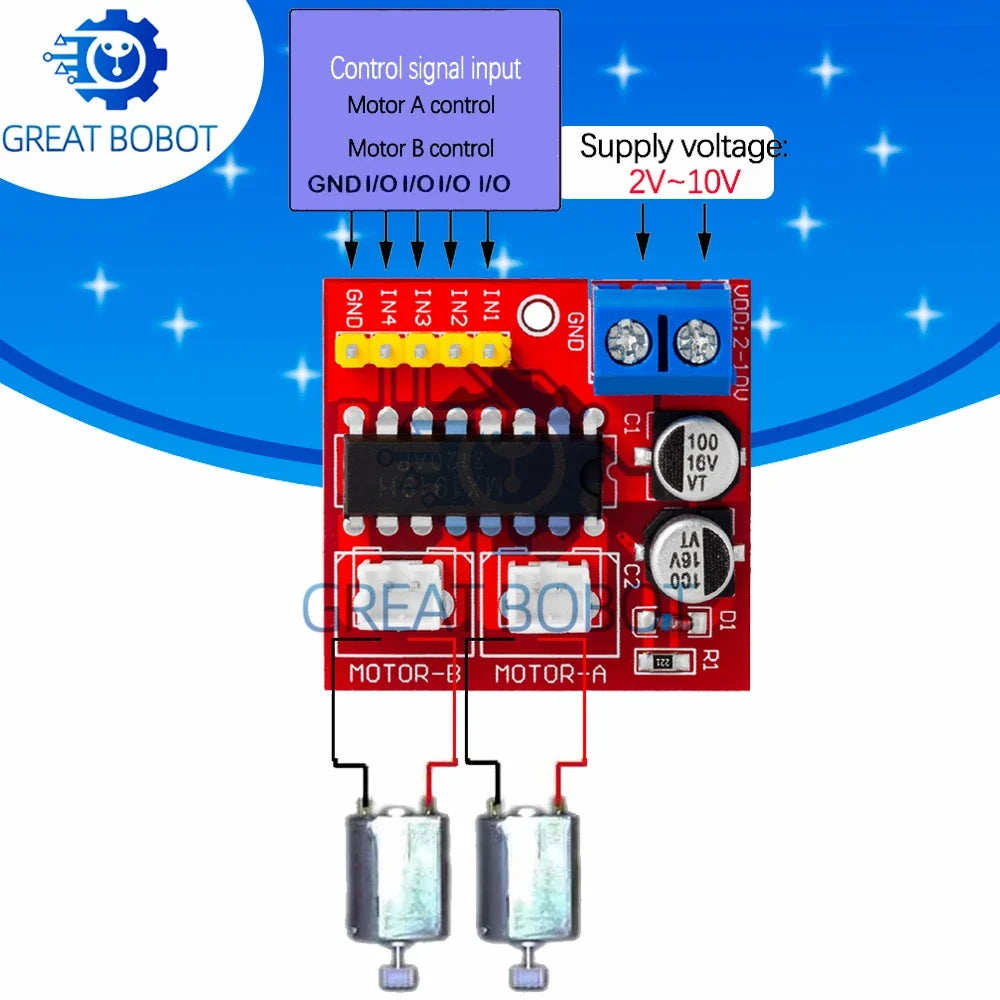

A: Yes! The MX1919 dual H-bridge module is fully compatible with Arduino, as well as other popular microcontroller platforms such as Raspberry Pi, STM32, and ESP32. Simply connect the control input pins to your microcontroller's digital output pins and you're ready to go.
Q: How many motors can the MX1919 module control at once?
A: The MX1919 features a dual H-bridge design, allowing it to independently control two brushed DC motors simultaneously — including forward, reverse, and speed (via PWM) for each motor channel.
