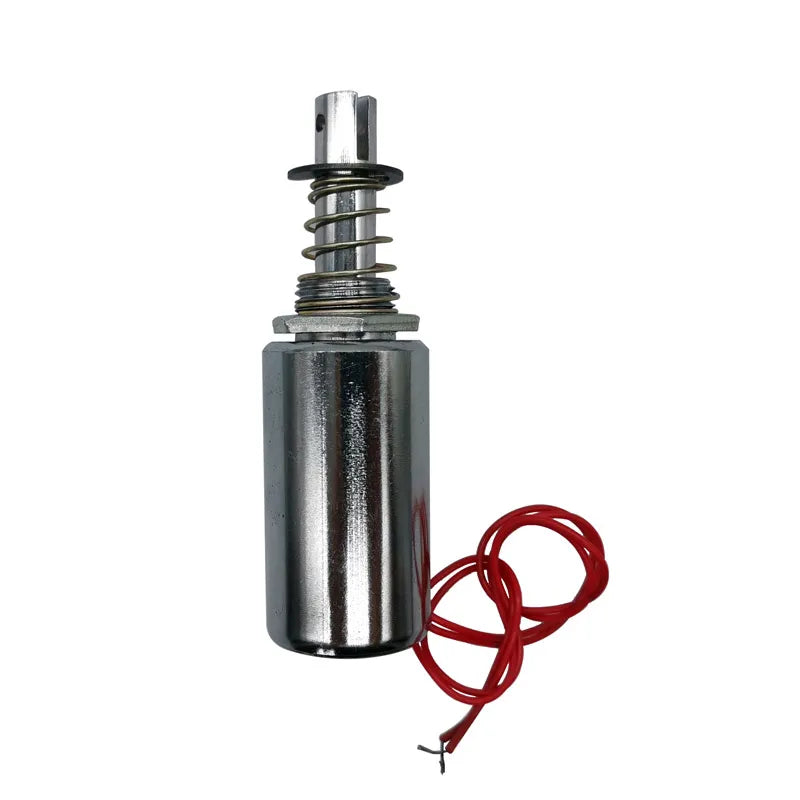

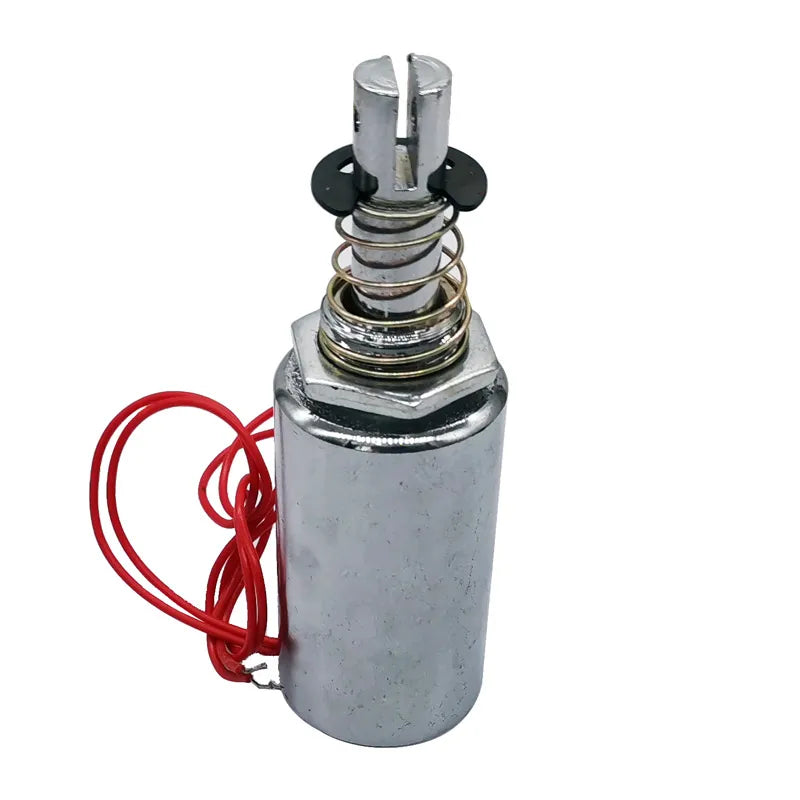

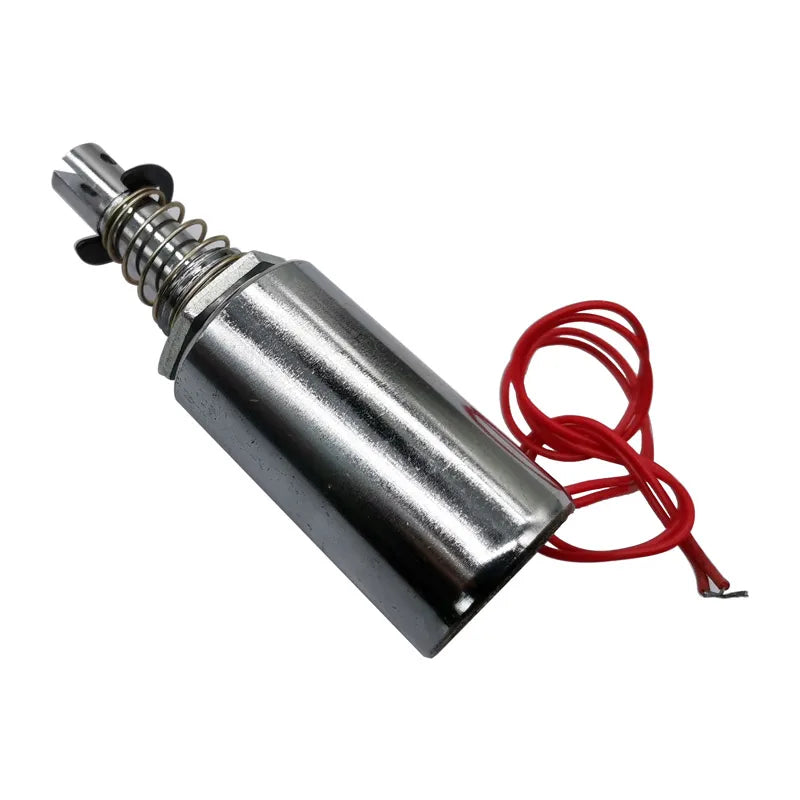

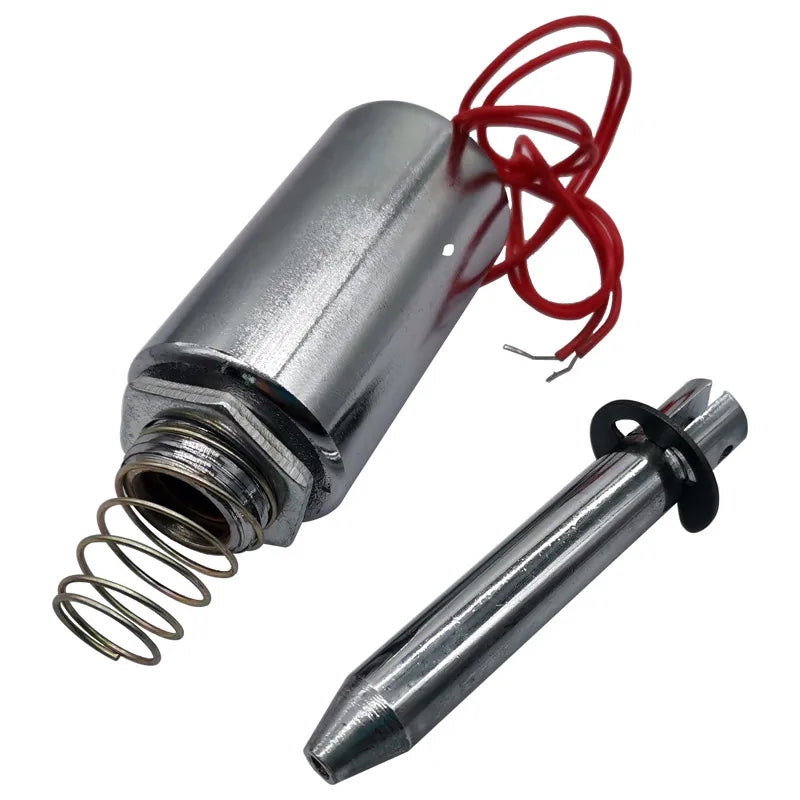

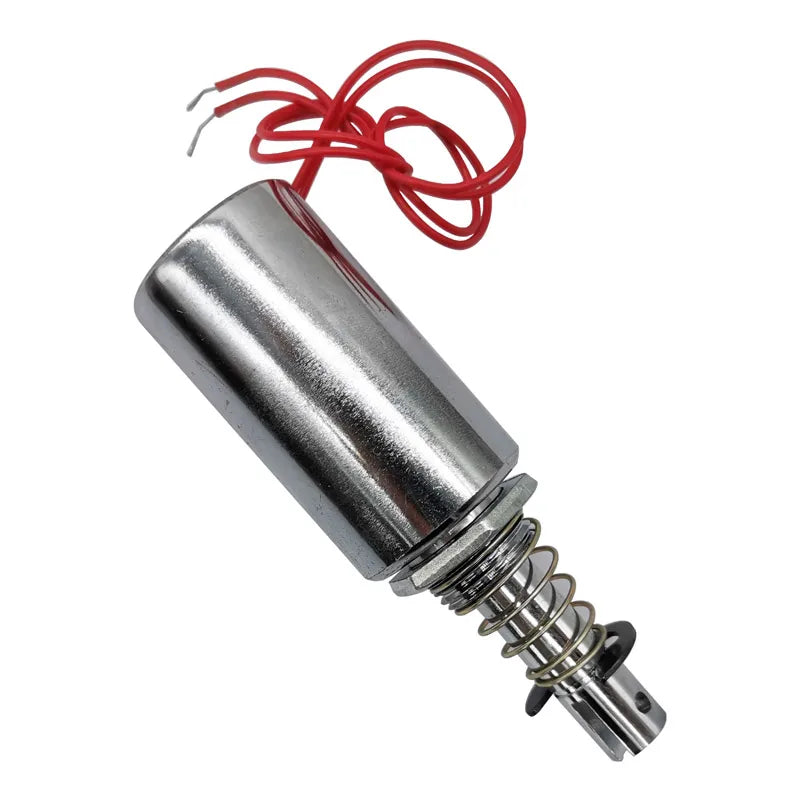

MQ8-Z12 12V/24V Pull Type Tubular Solenoid Electromagnet
MQ8-Z12 12V/24V Pull Type Tubular Solenoid Electromagnet
MQ8-Z12 DC 12V/24V Pull-Type Tubular Solenoid Electromagnet
The MQ8-Z12 Linear Motion Tubular Solenoid Electromagnet is a compact, reliable pull-type actuator designed for intermittent automation tasks. Operating on either 12V DC or 24V DC, this stick-shaped solenoid delivers strong initial pull force in a slim 26mm diameter housing — perfect for locking mechanisms, dispensing systems, automated jigs, robotics, and DIY electronic projects.
Key Specifications
- Model: MQ8-Z12
- Operating Voltage: 12V DC / 24V DC
- Stroke: 15 mm
- Force at 0 mm: 2.2 kg / 22 N
- Force at 15 mm: 1 kg / 10 N
- Electricity Rate (ED): 20%
- Diameter: 26 mm
- Shape: Stick / Tubular
⚠️ Important Note: Due to its 20% Electricity Rate (ED), this solenoid is designed for intermittent (jog) operation only. Do not operate continuously without adequate cool-down cycles to avoid overheating.
Why Choose the MQ8-Z12 Solenoid?
- Dual Voltage Compatibility: Works with both 12V DC and 24V DC systems for flexible integration.
- Strong Pull Force: Delivers up to 2.2 kg (22 N) at 0 mm stroke — ideal for locking and actuating tasks.
- Compact Tubular Design: The 26 mm diameter stick form factor fits easily into tight enclosures and custom builds.
- Versatile Applications: Suitable for automated locks, vending machines, gates, alarms, robotics, and electronic hobby projects.
- Easy Integration: Standard DC voltage input makes wiring straightforward for engineers and makers alike.
Made in Mainland China.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Can the MQ8-Z12 solenoid electromagnet be used continuously?
A: No. The MQ8-Z12 has an Electricity Rate (ED) of 20%, which means it is rated for intermittent (jog) operation only. It must be allowed to cool down between cycles. Continuous operation without adequate rest intervals may cause overheating and damage to the solenoid.
Q: What is the pull force of the MQ8-Z12 solenoid at different stroke positions?
A: At 0 mm stroke (fully retracted), the solenoid delivers a pull force of approximately 2.2 kg (22 N). At the full 15 mm stroke, the force is approximately 1 kg (10 N). Force decreases as the plunger extends further from the core.
Q: Is the MQ8-Z12 compatible with both 12V and 24V DC systems?
A: Yes. The MQ8-Z12 tubular solenoid supports both 12V DC and 24V DC operating voltages, making it flexible for a wide range of automation, electronics, and DIY applications.
Q: What are typical use cases for this pull-type tubular solenoid electromagnet?
A: This solenoid is commonly used in automated door locks, vending and dispensing machines, gate latches, alarm systems, robotics, electronic hobby projects, and industrial jig automation where intermittent linear motion actuation is required.
