Metal Alloy DC Motor Fixing Bracket – 40mm, 42mm, 45mm & 48mm Spindle Base

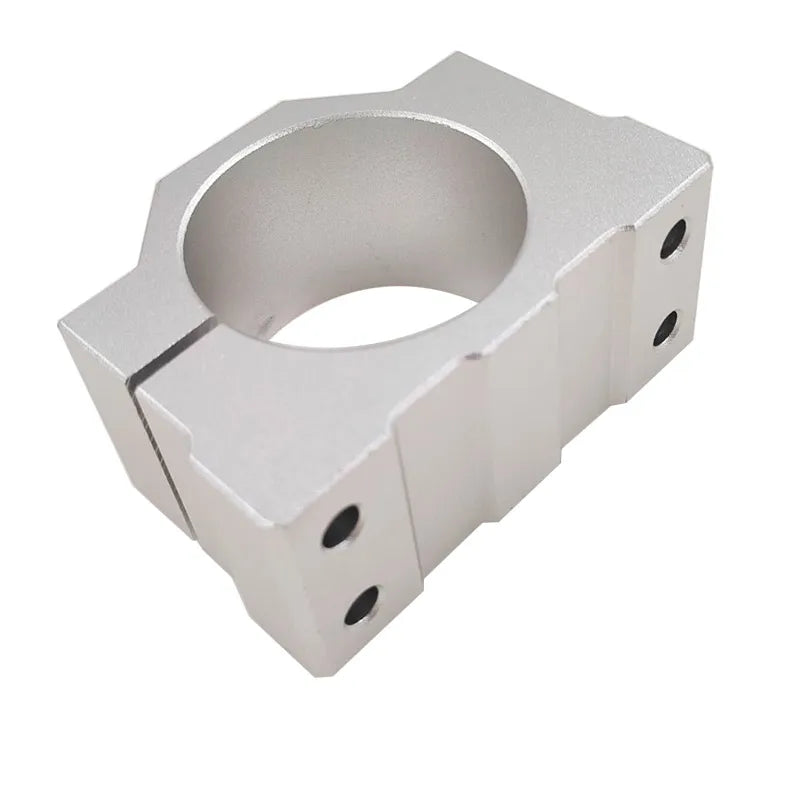

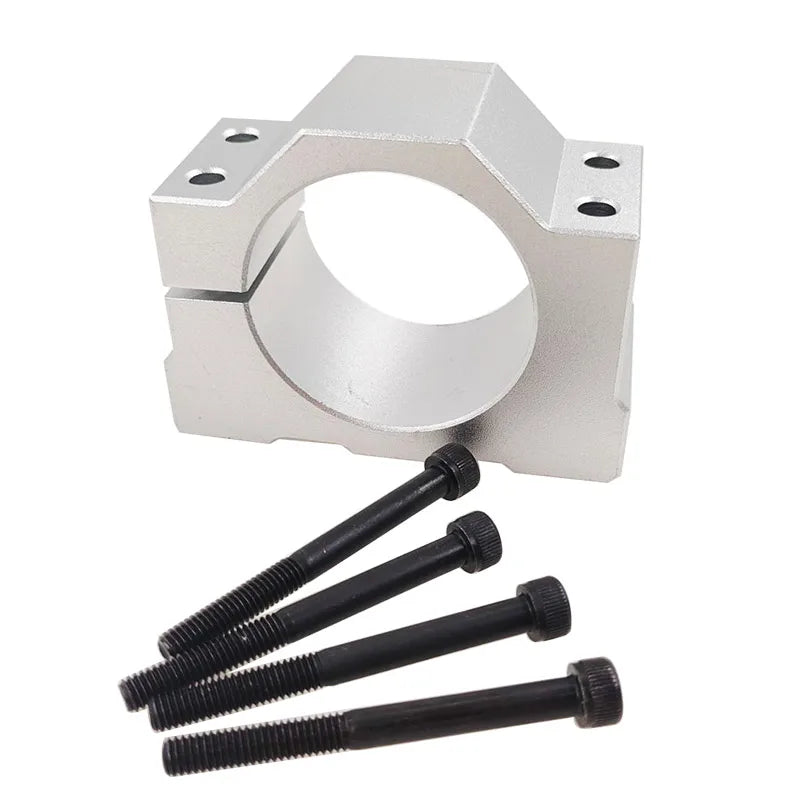

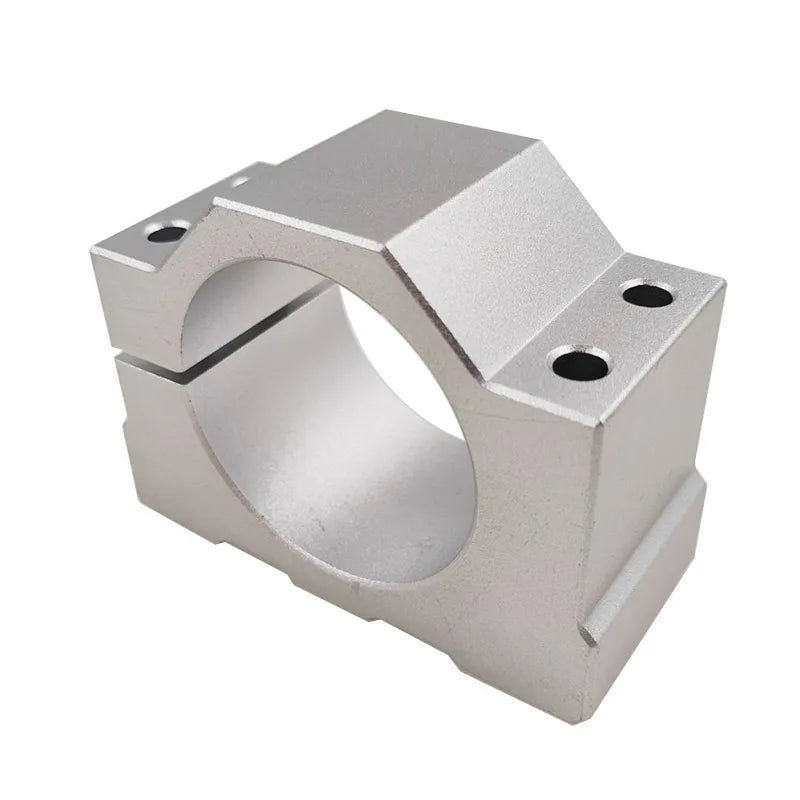

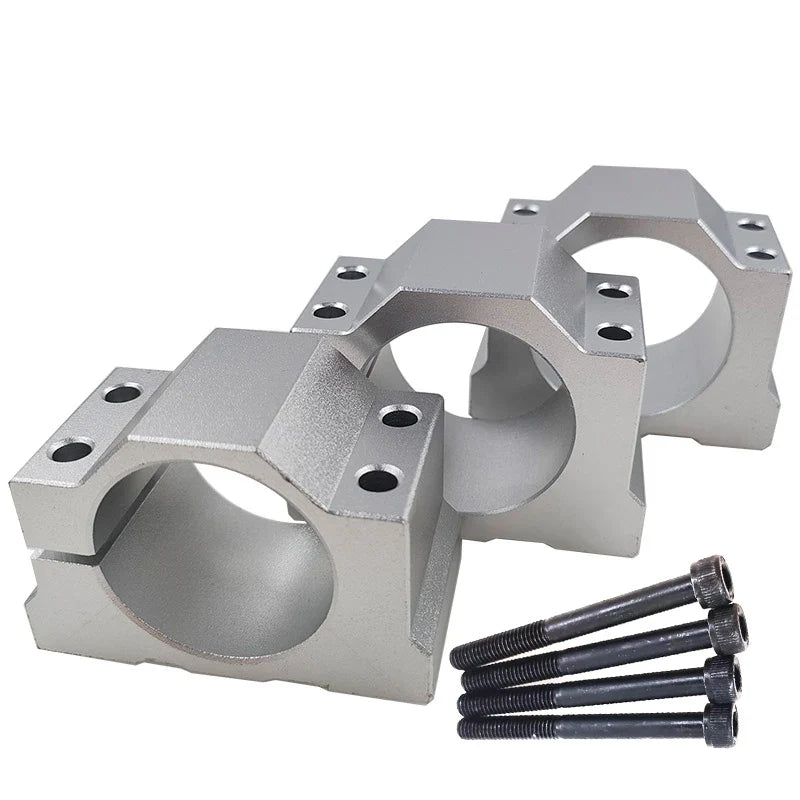

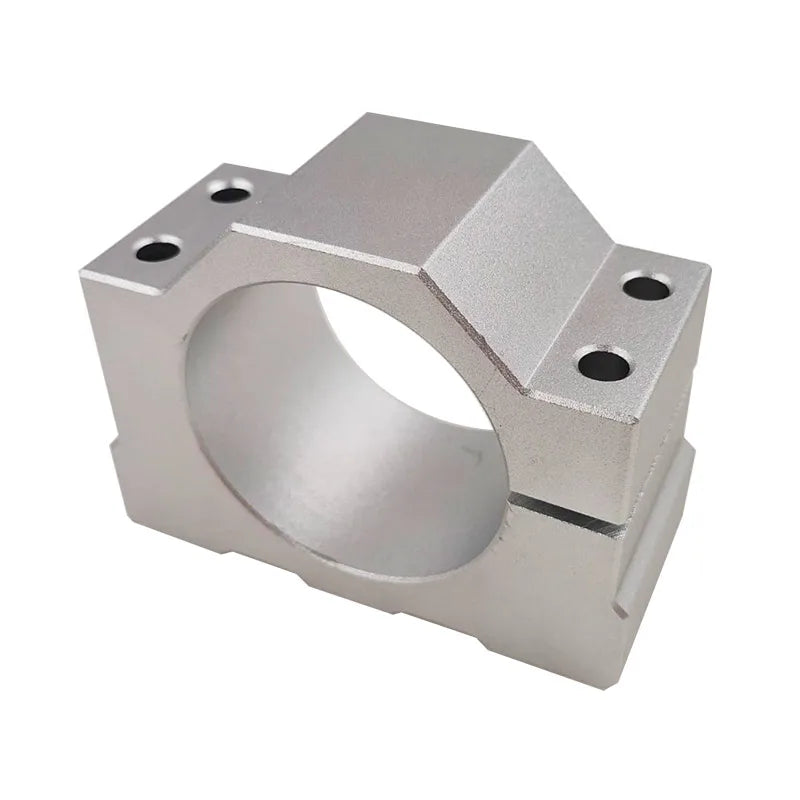

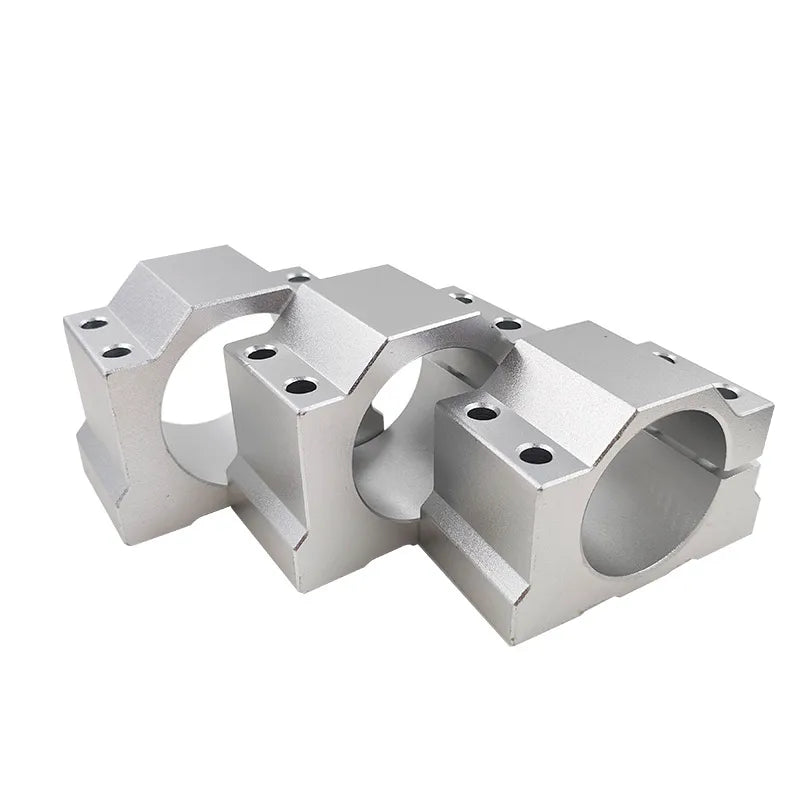

Keep your electric spindle or DC motor firmly in place with this precision-machined metal alloy motor fixing bracket. Designed for CNC routers, laser engravers, 3D printers, and other DIY or industrial builds, this single-side bracket provides a rock-solid mount for optical axis rods and spindle motors ranging from 40mm to 48mm in diameter. Whether you're upgrading a DIY machine or replacing a worn-out clamp, this versatile seat delivers the stability your project demands.
Made in Mainland China.
Key Features
- Multi-Size Compatibility: Fits 40mm, 42mm, 45mm, and 48mm diameter spindles and DC motors — one bracket for multiple build configurations.
- Durable Metal Alloy Construction: Heavy-duty metal build withstands vibration, heat, and continuous operation in workshop or industrial environments.
- Single-Side Bracket Design: Compact, low-profile structure keeps your machine frame tidy while providing a secure, stable hold.
- Optical Axis Fixed Seat: Doubles as a mounting seat for optical axis rods, making it ideal for linear rail and CNC frame assemblies.
- Customizable Fit: Standard-spec construction with customization support — perfect for both off-the-shelf and bespoke machine builds.
- Industrial-Grade Use: Designed for demanding DIY electrical and industrial applications requiring consistent, reliable motor positioning.
Specifications
- Brand: CNMAWAY
- Material: Metal Alloy
- Model Number: 40-48

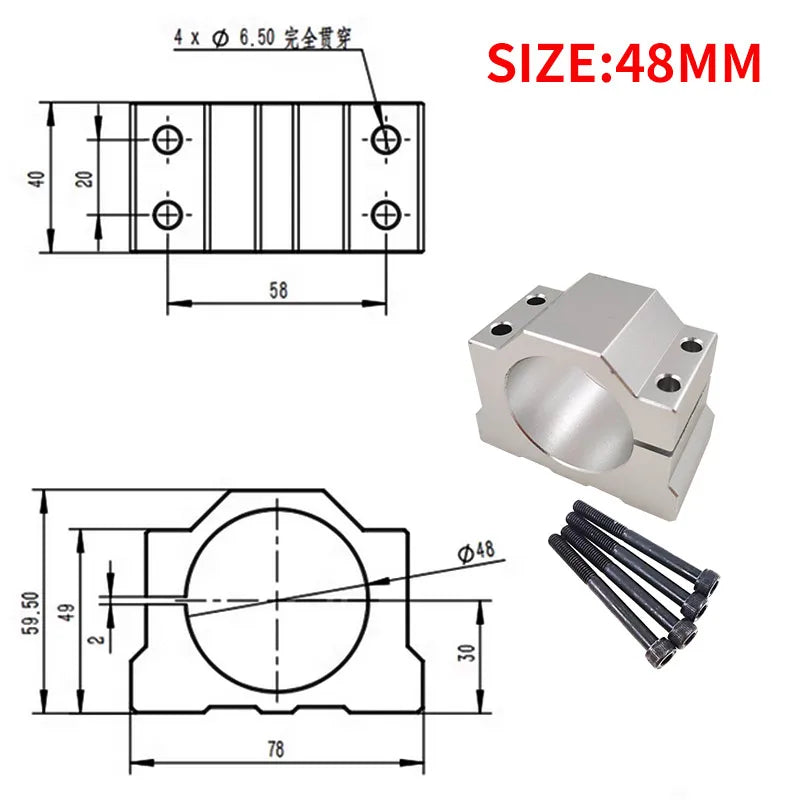

- Compatible Diameters: 40mm / 42mm / 45mm / 48mm
- Structure: Single-Side Bracket
- Use: Industrial / DIY Electrical
- Customizable: Yes
- High-Concern Chemicals: None
- Origin: Made in Mainland China
Perfect For
- CNC router and milling machine spindle mounts
- Laser engraver motor brackets
- 3D printer and linear rail axis assemblies
- DIY electric motor projects and industrial automation
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What spindle or motor diameters does this metal alloy bracket support?
A: This motor fixing bracket is designed to accommodate four standard diameters: 40mm, 42mm, 45mm, and 48mm. This makes it a versatile choice for a wide range of electric spindles, DC motors, and optical axis assemblies used in CNC, laser engraving, and DIY machine builds.
Q: What material is the bracket made from, and is it suitable for heavy-duty use?
A: The bracket is constructed from durable metal alloy, making it well-suited for industrial and workshop environments. It is built to handle continuous motor operation, vibration, and heat — ensuring your spindle or DC motor remains securely positioned during extended use.
Q: Can this bracket be used as an optical axis fixed seat as well?
A: Yes. In addition to mounting electric spindles and DC motors, this bracket functions as an optical axis fixed seat, making it compatible with linear rail systems and CNC frame assemblies where secure axis rod positioning is essential.
Q: Is this bracket customizable for specific machine builds?
A: Yes, this is a customizable standard-spec bracket. It is suitable for both standard off-the-shelf machine configurations and custom DIY builds requiring a reliable, precisely fitted motor mounting solution.
