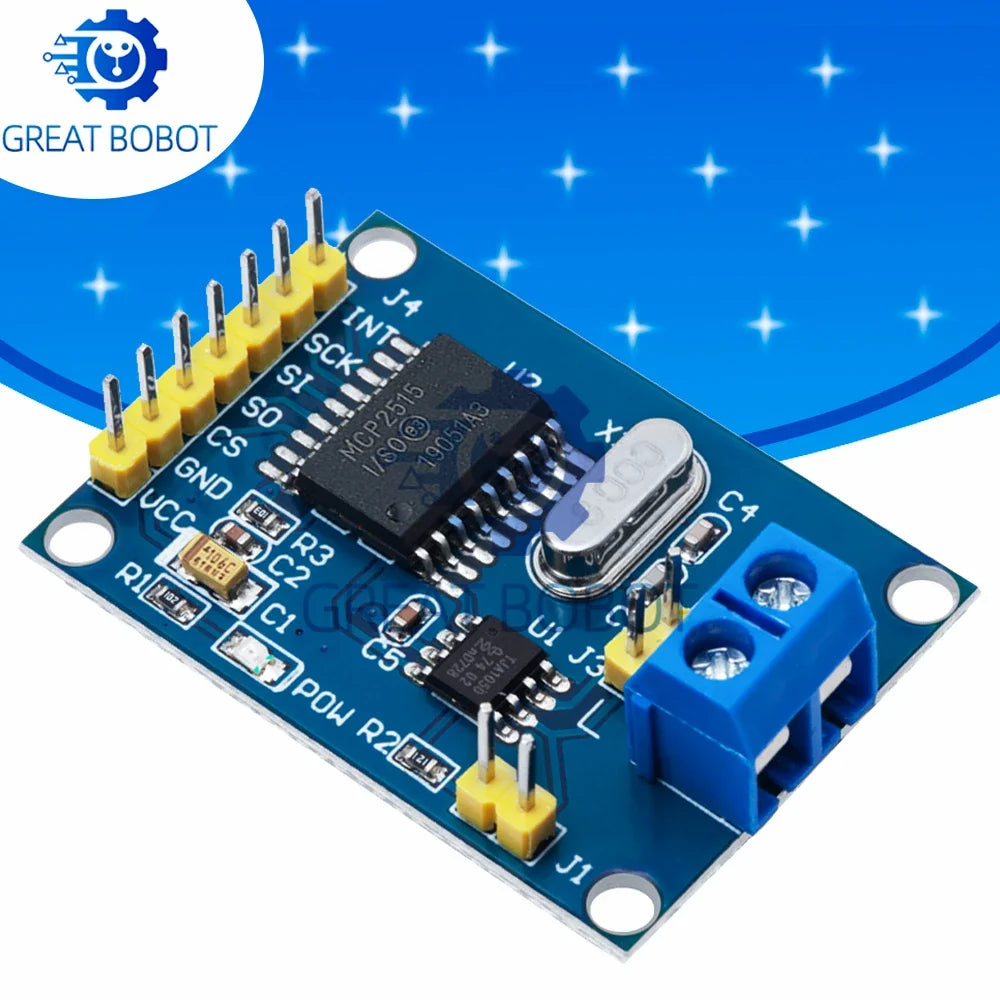

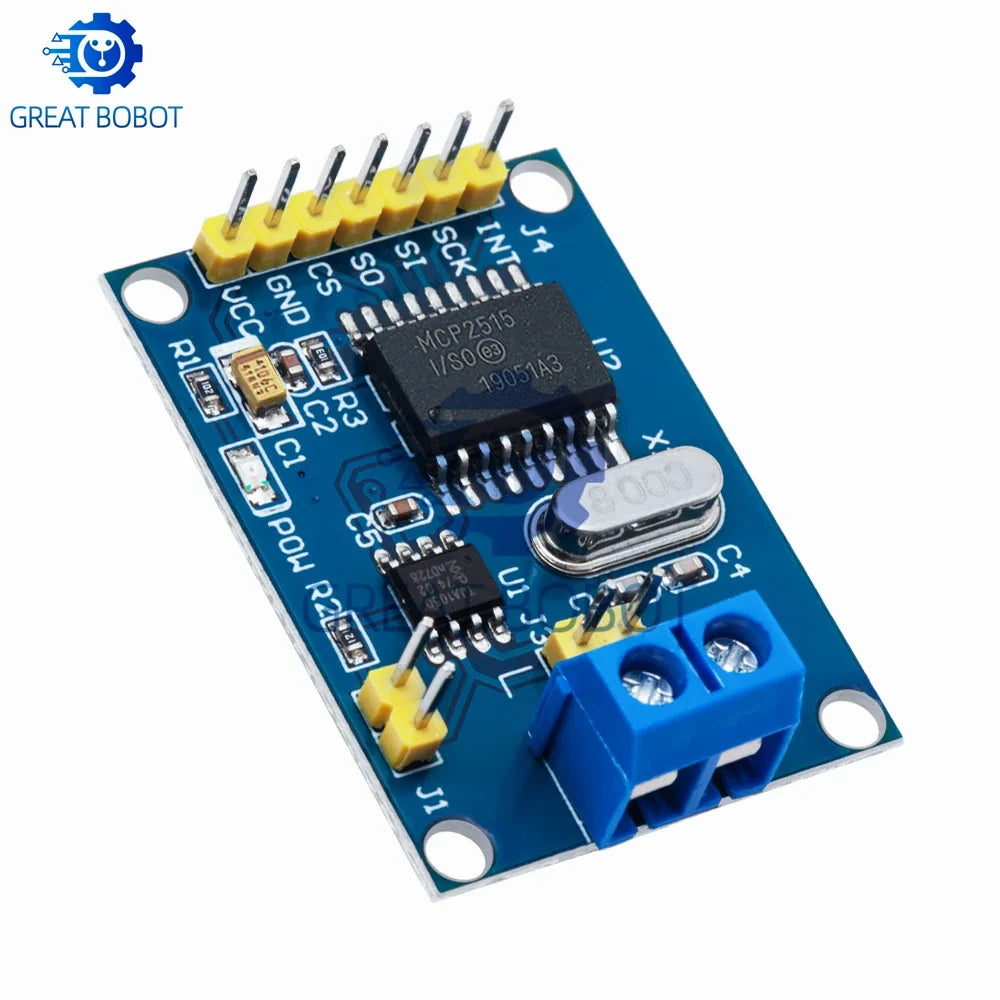

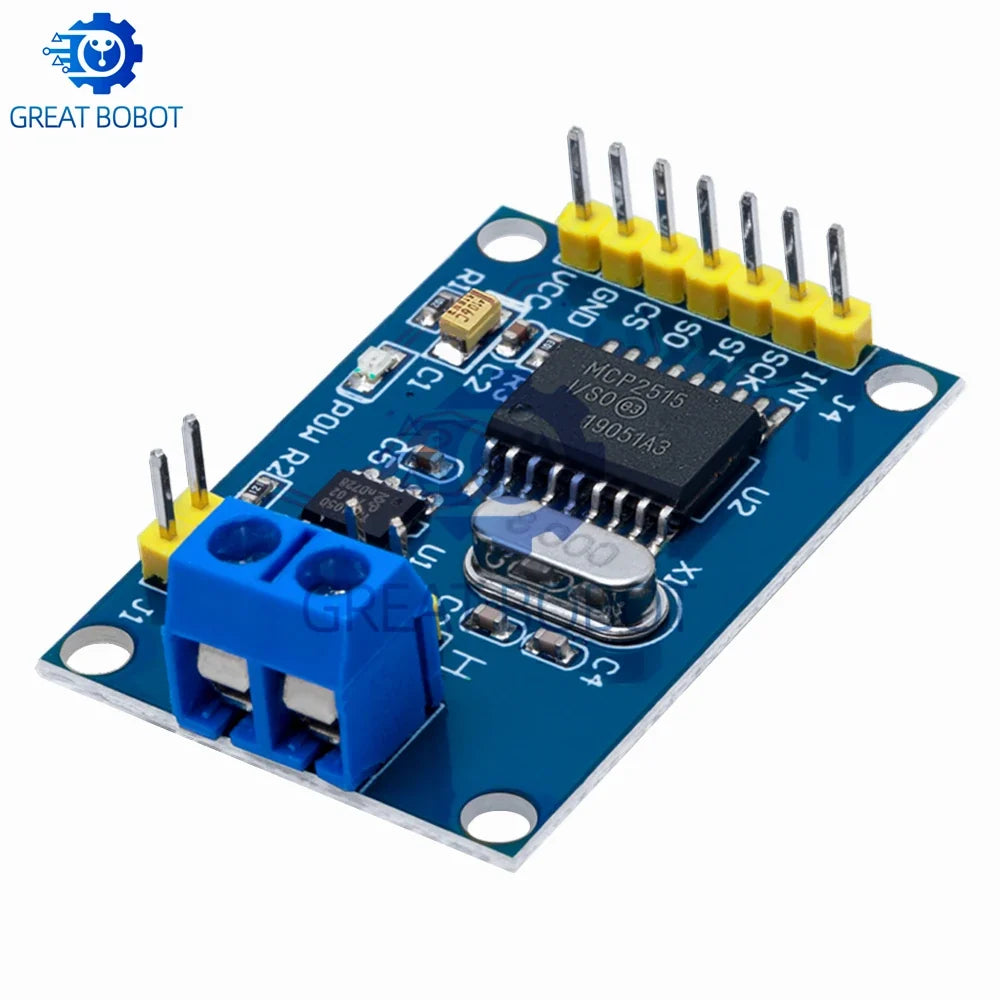

MCP2515 CAN Bus Module TJA1050 SPI for MCU & ARM Controllers

MCP2515 CAN Bus Module with TJA1050 Receiver – SPI Interface for MCU & ARM Controllers

Expand your microcontroller's communication capabilities with this compact MCP2515 CAN Bus Module. Featuring the industry-standard TJA1050 CAN transceiver and an SPI interface, this module makes it straightforward to add Controller Area Network (CAN) communication to Arduino, 51 MCU, ARM, and other popular development platforms. Ideal for automotive electronics, industrial automation projects, and embedded systems development.

Key Features

• Chipset: MCP2515 CAN controller + TJA1050 high-speed CAN transceiver
• Interface: SPI – easily connects to most microcontrollers and development boards
• Wide Operating Temperature: -40°C to 85°C – suitable for demanding environments
• SMD Package: Compact surface-mount design for space-efficient integration
• Compatible Platforms: 51 MCU, ARM, Arduino, STM32, and other SPI-capable controllers
• Condition: Brand new
• Quantity: 1 module per order
• No High-Concern Chemicals: Clean component – no restricted substances

What Is a CAN Bus Module?

The Controller Area Network (CAN) bus is a robust communication protocol widely used in automotive and industrial systems. The MCP2515 is a standalone CAN controller that communicates with a host microcontroller via SPI, while the TJA1050 acts as the physical-layer transceiver, handling the actual differential signaling on the bus. Together, they provide a reliable, noise-resistant communication link between multiple devices.

Typical Applications

• Automotive ECU prototyping and OBD interfacing
• Industrial automation and machine control networks
• Robotics and multi-node embedded system communication
• DIY electronics and maker projects requiring multi-device data buses

Specifications

Related Products You May Like

• Electromagnetic Induction Tester – Coil & Circuit Fault Detector
• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
• 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: Is the MCP2515 CAN Bus Module compatible with Arduino boards?

A: Yes. The MCP2515 CAN Bus Module communicates via the SPI interface, which is supported by virtually all Arduino boards (Uno, Mega, Nano, etc.) as well as ARM-based and 51 MCU development boards. You can use widely available CAN bus libraries to get started quickly.

Q: What is the maximum CAN bus speed supported by this module?

A: The MCP2515 controller supports CAN bus speeds of up to 1 Mbps, making it suitable for both low-speed sensor networks and higher-speed automotive or industrial data buses.

Q: Can this module operate in environments with extreme temperatures?

A: Yes. The module is rated for an operating temperature range of -40°C to 85°C, making it well-suited for automotive engine bays, outdoor enclosures, and industrial settings where temperature fluctuations are common.
