Build Your Own Intelligent Line-Tracking Robot Car

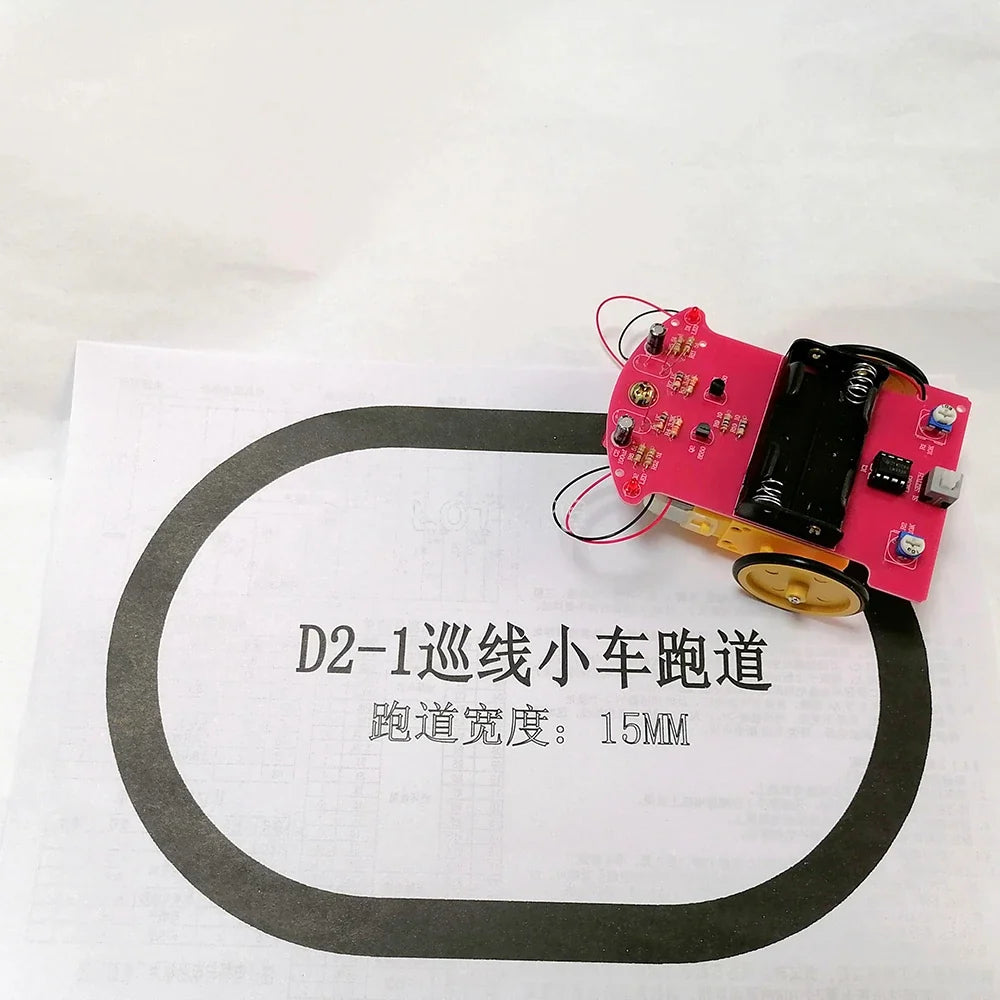

The LOTHYE Mini Intelligent Line Tracking Car DIY Electronic Kit is the perfect hands-on project for electronics enthusiasts, students, and hobbyists. Solder, assemble, and watch your robot car autonomously follow a black track — all powered by a clever closed-loop photosensitive sensor circuit. Made in Mainland China.
⚠️ Important Notice: This kit is designed for individuals with basic electronics and soldering experience. We guarantee all components are in good condition upon delivery, but successful assembly depends on the builder's skill level. Please read all instructions thoroughly before beginning. Batteries (2 × AA) are NOT included.
How It Works

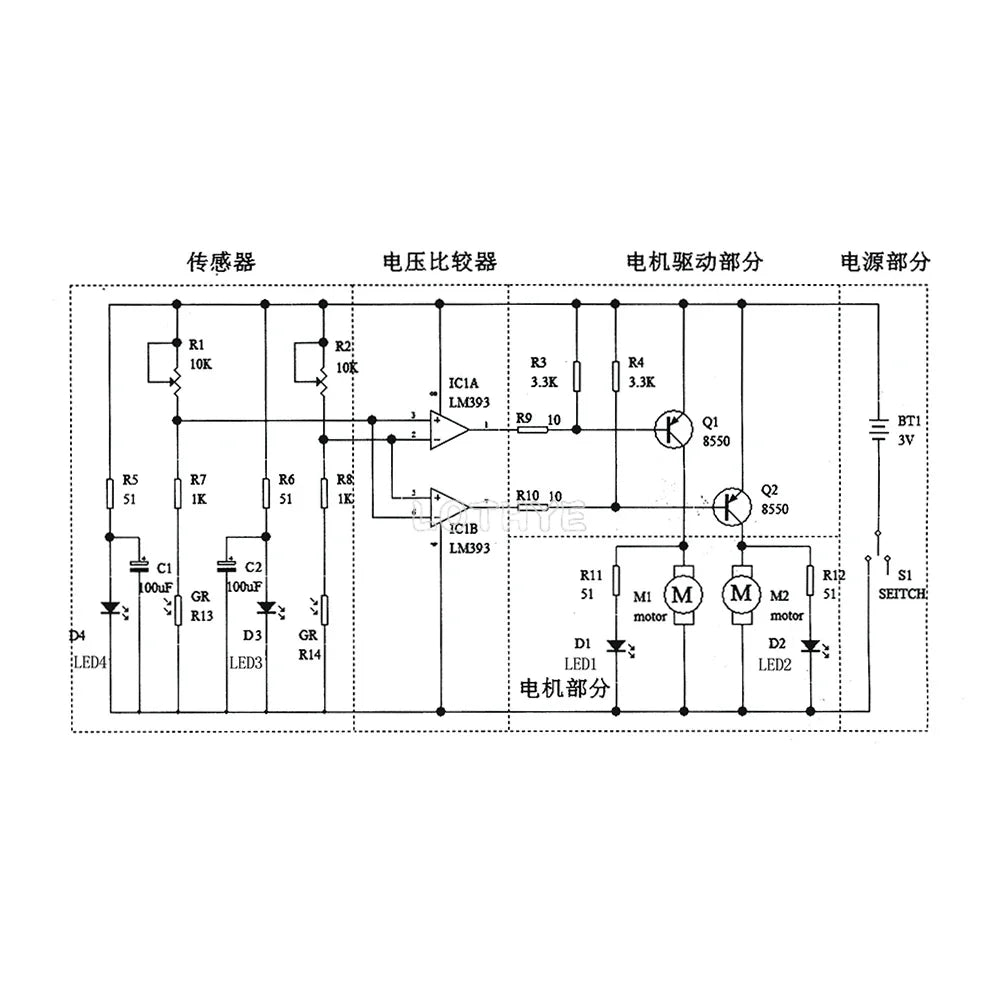

At the heart of this robot is the LM393 dual voltage comparator IC, which continuously reads signals from two photosensitive (light-dependent) resistors mounted at the front of the car. When the car drifts off its black-line track, the sensor on that side detects a difference in light reflection between the white surface and the black line. The LM393 instantly reacts — stopping the motor on the drifting side and accelerating the opposite motor — steering the car back on course. This rapid, closed-loop control keeps your robot locked on the line with impressive responsiveness.
Key Components Explained
- Photosensitive Resistance Sensors: Detect changes in light intensity by measuring how much light is reflected from the surface. Bright white areas lower resistance; dark black lines raise it, giving the circuit a clear signal to act on.
- LM393 Comparator IC: A dual-channel precision voltage comparator that interprets the sensor signals and commands each motor independently for smooth, accurate steering.
- DC Gear-Reduction Motors: Custom-designed motors with integrated reduction gearing provide the ideal torque and speed balance — fast enough to be fun, controlled enough to follow the track reliably.

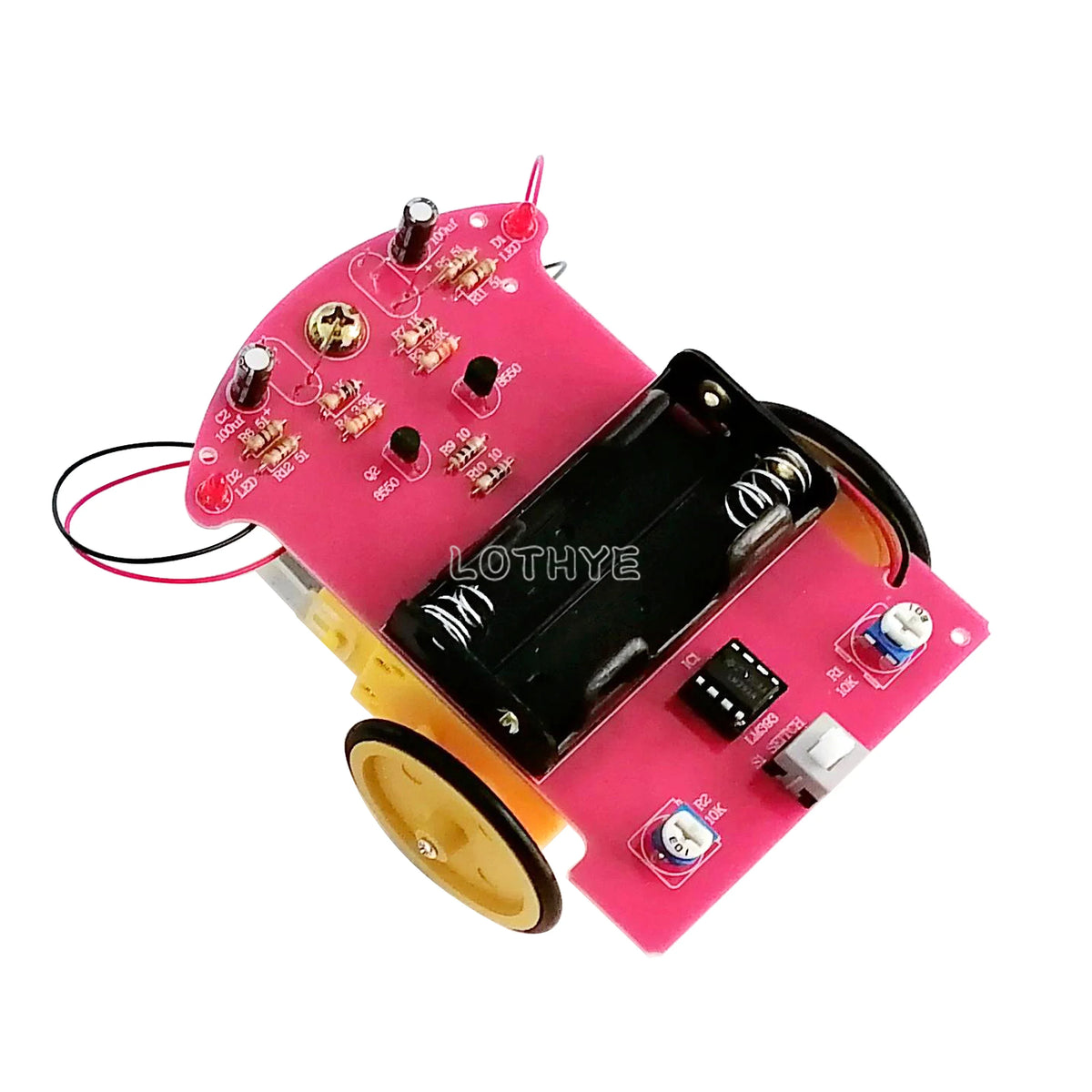

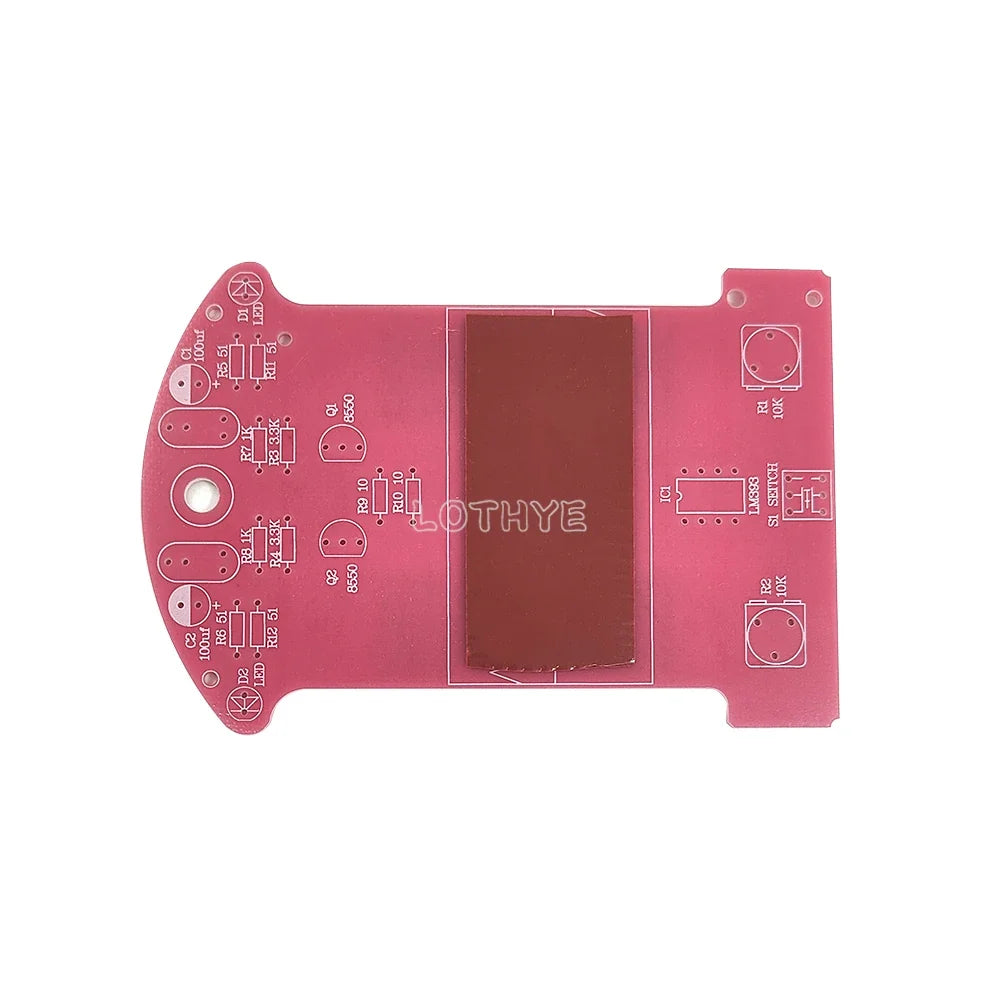

- PCB Chassis: The circuit board doubles as the car's frame, keeping the build compact and lightweight.
- Acrylic Wheels with Silicone Tires: Three-piece black acrylic wheels with rubber tire sleeves for smooth rolling and reliable grip.
What You'll Learn
- Practical soldering technique (resistors, capacitors, transistors, LEDs, ICs)
- How photosensitive (light-dependent) resistors work in real circuits
- Voltage comparator operation and motor drive circuits
- Closed-loop automatic control system fundamentals
- Mechanical assembly: wheels, universal caster, battery box mounting

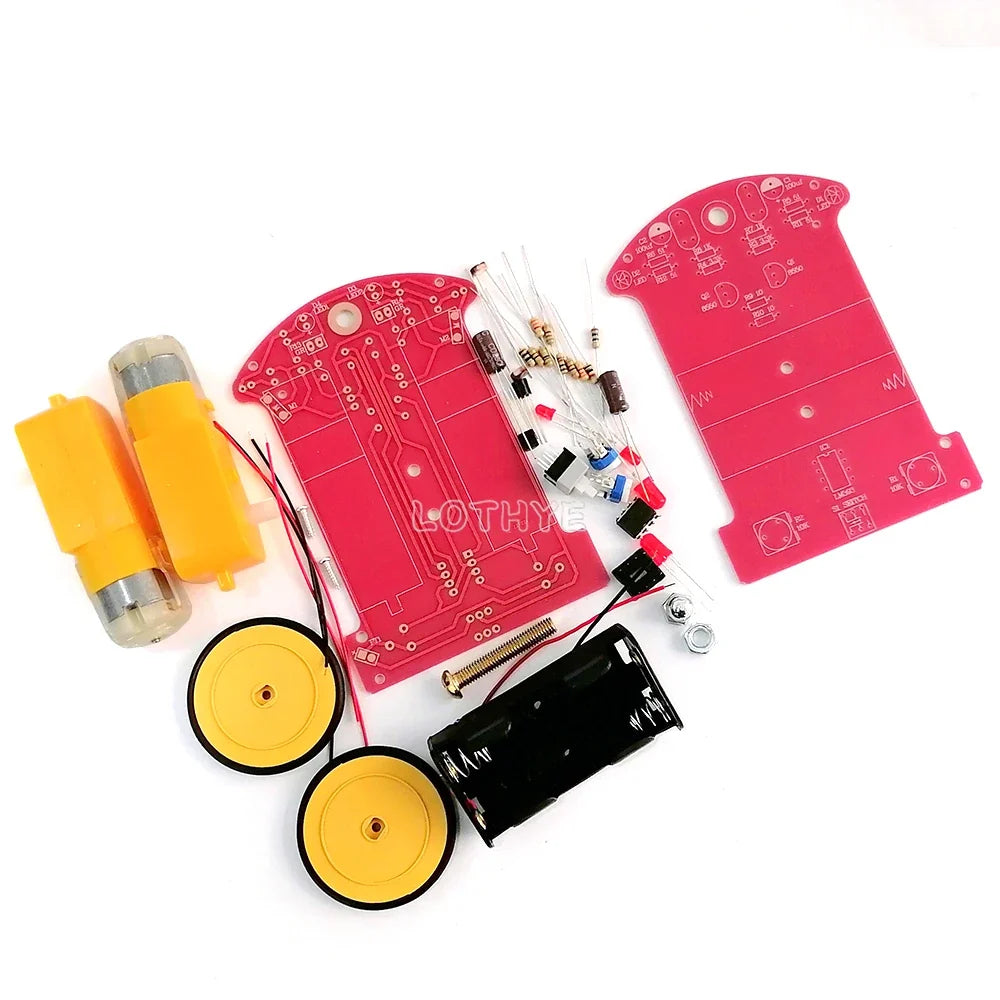

Step-by-Step Assembly Overview
- Circuit Soldering: Solder components from shortest to tallest — resistors first, then capacitors (observe polarity), transistors, LEDs (long pin = positive), and finally insert the IC chip.
- Mechanical Assembly: Attach the universal wheel to the PCB, mount the battery box with double-sided tape, and wire the power leads (red = +3V, yellow = ground).
- Wheel Assembly: Stack and fasten three acrylic discs per wheel, secure to the motor shaft with self-tapping screws, then fit the silicone rubber tire.
- Opto-Electronic Circuit Installation: Mount the photosensitive resistors and LEDs reverse-side down on the PCB, approximately 5 mm from the ground surface and 5 mm apart from each other.
- Debugging: Insert 2 × AA batteries, flip the switch to ON, and test. Cover the left sensor → right wheel turns. Cover the right sensor → left wheel turns. If the car reverses direction, simply swap the motor lead connections.
Specifications
- Brand: LOTHYE
- Power: 2 × AA batteries (not included)
- Condition: New (unassembled kit)
- Key IC: LM393 Dual Voltage Comparator
- Origin: Made in Mainland China
Explore More DIY & STEM Projects
Love building things? Check out these related products from our store:
- 18 Pc Basswood Carving Blocks – Whittling Wood Kit for Carvers
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What skill level is required to assemble the line tracking robot car DIY kit?
A: This kit is intended for individuals with some prior experience in electronics and soldering. You should be comfortable identifying component polarities, using a soldering iron safely, and troubleshooting basic circuits. It is an excellent school or hobbyist training project but is not recommended as a first-ever soldering project for complete beginners without supervision.
Q: What batteries does the tracking robot car require, and are they included?
A: The assembled car runs on 2 × AA batteries (1.5V each, providing approximately 3V total). Batteries are not included with the kit and must be purchased separately.
Q: How does the line-tracking system know which direction to steer?
A: Two photosensitive resistors at the front of the car constantly compare the light reflected from the surface below. When both sensors read equal values (both over white), both motors run and the car moves straight. When one sensor detects the darker black line, its resistance changes, the LM393 comparator detects the imbalance, and it cuts power to the motor on that side while accelerating the other — steering the car back onto the track automatically.
Q: Can I use this kit as a school or STEM education project?
A: Absolutely! This kit is specifically designed for school training and educational purposes. It introduces learners to photosensitive sensors, voltage comparators, DC gear motors, closed-loop control systems, and practical soldering — all core topics in electronics and robotics education.
