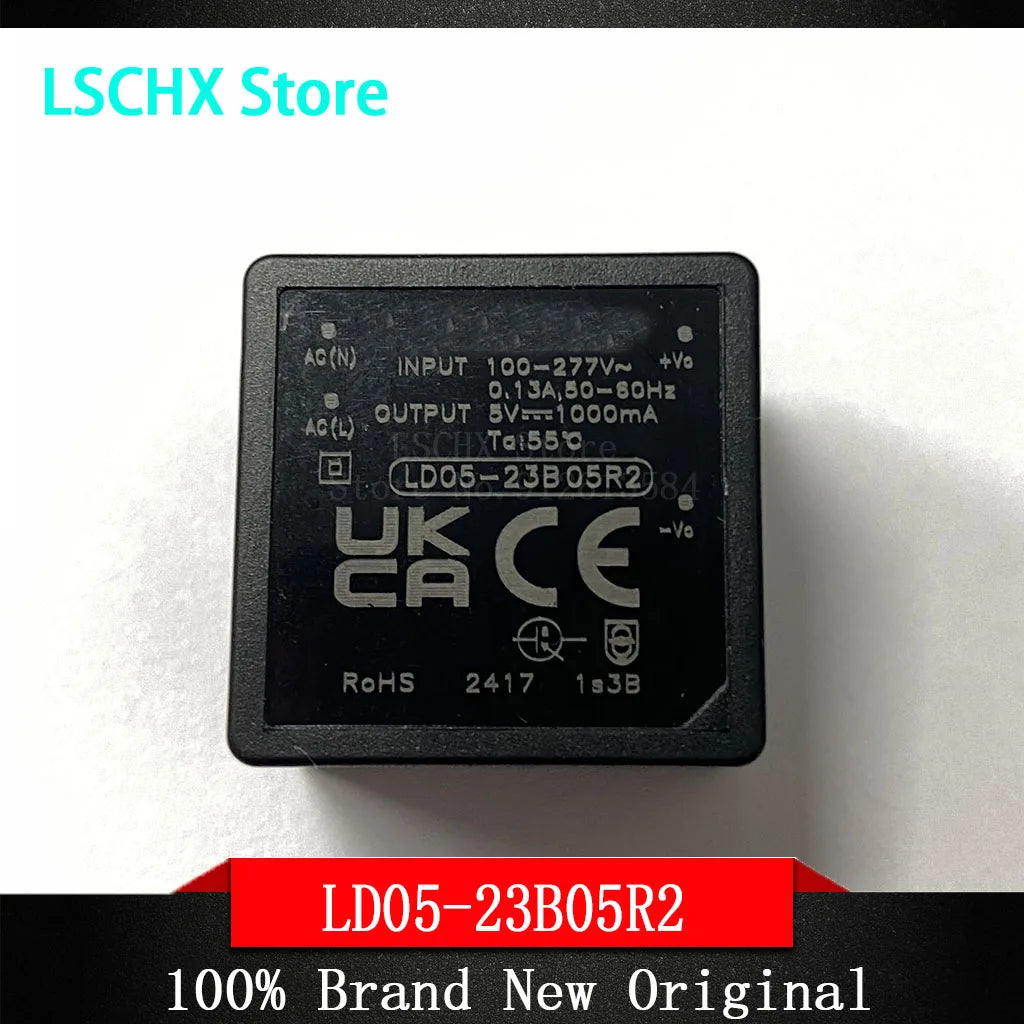

LD05-23B05R2 DIP AC-DC Power Module
The LD05-23B05R2 is a compact, general-purpose DIP-package AC-DC power module designed for a wide input voltage range of 85VAC to 305VAC. Whether you're prototyping, replacing a failed module, or stocking up for a production run, this module delivers reliable AC-to-DC conversion in a convenient through-hole DIP footprint that drops straight into standard PCB layouts.
Available in quantities of 1 to 20 pieces, it's ideal for electronics engineers, hobbyists, repair technicians, and OEM manufacturers who need a consistent, proven power conversion solution at scale.
Made in Mainland China.
Key Features
- Model: LD05-23B05R2
- Package: DIP (Through-hole) — easy PCB integration
- Input Voltage Range: 85VAC – 305VAC (wide universal input)
- Application: General purpose AC-DC power conversion
- Protection Features: International standard protection
- Customizable: Available for custom order requirements
- Quantity Options: 1, 5, 10, 15, or 20 pieces per order
- No high-concern chemicals
Why Choose This Power Module?
- ✅ Universal wide-range input — compatible with global mains voltages from 85V to 305V AC
- ✅ DIP footprint — solders directly to standard PCB through-hole pads, no adapter needed
- ✅ Multi-pack options — order 1 to 20 units to match your project or production needs
- ✅ General purpose design — suited for a wide variety of embedded and industrial electronics applications
- ✅ International standard protection — built-in safeguards aligned with global compliance standards
Specifications
| Model Number | LD05-23B05R2 |
| Package Type | DIP |
| Input Voltage | 85VAC – 305VAC |
| Use | General Purpose |
| Protection | International Standard |
| Customized | Yes |
| Origin | Mainland China |
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What input voltage range does the LD05-23B05R2 AC-DC power module support?
A: The LD05-23B05R2 supports a wide universal input voltage range of 85VAC to 305VAC, making it compatible with virtually all global mains power standards — from low-voltage markets (100V/110V) to high-voltage regions (220V/230V/240V/277V and beyond).
Q: What does DIP package mean for this power module?
A: DIP stands for Dual In-line Package. It means the module has through-hole pins that insert directly into a standard PCB and are soldered from the underside — no surface-mount equipment needed. This makes it straightforward to integrate into prototype boards, breadboards, and production PCBs alike.
Q: Can I order multiple units of the LD05-23B05R2 at once?
A: Yes! This listing offers flexible quantity options ranging from 1 up to 20 pieces per order. Whether you need a single replacement unit or a small batch for a production run, you can select the quantity that best fits your requirements.
Q: Is this module suitable for general electronics projects and OEM applications?
A: Absolutely. The LD05-23B05R2 is rated for general purpose use and is a popular choice among electronics engineers, repair technicians, and OEM manufacturers. It meets international standard protection requirements, ensuring compatibility and reliability in a wide range of embedded and industrial applications.
