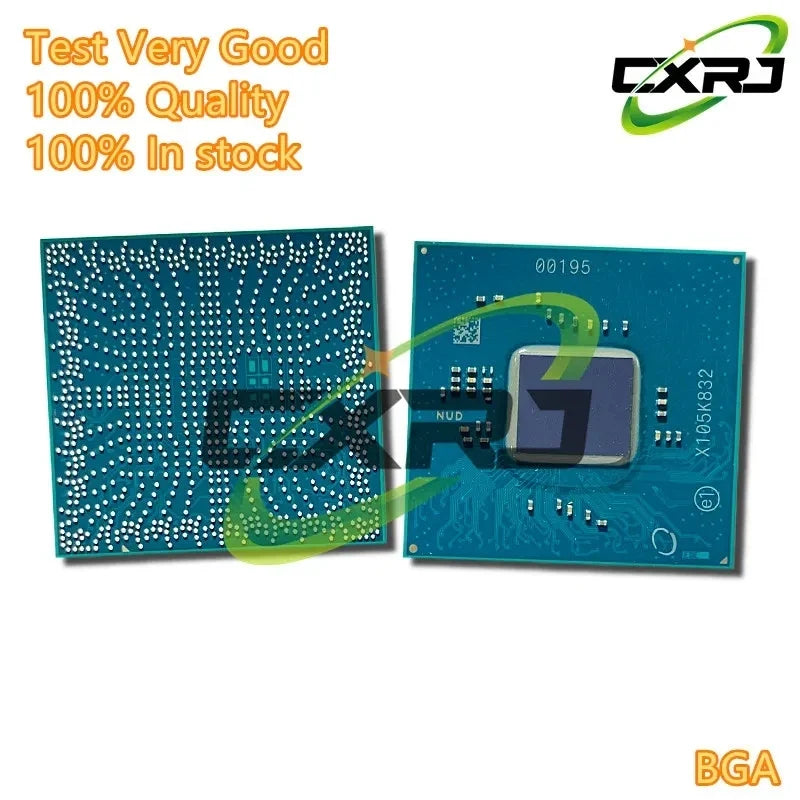

Intel PCH BGA Chipset FH82H510 Z590 Q570 H570 – New SRKM Series
Intel PCH BGA Chipset FH82H510 Z590 Q570 H570 – New SRKM Series
Intel Platform Controller Hub BGA Chipset – 10th/11th Gen Compatible
Upgrade or restore your motherboard with this brand-new Intel Platform Controller Hub (PCH) BGA chipset. Compatible with a wide range of 400/500-series Intel motherboards, this chipset covers models including FH82H510, FH82Z590, FH82Q570, FH82B560, FH82H570, FH82HM570, FH82WM590 as well as IC variants SRKM2, SRKM3, SRKM4, SRKM5, SRKM6, SRKMA, SRKMB. Ideal for professional board repair technicians, electronics engineers, and advanced DIY builders.
Key Features
- 100% New Condition: Each chip is brand new — never refurbished or pulled from used boards.
- Wide Compatibility: Supports H510, Z590, Q570, B560, H570, HM570, and WM590 Intel platform chipsets.
- BGA Package: Industry-standard Ball Grid Array format for reliable, high-density board-level integration.
- Drive IC Type: Functions as a controller/drive IC for motherboard logic and system interconnects.
- No High-Concern Chemicals: Manufactured without high-concern chemical substances.
- Quantity: 1 chipset per order.
Specifications
| Application | Computer / Motherboard Repair |
| Condition | New |
| Package Type | BGA (Ball Grid Array) |
| IC Type | Drive IC / Platform Controller Hub |
| Compatible Models | FH82H510, FH82Z590, FH82Q570, FH82B560, FH82H570, FH82HM570, FH82WM590 / SRKM2–SRKMB |
| Supply Voltage | Standard |
| Operating Temperature | Standard |
| Country of Origin | Made in Mainland China |
Who Is This For?
This BGA chipset is designed for professional motherboard repair technicians, electronics engineers, and experienced hobbyists who perform chip-level board repair. A BGA rework station or hot-air reflow equipment is required for installation. Not intended for general consumer installation without appropriate tools and expertise.
Related Products You May Find Useful
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Which Intel motherboard chipset models is this BGA chipset compatible with?
A: This chipset is compatible with Intel 400/500-series platform models including FH82H510, FH82Z590, FH82Q570, FH82B560, FH82H570, FH82HM570, and FH82WM590, as well as IC part numbers SRKM2, SRKM3, SRKM4, SRKM5, SRKM6, SRKMA, and SRKMB. Always verify your board's exact part number before ordering.
Q: Is this chipset new or refurbished?
A: This is a 100% brand-new BGA chipset — it has not been used, pulled from a previous board, or refurbished in any way. Each unit is supplied in new condition directly from the manufacturer.
Q: Do I need special equipment to install this BGA chipset?
A: Yes. BGA chipset installation requires a BGA rework station with hot-air reflow capability and appropriate flux and solder balls. This process is recommended only for trained electronics repair technicians with chip-level motherboard rework experience.
Q: How many chipsets are included per order?
A: Each order includes one (1) BGA chipset. If you require multiple units, please adjust the quantity before checkout.
