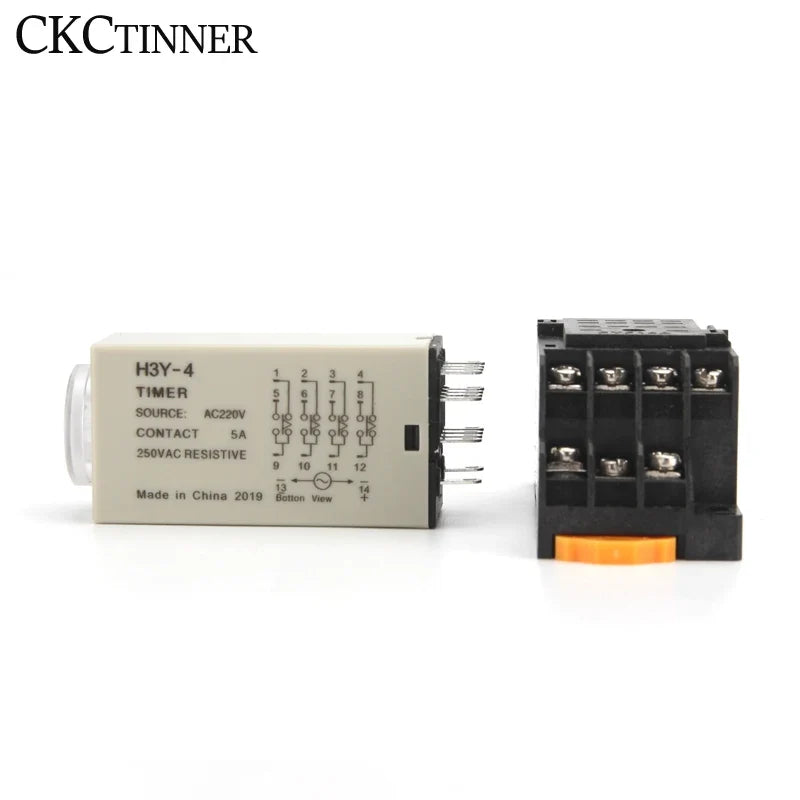

H3Y-4 Power-On Delay Time Relay 14-Pin + PYF14A Socket
H3Y-4 Power-On Delay Time Relay 14-Pin + PYF14A Socket
H3Y-4 Power-On Delay Time Relay with PYF14A Base Socket
The CKCTINNER H3Y-4 Time Relay is a compact, adjustable power-on delay timer designed for general-purpose industrial and automation control applications. With a wide selection of time ranges — from 3 seconds all the way up to 60 minutes — and support for multiple voltage inputs, this relay offers exceptional flexibility for panel builders, electricians, and DIY automation enthusiasts alike.
Featuring a 4PDT (4-Pole Double Throw) contact configuration and a 14-pin design, this relay mounts easily onto a standard 3.5mm DIN rail via the included PYF14A base socket, making installation and replacement quick and tool-free. CE certified for reliability and safety.
Made in Mainland China.
Key Features
- Wide Voltage Compatibility: Operates on 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC power sources
- Multiple Time Ranges: Choose from 3S, 5S, 10S, 30S, 60S, 5M, 10M, 30M, or 60M delay settings
- 4PDT Contact Type: 4 sets of contacts rated at 3A / 250VAC resistive load
- 14-Pin Design: Compatible with PYF14A base socket (included)
- DIN Rail Mountable: Fits standard 3.5mm DIN rail for panel installation
- Compact Form Factor: Measures just 68 × 29 × 88mm (approx. 2.7" × 1.1" × 3.5")
- CE Certified: Meets European safety and quality standards
- Easy Adjustment: Front-facing dial for quick, tool-free time-range selection
Technical Specifications
| Model | H3Y-4 |
| Contact Type | 4PDT |
| Input Voltage | 12VDC / 24VDC / 24VAC / 110VAC / 220VAC |
| Contact Rating | 3A 250VAC Resistive Load |
| Number of Terminals | 14 Pins |
| Mount Type | 3.5mm DIN Rail |
| Dimensions | 68 × 29 × 88mm / 2.7" × 1.1" × 3.5" (L×W×H) |
| Color | Black & Gray |
| Certification | CE |
| Origin | Mainland China |
What's Included
- 1 × H3Y-4 Power-On Delay Time Relay
- 1 × PYF14A Base Socket
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What voltage options are available for the H3Y-4 time relay?
A: The H3Y-4 time relay supports multiple coil voltages including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC, making it suitable for a wide range of control panel and automation applications. Please select the correct voltage for your system at the time of purchase.
Q: Does the PYF14A base socket come included with the relay?
A: Yes, each order includes both the H3Y-4 time relay and the PYF14A 14-pin base socket. The socket allows for easy plug-in mounting onto a 3.5mm DIN rail without additional wiring complexity.
Q: What time delay ranges can I select on this relay?
A: The H3Y-4 offers a broad range of adjustable power-on delay settings: 3 seconds, 5 seconds, 10 seconds, 30 seconds, 60 seconds, 5 minutes, 10 minutes, 30 minutes, and 60 minutes. The desired range is selected via the front-panel dial before installation.
Q: Is this relay suitable for DIN rail installation in an electrical panel?
A: Absolutely. The PYF14A socket is designed to clip directly onto a standard 3.5mm DIN rail, making the H3Y-4 ideal for use in industrial control panels, automation cabinets, and electrical enclosures.
