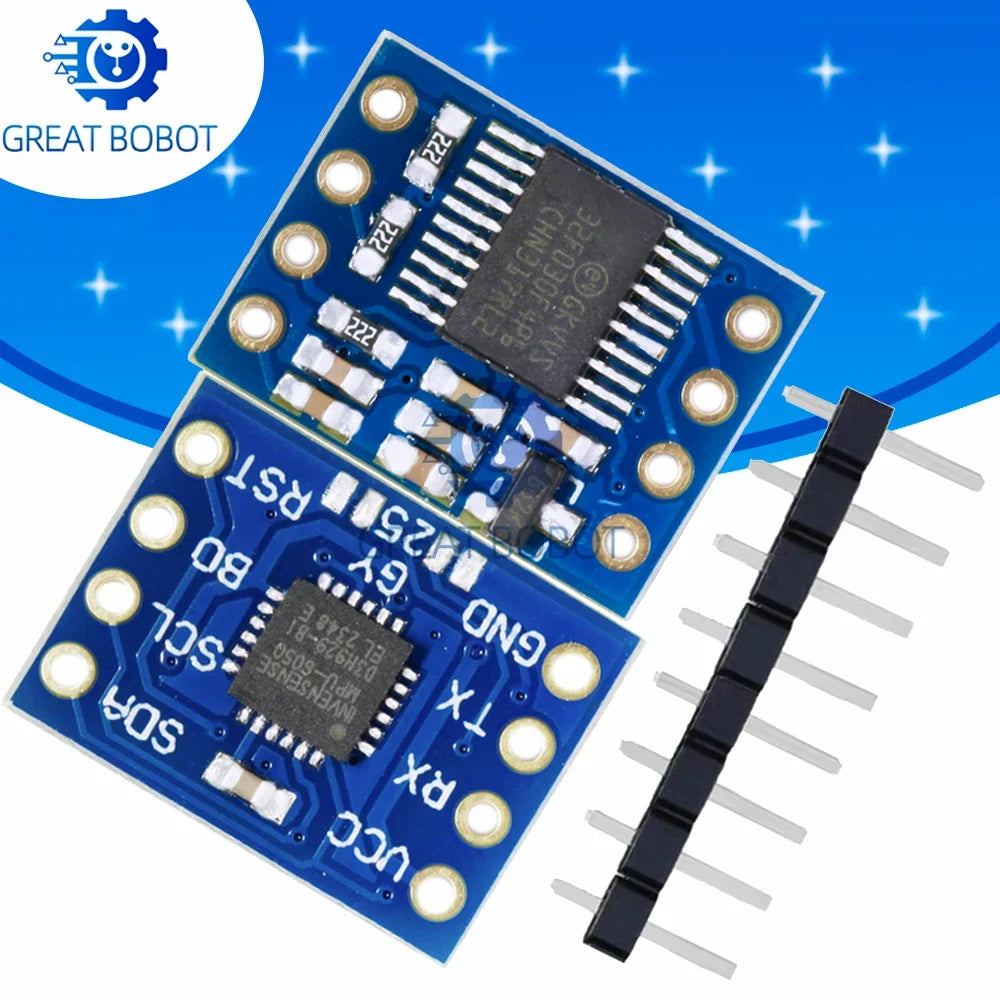

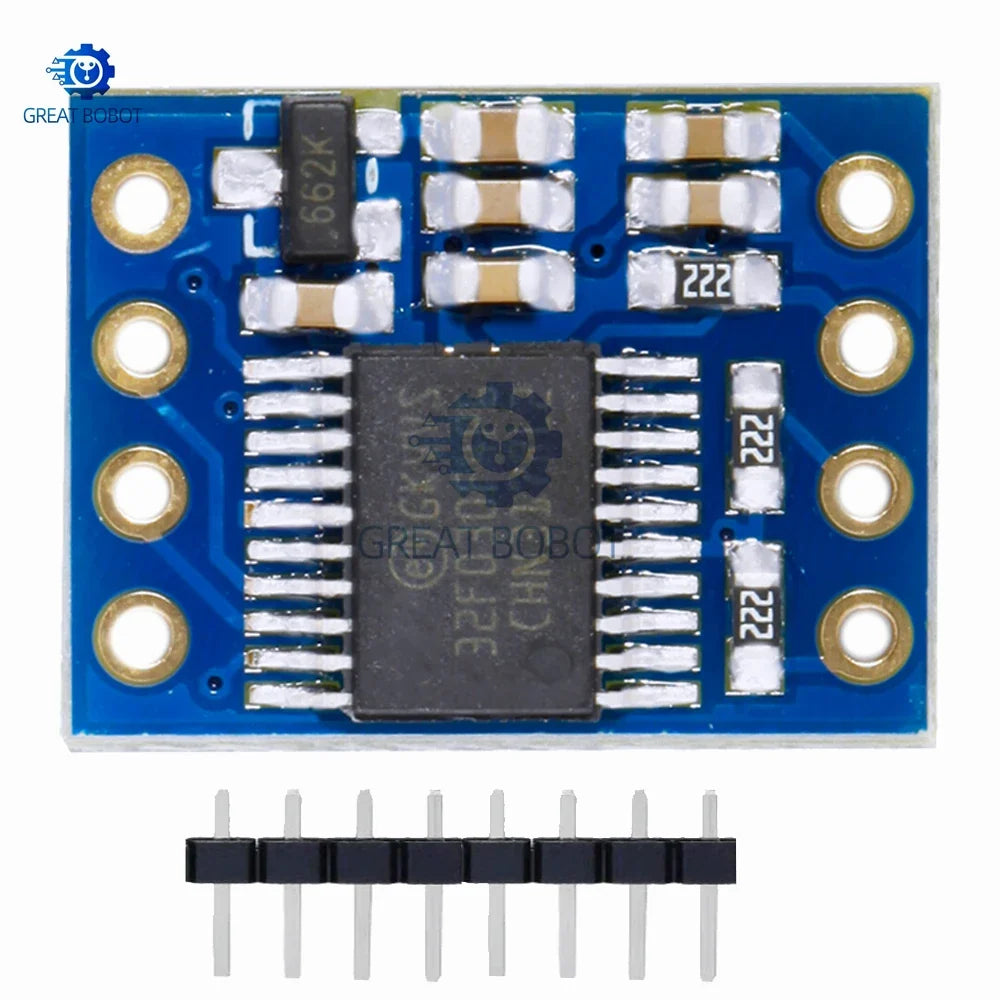

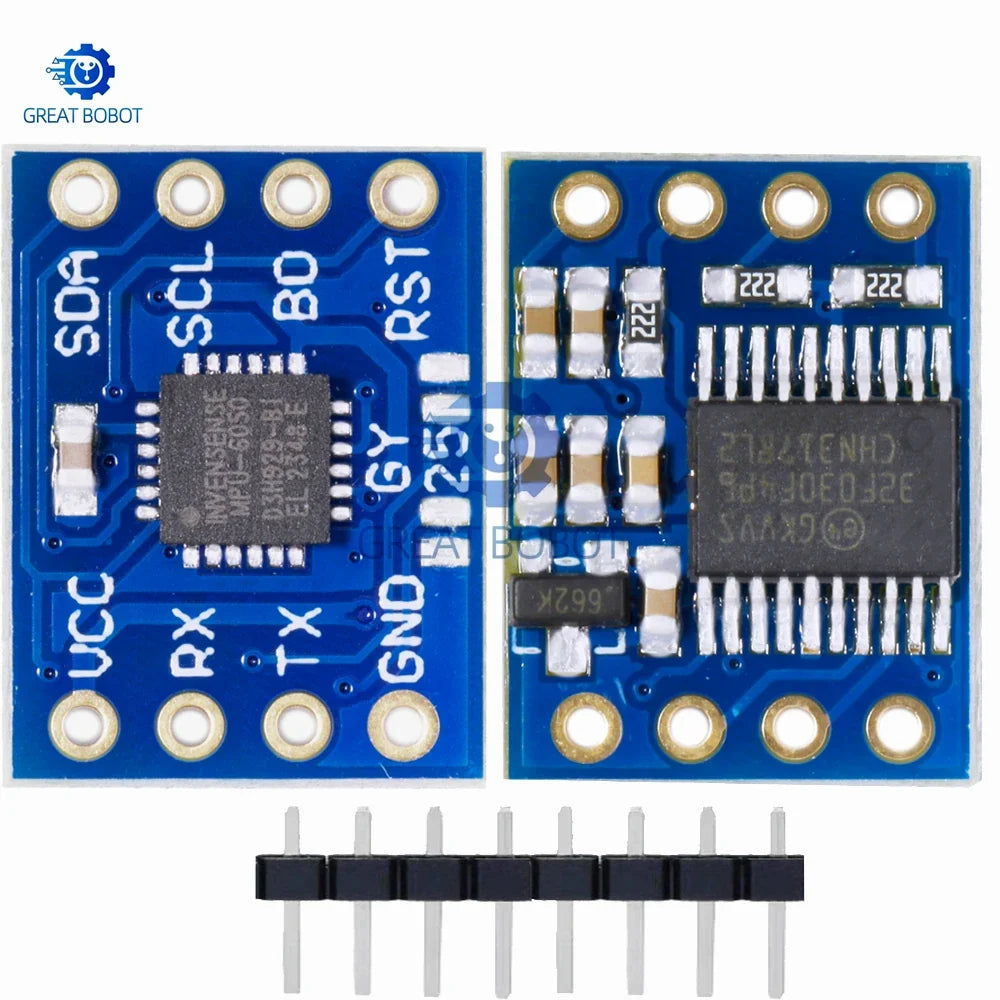

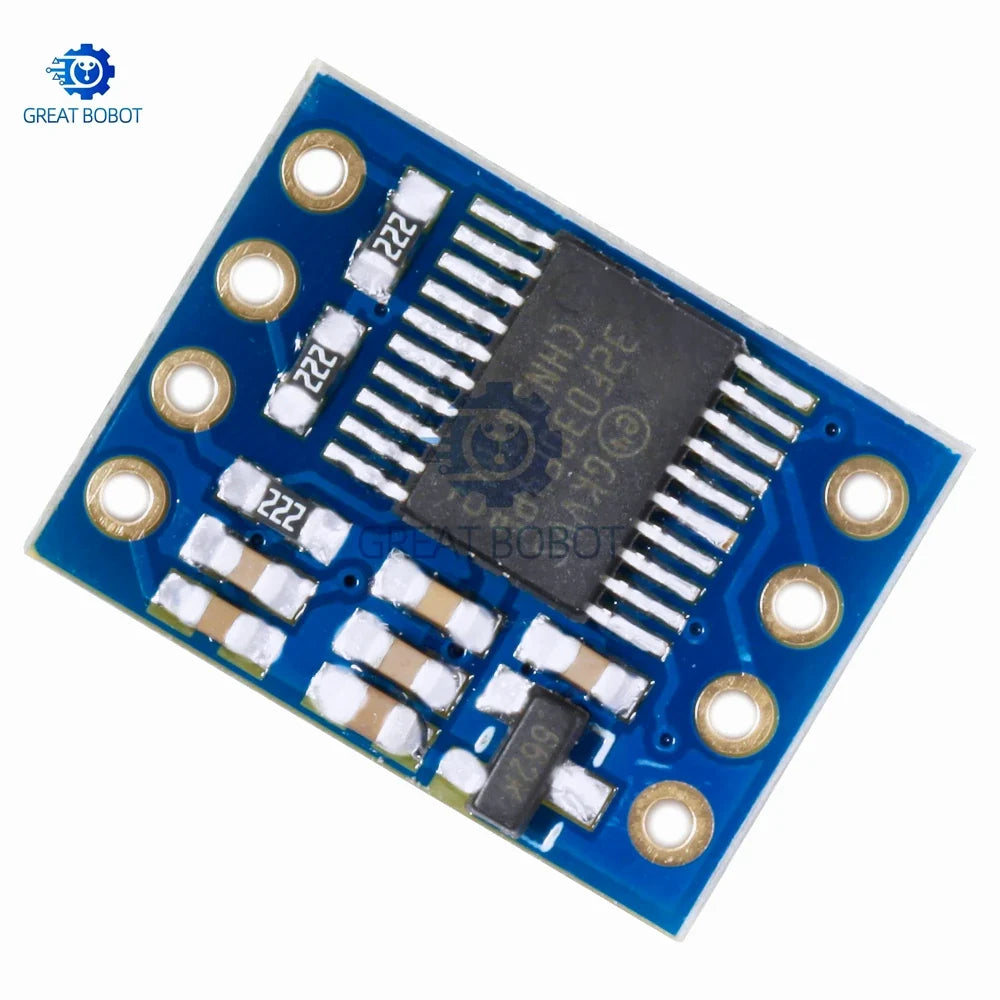

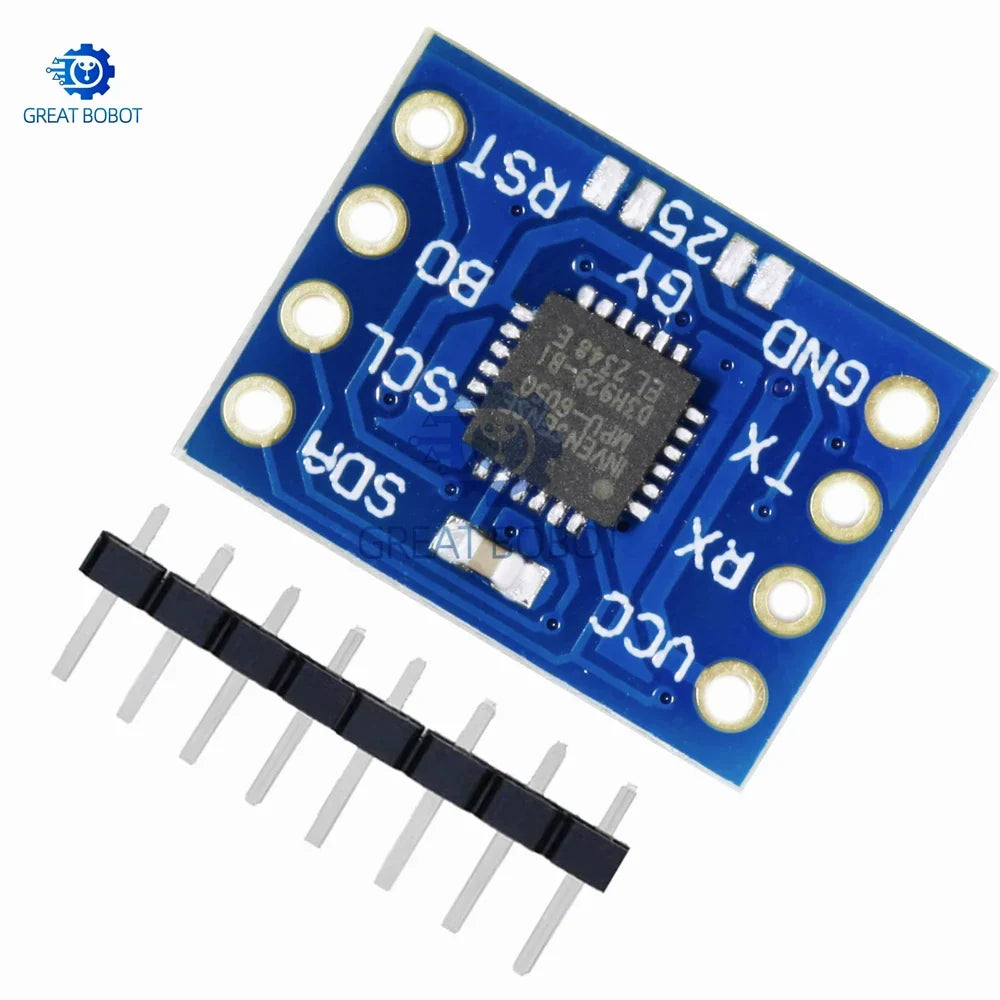

GY-25 MPU-6050 Tilt Angle Gyro Sensor Module – IIC/I2C

GY-25 MPU-6050 Tilt Angle & Gyroscope Acceleration Sensor Module

The GY-25 Tilt Angle Module is a compact, high-precision sensor board built around the popular MPU-6050 chip. It delivers real-time angle data via Serial (UART) and IIC/I2C interfaces, making it an excellent choice for robotics, drone stabilization, RC vehicles, balance platforms, and any embedded project requiring reliable motion or orientation sensing.

Whether you are a hobbyist, student, or professional engineer, this module gives you accurate 6-axis motion tracking — combining a 3-axis gyroscope and a 3-axis accelerometer — in a slim SMD package that integrates effortlessly with Arduino, STM32, Raspberry Pi, and other microcontrollers.

Made in Mainland China.

Key Features

• MPU-6050 Chip: 6-axis motion tracking with integrated Digital Motion Processor (DMP)
• Dual Output Interfaces: Serial (UART) and IIC/I2C for flexible integration
• Wide Supply Voltage: 3V – 5V, compatible with 3.3V and 5V microcontrollers
• Real-Time Angle Data: Outputs processed tilt and orientation data directly — no complex fusion algorithm needed on your MCU
• Compact SMD Package: Easy to mount in tight spaces and embedded enclosures
• High Sensitivity: Accurately captures roll, pitch, and yaw motion changes
• Low Power Consumption: Ideal for battery-powered applications
• Broad Compatibility: Works with Arduino, STM32, ESP32, Raspberry Pi, and most popular development boards

Technical Specifications

Common Applications

• Robotics and self-balancing robots
• Drone and quadcopter stabilization
• RC car and vehicle tilt control
• Wearable motion tracking devices
• Camera gimbal stabilization
• Industrial inclination and orientation monitoring

What's in the Box

• 1× GY-25 MPU-6050 Tilt Angle Sensor Module

Related Products You May Like

Explore more electronics and tools in our store:

• Electromagnetic Induction Tester – Coil & Circuit Fault Detector
• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
• 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What microcontrollers are compatible with the GY-25 MPU-6050 sensor module?

A: The GY-25 MPU-6050 module supports both 3.3V and 5V logic levels (supply voltage 3V–5V), making it compatible with a wide range of microcontrollers including Arduino (Uno, Nano, Mega), STM32, ESP32, ESP8266, and Raspberry Pi. Simply connect via the IIC/I2C or Serial UART interface to start reading angle data.

Q: Does the GY-25 module output raw sensor data or processed angle data?

A: Unlike a raw MPU-6050 breakout, the GY-25 module includes an onboard processor that fuses gyroscope and accelerometer data and outputs ready-to-use tilt angle values (roll and pitch) directly over its Serial or I2C interface. This saves you from implementing sensor fusion algorithms on your own microcontroller.

Q: Which interface should I use — Serial (UART) or IIC/I2C?

A: Both interfaces are available on the GY-25 module. Use IIC/I2C if you need to daisy-chain multiple sensors on the same bus and have limited GPIO pins. Use Serial (UART) for simplicity and faster data streaming, particularly on platforms like Arduino where hardware serial ports are readily available.

Q: Is the GY-25 MPU-6050 module suitable for drone or gimbal stabilization projects?

A: Yes. The MPU-6050's 6-axis motion tracking (3-axis gyroscope + 3-axis accelerometer) and the GY-25's real-time angle output make it well-suited for drone stabilization, camera gimbals, and self-balancing robot platforms where accurate, low-latency orientation data is critical.
