E3F-DS10 Proximity Photoelectric Sensor Switch
The E3F-DS10 Photoelectric Sensor Switch is a compact, high-performance diffuse-reflection proximity sensor designed for industrial automation, machine control, object detection, and DIY electronics projects. Compatible with a wide voltage range of 6–36V DC / 90–250V AC, this versatile sensor delivers reliable 10 cm detection distance with both NPN and PNP output options in 3-wire and 2-wire configurations.
Whether you're building an automated conveyor system, a counting circuit, or a smart device trigger, the E3F-DS10 offers stable, accurate sensing in an 18mm plastic housing that's easy to mount in tight spaces.
Key Features
- Model: E3F-DS10 (C4 / P1 / P2 / Y1 / Y2 variants available)
- Detection Mode: Diffuse Reflection
- Detection Range: 10 cm
- Operating Voltage: 6–36V DC / 90–250V AC

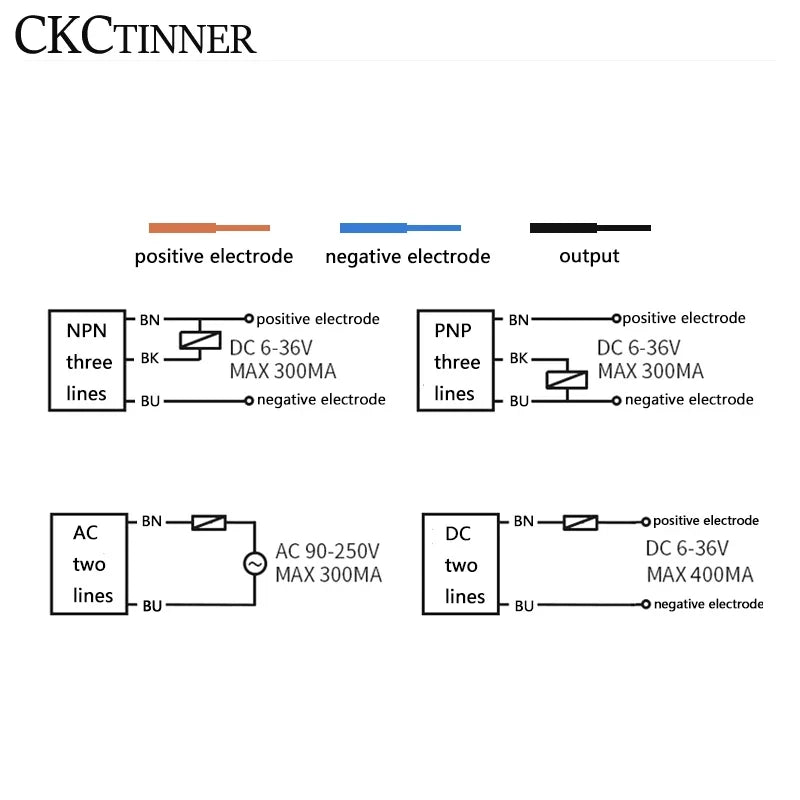

- Output Type: NPN & PNP (3-wire / 2-wire)
- Output Current: Up to 200 mA
- Housing Size: 18 mm diameter
- Housing Material: Durable plastic
- High-Concern Chemicals: None
Wide Compatibility
With support for both DC and AC power supplies and dual NPN/PNP output modes, this sensor integrates easily with PLCs, microcontrollers (Arduino, Raspberry Pi), relay modules, and industrial control panels. The three-line and two-line output configurations give you maximum flexibility for your wiring setup.
Typical Applications
- Object detection on conveyor belts and assembly lines
- Automated counting and sorting systems
- Position and level sensing in machinery
- DIY robotics and home automation projects
- Security and access control triggers
Specifications at a Glance
| Model | E3F-DS10 |
| Detection Mode | Diffuse Reflection |
| Detection Range | 10 cm |
| Voltage (DC) | 6–36V DC |
| Voltage (AC) | 90–250V AC |
| Output | NPN / PNP |
| Max Current | 200 mA |
| Housing Size | 18 mm |
| Material | Plastic |
| Origin | Made in Mainland China |
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the difference between NPN and PNP output on the E3F-DS10 photoelectric sensor?
A: NPN (sinking) output pulls the signal line LOW when an object is detected, while PNP (sourcing) output pulls the signal line HIGH. Choose NPN for most microcontroller and PLC setups that use a common ground reference, and PNP when your control circuit requires a high-side switch. The E3F-DS10 series offers both variants so you can match your exact wiring needs.
Q: Can the E3F-DS10 sensor run on both AC and DC power?
A: Yes. The E3F-DS10 supports a wide dual-voltage range — 6–36V DC for low-voltage electronics and microcontroller projects, and 90–250V AC for direct integration into mains-powered industrial panels. Always check the specific model suffix (C4, P1, P2, Y1, Y2) for the exact voltage and output configuration before wiring.
Q: What does "diffuse reflection" detection mode mean?
A: In diffuse reflection mode, the sensor's transmitter emits an infrared beam and the receiver detects light bounced back from the target object itself — no separate reflector is needed. The E3F-DS10 triggers when a target enters within its 10 cm sensing range, making it ideal for detecting objects of varying surfaces in a compact setup.
