DIY High Voltage Arc Igniter PCB Kit – DC 3V–5V Module

$10.89 USD $12.90 USD

DIY High Voltage Arc Igniter Module – PCB Kit DC 3V–5V

Build your own high-voltage arc generator with this compact DIY electronics kit. Powered by a DC 3V–5V input (ideal with a 3.7V 18650 lithium battery), this pulse arc igniter module produces a striking purple high-temperature arc up to 8mm in length — perfect for hobbyists, electronics enthusiasts, and makers who love hands-on soldering projects.

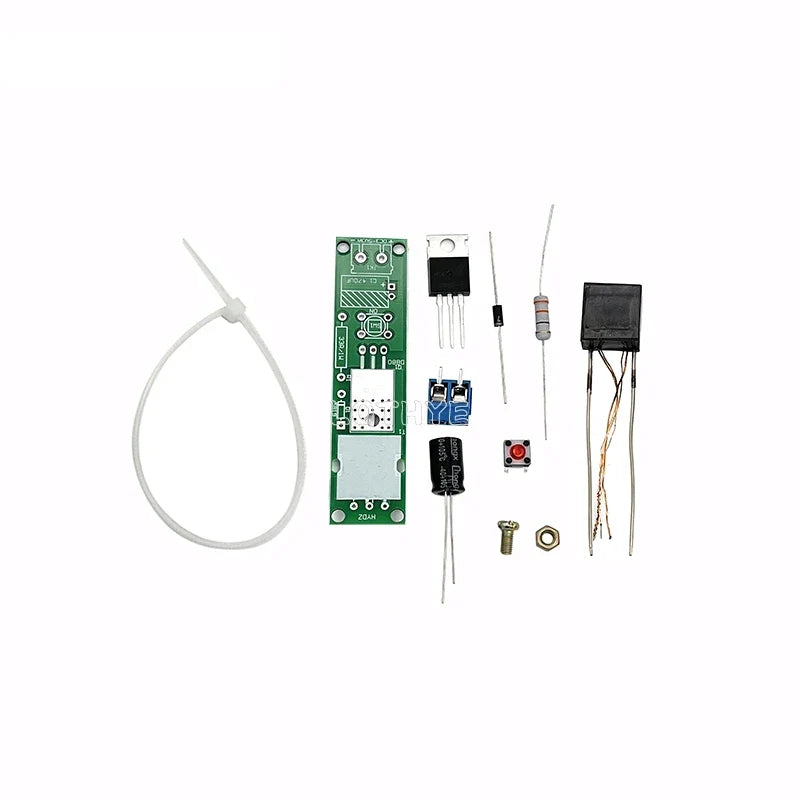

Please Note: This kit is shipped as bulk components that require soldering and assembly. Suitable for users with basic electronics and soldering skills. Handle with care — high-voltage output is produced during operation.

Key Features

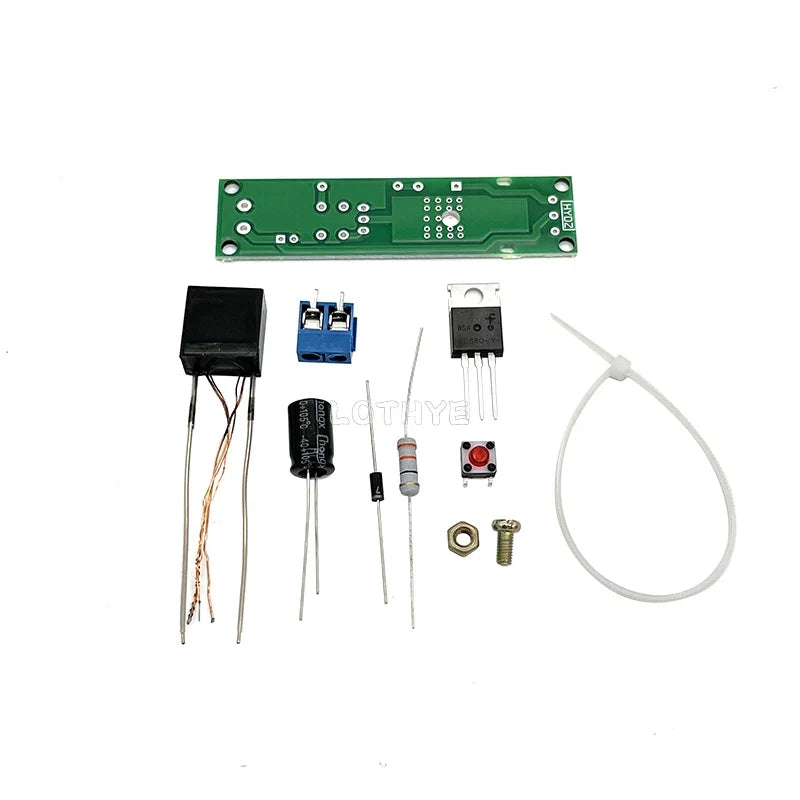

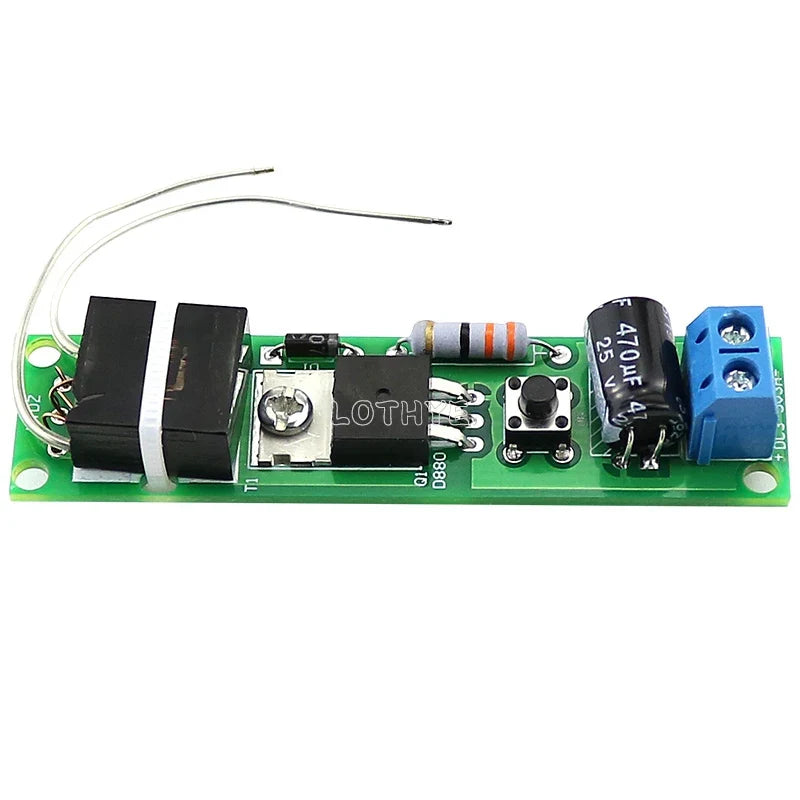

Compact PCB Module: Kit dimensions: 71mm (L) × 18mm (W) × 12mm (H) — small, lightweight, and easy to integrate into DIY builds
Wide Input Voltage: DC 3V–5V input; recommended power source is a 3.7V 18650 lithium battery
High-Output Arc: Generates a purple arc up to 5–8mm in length with a pulse output voltage of 0.5kV–0.8kV
High Working Frequency: 20kHz–25kHz operating frequency for consistent arc performance
Resin-Encapsulated Transformer: The transformer is sealed in resin for enhanced durability and reliable continuous operation
Instant Ignition Capability: Easily ignites paper and similar materials in an instant — great for demonstrating arc physics and electronic principles
DIY Soldering Kit: A rewarding hands-on build — process includes tinning wire ends, coil winding, and adjusting arc electrode spacing

Technical Specifications

Input Voltage: DC 3V–5V
Input Current: ~5A (15W+)
Output Pulse Voltage: 0.5kV–0.8kV
Working Frequency: 20kHz–25kHz
Arc Distance: 5–8mm
Kit Size: 71mm × 18mm × 12mm
Recommended Power: 3.7V 18650 lithium battery
Country of Origin: Made in Mainland China

Assembly Notes

Identify and separate the three wire types included in the kit. Apply a thin coat of solder (tin) to each wire end.
Use a small screwdriver to coil any excess wire neatly — the thicker wire goes on the right side of the board.
Bend the tips of the two translucent output wires to approximately 5mm apart (arc electrode spacing).
Connect your DC 3–5V power supply, power on, and observe the arc!

⚠️ Safety Guidelines

Do not operate the module continuously for more than 1 minute at a time — allow adequate time for heat dissipation between uses.
Keep away from flammable materials during testing. Never touch the output terminals while powered on.
This kit is intended for educational and hobbyist use by adults with electronics experience. Keep out of reach of children.
