CKCTINNER DIN Rail LCD Single Phase Energy Meter – 220V 80A

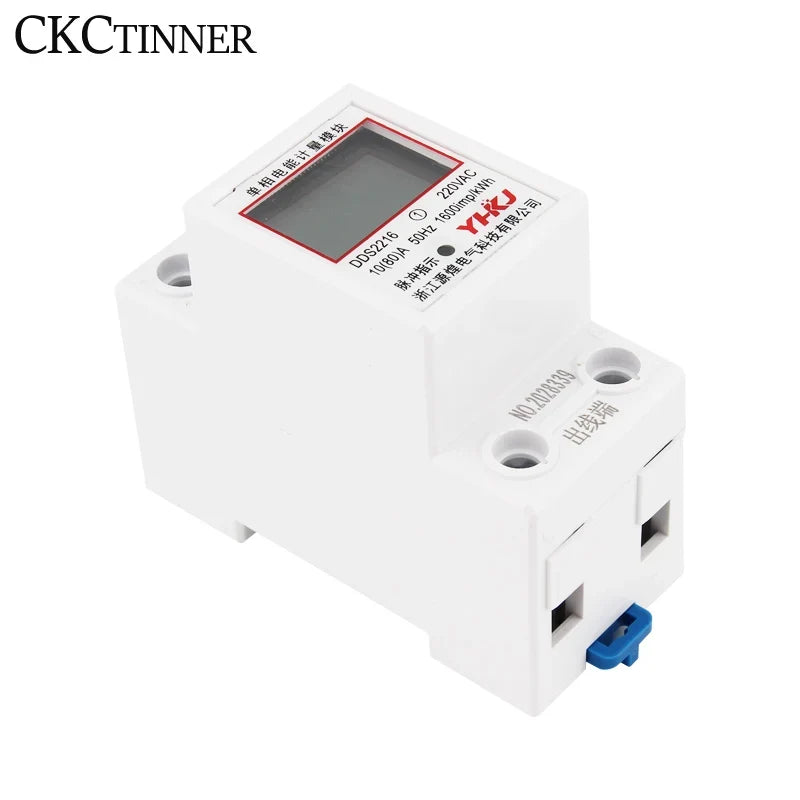

Monitor your electricity consumption with precision using the CKCTINNER DDS2216 Single Phase DIN Rail Energy Meter. Designed for easy snap-on 35mm DIN rail installation, this CE-certified wattmeter delivers a clear LCD backlit display of all critical electrical parameters — making it perfect for home workshops, electrical panels, sub-metering applications, and DIY electrical projects.
The meter features a convenient Reset-to-Zero function for temporary kWh tracking. Simply hold the button for 6 seconds to reset the temporary energy reading — ideal for monitoring consumption over specific periods. The cumulative Total kWh remains permanently stored for your records.
Key Features
- Multi-Parameter Display: Cycles through Total Energy (kWh), Temporary Energy (kWh), real-time Voltage, real-time Current, and real-time Power with a single button press

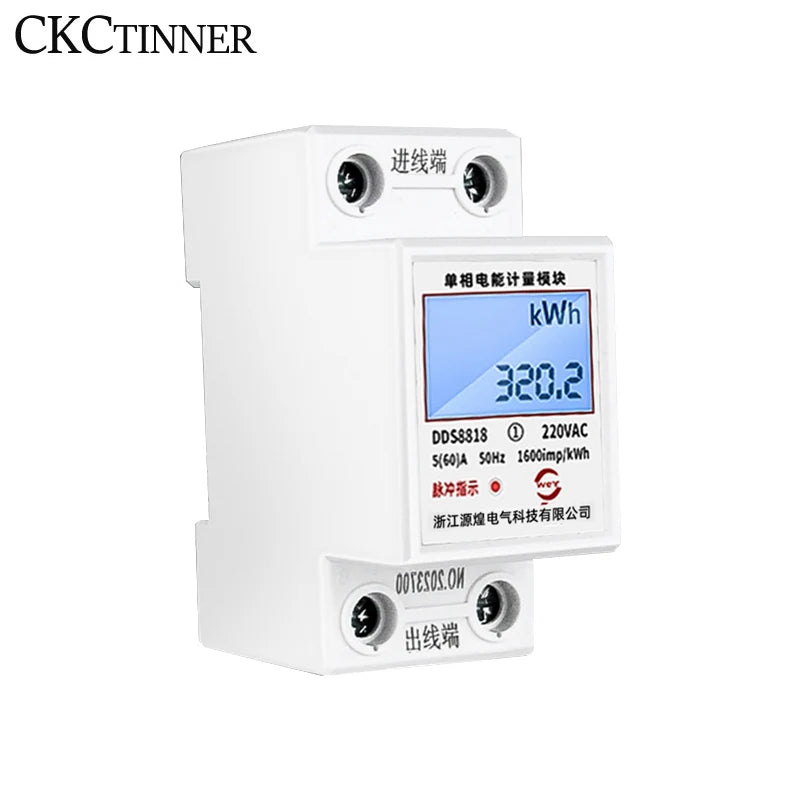

- LCD Backlit Screen: Large, easy-to-read digital display with backlight for clear readings in any lighting condition
- Reset-to-Zero Functionality: Hold button 6 seconds to reset the temporary kWh counter; Total kWh is permanently retained

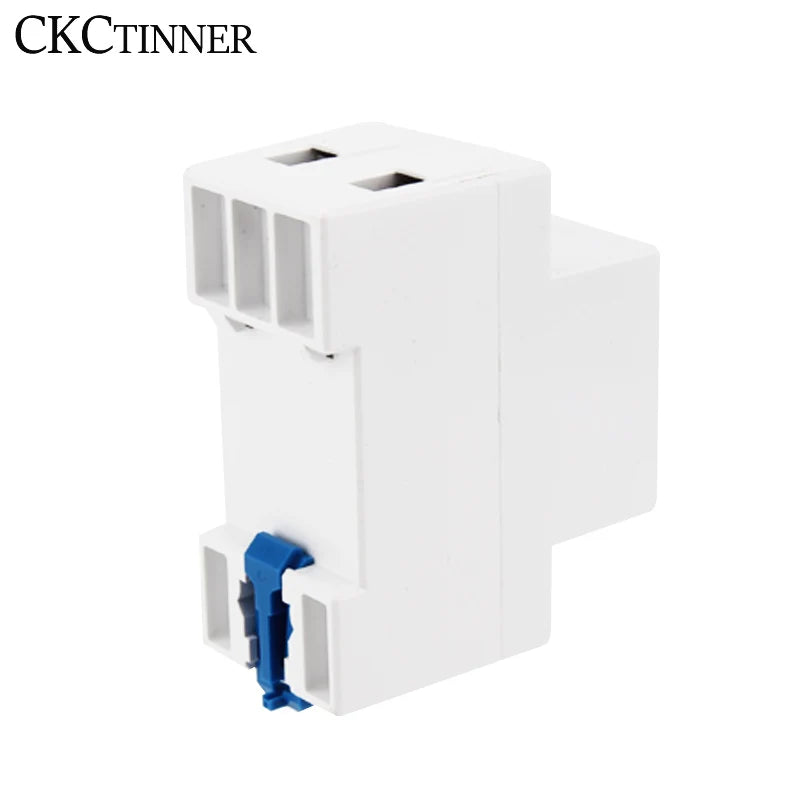

- 35mm DIN Rail Mount: Snaps directly onto standard DIN rail for fast, tool-free installation
- Pulse LED Indicator: Flashing pulse LED confirms the meter is actively measuring
- High Capacity Measurement: Measures up to 99,999.9 kWh total energy range; supports up to 80A maximum current
- CE Certified: Meets European conformity standards for electrical safety and performance
- No Battery Required: Powered directly from AC supply (220V–230V AC)
Technical Specifications
| Model | DDS2216 |
| Phase | Single-Phase |
| Rated Voltage | 220V / 230V AC |
| Maximum Current | 80A |
| Energy Range | 0 – 99,999.9 kWh |
| Pulse Frequency | 1000 imp/kWh |
| Display Type | LCD with Backlight (Digital) |
| Operating Temperature | -10°C to +50°C |
| Dimensions | 78 × 65 × 35 mm |
| Certification | CE |
| Battery | Not Required |
What's in the Box
- 1 × DDS2216 Single Phase Energy Meter
- 1 × English Instruction Manual
Made in Mainland China.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Can the total kWh reading on this DIN rail energy meter be reset to zero?
A: No — the Total kWh reading is permanently stored and cannot be reset. However, the Temporary kWh counter can be reset to zero by holding the button for 6 seconds. This makes it easy to track energy consumption over a specific time period without losing your cumulative total.
Q: What electrical parameters does this single phase energy meter display?
A: The CKCTINNER DDS2216 cycles through five key readings via a single button press: Total Energy (kWh), Temporary Energy (kWh), real-time Voltage (V), real-time Current (A), and real-time Power (W). The LCD backlit screen makes all readings easy to view.
Q: Is this energy meter compatible with standard DIN rail electrical panels?
A: Yes. The meter is designed for snap-on installation onto a standard 35mm DIN rail, making it compatible with most residential and commercial electrical distribution boards and enclosures. No additional mounting hardware is needed.
Q: What is the maximum load this wattmeter can handle?
A: This meter supports a maximum operating current of 80A at a rated voltage of 220V–230V AC (single phase), making it suitable for monitoring a wide range of household and light commercial electrical circuits.
