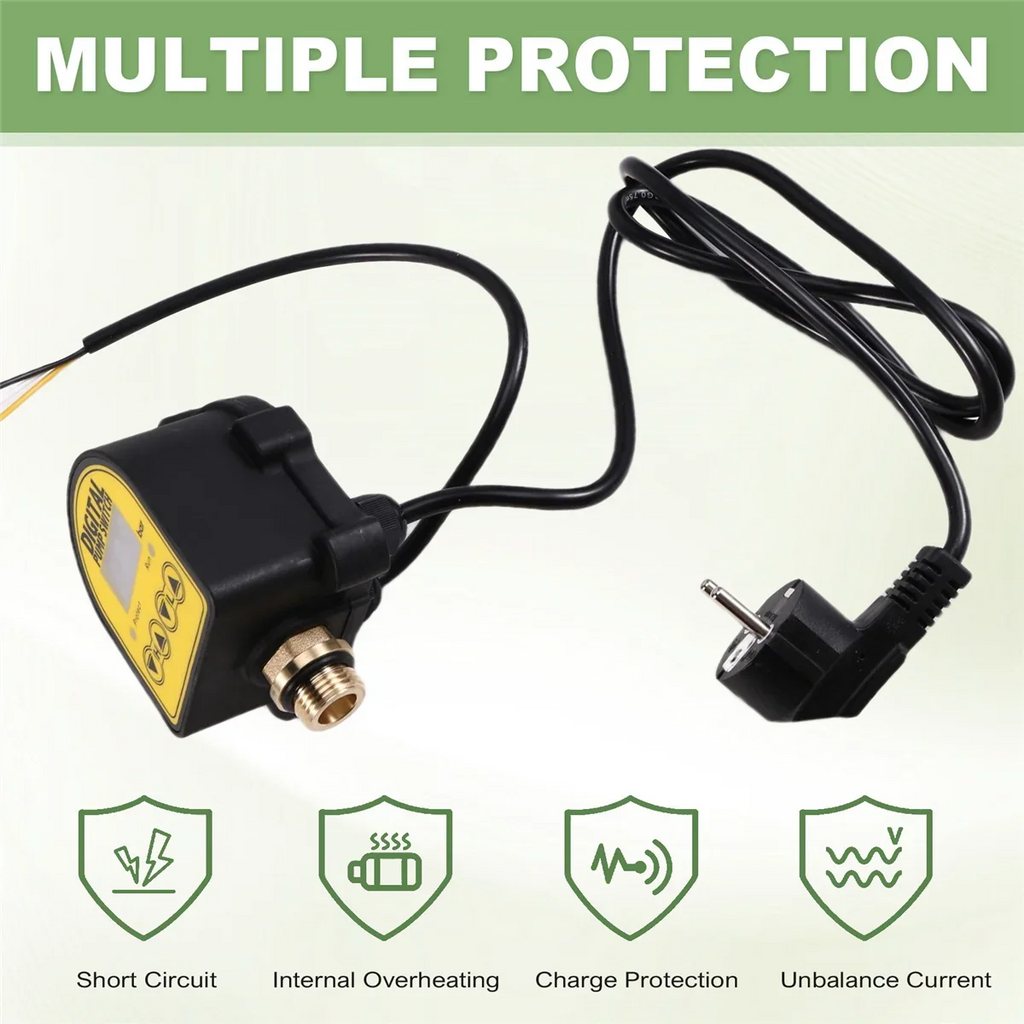

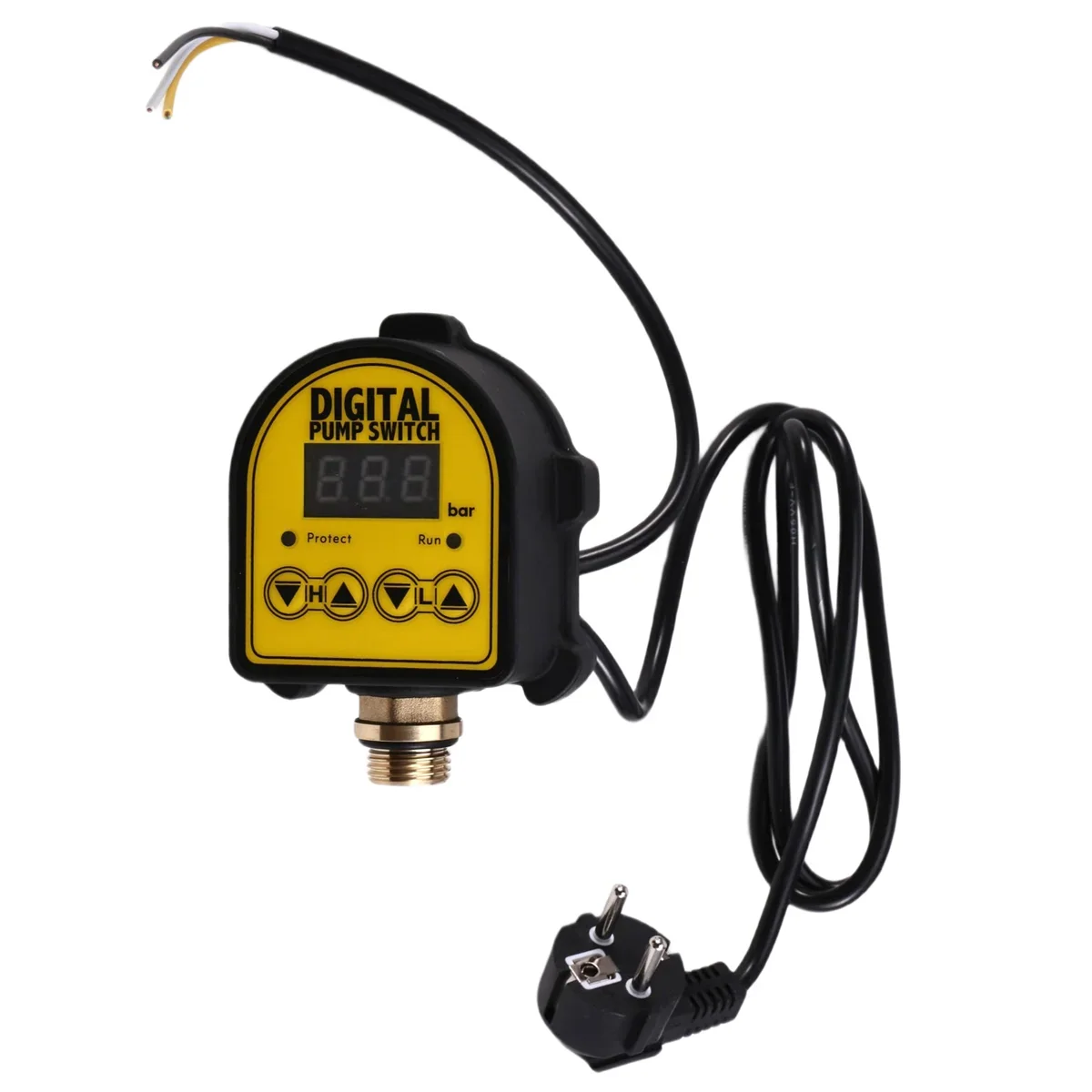

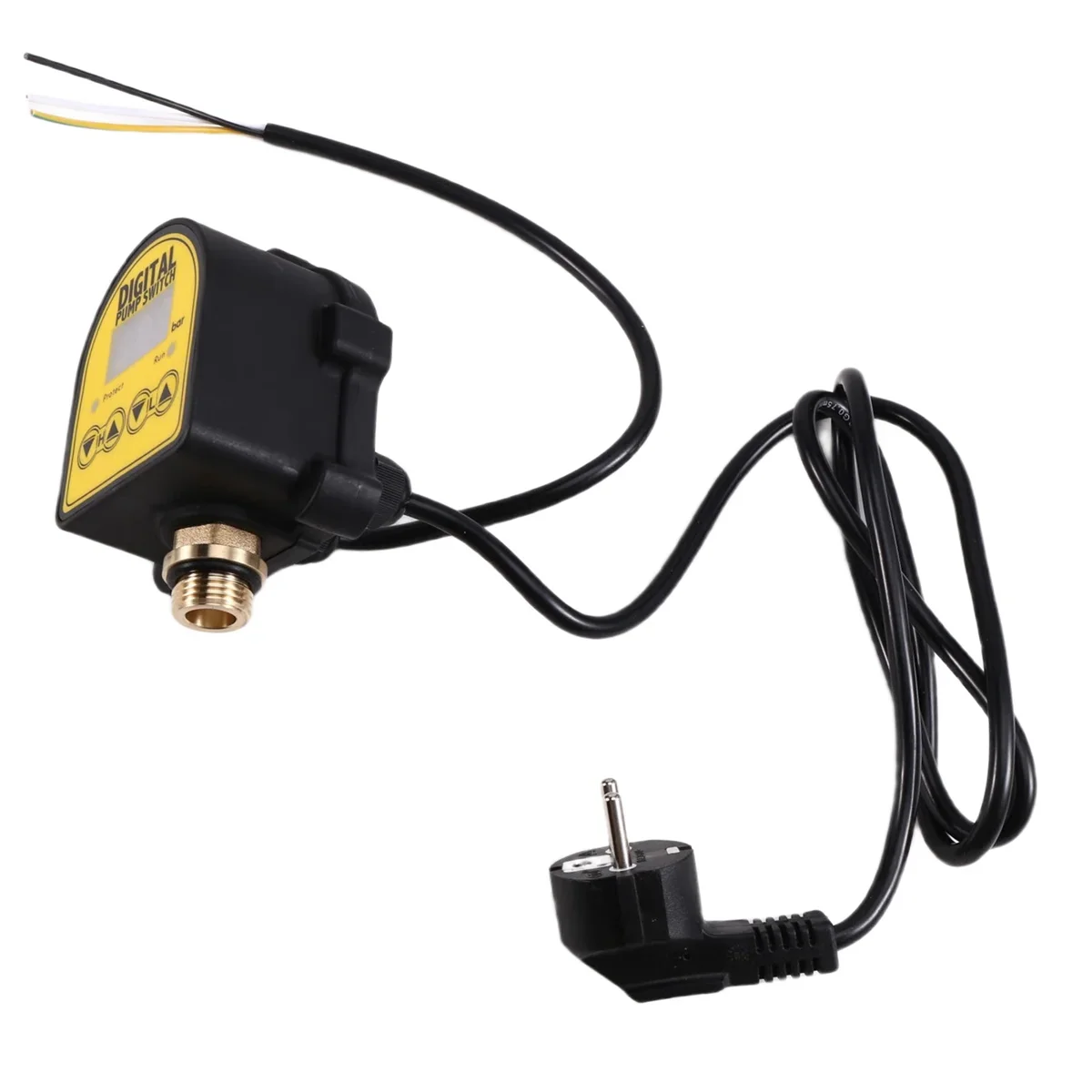

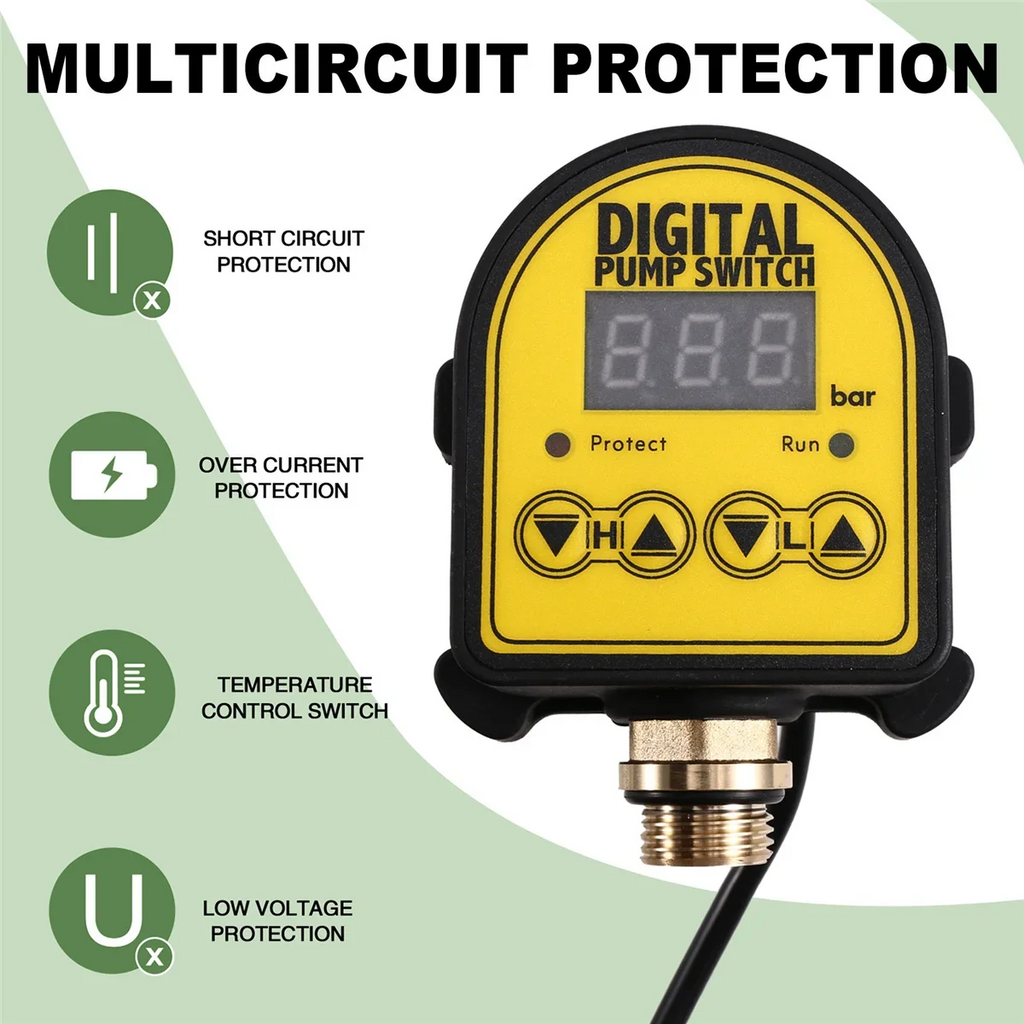

A01R Digital Pressure Controller Switch – Smart Automatic Pump Control
Take full control of your water, oil, or air compressor system with the A01R Digital Automatic Pressure Controller Switch. Featuring a built-in pressure transmitter and micro-computer processing chip, this intelligent switch automatically starts and stops your pump based on your preset pressure limits — no manual intervention needed.
Made in Mainland China.
Key Features
- Built-in Pressure Transmitter – Delivers stable, accurate pressure readings for consistent pump performance.
- Micro-Computer Chip Control – Smart, intelligent processing ensures safe and reliable automated operation.
- One-Click Setup – Easily set your upper (H) and lower (L) pressure limits with a single button.
- Dry-Run Protection – Automatically cuts power to the pump during water shortage and resumes when water is detected.
- Wide Pressure Range – Operates from 0–10 Bar, compatible with virtually all pump types.

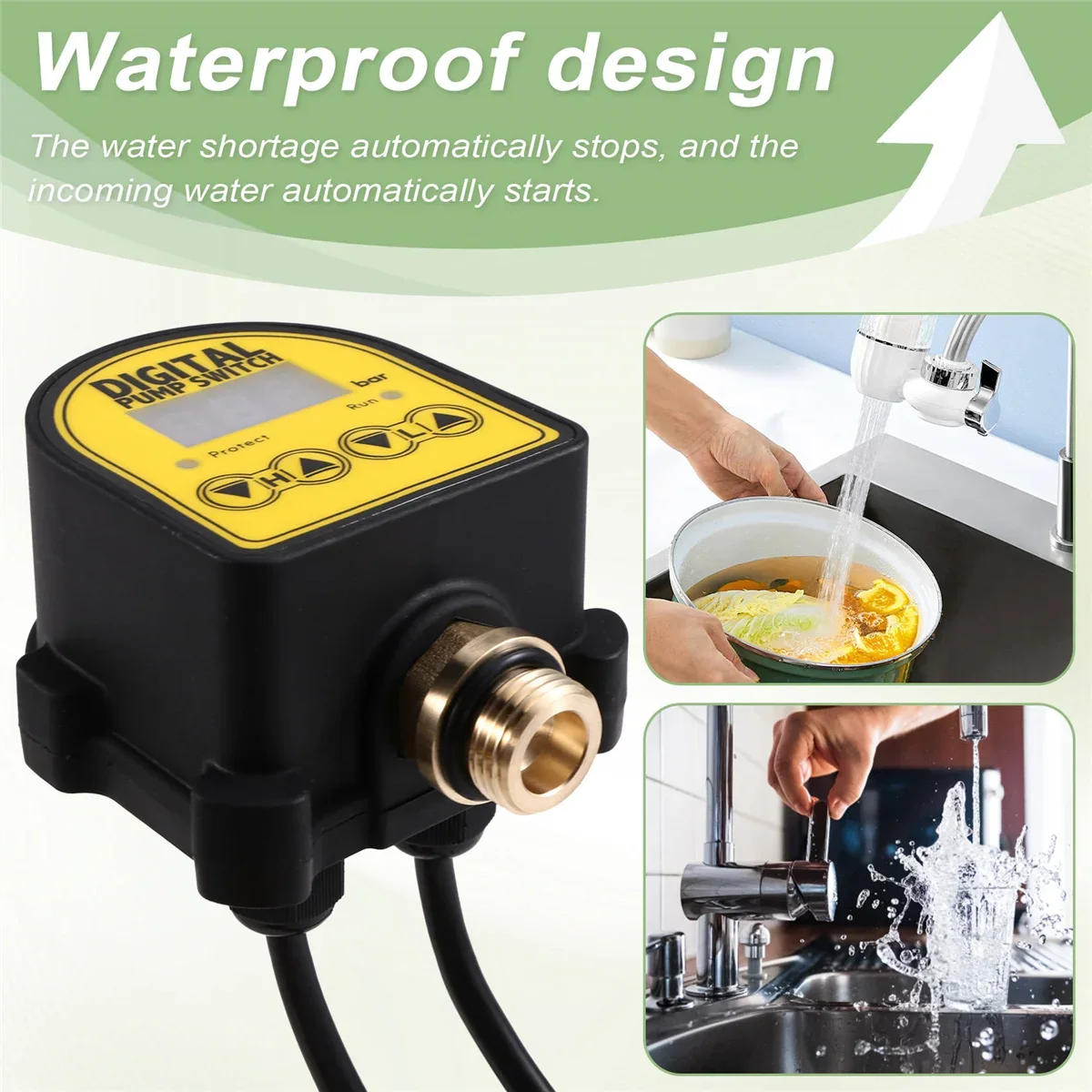

- IP65 Waterproof Rated – Sealed against dust and water jets for safe use in demanding environments.
- Direct Pump Start – Active output supplies 220V AC to start pumps up to 1.5 kW directly.
- EU Plug Compatible – Suits outlets in Germany, France, Spain, Italy, Indonesia, and more.
- Durable Construction – Metal and plastic housing built for long-lasting performance.
Specifications
| Voltage | AC 220V |
| Relay Capacity | 220V AC, 10A |
| Working Pressure Range | 0–10 Bar |
| Interface Size | 1/2 inch |
| Output Signal | Active output (up to 1.5 kW direct start) |
| Plug Type | EU Plug |
| Waterproof Rating | IP65 |
| Material | Metal + Plastic |
| Country of Origin | Mainland China |
Installation Tips
- If your pump does not have a built-in check valve, install one in front of the pressure switch to prevent frequent on/off cycling.
- If the pump cycles on and off when the tap is open, adjust the H valve to a higher setting.
- If the pump runs continuously without stopping, lower the H valve setting.
- If the pump does not start, raise the L valve setting.
What's in the Box
- 1 × A01R Digital Pressure Controller Switch (EU Plug)
Looking for more tools to keep your systems running efficiently? Check out our Air Compressor Pressure Gauge 0–10/0–12/0–25 Bar or explore our Electromagnetic Induction Tester – Coil & Circuit Fault Detector for more workshop essentials.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What types of pumps is the A01R digital pressure controller switch compatible with?
A: The A01R pressure controller switch is compatible with virtually all pump types, including water pumps, oil pumps, and air compressors. Its 0–10 Bar working pressure range and 1/2-inch interface make it highly versatile for residential and light commercial applications.
Q: Does the digital pump switch protect against dry running?
A: Yes. The A01R switch features built-in dry-run protection. It automatically shuts off the pump when water shortage is detected and restores operation once water supply is available, helping to extend the life of your pump.
Q: What is the maximum pump power the switch can start directly?
A: The A01R provides an active 220V AC output and can directly start pumps rated up to 1.5 kW without requiring an external relay or starter. For pumps above 1.5 kW, an external contactor is recommended.
Q: Is the EU plug compatible with my country's outlets?
A: The EU plug (Type C/F) is compatible with outlets in Germany, France, Spain, Italy, Indonesia, and many other countries that use the standard European round-pin socket. Please verify your local outlet type before purchasing.
