DC12V Wireless Remote Control Motor Speed Regulator Kit
Take full control of your DC 12V motor with this compact and easy-to-use wireless remote speed controller kit. Designed for electric dining tables, lazy susans, turntables, and other rotating fixtures, this kit lets you adjust rotation speed effortlessly from a distance — no wires, no fuss. The ABS-constructed controller board is durable and lightweight, making it ideal for both DIY builds and retrofit installations.
Key Features
- Wireless Remote Control: Operate your motor from a distance using the UHF-band remote — no need to reach the unit manually.
- Rotary Speed Regulation: Smoothly adjust the speed of your DC 12V motor to suit your exact needs.
- Easy Key Learning: Simply press the learning key on the receiver board and assign your remote buttons in seconds — a buzzer confirms successful pairing.
- Quick Memory Clear: Hold the learning button for ~10 seconds to wipe stored remote data and start fresh.
- UHF Signal Transmission: Straight-line electromagnetic wave propagation for reliable range in open environments.
- Sturdy ABS Construction: Lightweight yet durable material built to handle everyday use.
- Wide Application: Perfect for electric dining table turntables, display stands, rotating platforms, and other DC motor-driven mechanisms.
Specifications
- Voltage: DC 12V
- Material: ABS
- Control Type: Wireless UHF Remote
- Country of Origin: Made in China
Package Contents

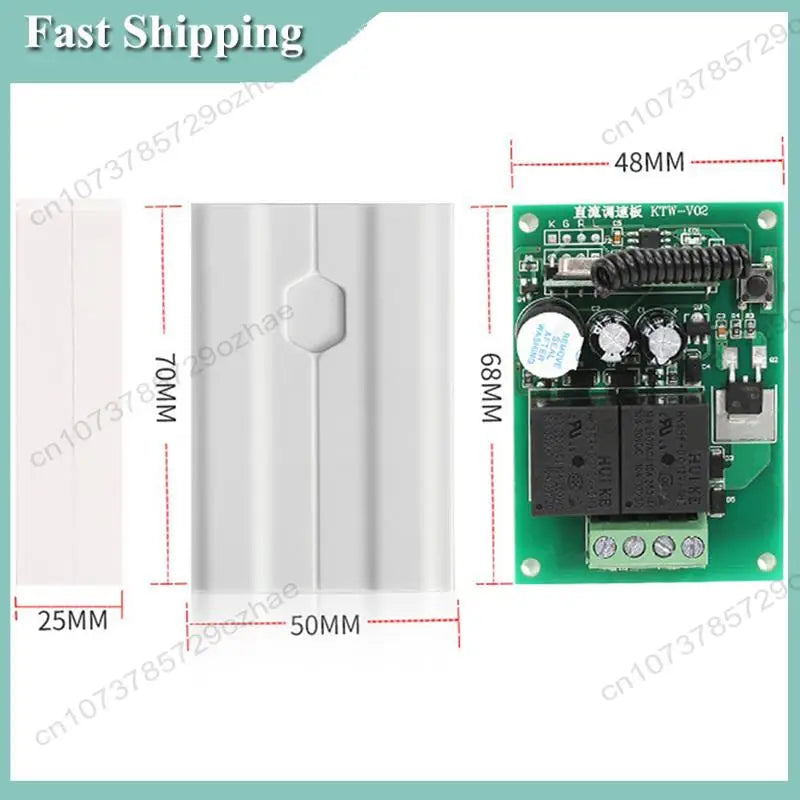

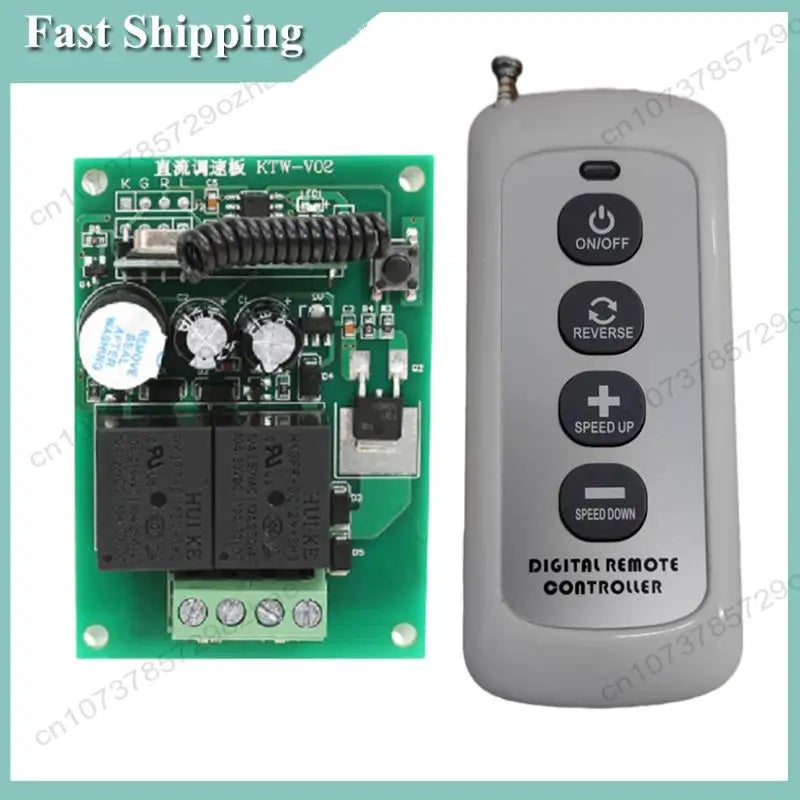

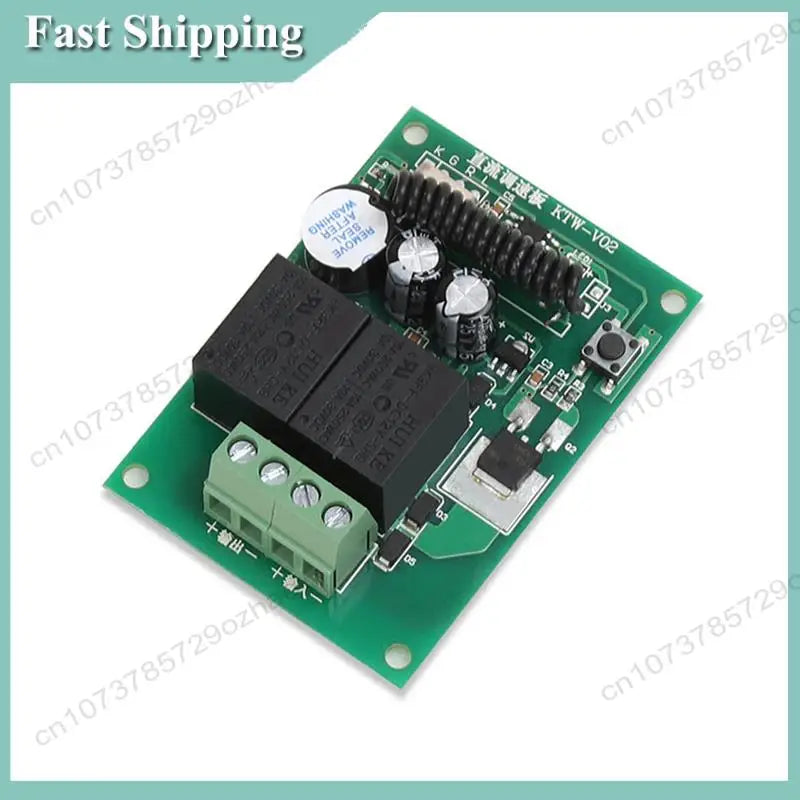

- 1 × Motor Controller Board
- 1 × Wireless Remote Control
Note: Only the items listed above are included. Due to lighting and display differences, item colors may vary slightly from images. Measurement tolerance: ±1–3 cm.
How to Set Up Your Remote Controller
- Press the learning key on the receiver control board until the buzzer sounds.
- Immediately press the desired key on the remote control — the buzzer will sound again to confirm successful pairing.
- To clear stored remote data, hold the learning button for approximately 10 seconds until a "Bi" tone is heard.
- For best range, keep the antenna vertical and minimize obstructions between the remote and receiver.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What type of motor is this DC12V wireless controller compatible with?
A: This controller kit is designed for DC 12V motors. It is commonly used with electric dining table turntables, rotating display platforms, lazy susans, and similar DC motor-driven applications. Always verify your motor's voltage rating matches DC 12V before connecting.
Q: How far does the wireless remote control work?
A: The remote operates on UHF band frequencies, which transmit in a straight line. Range is maximized in open environments with the antenna held vertically. Walls, metal objects, and other obstacles can reduce the effective range significantly, so try to maintain a clear line of sight for best performance.
Q: Can I pair multiple remote controls to one receiver board?
A: The receiver board supports key-learning for individual buttons. You can program specific buttons from a remote to control the motor. To switch to a new remote, simply clear the stored data by holding the learning button for ~10 seconds until you hear the confirmation tone, then re-pair with the new remote.
