DC 6-45V Fully Automatic Solar Street Light LED Controller Board
Take control of your solar lighting system with this compact, fully automatic LED controller board. Designed for DIY solar street lights, garden lights, and courtyard fixtures, this PCB controller automatically switches lights ON at nightfall and charges the battery during daylight hours — saving energy effortlessly with zero manual intervention.
Made in Mainland China.
Key Features
- Fully Automatic Operation: Smart light-sensing control turns LEDs on at dusk and off at dawn, maximising energy efficiency.
- Wide Voltage Range: Operates across DC 6–45V, making it compatible with a broad range of solar battery systems.
- High Current Capacity: Supports up to 10A maximum charging current and 20A maximum output current for reliable, high-load performance.
- No-Solder, Tool-Free Installation: Terminal block design with screw fastening means you can install the board quickly and easily — no soldering required.
- Durable PCB Construction: Built from high-quality PCB materials with a robust circuit design for stable, long-lasting performance in outdoor DIY applications.

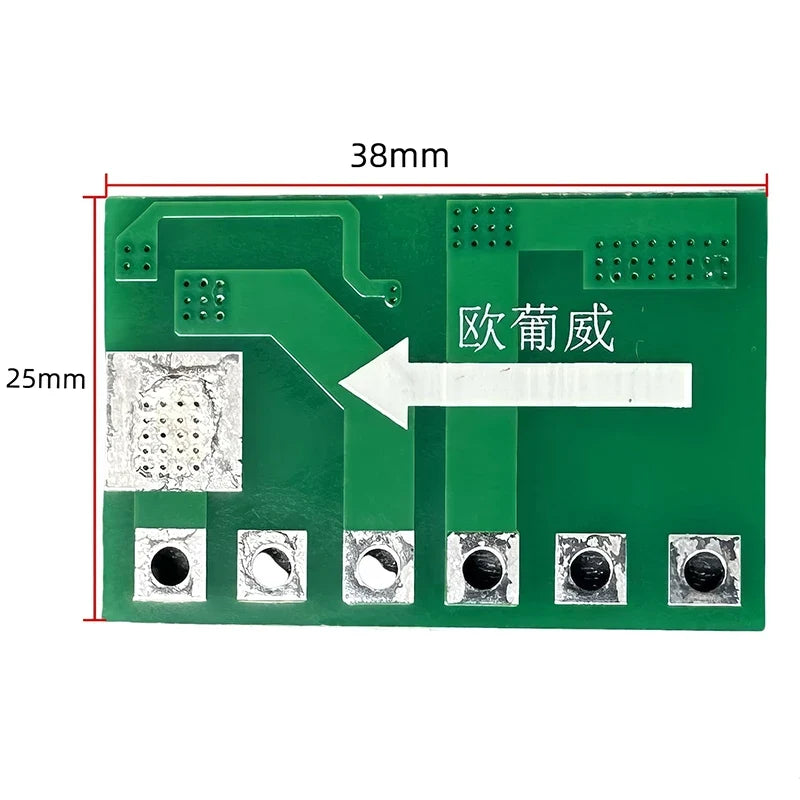

- Compact Size: Measures just 38 × 25 mm (1.50 × 0.98 in), fitting neatly into most solar light housings and DIY enclosures.
- Eco-Friendly Energy Management: Daytime solar charging and automated night-time output protect your battery and reduce unnecessary power consumption.
Specifications
| Material | PCB |
| Input Voltage | DC 6–45V |
| Max Charging Current | 10A |
| Max Output Current | 20A |
| Dimensions | 38 × 25 mm (1.50 × 0.98 in) |
| Country of Origin | Mainland China |
What's in the Box
- 1 × DC 6-45V Solar LED Controller Board
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What voltage range is compatible with this solar LED controller board?
A: This controller board operates across a wide DC 6–45V range, making it compatible with most standard solar battery bank setups used in street lights, garden lights, and other outdoor solar lighting projects.
Q: Do I need to solder wires to install this LED controller board?
A: No soldering is required. The board uses a terminal block design with screw fastening, so you can connect your wires quickly and securely without any soldering tools or specialist skills.
Q: Is this controller board suitable for outdoor solar street light DIY projects?
A: Yes. This board is specifically designed for DIY solar street light, courtyard light, and garden light applications. Its automatic ON/OFF light-sensing function and 20A output capacity make it ideal for a wide variety of outdoor solar LED installations.
