DC 12V Auto Power Switching Module – Battery Failover Board
DC 12V Auto Power Switching Module – Battery Failover Board
DC 12V Automatic Power Switching Module – Battery Failover & Charging Control Board
Keep your DC-powered devices running without interruption. This LOTHYE DC 12V Automatic Power Switching Module intelligently monitors your main power supply and instantly switches over to battery backup the moment power is lost — then seamlessly switches back when mains power is restored. Ideal for security systems, solar setups, UPS applications, and any 12V DC circuit that requires uninterrupted power.

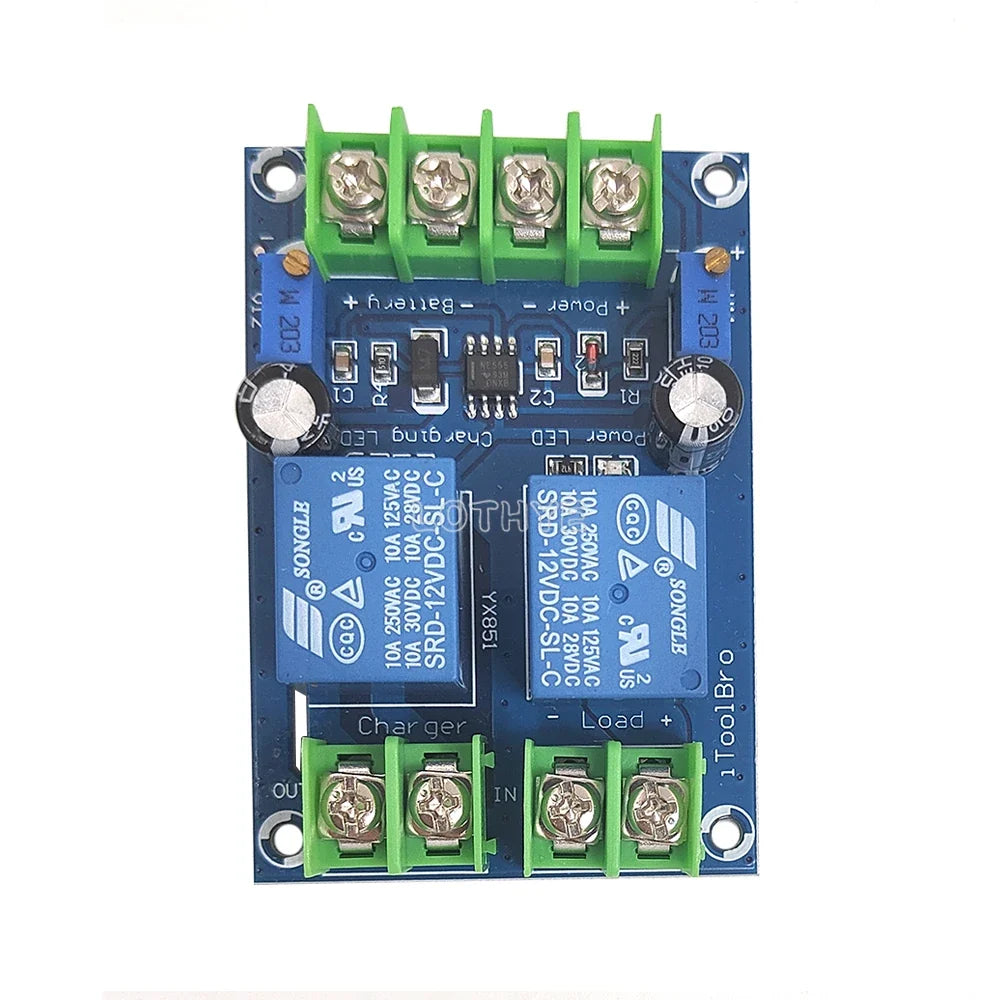

Built with high-quality components and a compact 69 × 48 × 18 mm form factor, this module features two onboard adjustable potentiometers (RP1 & RP2) for precise voltage threshold control, letting you set your own cut-in and cut-out battery voltage levels with ease.
Key Features
- Automatic Failover: Instantly switches from mains to battery power upon power failure; switches back when power is restored
- Adjustable Voltage Thresholds: Set custom turn-on and turn-off battery voltages via dual potentiometers (RP1 & RP2)
- 10A Control Current: Handles up to 10A, suitable for a wide range of 12V DC loads
- Compact & Easy to Install: 69 × 48 × 18 mm body with 61 × 41 mm (4 × Φ3 mm) mounting holes
- Clockwise / Counter-clockwise Tuning: Turn potentiometer clockwise to increase voltage threshold, counter-clockwise to decrease
- Wide Application: Solar systems, backup power circuits, security systems, embedded electronics, and more
- Made in Mainland China
Specifications
| Control Voltage | DC 12V |
| Control Current | 10A |
| Product Size | 69 × 48 × 18 mm (L × W × H) |
| Mounting Size | 61 × 41 mm (4 × Φ3 mm) |
| Brand | LOTHYE |
| Condition | New |
How to Set Voltage Thresholds (Example: Turn ON at <11V, Turn OFF at >13V)
- Input 11V to the BAT terminal; measure pin 5 (CONT) — typically ~5.08V.
- Adjust RP1 so pin 2 (TRIG) reads exactly half of pin 5 (CONT) — i.e., ~2.54V. Relay will activate below this threshold.
- Input 13V to the BAT terminal; measure pin 5 (CONT) again — typically ~5.08V.
- Adjust RP2 so pin 6 (THRES) matches pin 5 (CONT) — i.e., ~5.08V. Relay will deactivate above this threshold.
Tip: Adjust the potentiometers gently and in small increments for the most accurate results. For other voltage values, fine-tune accordingly.
