DC 0–100V 10A Dual Display Digital Voltmeter Ammeter Panel Gauge
Monitor both DC voltage and current at a glance with this compact dual-display digital voltmeter ammeter. Featuring a bright 0.28" LED screen — red digits for voltage and blue digits for current — this panel meter is the ideal solution for battery monitoring stations, DIY electronics projects, solar setups, and bench power supplies.
Made in Mainland China.
Key Features

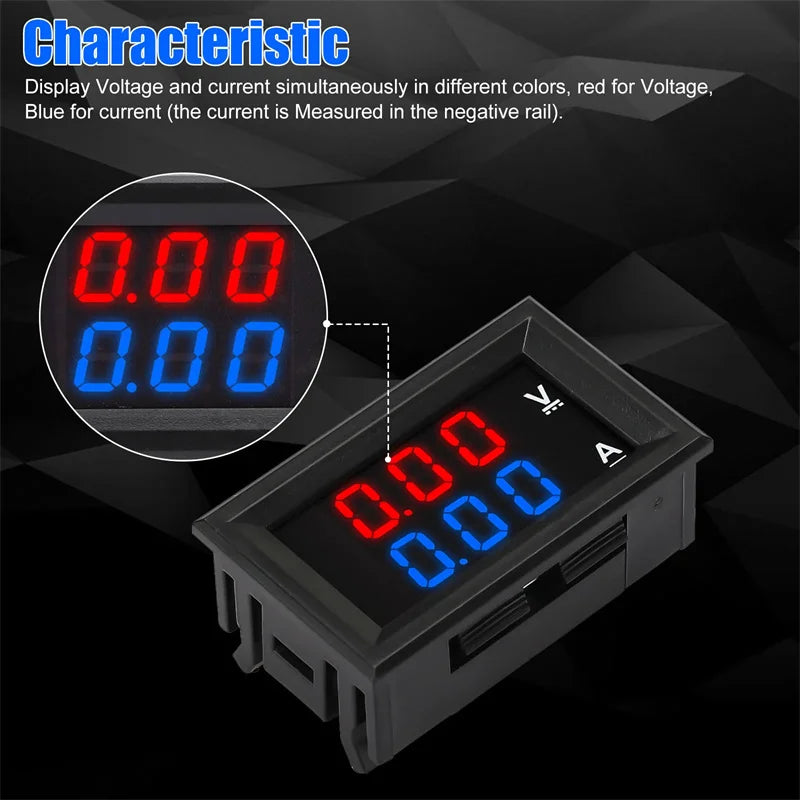

- Simultaneous dual readings — red display for voltage, blue display for current, both visible at the same time
- Wide measurement range — DC 0–100V voltage and DC 0–10A current
- High accuracy — voltage tolerance ±1%, current tolerance ±0.1%
- Auto-ranging — resolution of 0.01V / 0.01A for precise readings
- Fast refresh rate — updates every 300ms for real-time monitoring

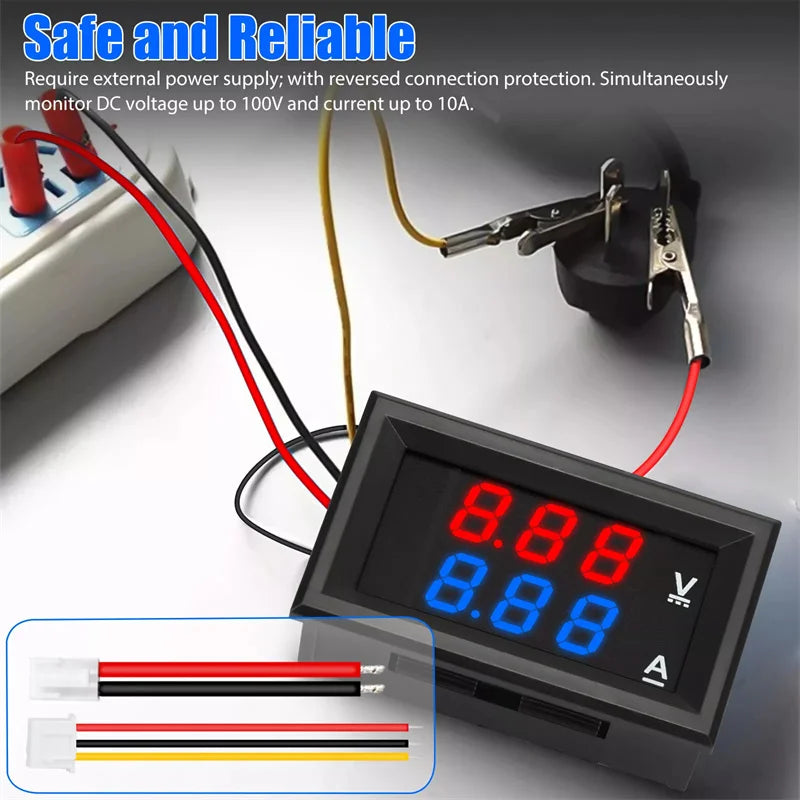

- Reverse connection protection — built-in safeguard against accidental wiring errors

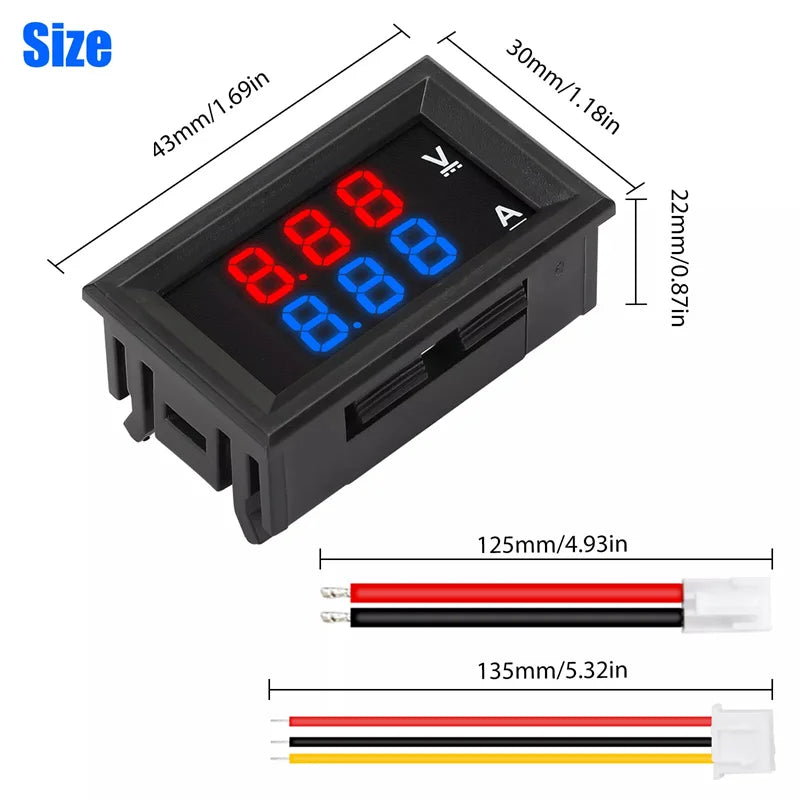

- Compact panel-mount design — fits a 46×27mm cutout; overall size 48×29×21mm
- Broad operating temperature — -10°C to 65°C

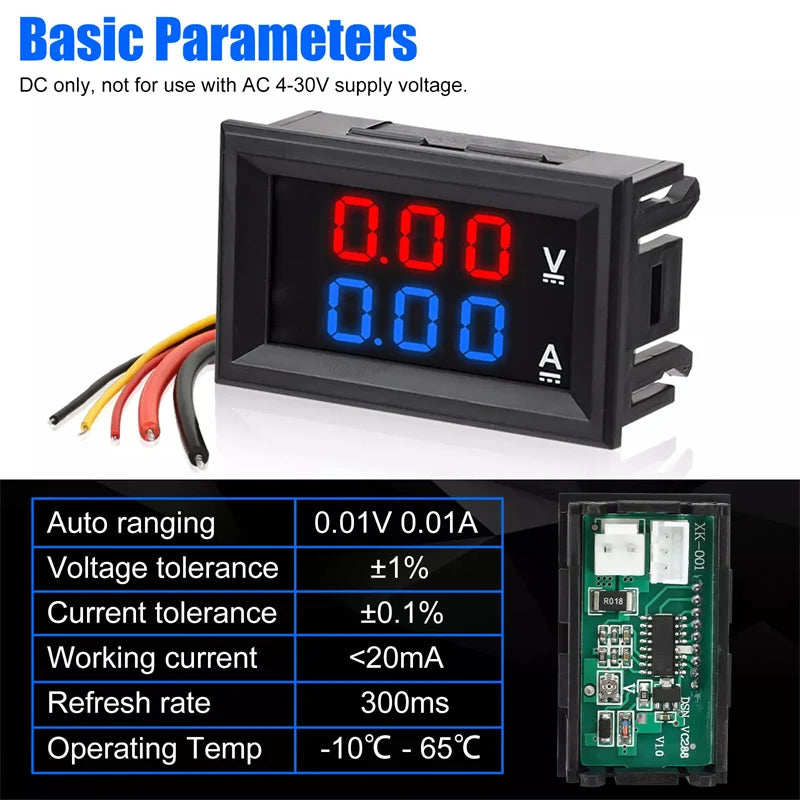

Full Specifications
| Type | DC Voltmeter Ammeter (Dual Display) |
| Voltage Range | DC 0 – 100V |
| Current Range | DC 0 – 10A |
| Auto Ranging | 0.01V / 0.01A |
| Voltage Tolerance | ±1% |
| Current Tolerance | ±0.1% |
| Working Current | <20mA |
| Refresh Rate | 300ms |
| Supply Voltage | 4–30V DC (external power required) |
| Operating Temp | -10°C to 65°C |
| Display | 0.28" Red (voltage) & Blue (current) LED |
| Panel Cutout | 46 × 27mm |
| Unit Size | 48 × 29 × 21mm |
| DC Type | DC only — not compatible with AC |

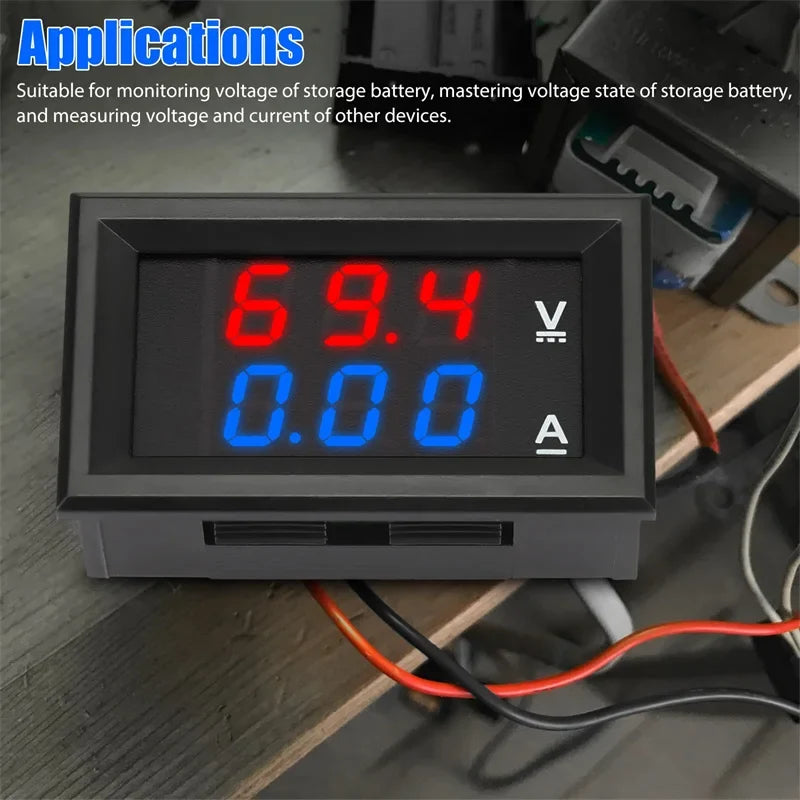

Applications
- Battery voltage and current monitoring (storage batteries, LiPo, lead-acid)
- Solar panel and charge controller systems
- DIY bench power supply panels
- Electric vehicle and e-bike diagnostics
- General DC electrical circuit testing and monitoring
⚠️ Important Note

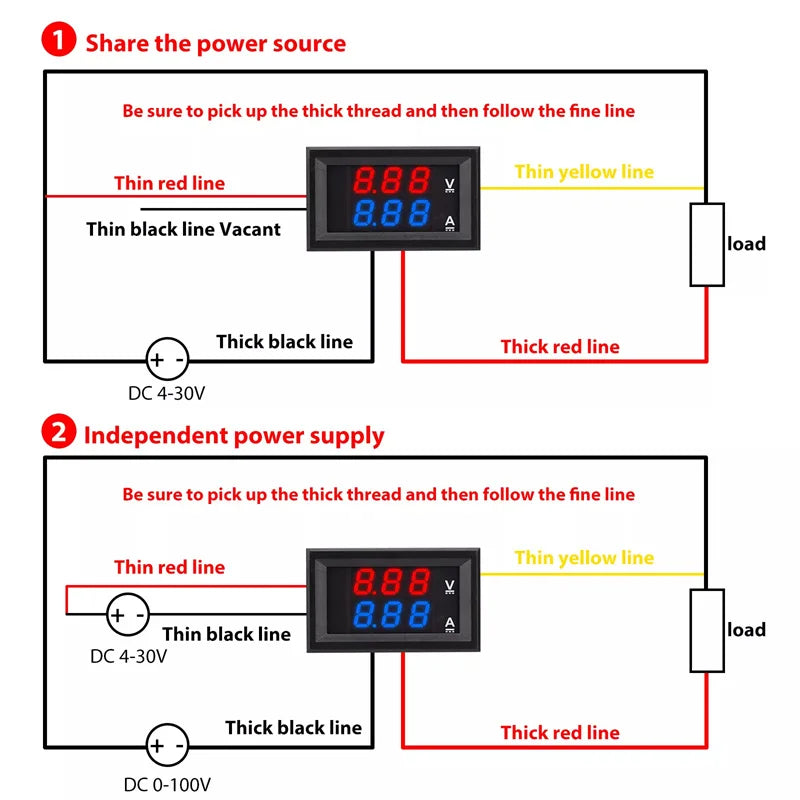

If the meter's supply voltage (thin red wire) is shared with the load circuit, the system voltage must remain between 4–30V. Using it outside this range when wired this way may damage the meter.

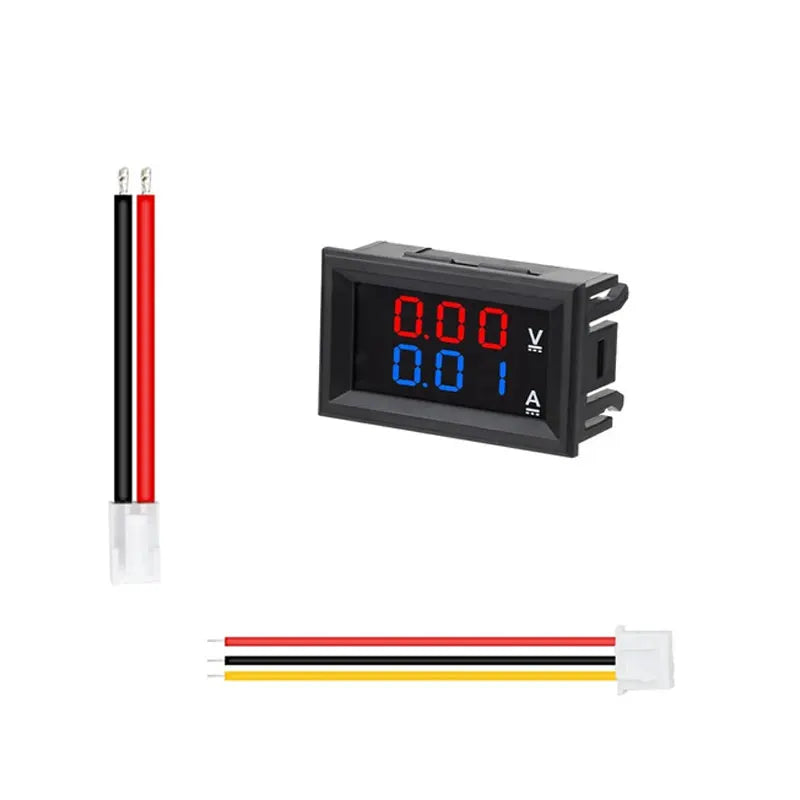

What's in the Box
- 1 × Digital Voltmeter Ammeter Panel Meter
- 2 × Cables
You May Also Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Does this digital voltmeter ammeter work with AC power?
A: No — this panel meter is designed for DC circuits only. It measures DC voltage from 0–100V and DC current from 0–10A. It is not compatible with AC power sources.
Q: Does the meter need its own power supply?
A: Yes, an external DC power supply of 4–30V is required to power the meter's display. If the meter supply shares the same circuit as the load being measured, ensure the circuit voltage stays within the 4–30V range to avoid damage.
Q: What is the panel cutout size needed to install this voltmeter ammeter?
A: The required panel cutout is 46mm × 27mm. The meter's overall body dimensions are 48mm × 29mm × 21mm, making it a compact and easy-to-install solution for most DIY enclosures and project boxes.
Q: How accurate is this dual display panel meter?
A: The voltage reading has a tolerance of ±1% and the current reading has a tolerance of ±0.1%, with an auto-ranging resolution of 0.01V and 0.01A. The display refreshes every 300ms for near real-time monitoring.
