CXD90042GG 90x90 BGA Direct Heating Stencil Template
CXD90042GG 90x90 BGA Direct Heating Stencil Template
CXD90042GG 90x90 Direct Heating BGA Stencil Template

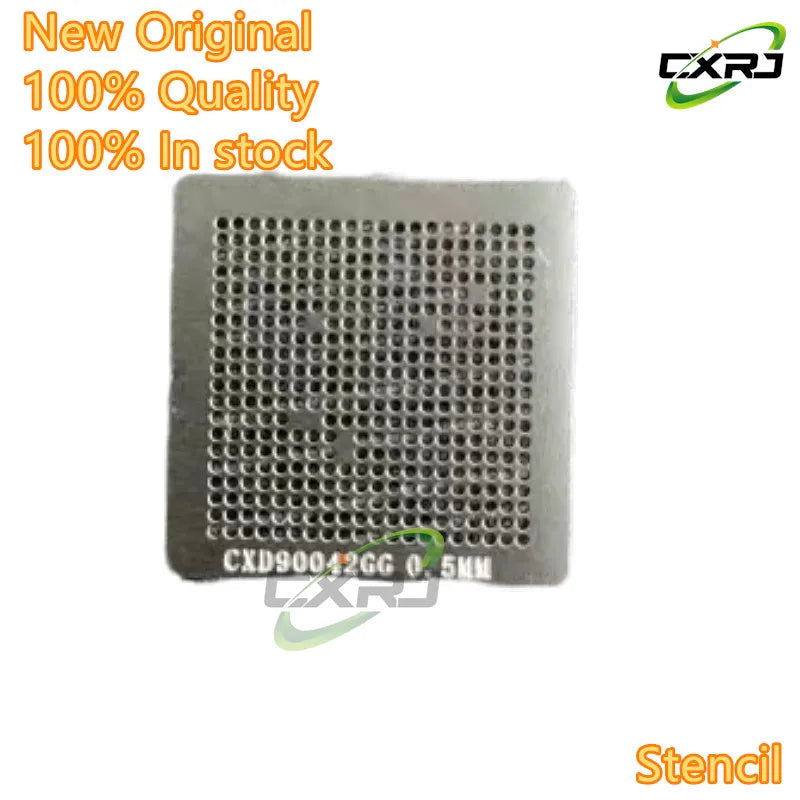

Get precise, professional-grade BGA reballing results with this 90x90mm Direct Heating Stencil Template designed specifically for the CXD90042GG chip. Whether you're a seasoned electronics technician or a dedicated repair enthusiast, this stencil ensures accurate solder ball placement every time — saving you time and delivering consistent, reliable repairs.
Key Features
- Exact Fit: Precisely laser-cut for the CXD90042GG IC, ensuring perfect ball alignment
- Direct Heating Compatible: Works directly with hot air rework stations for efficient reballing
- 90x90mm Format: Standard universal stencil size for easy use with most BGA reballing kits
- Durable Construction: Made from high-quality stainless steel for long-lasting, repeatable use
- BGA Package Support: Engineered for Drive IC chips in BGA package format
- New Condition: Ships brand new for optimal precision and performance
- Quantity: 1 stencil per order
Specifications
- Model: CXD90042GG
- Size: 90 x 90 mm
- Type: Direct Heating BGA Stencil
- IC Type: Drive IC
- Package: BGA
- Application: Computer motherboard / chip reballing
- Condition: New
- Made in Mainland China
What is a BGA Stencil Used For?
A BGA (Ball Grid Array) stencil template is an essential tool for electronics repair technicians. It allows you to accurately place solder balls onto a BGA chip before reflowing it onto a circuit board. Using the correct stencil for your specific chip model — like the CXD90042GG — ensures proper ball pitch alignment, minimizing the risk of bridging or misalignment during the rework process.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Is this BGA stencil template compatible with direct heating rework stations?
A: Yes, this 90x90 CXD90042GG stencil is specifically designed for direct heating use. It works seamlessly with standard hot air rework stations, making the reballing process straightforward and efficient for technicians.
Q: What chip does the CXD90042GG stencil template fit?
A: This stencil template is precision-cut to match the ball layout of the CXD90042GG Drive IC chip in BGA package format. Using the correct model-specific stencil ensures accurate solder ball placement and professional repair results.
Q: How many stencils are included in the order?
A: Each order includes 1 (one) CXD90042GG 90x90 direct heating BGA stencil template.
