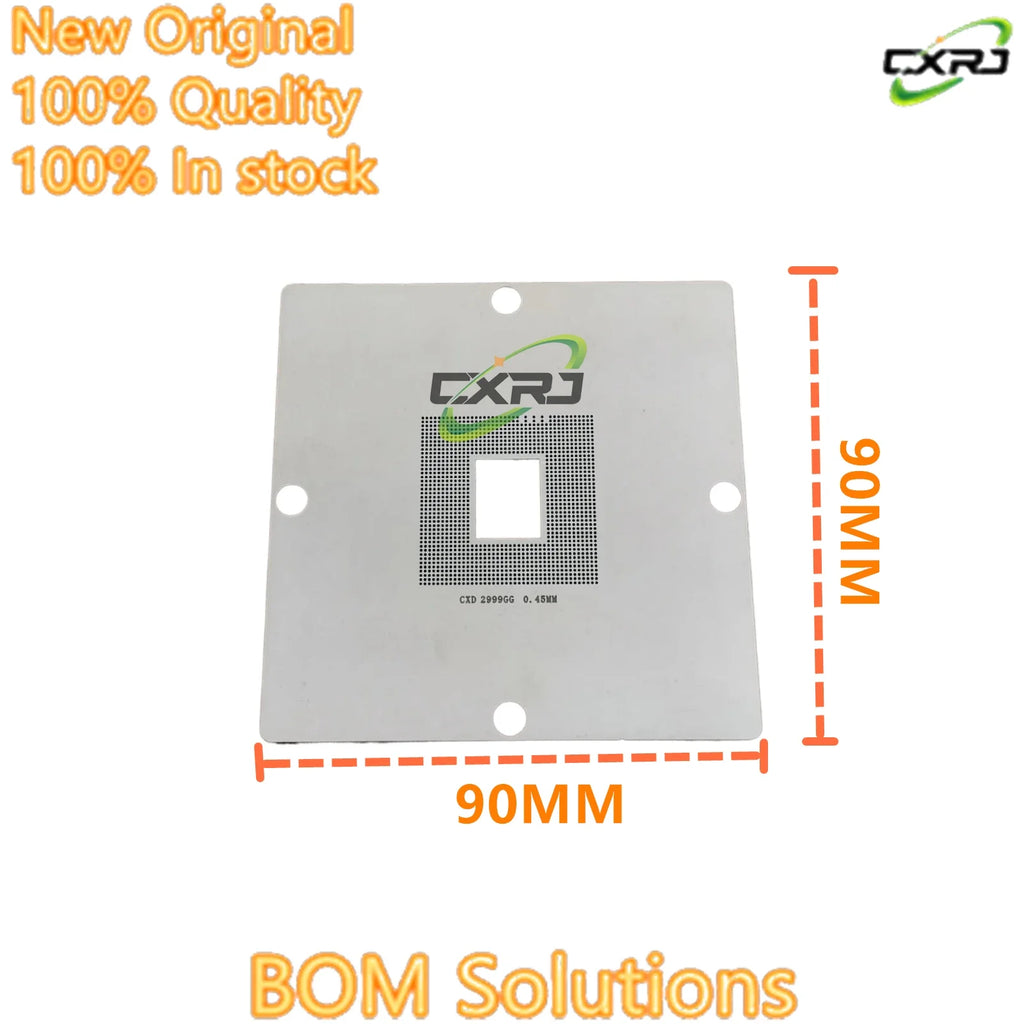

CXD2999 Series BGA Reballing Stencil – 90×90mm Direct Heating
Get precise, professional-grade BGA reballing results with this 90×90mm Direct Heating Stencil designed specifically for the CXD2999GG, CXD2999GB, CXD2999BGG, CXD2999AGG, and CXD2999 chip series. Whether you're a seasoned electronics repair technician or an advanced DIY enthusiast, this stencil delivers consistent solder ball placement every time — saving you time and reducing rework errors.
Made in Mainland China.
Key Features
- Direct Heating Design: No additional support frame needed — simply place and apply heat directly for efficient reballing.
- Compatible Models: CXD2999GG / CXD2999GB / CXD2999BGG / CXD2999AGG / CXD2999 (BGA package)
- Stencil Size: 90mm × 90mm — fits standard reballing stations
- High Precision Laser-Cut Holes: Ensures accurate solder ball positioning aligned with BGA pad layout
- Durable Construction: Manufactured from quality stainless steel for repeated use and longevity
- Application: Computer / gaming console motherboard IC chip repair
- Condition: Brand new
What's in the Box?
- 1× CXD2999 Series Direct Heating BGA Reballing Stencil (90×90mm)
Who Is This For?
This stencil is ideal for electronics repair shops, board-level technicians, and advanced hobbyists working on computer or gaming console motherboard repairs involving CXD2999 series Drive IC chips. It pairs perfectly with standard BGA reballing kits and solder ball sets.
Related Tools & Accessories
Looking for more repair and DIY tools? Check out these related products from our store:
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What chip models is this BGA reballing stencil compatible with?
A: This 90×90mm direct heating stencil is specifically designed for CXD2999GG, CXD2999GB, CXD2999BGG, CXD2999AGG, and CXD2999 BGA package Drive IC chips commonly found in computer and gaming console motherboards.
Q: Do I need a special reballing station to use this stencil?
A: No special frame is required. This is a direct heating stencil, meaning you can place it directly over the chip and apply heat from your hot air station or BGA rework tool without the need for an additional support fixture. It is compatible with most standard BGA reballing stations.
Q: Is this stencil reusable?
A: Yes. The stencil is constructed from durable stainless steel with laser-cut precision holes, making it suitable for multiple uses when properly cleaned and stored after each reballing session.
