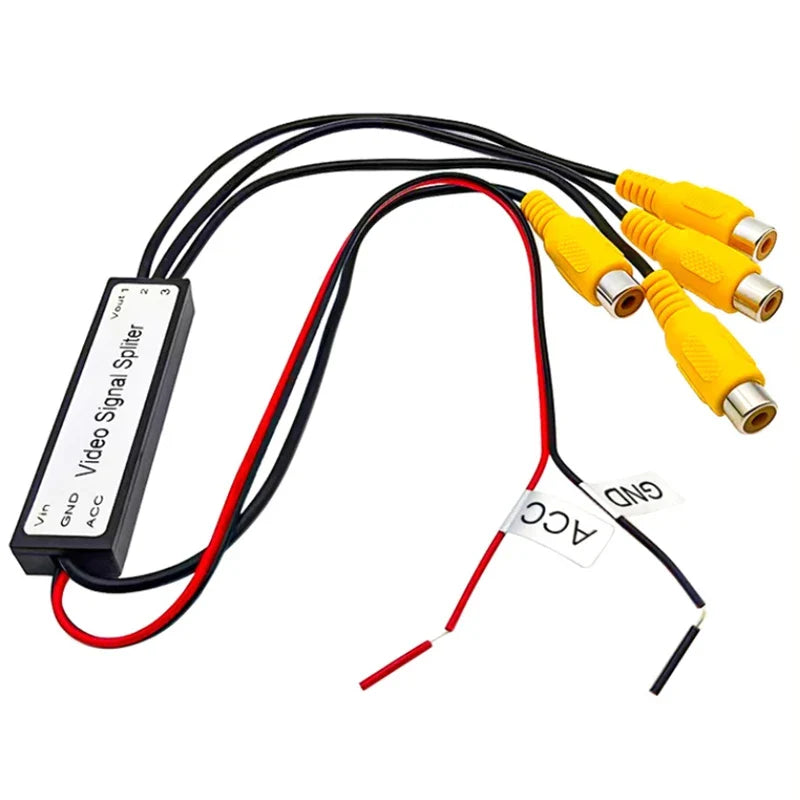

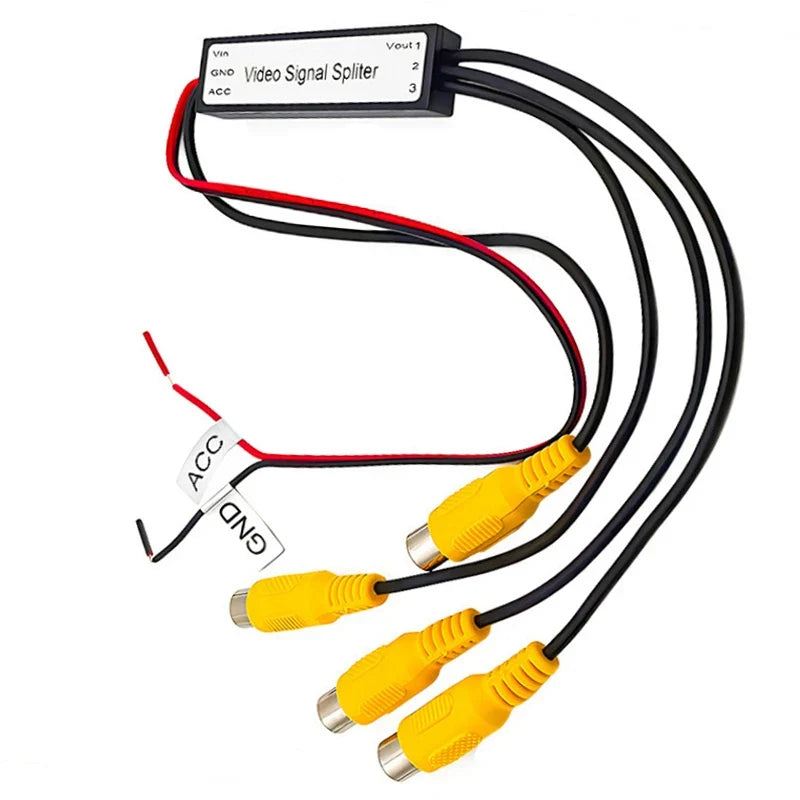

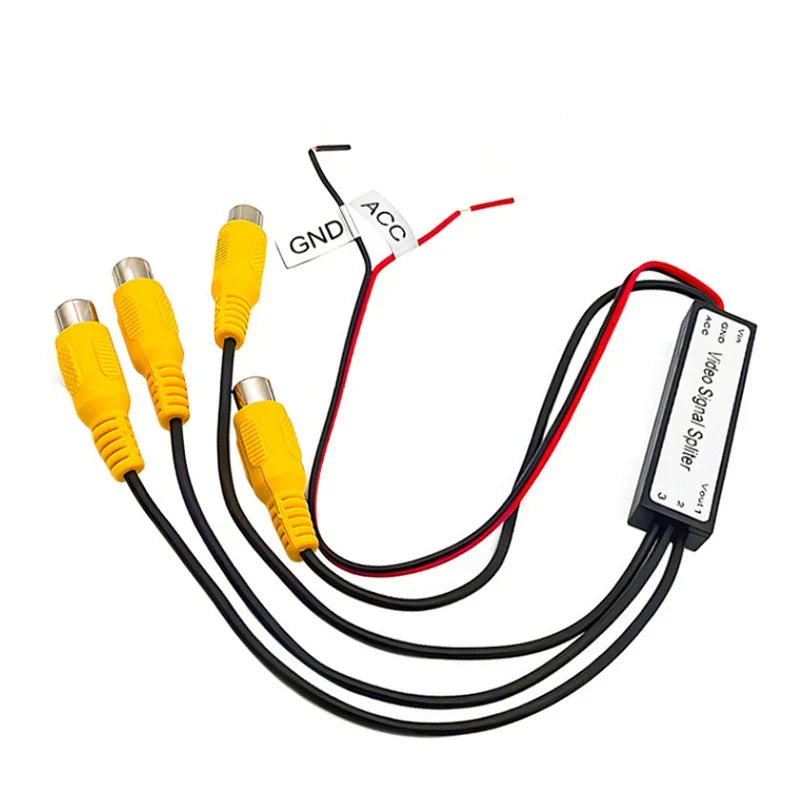

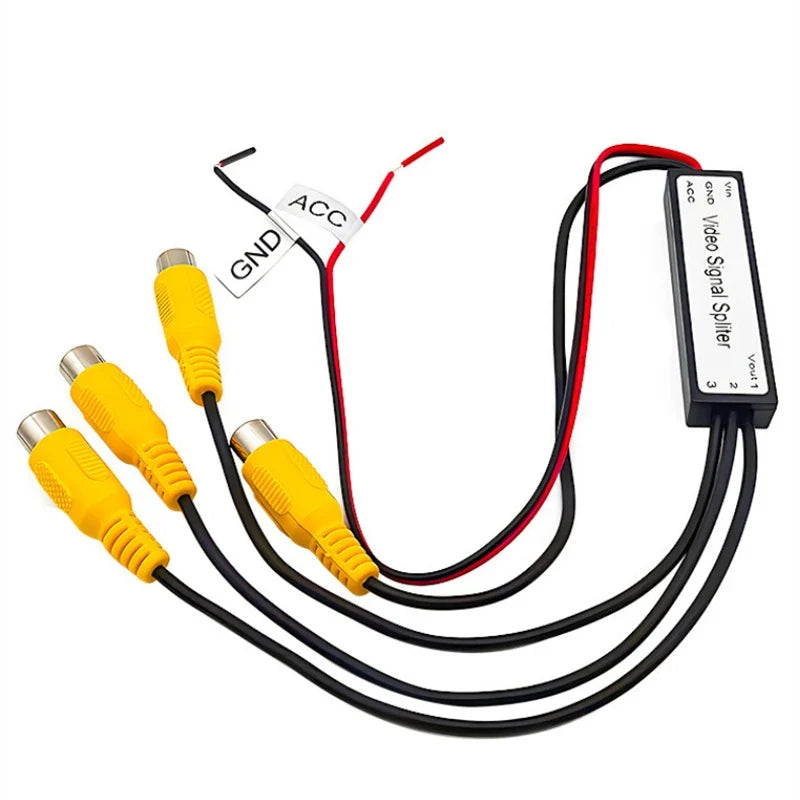

CVBS & AHD 720P Car Video Signal Splitter – 1 Input, 3 Outputs
Expand your in-car display setup effortlessly with this compact CVBS & AHD 720P Video Signal Splitter. Designed specifically for automotive applications, it takes a single video source and distributes it simultaneously to three monitors — perfect for rear-seat entertainment systems, backup camera feeds, or multi-screen dashboards. Made in Mainland China.
Key Features
- 1 Video Input / 3 Video Outputs: Share the same car AV source across three screens at the same time without any signal degradation.
- CVBS & AHD 720P Compatible: Works with standard composite (CVBS) and AHD 720P video signals, making it compatible with most car cameras and head units.
- Built-in Signal Amplifier/Booster: Maintains strong, clear signal quality across all three output channels simultaneously.
- DC 12V Powered: Connects directly to your vehicle's 12V electrical system — simply connect the +12V wire to power and the GND terminal to chassis ground.
- Slim, Compact Design: The slim body keeps installation clean and discreet, fitting neatly into tight spaces in your vehicle's dashboard or interior panels.
- Easy Installation: Straightforward wiring with clearly labeled terminals for video input, video output, power, and ground.
- OEM/ODM Service Available: Factory-direct delivery with full OEM/ODM support.

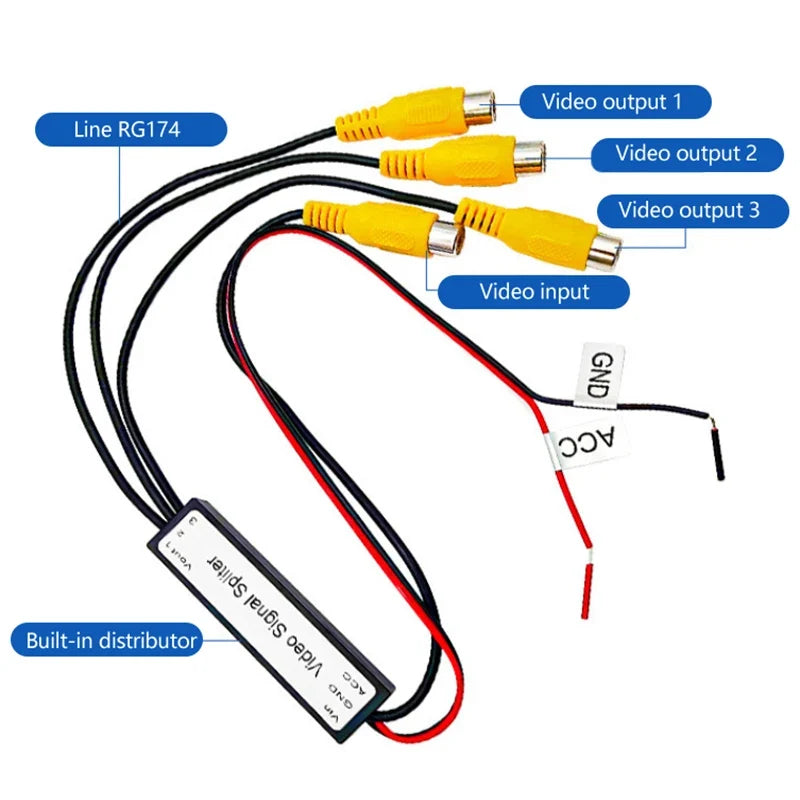

How to Connect
- +12V: Connect to a DC 12V power source in your vehicle.
- GND: Connect the ground terminal to the chassis ground.
- Video Input: Connect to your image signal source (camera, head unit, etc.).
- Video Output (x3): Connect each output to the video input of a separate monitor or display.
Technical Specifications
- Signal Format: CVBS & AHD 720P
- Input: 1 x Video
- Output: 3 x Video
- Operating Voltage: DC 12V

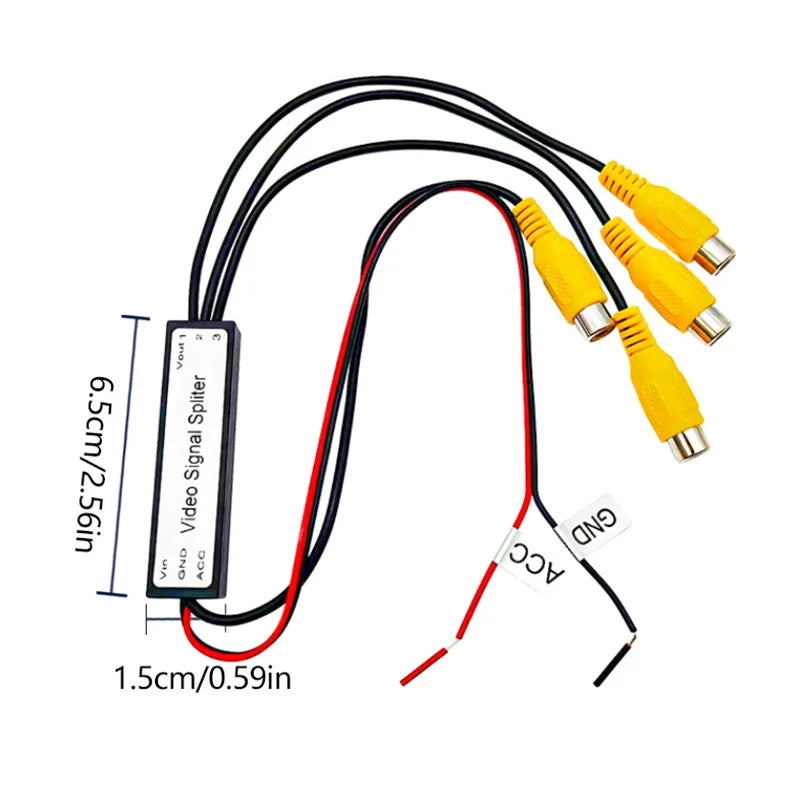

- Design: Compact, slim body
- Country of Origin: Made in Mainland China
What's in the Box
- 1 × CVBS & AHD 720P Video Signal Splitter
Note: Actual color may vary slightly due to monitor settings and lighting. Please allow ±1–3 cm measurement tolerance due to manual measurement.
You May Also Like
- Clip-On Car Fan LED Display 199 Speeds | USB & Type-C
- 60cm Motorcycle Luggage Strap – Elastic Helmet Bungee Net
- All-Season Cooling Car Seat Cushion – Breathable & Ergonomic
Learn more: FuelEconomy.gov driving efficiency guidance
Frequently Asked Questions
Q: What video signal formats does this car video splitter support?
A: This video splitter supports both CVBS (standard composite video) and AHD 720P signals, making it compatible with the vast majority of car cameras, backup cameras, and in-dash head units on the market.
Q: Will using a video splitter reduce image quality on the connected monitors?
A: No. This unit features a built-in signal booster/amplifier that maintains consistent signal strength and image clarity across all three output channels simultaneously, so there is no noticeable drop in quality.
Q: How is the video splitter powered in a vehicle?
A: The splitter runs on DC 12V, which is the standard automotive voltage. Simply connect the +12V wire to a 12V power source and the GND wire to the vehicle chassis ground — no special tools or adapters required.
Q: Can I use this splitter for non-automotive applications?
A: While this splitter is designed and optimized for automotive 12V systems with CVBS and AHD 720P signals, it can be used in any setup that provides a DC 12V power source and uses compatible video signal formats.
