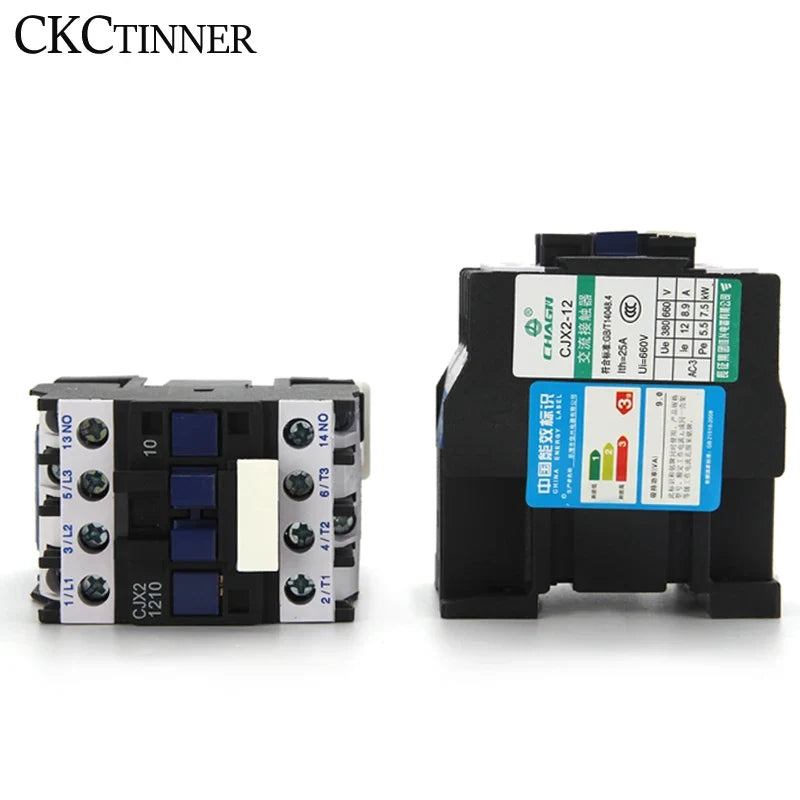

CJX2-12 AC Contactor – 12A, 3-Pole + 1NO, DIN Rail Mounted
The CJX2-12 AC Contactor is a robust, CE-certified electromagnetic contactor designed for long-distance circuit switching and frequent starting and control of AC motors. Featuring a 3-pole main contact configuration plus one normally open (NO) auxiliary contact, it mounts easily on a standard 35mm DIN rail for clean, professional panel installations.
Compatible with a wide coil voltage range from 24V to 380V AC and rated for 50/60Hz frequency, this contactor suits industrial, commercial, and DIY electrical control applications worldwide. Made in Mainland China.
Key Features

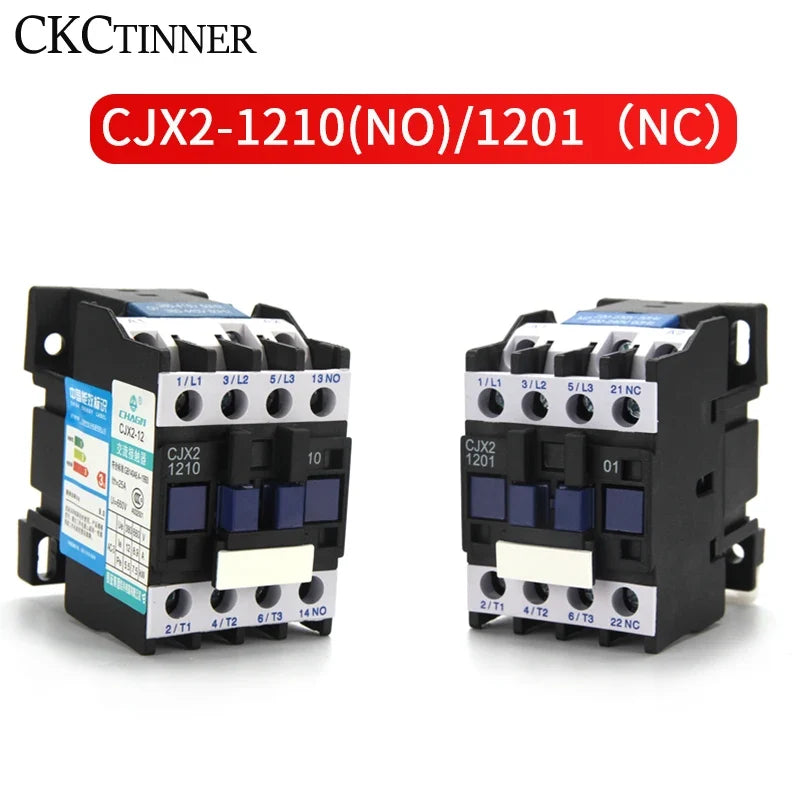

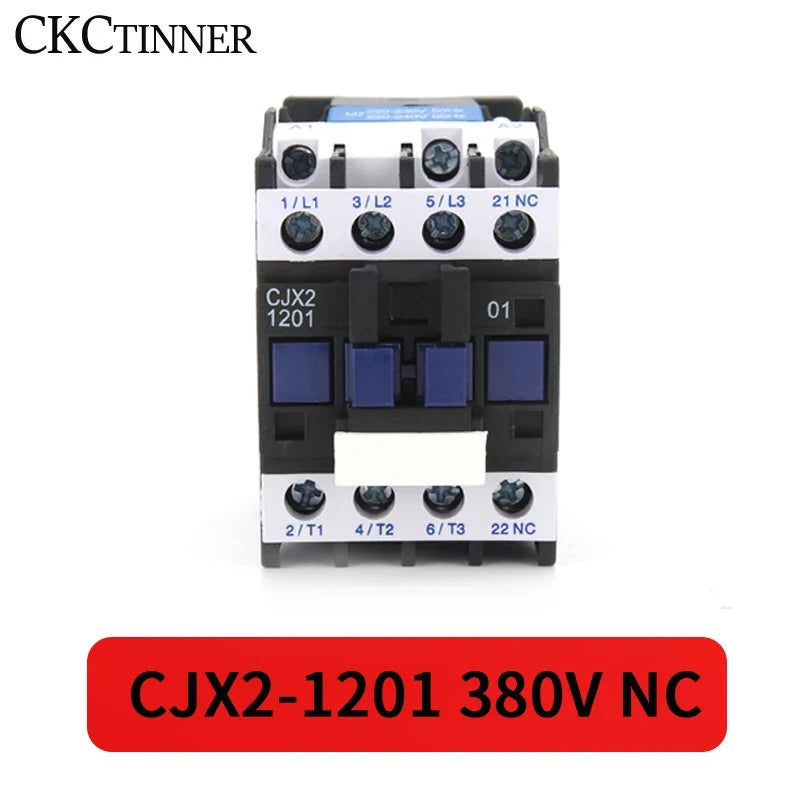

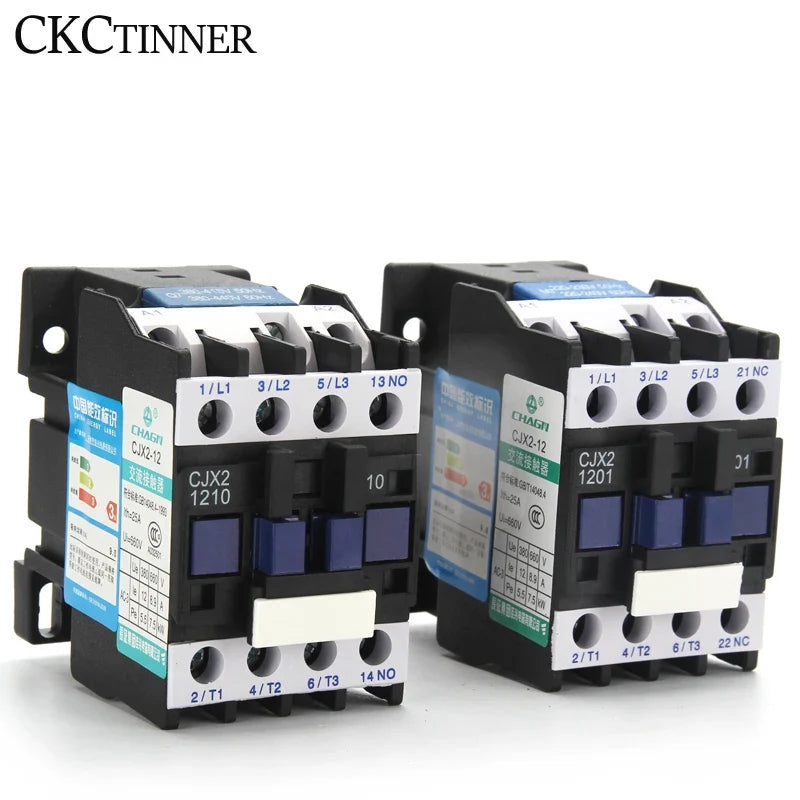

- Model: CJX2-1210 (3P+1NO) / CJX2-1201 (3P+1NC)
- Rated Current: 12A (Conventional Thermal Current: 32A)
- Pole Configuration: 3 Pole Main + 1 Auxiliary NO or NC
- Coil Voltage Options: 24V, 36V, 110V, 220V, 380V AC
- Frequency: 50 / 60 Hz

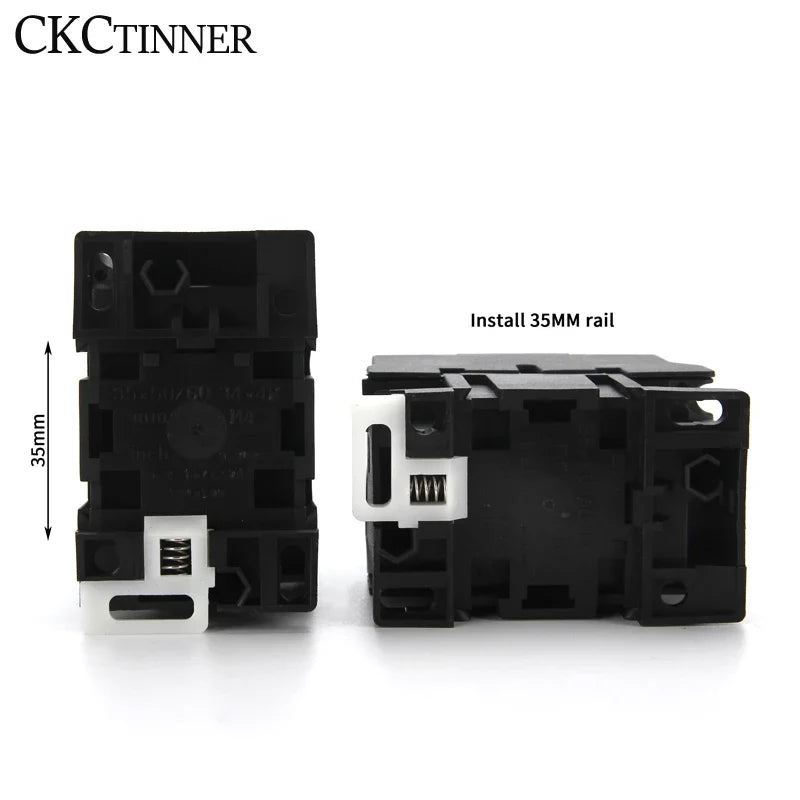

- Mounting: Standard 35mm DIN Rail

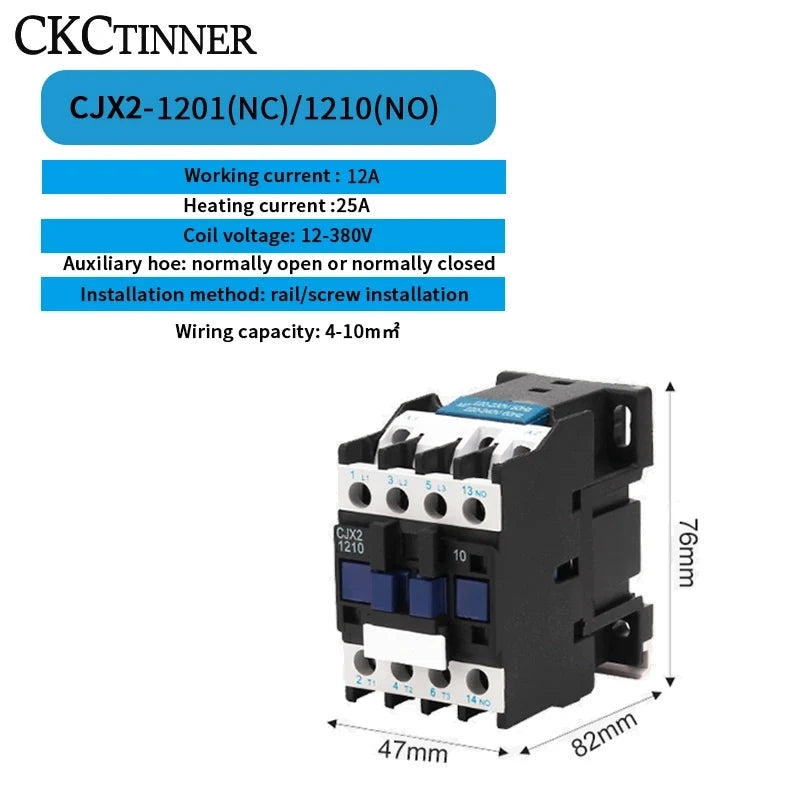

- Dimensions: Approx. 47 × 82 × 76 mm
- Housing Material: High-impact plastic with quality electrical contacts
- Color: Black
- Certification: CE
Applications
- Long-distance making and breaking of electrical circuits
- Frequent starting and stopping of AC motors
- Industrial control panels, automation systems, and distribution boards
- HVAC systems, pumps, compressors, and conveyor controls
Specifications at a Glance
| Brand | Axl |
| Model Number | CJX2-1210 / CJX2-1201 |
| Rated Current | 12A |
| Thermal Current (Ith) | 32A |
| Coil Voltage | 24V / 36V / 110V / 220V / 380V AC |
| Frequency | 50 / 60 Hz |
| Contact Type | NO (CJX2-1210) or NC (CJX2-1201) |
| Pole Number | 3P + 1 Auxiliary |
| Rail Type | 35mm DIN Rail |
| Dimensions | 47 × 82 × 76 mm |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Related Products You May Also Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the difference between the CJX2-1210 and CJX2-1201 models?
A: The CJX2-1210 features a 3-pole main contact plus 1 Normally Open (NO) auxiliary contact, while the CJX2-1201 features a 3-pole main contact plus 1 Normally Closed (NC) auxiliary contact. Choose 1210 if you need the auxiliary circuit to close when the contactor is energized, or 1201 if you need it to open when energized.
Q: What coil voltage should I select for my CJX2-12 AC contactor?
A: The CJX2-12 contactor is available in coil voltages of 24V, 36V, 110V, 220V, and 380V AC. You should match the coil voltage to your control circuit supply voltage. For example, if your control panel runs on 220V AC, select the 220V coil version.
Q: Is the CJX2-12 contactor compatible with a standard DIN rail?
A: Yes. The CJX2-12 is designed for a standard 35mm DIN rail, making it straightforward to integrate into most industrial control panels and distribution boards without any additional adapters.
Q: What types of loads can this AC contactor handle?
A: The CJX2-12 is suitable for controlling AC motors, HVAC systems, pumps, compressors, lighting circuits, and other electrical loads up to 12A rated current (32A conventional thermal current). It is well-suited for both frequent switching and sustained operation in industrial and commercial environments.
