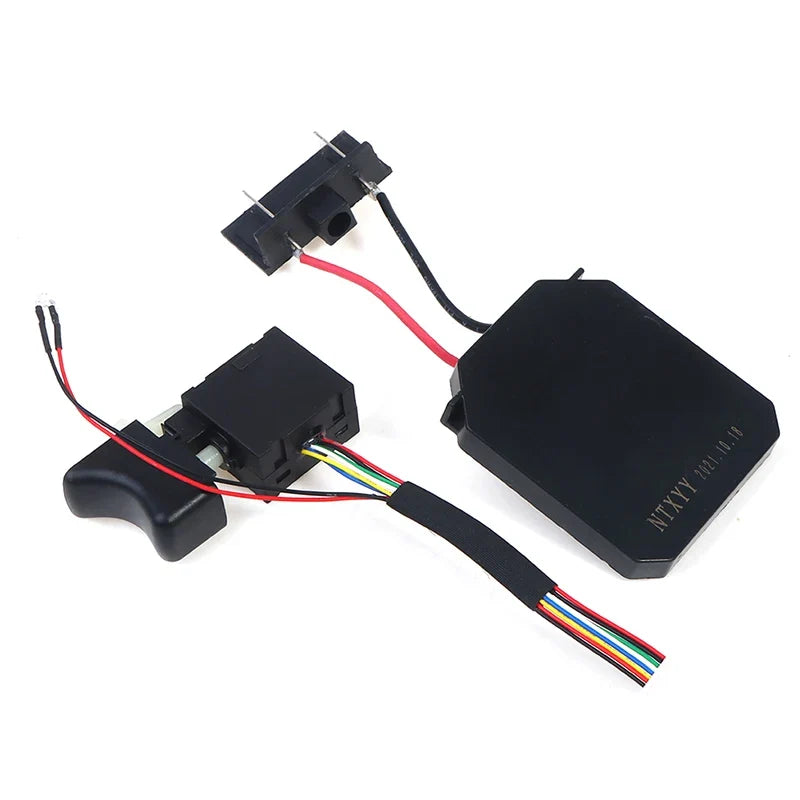

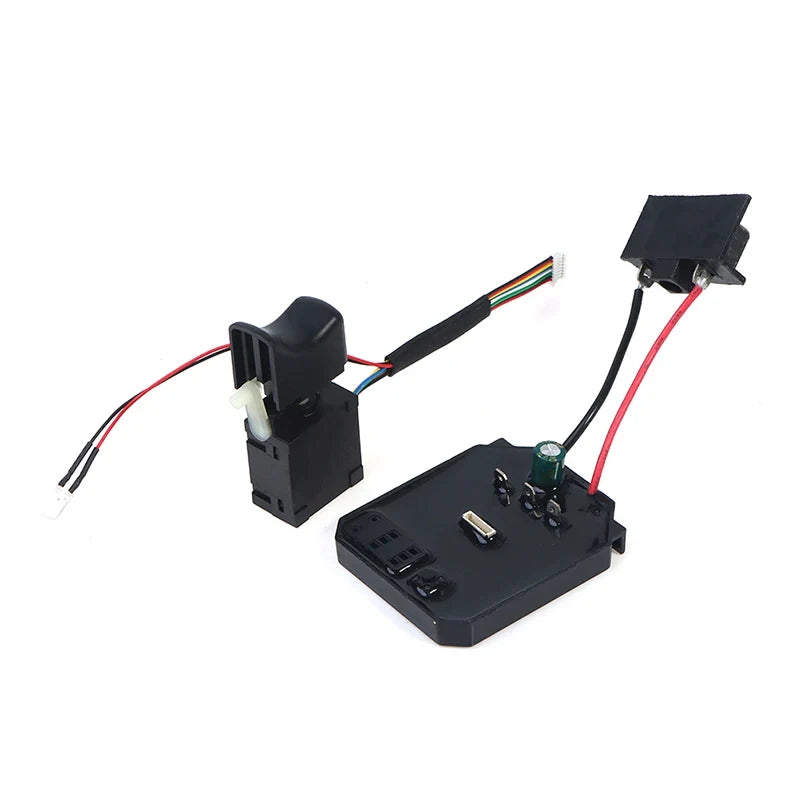

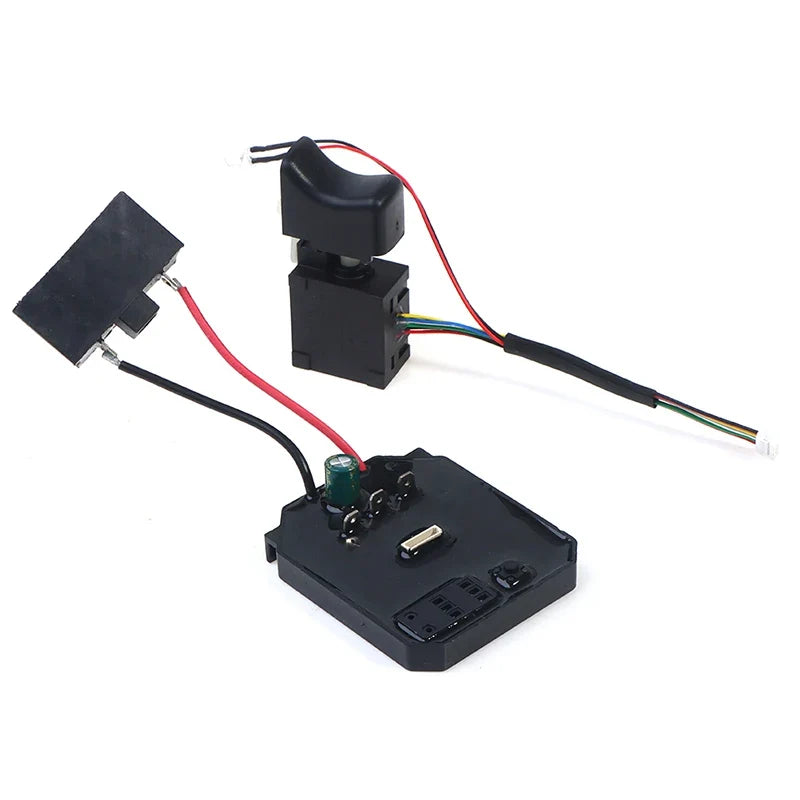

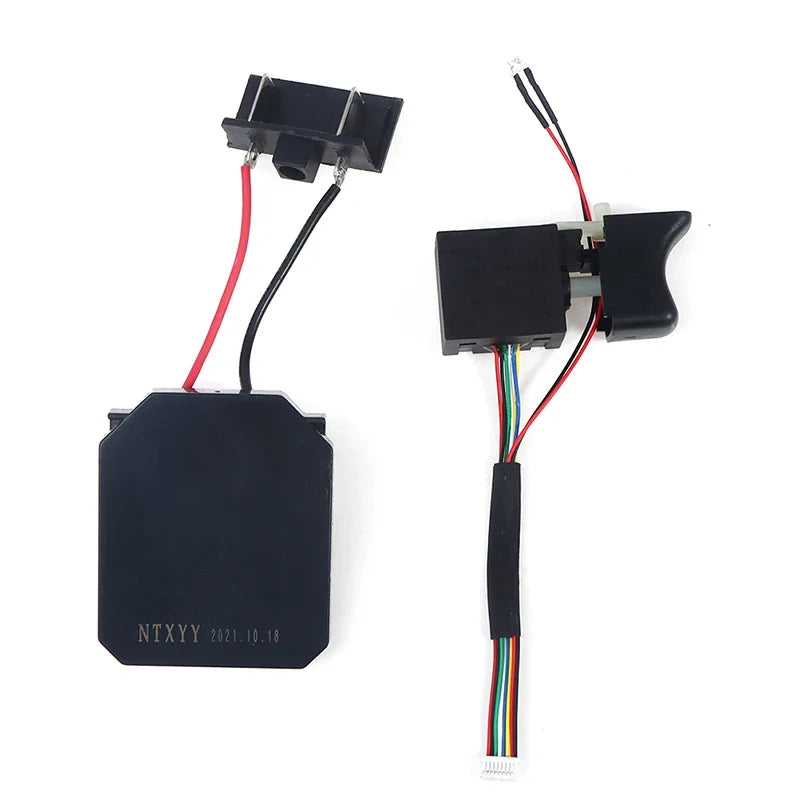

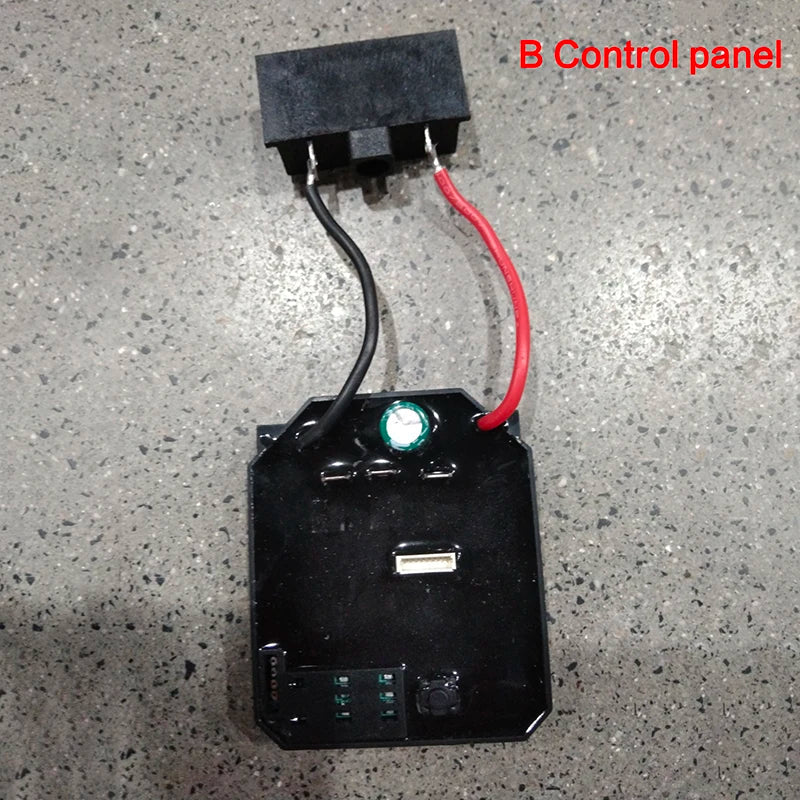

Brushless Electric Wrench Drive Control Board & Switch
Keep your brushless electric wrench running at peak performance with this direct-fit drive control board and switch. Precision-engineered for Dayi 2106, 161, and 169 brushless electric wrenches, each unit is tested before shipping to ensure reliable, out-of-the-box functionality.
Key Features
- Broad Compatibility: Designed specifically for Dayi 2106, 161, and 169 brushless electric wrench models.
- Universal Brushless Sensorless Design: Works as a general control board for 18V–21V brushless angle grinders, drive plates, and polishing machines.
- Drive Voltage: 18V (5-cell lithium string, fully charged to 21V), 300W rated power.
- Wide Battery Compatibility: Compatible with battery packs labelled 48V, 68V, 88V, 98V, or 128VF/TV — these are all 18V actual voltage (5S2P / 5S3P lithium configurations, fully charged 21V).
- Compact Board Size: 5.2 × 6.2 cm — easy to fit into standard tool housings.
- Pre-Sale Tested: Every board is tested and verified functional before dispatch.
Important Installation Instructions
To protect your control board and ensure correct operation, please follow these steps in order before powering on:
- Connect all wiring harnesses securely.
- Fix the motor in place within the tool housing.
- Install the outer casing and tighten all screws.
- Verify that the square output shaft rotates freely without any binding or jamming.
- Connect the power supply.
- Press the speed-control switch to start.
Note: Skipping these steps may trigger a buzzing alarm or cause damage to the control board. Always follow the correct assembly sequence.
Specifications
| Compatible Models | Dayi 2106 / 161 / 169 Brushless Electric Wrench |
| Drive Voltage | 18V (fully charged 21V) |
| Rated Power | 300W |
| Board Dimensions | 5.2 × 6.2 cm |
| Motor Type | Brushless, Sensorless |
| Country of Origin | Made in Mainland China |
Package Contents
- 1 × Drive Control Board OR 1 × Speed-Control Switch (please select your required variant)
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Which brushless electric wrench models is this control board compatible with?
A: This drive control board is designed specifically for Dayi 2106, 161, and 169 brushless electric wrench models. It also functions as a general-purpose brushless sensorless control board for 18V–21V brushless angle grinders and polishing machines with similar power ratings.
Q: What battery voltage does this brushless drive control board support?
A: The board operates at 18V nominal (5-cell lithium series, fully charged to 21V), at 300W. Battery packs labelled 48V, 68V, 88V, 98V, 128VF, or TV are all compatible — their actual output is 18V using 5S2P or 5S3P lithium cell configurations.
Q: What happens if I power on the control board before completing the full assembly?
A: Powering on the board before all wiring is connected, the motor is fixed, the case is assembled, and the shaft spins freely may trigger a buzzing alarm and could potentially damage the control board. Always complete the full assembly sequence before applying power.
