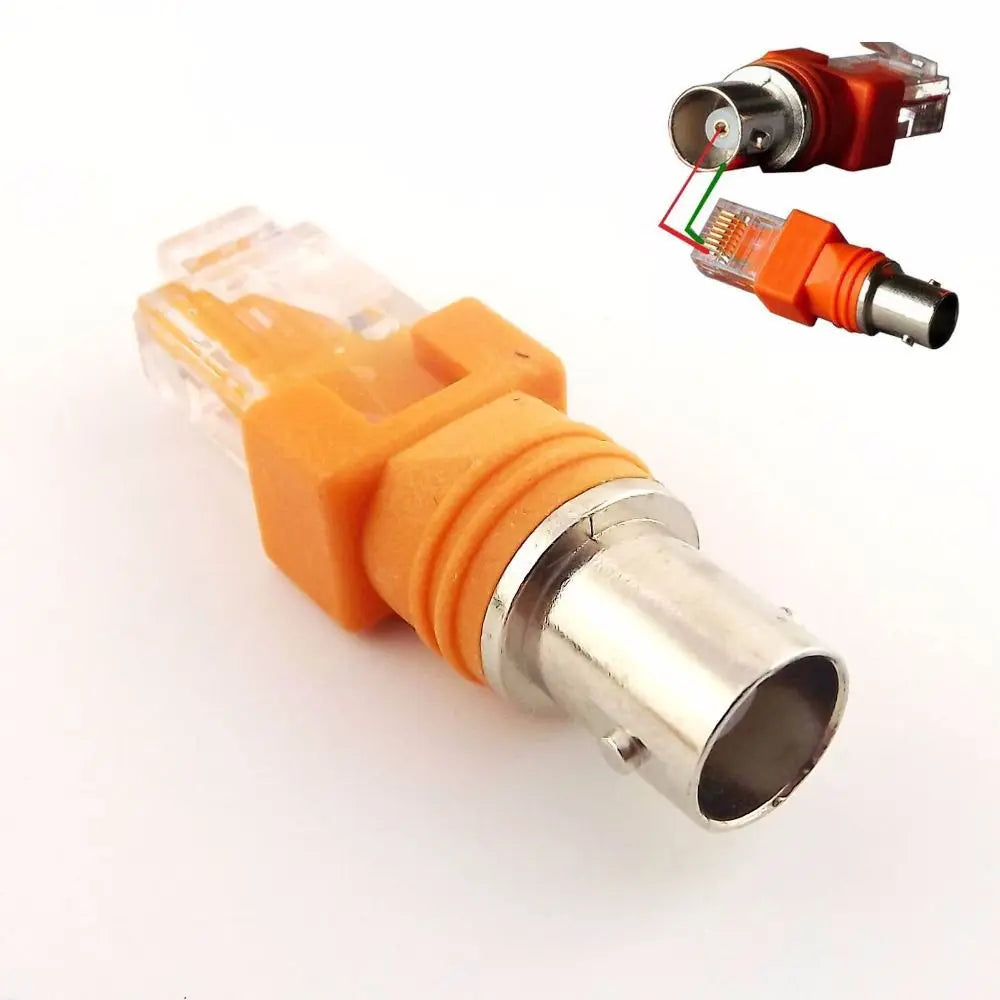

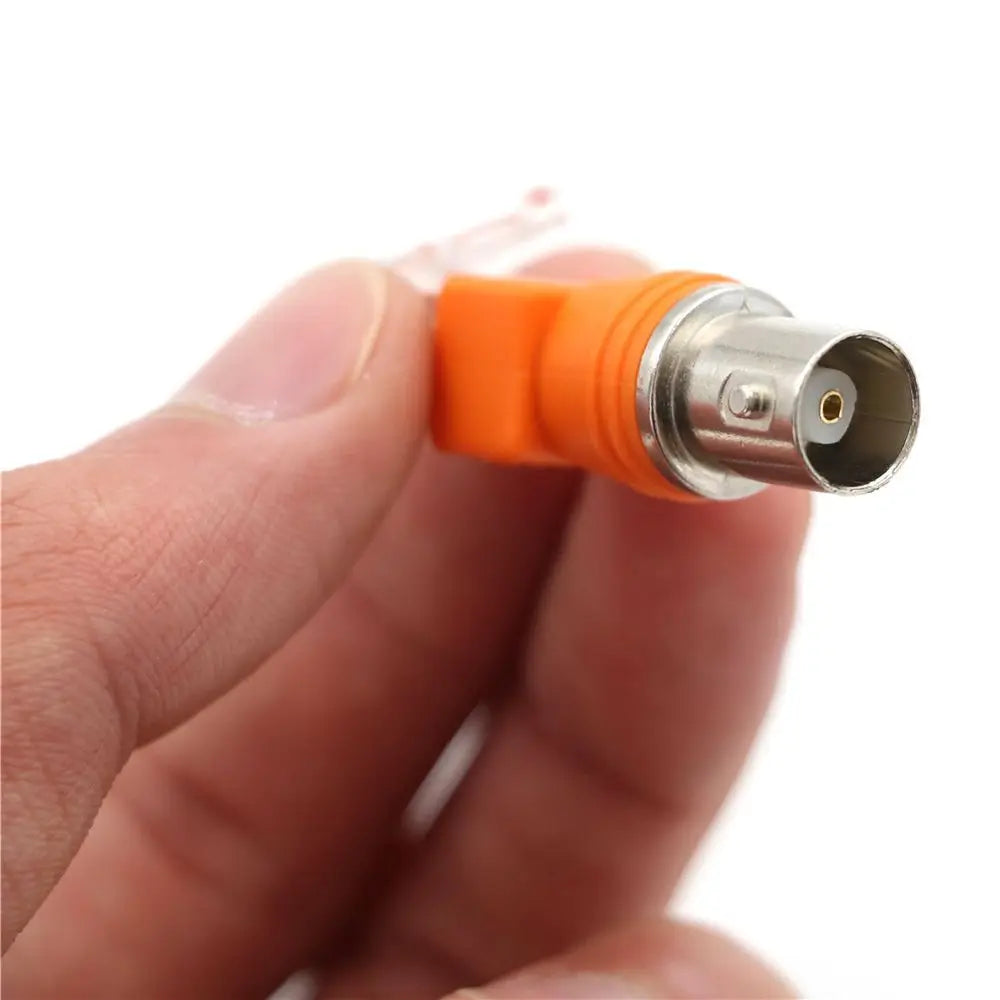

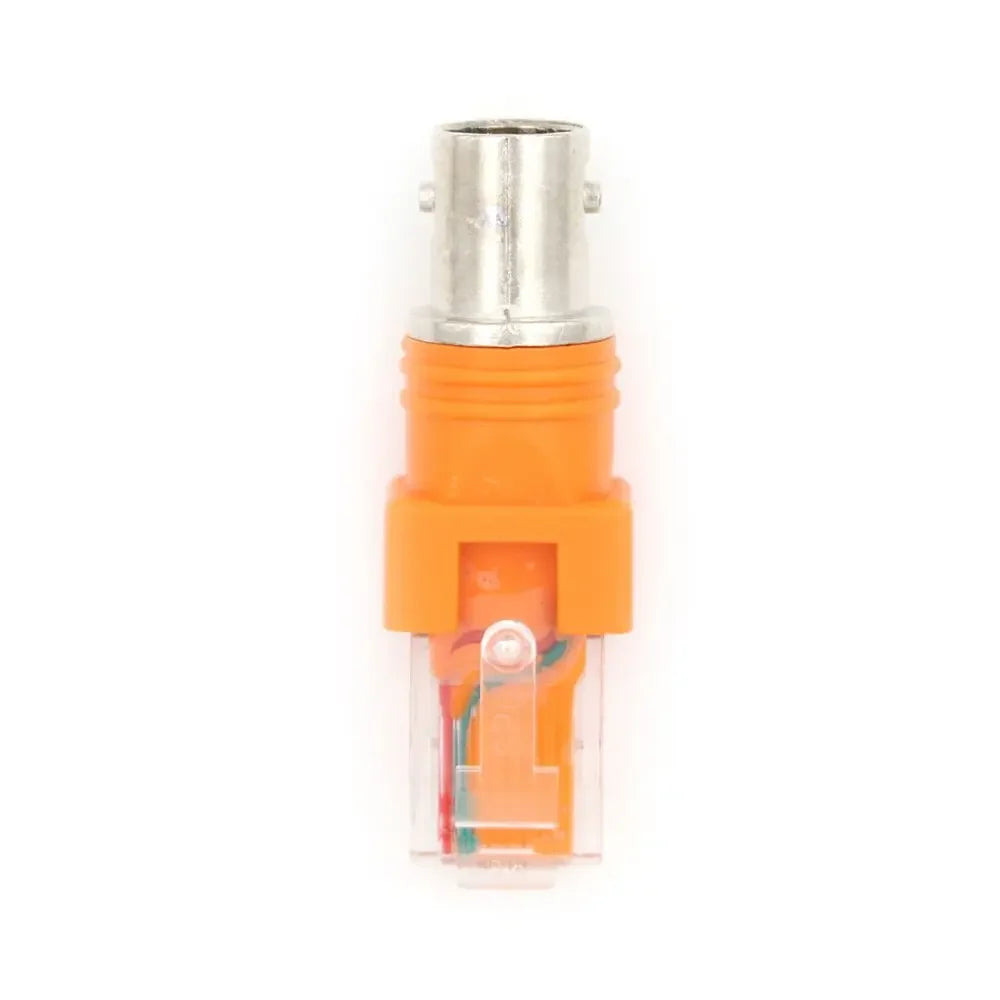

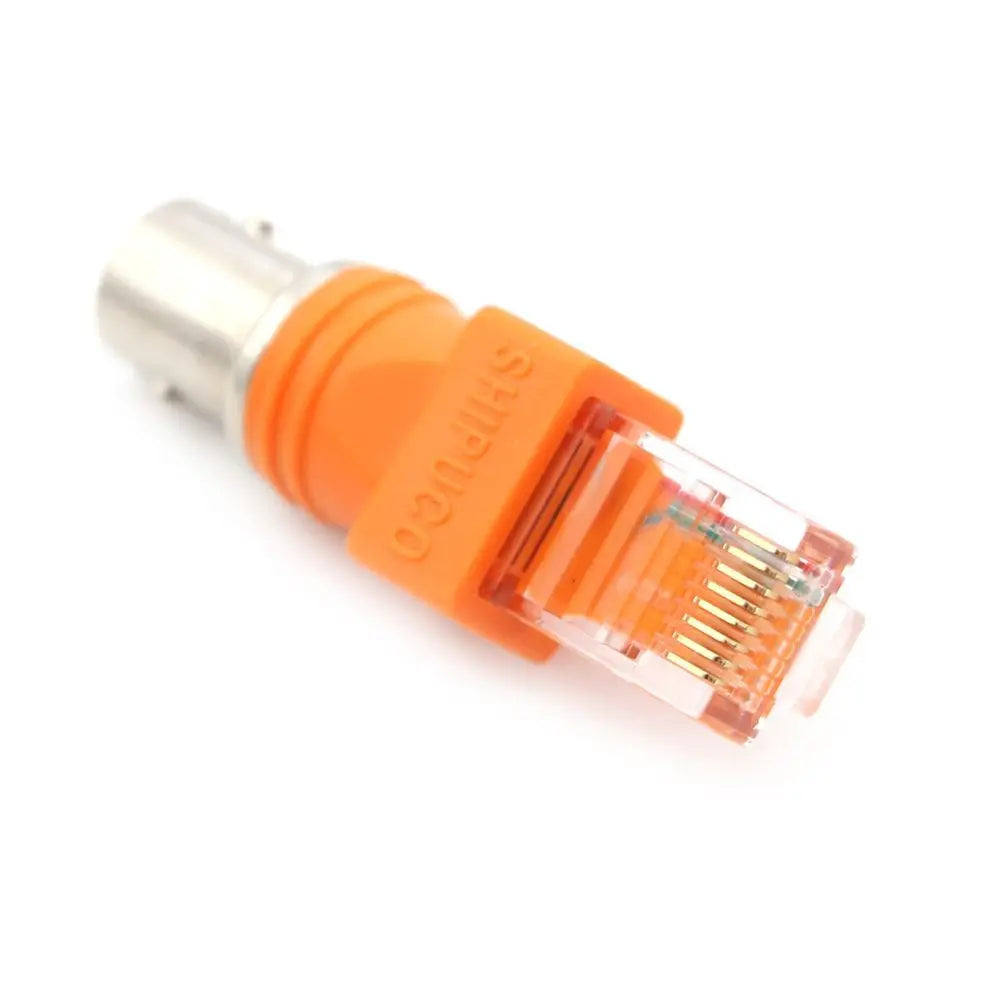

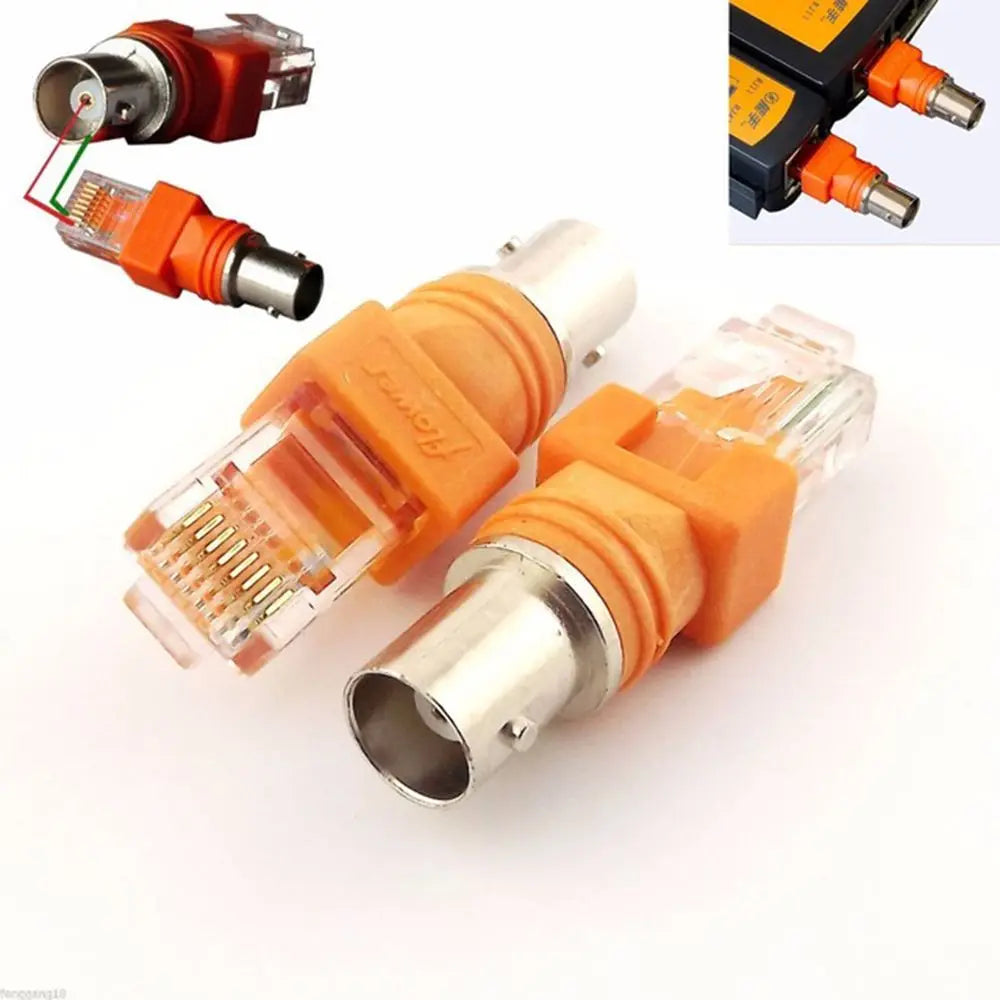

BNC Female to RJ45 Male Adapter – Nickel-Plated Coaxial Cable Connector
Seamlessly bridge your BNC and RJ45 connections with this compact, durable barrel coupler adapter. Built with a nickel-plated finish for reliable conductivity and corrosion resistance, this connector is ideal for CCTV systems, network setups, video surveillance, and RF signal applications where a quick BNC-to-RJ45 conversion is needed.
Product Specifications
- Connector A: BNC Female (Socket)
- Connector B: RJ45 Male (Plug)
- Plating: Nickel-plated for durability and signal integrity
- Type: Barrel Coupler / Cable Adapter
- Pin Wiring: RJ45 Pin 1 and Pin 2 connect to BNC jack
- Package Contents: 1 x BNC Female to RJ45 Male Adapter
Made in Mainland China.
Key Features
- ✅ Universal Compatibility: Works with standard BNC coaxial cables and RJ45 Ethernet/network cables for flexible connectivity
- ✅ Nickel-Plated Contacts: Provides excellent conductivity and long-lasting resistance to oxidation
- ✅ Compact & Portable: Lightweight barrel-style design makes it easy to carry and quick to connect
- ✅ Chassis / Panel Mount Ready: Suitable for use in panel or chassis-mount installations
- ✅ Broad Application: Perfect for CCTV, video surveillance, RF signal routing, network testing, and AV setups
Common Use Cases
- CCTV and security camera installations
- Video surveillance system wiring
- RF coaxial signal routing and testing
- Network and AV equipment interconnection
- Chassis panel connector installations
Measurement Note
Please allow 0–1 cm variance due to manual measurement. Color may vary slightly between monitors and actual product.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What devices is the BNC Female to RJ45 Male adapter compatible with?
A: This BNC to RJ45 adapter is compatible with CCTV cameras, video surveillance systems, RF signal equipment, and any device using standard BNC coaxial or RJ45 connections. It is commonly used to bridge BNC-based video systems with RJ45 network cabling infrastructure.
Q: Which RJ45 pins connect to the BNC jack on this adapter?

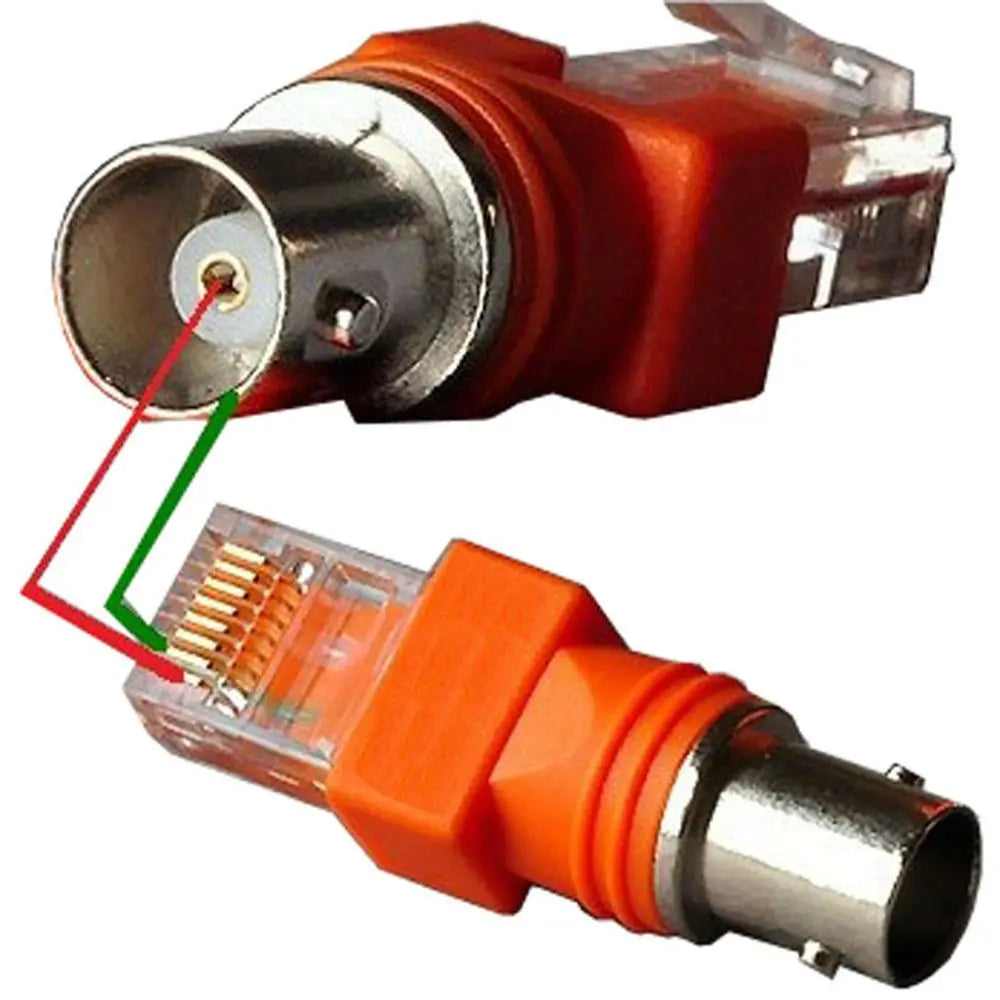

A: On this BNC Female to RJ45 Male adapter, RJ45 Pin 1 and Pin 2 are wired to the BNC jack. Please refer to the product images for the pin connection diagram to ensure correct installation in your setup.
Q: Is this adapter suitable for panel or chassis mounting?
A: Yes, this barrel coupler adapter is designed to be compatible with chassis and panel mount installations, making it a practical solution for organized, permanent wiring setups in equipment racks or wall panels.
