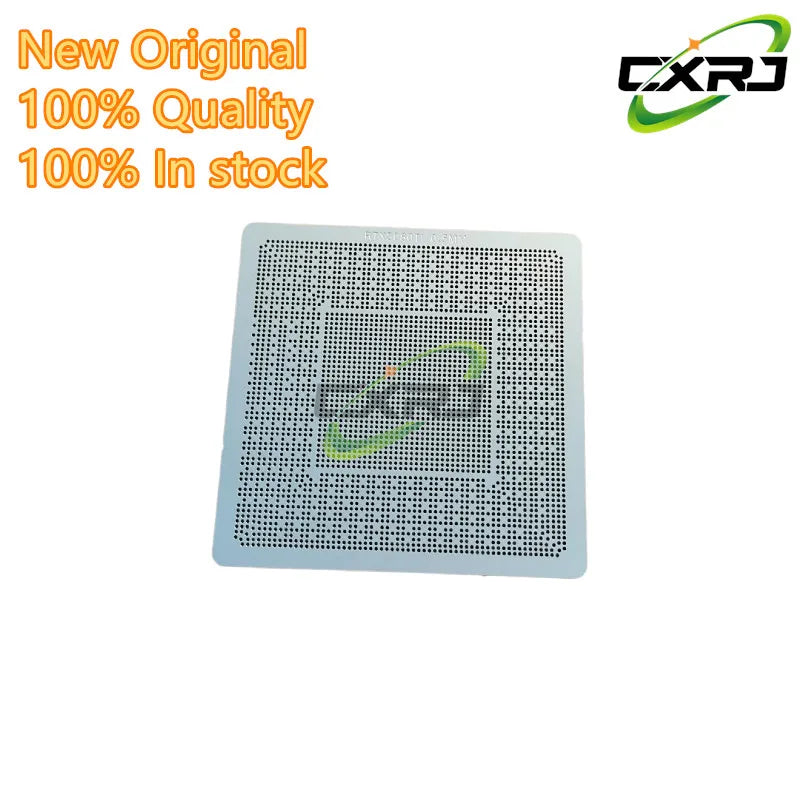

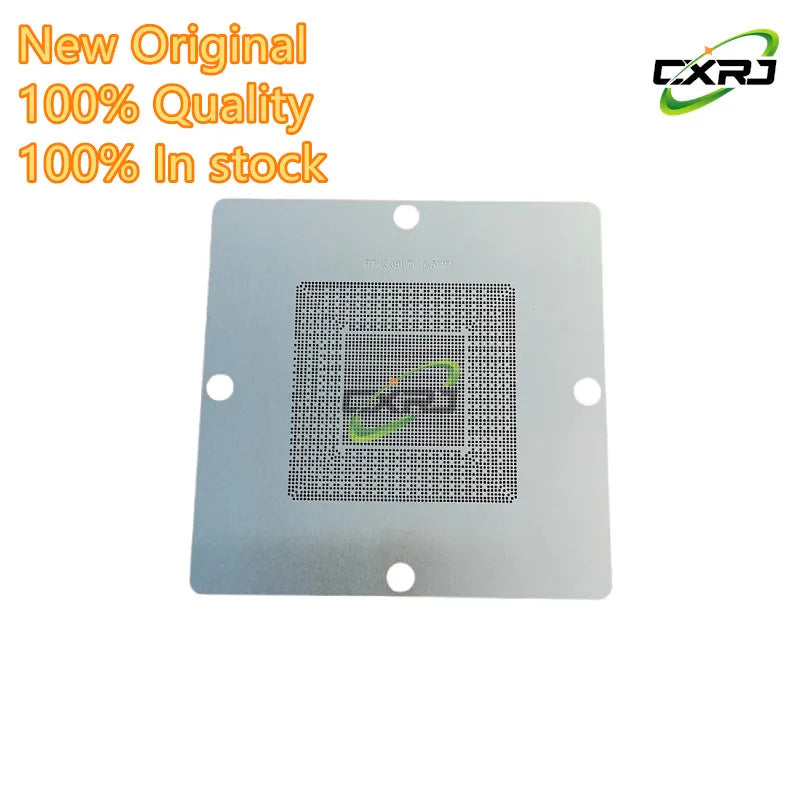

GPU BGA Reballing Stencil – RTX 3080 / 3080 Ti / 3090 / 3090 Ti GA102 Direct Heating
Get precise, professional results on your GPU rework projects with this direct-heating BGA reballing stencil, purpose-built for NVIDIA RTX 30-series graphics cards. Compatible with GA102-300-A1, GA102-400-A1, GA102-200-KF-A1, and related GA102 chip variants, this stencil delivers accurate ball alignment every time — making it an essential tool for electronics repair technicians and hobbyists alike.
Key Features
- Direct Heating Design: Engineered specifically for direct-heat reballing — no need for a separate support frame, streamlining your workflow.
- Precision-Cut Ball Grid Array: Laser-cut openings ensure correct solder ball placement for GA102 GPU chips used in RTX 3080, RTX 3080 Ti, RTX 3090, and RTX 3090 Ti cards.
- Durable Stencil Material: Made from high-quality stainless steel for repeated use without warping or deformation under heat.
- Broad Compatibility: Fits GA102-300-A1, GA102-400-A1, and GA102-200-KF-A1 GPU chip designations.
- New Condition: Shipped brand new, ready for immediate use in your repair or rework setup.
- Compact BGA Package: Supplied in a protective BGA-style package to keep the stencil safe during transit and storage.
Specifications
- Application: Computer GPU / Graphics Card Reballing
- Type: Direct Heating BGA Reballing Stencil
- Compatible Chips: GA102-300-A1, GA102-400-A1, GA102-200-KF-A1 (RTX 3080, 3080 Ti, 3090, 3090 Ti)
- Package: BGA
- Condition: New
- Country of Origin: Made in Mainland China
Who Is This For?
This stencil is ideal for electronics repair shops, GPU rework specialists, and advanced DIY enthusiasts who need reliable, repeatable solder ball placement on high-end NVIDIA RTX 30-series graphics cards. Whether you're restoring a failed GPU or practising professional reballing techniques, this stencil is a precision must-have.
Related Products You May Find Useful
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Which GPU chips is this BGA reballing stencil compatible with?
A: This direct-heating stencil is designed for NVIDIA GA102-series GPU chips, including GA102-300-A1 (RTX 3090), GA102-400-A1 (RTX 3080 Ti), and GA102-200-KF-A1 (RTX 3080). It also covers the RTX 3090 Ti (GA102-350). Always verify your specific chip designation before purchase.
Q: What is the advantage of a direct heating BGA stencil over a universal stencil?
A: A direct heating stencil is placed directly on the GPU chip during the reballing process, allowing hot air to be applied through the stencil openings without needing a separate fixture. This results in faster, more accurate solder ball placement and is preferred by professional rework technicians for high-density BGA packages.
Q: Is this stencil reusable?
A: Yes. The stencil is constructed from durable stainless steel, allowing it to withstand repeated heating cycles without warping. With proper cleaning and care after each use, it can be used multiple times, making it a cost-effective addition to your GPU rework toolkit.
