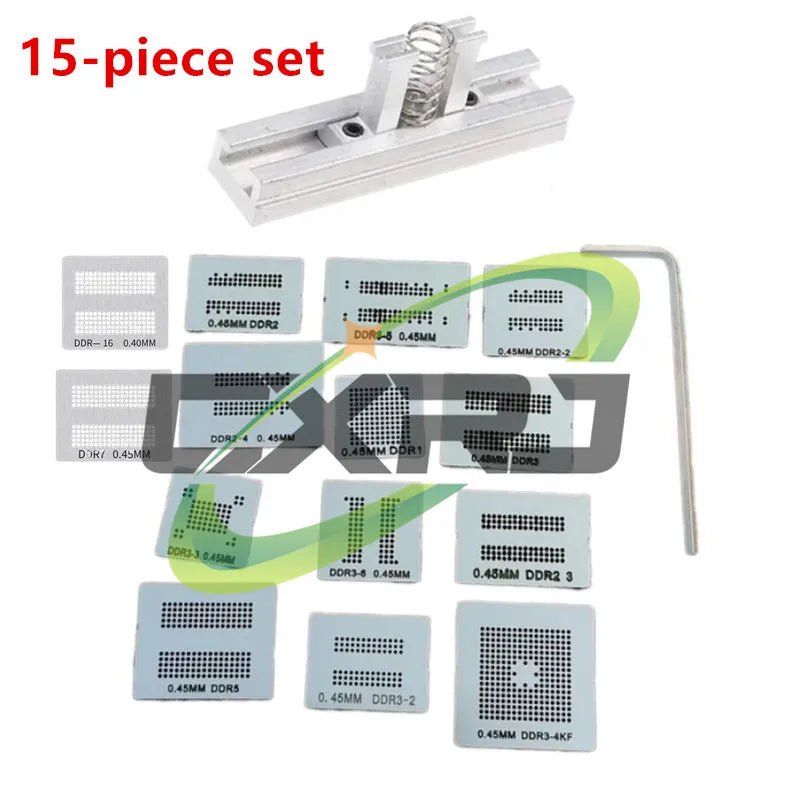

BGA Reballing Stencil Template Holder Jig – DDR1 / DDR2 / DDR3 / DDR5 / GDDR5 Memory Rework

Whether you're a professional board-level repair technician or a dedicated hobbyist, this Direct Heat BGA Reballing Stencil Jig is an essential tool for accurate, repeatable ball-grid-array rework on memory chips. Designed to fit DDR1, DDR2, DDR3, DDR5, DR2-3, DDR3-2, and GDDR5 memory packages, this holder keeps your stencil perfectly aligned every time — so you get clean, consistent solder-ball placement with minimal waste.

Made in Mainland China.

Key Features

  • Wide Compatibility: Supports DDR1, DDR2, DDR3, DDR5, DR2-3, DDR3-2, and GDDR5 memory chip types — one jig for multiple memory generations.
  • Direct Heat Design: Stencil accepts direct hot-air or infrared heat, enabling efficient solder paste or flux-core ball application without additional fixturing.
  • Precision Alignment: The template holder keeps the stencil locked in place over the chip pads, preventing misalignment during ball placement and reflow.
  • Durable Construction: Built from robust, heat-resistant materials that withstand repeated rework cycles in professional workshop environments.
  • Condition: Brand new — supplied as a single unit (Qty: 1), ready for immediate use.
  • Minimal Chemical Concern: No high-concern chemicals identified in this tool.

What's in the Box?

  • 1 × BGA Reballing Stencil Template Holder Jig

Who Is This For?

This jig is ideal for PCB repair shops, laptop and desktop repair specialists, GPU rework technicians, and electronics hobbyists who regularly reball or replace BGA memory chips on motherboards, graphics cards, and other computer hardware.

Related Products You May Like

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: Which memory chip types is this BGA reballing stencil jig compatible with?

A: This direct heat BGA reballing stencil template holder jig is compatible with DDR1, DDR2, DDR3, DDR5, DR2-3, DDR3-2, and GDDR5 memory packages, making it suitable for a wide range of laptop, desktop, and graphics card memory rework tasks.

Q: Does this jig work with both hot-air and infrared rework stations?

A: Yes. The direct heat stencil design is compatible with standard hot-air rework stations as well as infrared heating equipment, giving you flexibility in your reballing workflow.

Q: Is this product suitable for a beginner attempting BGA rework?

A: While the jig makes alignment much easier, BGA reballing requires practice and the right equipment (solder balls, flux, and a rework station). It is best suited for technicians who already have some experience with surface-mount rework, but the precision holder design is genuinely helpful for reducing mistakes during ball placement.
