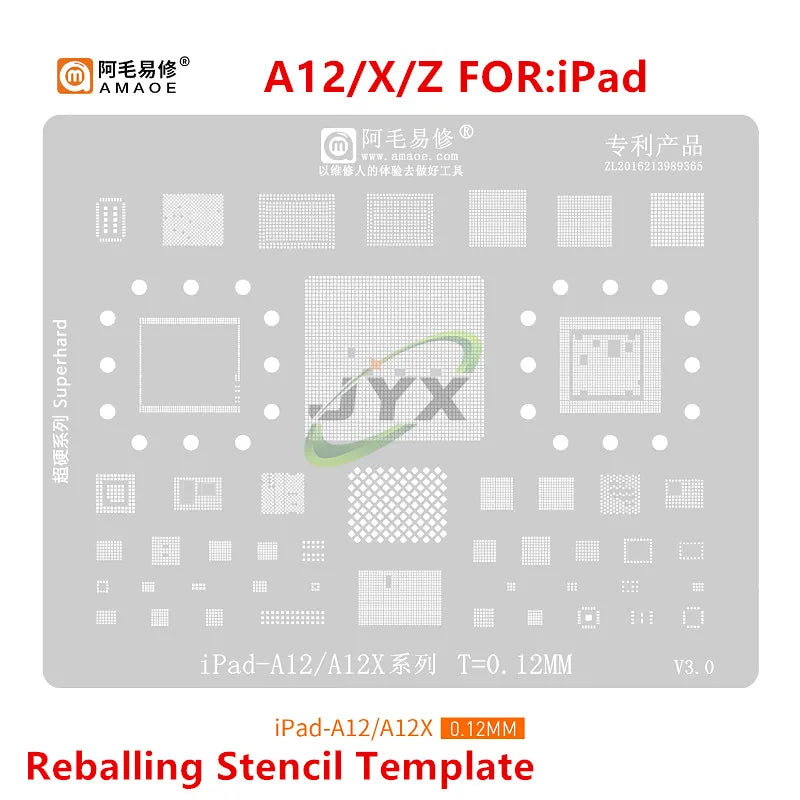

BGA Reballing Stencil for iPad Pro, Air 3, Mini 5 & iPad 7
Precision-engineered BGA reballing stencil compatible with iPad Pro 2018, 2019, and 2020 models, as well as iPad Air 3, iPad Mini 5, and iPad 7. Designed for professional board-level repair technicians, this stencil supports accurate solder ball placement on A12, A12X, and A12Z CPUs, CD3217B12, CD3217B13, CD3215C00 power delivery ICs, and EMMC NAND flash chips — everything you need for comprehensive iPad logic board rework.
Made in Mainland China.
Key Features
- Wide Compatibility: Covers iPad Pro 2018/2019/2020, iPad Air 3, iPad Mini 5, and iPad 7 chipsets in a single stencil set.
- Multi-Chip Support: Works with A12, A12X, A12Z CPU packages, CD3217B12, CD3217B13, CD3215C00 USB-C power ICs, and EMMC NAND flash storage chips.
- High-Precision Laser-Cut: Stencil apertures are laser-machined for exact ball pitch alignment, ensuring consistent, reliable solder joints every time.
- Durable Construction: Made from quality stainless steel for repeated professional use without warping or deformation.
- New Condition: Supplied brand new, ready for immediate use in your repair workflow.
- Quantity: 1 stencil per order (customized configuration available).
Who Is This For?
This stencil is ideal for professional micro-soldering and board repair specialists, electronics repair shops, and experienced DIY technicians performing BGA rework on Apple iPad logic boards. Whether you're reflowing a CPU, reballing a power IC, or replacing NAND flash storage, this stencil ensures clean, accurate solder ball deposition.
What's in the Box?
- 1 × BGA Reballing Stencil (iPad Pro / Air 3 / Mini 5 / iPad 7 – A12/A12X/A12Z/CD3217B12/CD3217B13/CD3215C00/EMMC NAND)
Related Tools & Accessories
Pair this stencil with other workshop essentials:
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Which iPad models and chips is this BGA reballing stencil compatible with?
A: This stencil is compatible with iPad Pro 2018, 2019, and 2020, iPad Air 3 (Air3), iPad Mini 5 (Mini5), and iPad 7. It supports BGA reballing for A12, A12X, and A12Z CPUs, CD3217B12, CD3217B13, CD3215C00 USB-C power delivery ICs, and EMMC NAND flash storage chips.
Q: Is this stencil suitable for professional repair technicians?
A: Yes. This is a professional-grade, laser-cut stainless steel BGA reballing stencil designed for board-level repair specialists and electronics repair shops performing logic board rework on Apple iPad devices.
Q: How many stencils are included per order?
A: Each order includes 1 BGA reballing stencil. Customized configurations are available — please contact us if you have specific requirements.
Q: Is the stencil reusable?
A: Yes. The stainless steel construction is durable and designed for repeated professional use without warping, making it a cost-effective tool for high-volume repair workflows.
