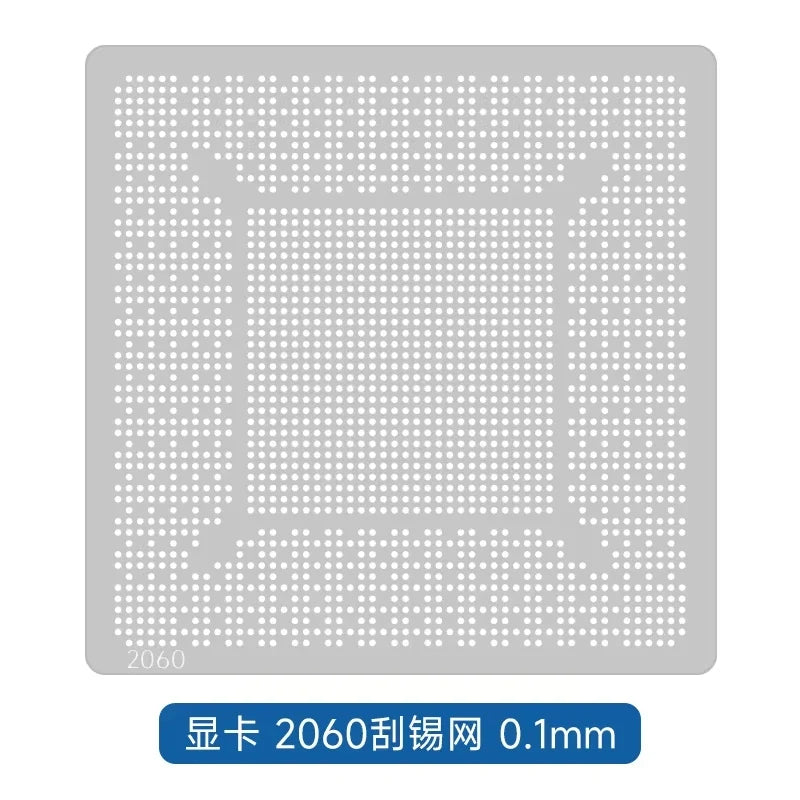

BGA Reballing Stencil – GTX/RTX & Intel/NVIDIA GPU Chips
Precision-engineered for professional GPU rework, this steel mesh BGA reballing stencil is compatible with a wide range of NVIDIA GeForce graphics card chips — including GTX 1050, GTX 1060, RTX 2060, RTX 2070, RTX 2080, RTX 3060, RTX 3080 Ti, and more — as well as select Intel chip packages. Whether you're a seasoned electronics technician or an enthusiastic DIY repair specialist, this tin template gives you the accuracy you need for clean, consistent solder ball placement every time.
Made in Mainland China.
Key Features
- Wide Compatibility: Supports GTX 1050 / 1060, RTX 2060 / 2070 / 2080, RTX 3060 / 3080 Ti, and Intel/NVIDIA BGA chip footprints
- High-Quality Steel Mesh: Laser-cut stainless steel construction ensures consistent solder paste or ball deposition with minimal waste
- Precision Apertures: Accurately sized openings align perfectly with chip pads for professional-grade reballing results
- Durable & Reusable: Rigid stencil holds its shape wash after wash, making it a cost-effective tool for repeated use in your rework station
- Tin Template Design: Easy to use with standard solder ball alloys and reballing jig setups
- New Condition: Ships brand new, ready for immediate use in professional or workshop environments
What's in the Box
- 1 × BGA Reballing Stencil / Steel Mesh Template
Compatible GPU Models
GTX 1050 | GTX 1060 | RTX 2060 | RTX 2070 | RTX 2080 | RTX 3060 | RTX 3080 Ti | Intel/NVIDIA BGA Chip Packages
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Which graphics cards is this BGA reballing stencil compatible with?
A: This stencil is designed for NVIDIA GeForce GTX 1050, GTX 1060, RTX 2060, RTX 2070, RTX 2080, RTX 3060, and RTX 3080 Ti chip packages, as well as compatible Intel/NVIDIA BGA footprints. Always verify your specific chip's ball pitch against the stencil specification before use.
Q: Is this stencil reusable?
A: Yes. The laser-cut stainless steel construction makes this BGA reballing stencil highly durable and reusable. After each reballing session, simply clean it with appropriate flux remover or isopropyl alcohol and store flat for next use.
Q: What equipment do I need to use this reballing stencil?
A: You will typically need a BGA reballing jig or fixture to hold the stencil in place, solder balls or solder paste of the appropriate alloy and diameter, a hot air rework station or BGA reflow oven, and standard flux. This stencil is compatible with most professional GPU rework station setups.
Q: Is this product suitable for beginners?
A: BGA reballing requires intermediate-to-advanced soldering skills, proper equipment, and care. While the stencil itself is straightforward to use, we recommend prior experience with SMD rework or BGA soldering before attempting GPU chip reballing.
