AMAOE U-QSU5 BGA GPU Reballing Stencil for Snapdragon Chipsets

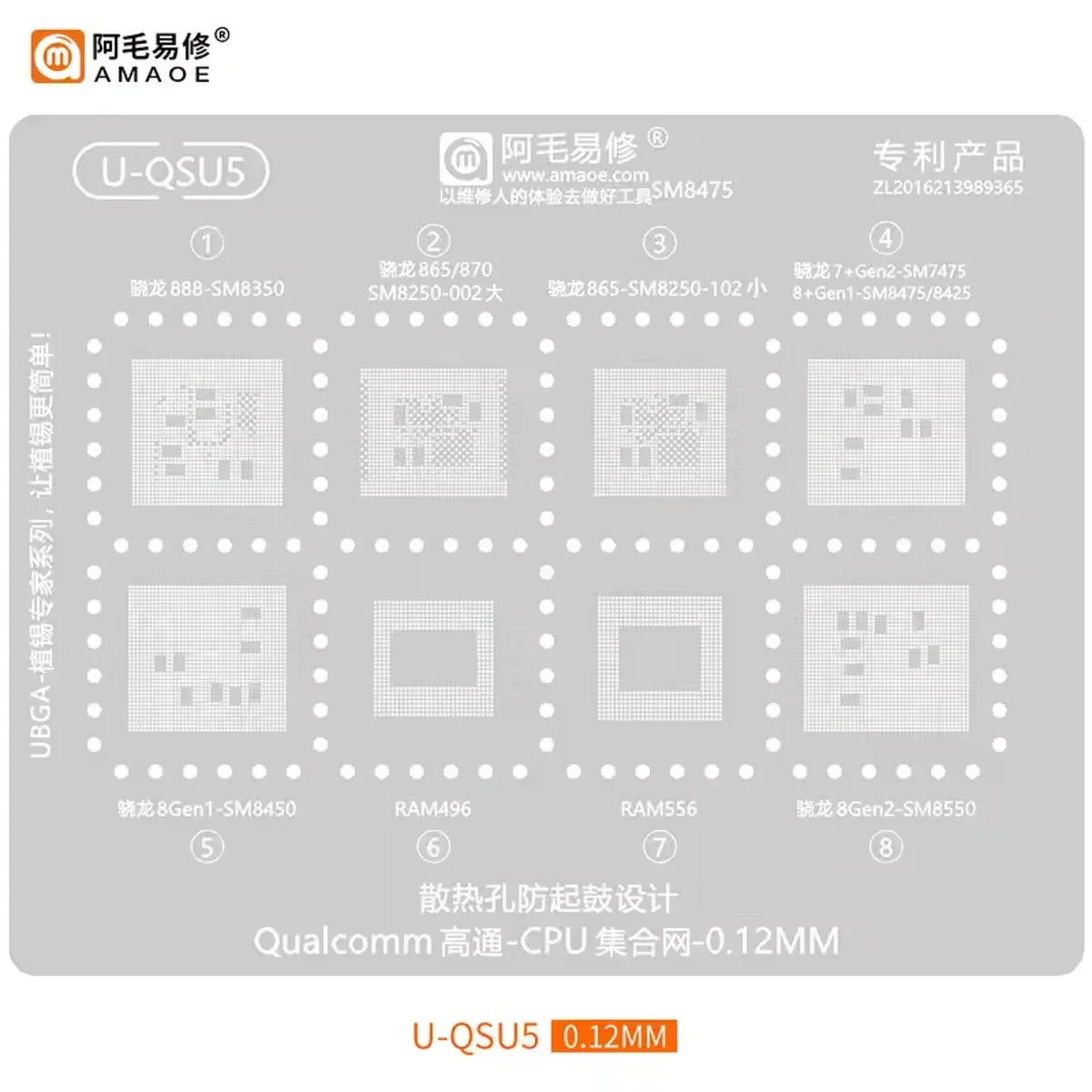

The AMAOE U-QSU5 BGA Reballing Stencil is a professional-grade tool designed for technicians and electronics repair specialists working with Qualcomm Snapdragon processors. Engineered for precise ball grid array (BGA) reballing, this stencil ensures accurate solder ball placement for a wide range of flagship and mid-range Snapdragon chipsets — making GPU and SoC rework clean, repeatable, and reliable.
Made in Mainland China.
Compatible Chipsets
- Snapdragon SM8550 / 8 Gen 2
- Snapdragon SM8475 / 8 Gen 1+
- Snapdragon SM8450 / 8 Gen 1
- Snapdragon SM8425
- Snapdragon SM8350 / 888
- Snapdragon SM8250 / 865
- Snapdragon SM7475
- Models: 002 / 102 variants
Key Features
- Precision-machined stencil — laser-cut apertures ensure consistent, accurate solder ball placement every time
- BGA package compatible — purpose-built for ball grid array chip rework and reballing workflows
- Wide chipset coverage — a single stencil supports multiple Snapdragon SoC generations, reducing tooling costs
- New condition — supplied brand new, ready for immediate professional use
- Custom design — tailored to the specific ball layout of targeted Snapdragon GPU/SoC packages
- Durable construction — built to withstand repeated rework sessions and high-temperature soldering processes
What's in the Box
- 1× AMAOE U-QSU5 BGA Reballing Stencil
Who Is This For?
This stencil is ideal for professional mobile phone board-level repair technicians, microsoldering specialists, and electronics workshops that regularly service Qualcomm Snapdragon-based devices. Whether you're reballing a damaged GPU or refurbishing a motherboard, this stencil delivers the accuracy and repeatability your work demands.
Related Products You May Find Useful
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Which Snapdragon chipsets is the AMAOE U-QSU5 BGA reballing stencil compatible with?
A: The AMAOE U-QSU5 stencil is compatible with a wide range of Qualcomm Snapdragon processors including the SM8550 (8 Gen 2), SM8475 (8 Gen 1+), SM8450 (8 Gen 1), SM8425, SM8350 (888), SM8250 (865), and SM7475, covering both 002 and 102 board variants.
Q: What is BGA reballing and why do I need a dedicated stencil?
A: BGA (Ball Grid Array) reballing is the process of removing old solder balls from a chip package and applying new ones before resoldering the chip to a PCB. A precision-machined stencil like the AMAOE U-QSU5 is essential because it holds each solder ball in exactly the correct position, matching the chip's ball layout, ensuring a reliable electrical connection after rework.
Q: Is this stencil reusable across multiple reballing jobs?
A: Yes. The AMAOE U-QSU5 is constructed from durable material capable of withstanding repeated high-temperature soldering sessions, making it a cost-effective tool for professional repair workshops handling multiple Snapdragon chipset reworks.
Q: Where is this reballing stencil made?
A: The AMAOE U-QSU5 BGA reballing stencil is made in Mainland China.
