AMAOE BGA Reballing Stencil Template for Switch IC & eMMC Chips
Precision-engineered for professional board-level repair technicians, the AMAOE BGA Reballing Stencil Template is designed to deliver accurate, consistent solder ball placement across a wide range of BGA chip packages. Whether you're reworking Switch ICs or eMMC modules, this stencil ensures repeatable, high-quality results every time.
Compatible IC Packages

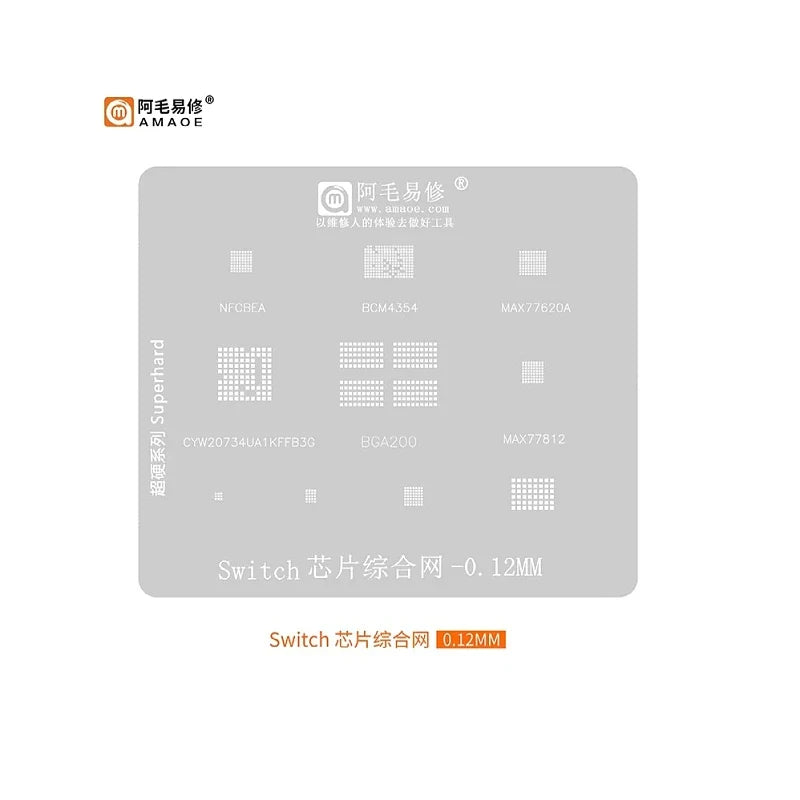

- BGA200 – NFCBEA
- BCM4354
- MAX77620A
- MAX77812
- CYW20734

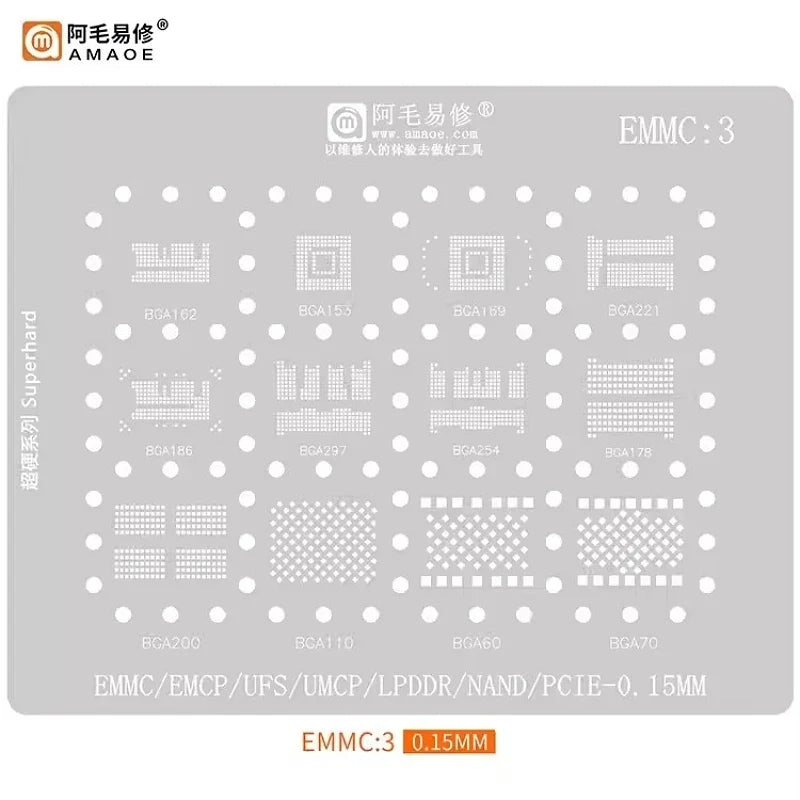

- eMMC BGA254
- eMMC BGA178
- eMMC BGA186
- eMMC BGA153
Key Features
- High Precision: Laser-cut apertures ensure exact solder ball positioning for each supported BGA footprint
- Durable Construction: Made from robust stainless steel to withstand repeated use and high-temperature soldering processes
- Wide Compatibility: Covers multiple common BGA chip configurations used in consumer electronics repair
- Professional Grade: Ideal for electronics repair shops, PCB rework stations, and advanced hobbyists
- New Condition: Supplied brand new, ready for immediate use
- SMD Package Type: Optimized for surface-mount device rework workflows
Specifications
- Brand: AMAOE
- Type: BGA Reballing Stencil / Drive IC Stencil Template
- Package Type: SMD
- Quantity: 1 piece per order
- Condition: New
- Made in: Mainland China
Who Is This For?
This stencil template is perfect for electronics repair professionals and enthusiasts working on game console boards, smartphone PCBs, or any device using the above BGA chip packages. Achieve clean, professional-level reballing results without the guesswork.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Which BGA chip packages is this reballing stencil compatible with?
A: This AMAOE BGA reballing stencil template is compatible with BGA200 (NFCBEA), BCM4354, MAX77620A, MAX77812, CYW20734, and eMMC packages including BGA254, BGA178, BGA186, and BGA153 — covering a wide range of common Switch IC and eMMC chip footprints used in consumer electronics repair.
Q: Is this stencil suitable for first-time rework technicians?
A: While the stencil's precision laser-cut apertures make the reballing process much more accurate and manageable, it is recommended for users who have some familiarity with BGA rework stations and soldering equipment. Professionals and advanced hobbyists will find it particularly straightforward to use.
Q: How many stencils are included per order?
A: Each order includes 1 BGA reballing stencil template. If you require multiple units, simply adjust the quantity at checkout.
Q: Where is this product made?
A: This stencil template is made in Mainland China by AMAOE, a brand known for professional-grade PCB rework and reballing tools.
