5S BMS 21V 20A Li-Ion Battery Management Protection Board
Keep your lithium battery packs running safely and efficiently with this high-quality 5S BMS (Battery Management System) Protection Board. Designed specifically for 5-series Li-ion battery packs, this compact PCBA is ideal for electric drills and other cordless power tools. Made in Mainland China.
Key Features
- 5S Li-Ion Compatibility: Purpose-built for 5-cell series lithium-ion battery packs up to 21V charge voltage.
- Smart IC Processor: Uses a dedicated 5S lithium battery IC to monitor real-time cell voltage, charge/discharge current, and ambient temperature for each individual cell.
- Comprehensive Protection: Built-in overcharge protection, over-discharge protection, and short circuit protection for safe, stable operation.
- High Continuous Discharge: Supports 8–20A continuous discharge current — well-suited for demanding power tool applications.
- Ultra-Low Power Consumption: Working current of approximately 25µA and quiescent current of approximately 6µA help extend overall battery longevity.
- Compact Size: Measures just 58 × 63 mm — easy to integrate into existing battery pack housings.
- 2 MOSFETs: Dual MOSFET design (2 MOS) for reliable switching and efficient current handling.
Technical Specifications
| Configuration | 5S (5 cells in series) |
| Charge Voltage | 21V |
| Single Cell Charge Voltage | 4.25V |
| Continuous Discharge Current | 8–20A |
| Overcharge Detection Voltage (per cell) | 4.25V |
| Working Current | ~25µA |
| Quiescent Current | ~6µA |

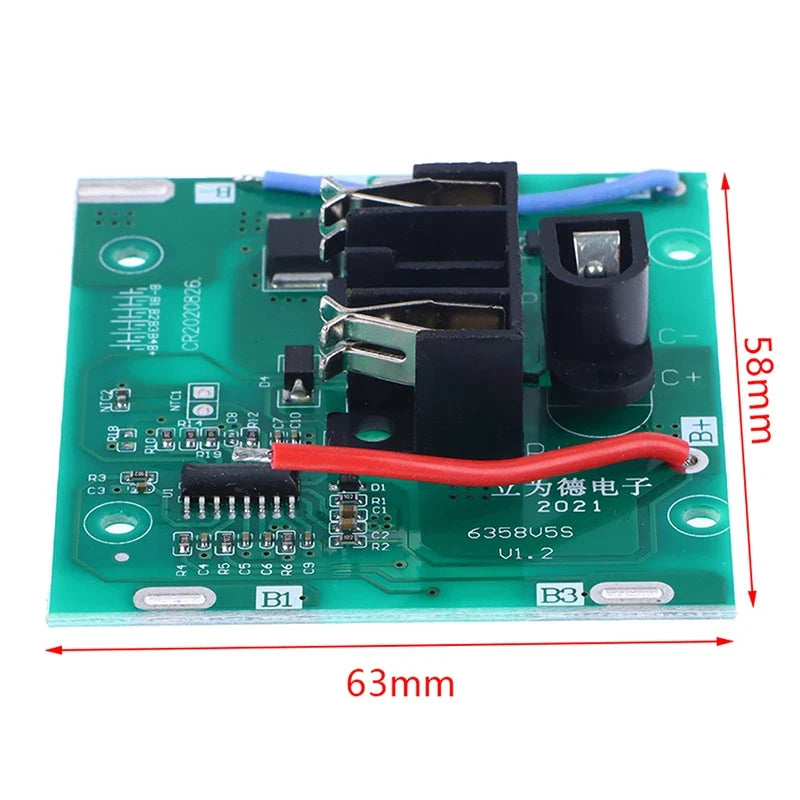

| PCB Size | 58 × 63 mm |
| Model | 5S21V-2MOS |
| Package Contents | 1 × BMS Protection Board |
What Is a BMS Protection Board?
A Battery Management System (BMS) protection board is the critical safety layer between your lithium cells and your device. It continuously monitors each cell's charge state and intervenes instantly to prevent overcharging, deep discharging, or dangerous short circuits — all of which can permanently damage a lithium battery pack. Choosing the right BMS and installing it correctly is one of the most important steps in building or maintaining a long-lasting Li-ion battery pack.
Important Notes
- Due to manual measurement, please allow a tolerance of ±1–3 mm.
- Colors may appear slightly different on screen versus the actual product due to monitor calibration differences.
- Battery cells, charger, and power tool are NOT included — this listing is for the BMS protection board only.
