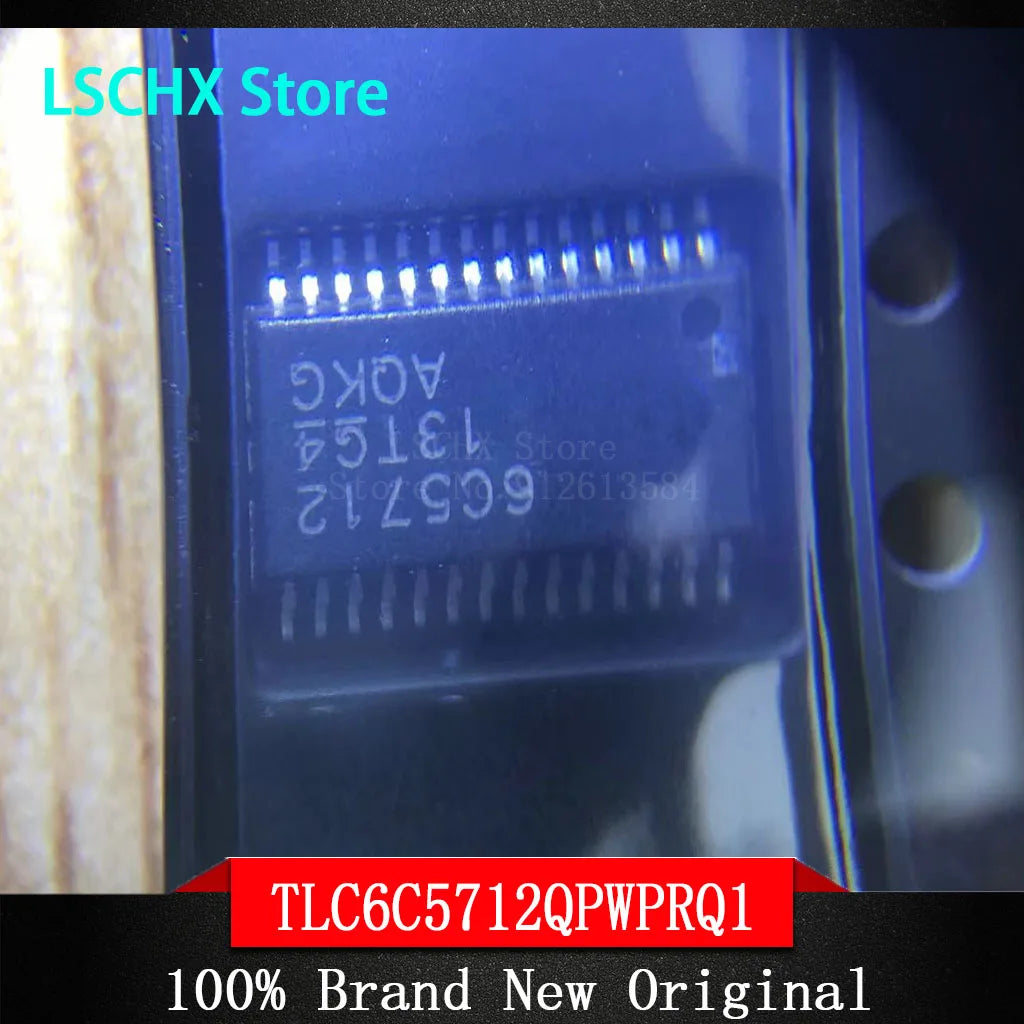

5pcs TLC6C5712QPWPRQ1 HTSSOP-28 Automotive 12-Bit LED Driver IC

TLC6C5712QPWPRQ1 – Automotive 12-Bit Constant Current LED Driver IC (5-Pack)

Get reliable, precision LED control with this 5-piece set of TLC6C5712QPWPRQ1 ICs. Housed in a compact HTSSOP-28 package, this automotive-grade 12-bit constant current LED perfusion driver (TLC6C5712-Q1) is engineered to meet the demanding requirements of automotive lighting and general-purpose LED drive applications. Whether you're working on instrument cluster backlighting, exterior lighting modules, or custom embedded projects, this chip delivers accurate current control and stable performance across a wide operating range.

Key Features

• Model: TLC6C5712QPWPRQ1 (TLC6C5712-Q1)
• Package: HTSSOP-28
• Resolution: 12-bit constant current control for precise LED brightness adjustment
• Grade: Automotive-qualified (Q1) — designed for demanding under-hood and cabin environments
• Application: General purpose LED driving, automotive lighting, display backlighting, embedded control systems
• Quantity: 5 pieces per order
• Compliant: No high-concern chemicals; meets international protection standards
• Customization: Available

Why Choose This LED Driver IC?

The TLC6C5712-Q1 is a trusted choice for engineers and hobbyists who need automotive-grade precision in LED current management. Its 12-bit resolution allows fine-grained brightness control, while the HTSSOP-28 footprint makes it easy to integrate into both new designs and existing PCB layouts. Buying in a 5-pack ensures you always have spares on hand for prototyping, repair, or production runs.

Made in Mainland China.

Related Products You May Like

• Electromagnetic Induction Tester – Coil & Circuit Fault Detector
• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is the TLC6C5712QPWPRQ1 and what is it used for?

A: The TLC6C5712QPWPRQ1 (also known as TLC6C5712-Q1) is an automotive-grade, 12-bit constant current LED driver IC housed in an HTSSOP-28 package. It is used to precisely control LED brightness in automotive lighting systems, instrument clusters, display backlighting, and general-purpose embedded LED drive circuits. The 12-bit resolution enables highly accurate current regulation across multiple LED channels.

Q: Is this IC compatible with automotive environments?

A: Yes. The "-Q1" designation indicates this is an automotive-qualified component, designed to meet the stringent reliability and temperature requirements common in automotive electronics. It is suitable for use in both interior (cabin, cluster) and relevant exterior automotive lighting applications.

Q: How many ICs are included in this listing?

A: Each order includes 5 pieces of the TLC6C5712QPWPRQ1 in the HTSSOP-28 package, making it ideal for prototyping, small production runs, or keeping spares on hand.

Q: What package type is the TLC6C5712QPWPRQ1?

A: The TLC6C5712QPWPRQ1 comes in an HTSSOP-28 surface-mount package, which is a standard footprint widely supported by PCB design tools and compatible with most reflow soldering processes.
