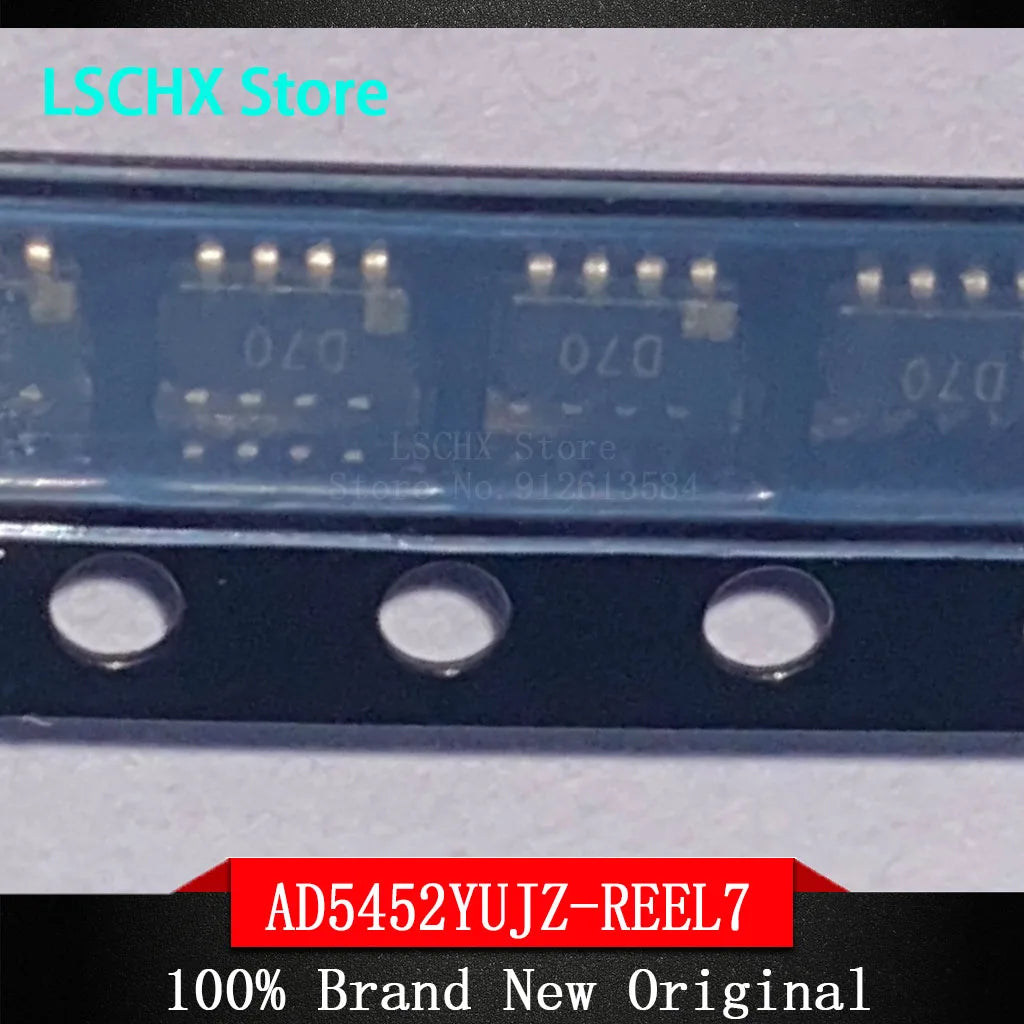

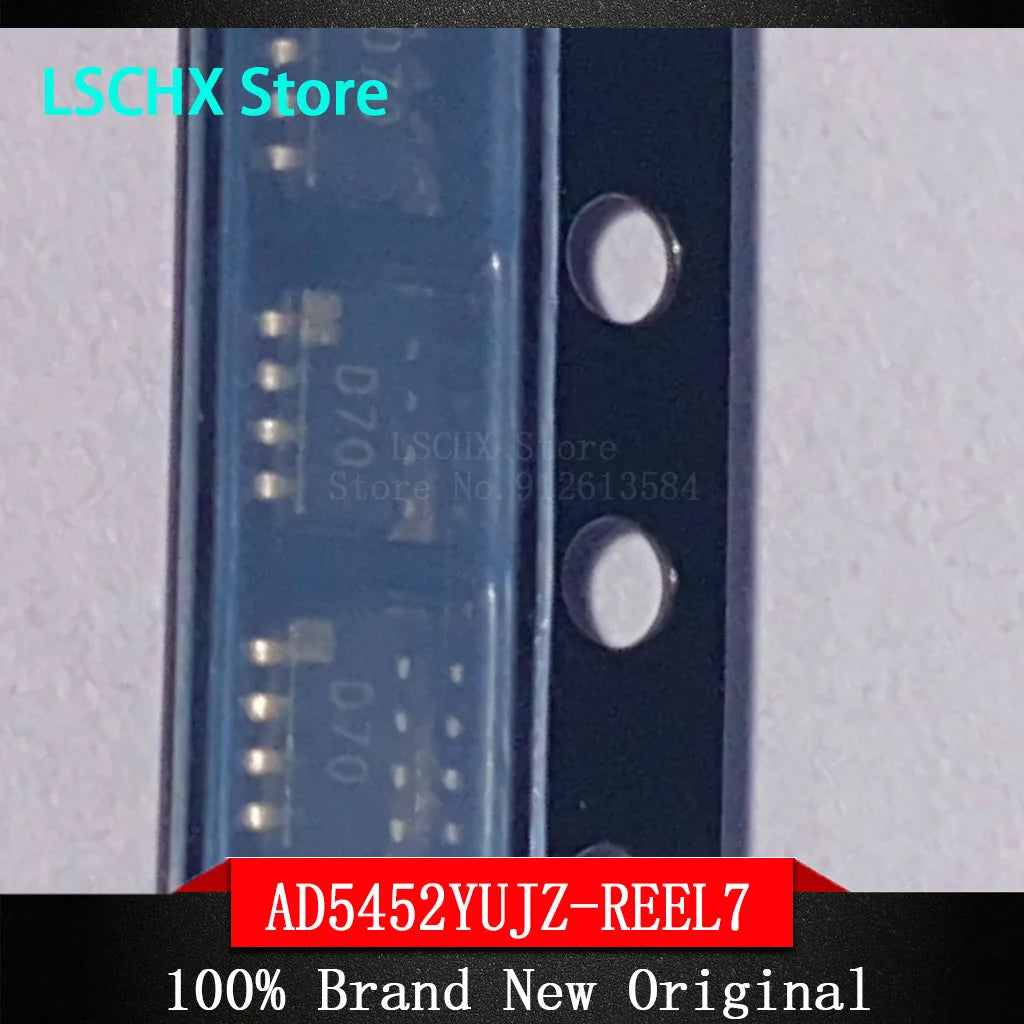

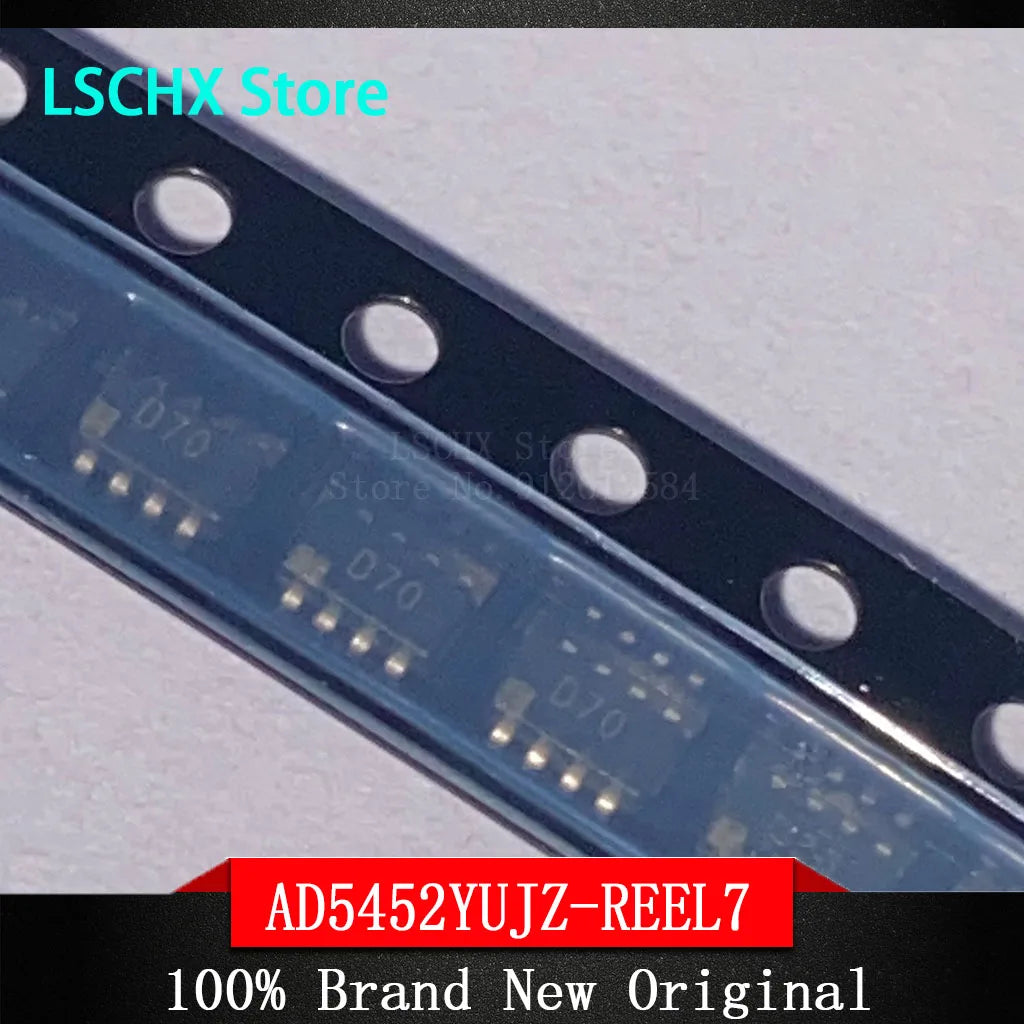

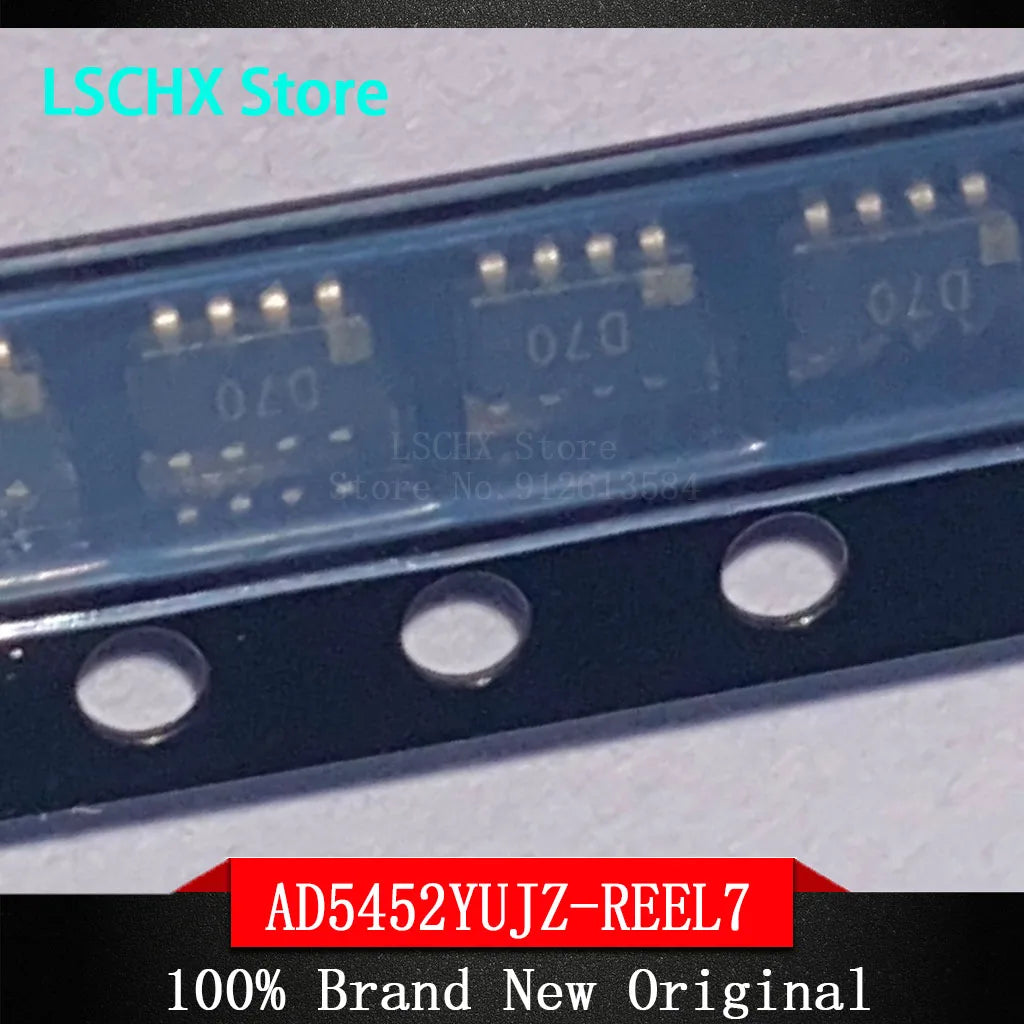

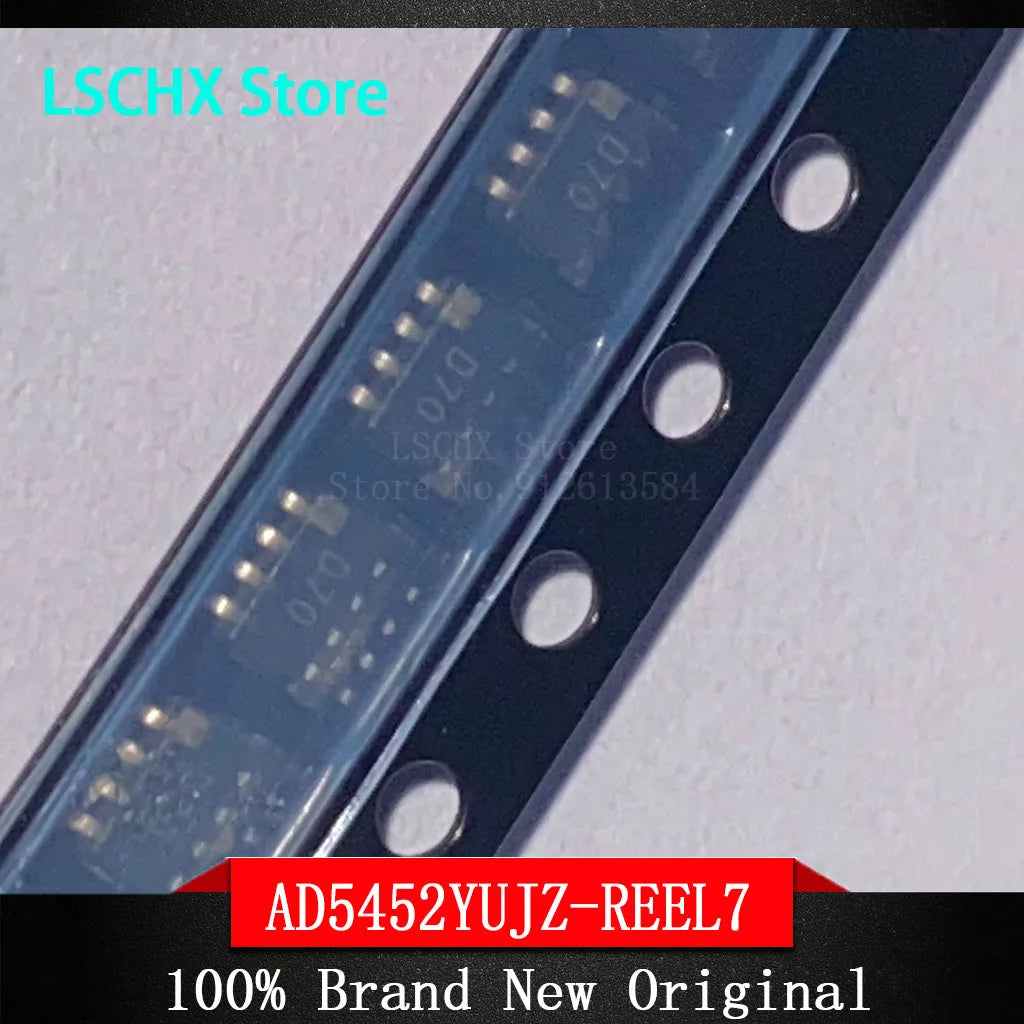

5pcs AD5452YUJZ-REEL7 12-Bit Multiplicative DAC Chip TSOT-23-8

AD5452YUJZ-REEL7 12-Bit High-Bandwidth Multiplicative DAC — Pack of 5

Get reliable, precision digital-to-analog conversion with this pack of 5 x AD5452YUJZ-REEL7 chips. Housed in the compact TSOT-23-8 package, this 12-bit, high-bandwidth, serial-interface multiplicative DAC is engineered for demanding general-purpose signal-processing applications where accuracy and speed matter.

Key Specifications

• Model: AD5452YUJZ-REEL7
• Package: TSOT-23-8 (8-pin thin small-outline transistor)
• Resolution: 12-bit
• Interface: Serial (SPI-compatible)
• DAC Type: Multiplicative (MDAC)
• Supply Voltage: 2.5 V – 5.5 V (wide operating range)
• Application: General purpose signal processing, programmable gain amplifiers, waveform generation, and more
• Quantity: 5 pieces per order
• Compliance: Meets international standards for contact load and protection features
• Made in Mainland China

Why Choose the AD5452YUJZ-REEL7?

The AD5452YUJZ-REEL7 is a versatile multiplicative DAC from the trusted AD54xx family. Its 12-bit resolution delivers fine-grained output control, while the high-bandwidth serial interface ensures fast data throughput for time-sensitive designs. The wide 2.5 V–5.5 V supply range makes it compatible with both 3.3 V and 5 V logic systems, reducing the need for level-shifting circuitry. The ultra-compact TSOT-23-8 footprint is ideal for space-constrained PCB layouts.

Typical Applications

• Programmable gain amplifiers (PGA)
• Waveform generation and signal synthesis
• Instrumentation and measurement equipment
• Automatic gain control (AGC) loops
• Industrial automation and control systems

Package Contents

• 5 × AD5452YUJZ-REEL7 DAC ICs (TSOT-23-8 package)

Looking for other precision tools and electronics accessories? Check out our Electromagnetic Induction Tester – Coil & Circuit Fault Detector or the Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool for more electronics and DIY essentials.

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What does "multiplicative DAC" mean for the AD5452YUJZ-REEL7?

A: A multiplicative DAC (MDAC) multiplies an external reference voltage by a digital code to produce the output. Unlike voltage-output DACs with fixed references, the AD5452YUJZ-REEL7 accepts a varying AC or DC reference, making it ideal for programmable gain amplifier and signal-attenuation applications.

Q: Is the AD5452YUJZ-REEL7 compatible with 3.3 V microcontrollers?

A: Yes. The AD5452YUJZ-REEL7 operates across a wide supply voltage range of 2.5 V to 5.5 V, making it fully compatible with 3.3 V and 5 V microcontrollers and logic systems without additional level-shifting components.

Q: How many chips are included in this listing?

A: This listing includes a pack of 5 × AD5452YUJZ-REEL7 ICs, each in the TSOT-23-8 surface-mount package, giving you spares for prototyping or small production runs.
