4.3-Inch HD TFT LCD Car Rearview Mirror Monitor
Upgrade your vehicle's reversing setup with this universal 4.3-inch HD TFT LCD rearview mirror monitor. Featuring a vivid 800×480 pixel display, crisp 350:1 contrast ratio, and dual AV video inputs, it works seamlessly with most aftermarket backup cameras and DVD/VCD video sources — making every reverse maneuver safer and more confident.
Made in Mainland China.
Key Features
- Crystal-Clear 4.3" TFT LCD Screen – 800×480 resolution and a 350:1 contrast ratio deliver vibrant, true-to-life colour images.
- Dual Video Inputs (AV1 / AV2) – Connect a rear-view camera via the dedicated white port, or feed in DVD/VCD content via the yellow port.
- Universal Compatibility – Fits virtually any car, truck, or SUV running on DC 12V–24V power systems.
- PAL/NTSC Auto-Switching – Automatically detects and switches between PAL and NTSC formats for hassle-free global use.
- Ultra-Low Power Draw (≤3W) – Minimal energy consumption keeps your electrical system running efficiently and cool.
- Dual Display Formats – Supports both 4:3 and 16:9 aspect ratios for flexible viewing options.
- Easy Installation – Mounts directly over your existing rearview mirror; no complex wiring required.
Input Port Guide
- Red Port – Power connection (DC 12V–24V)
- White Port – Rear-view camera connection (AV1)
- Yellow Port – DVD, VCD, or other video device connection (AV2)
⚠️ Please Note: This monitor does NOT support DVR connections. It is compatible with rear-view camera input and DVD/VCD video display only. Camera is not included.
Technical Specifications
| Display Type | Digital TFT LCD |
| Screen Size | 4.3 inches |
| Resolution | 800 (W) × 480 (H) pixels |
| Contrast Ratio | 350:1 |
| Display Format | 4:3 / 16:9 |
| Video Input | AV1 / AV2 |
| Video System | PAL / NTSC (Auto-switching) |
| Power Supply | DC 12V – 24V |
| Power Consumption | ≤3W |
| Colour | Black |
| Material | Plastic |
| Compatibility | Universal |

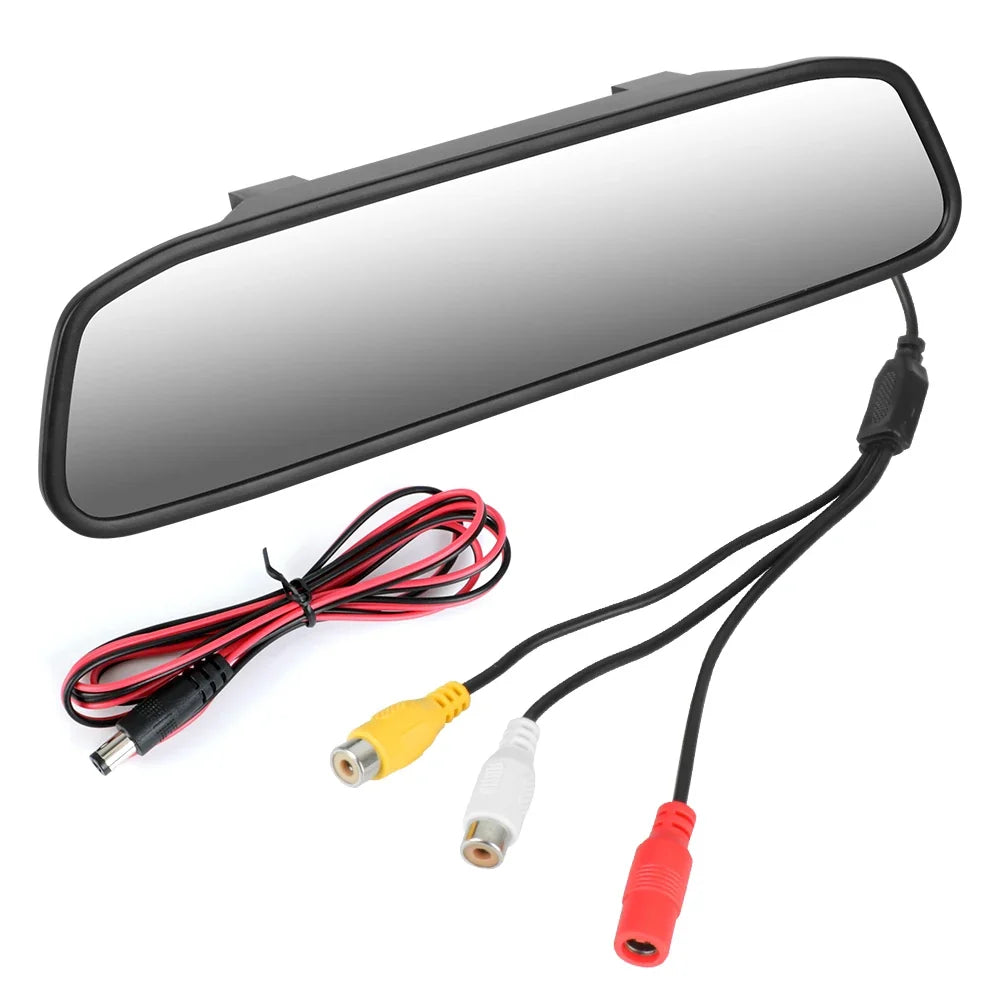

What's in the Box
- 1× Rearview Mirror Display (camera not included)
- 1× Power Line
- 1× User Manual
- 1× Packaging Box
You Might Also Like
- All-Season Cooling Car Seat Cushion – Breathable & Ergonomic
- Clip-On Car Fan LED Display 199 Speeds | USB & Type-C
- 60cm Motorcycle Luggage Strap – Elastic Helmet Bungee Net
Learn more: FuelEconomy.gov driving efficiency guidance
Frequently Asked Questions
Q: Is the backup camera included with this rearview mirror monitor?
A: No, the camera is not included. This package contains the 4.3-inch TFT LCD rearview mirror display, a power line, and a user manual. You will need to purchase a compatible AV backup camera separately to display a rear-view feed on the screen.
Q: Will this monitor work with my car's existing wiring?
A: Yes — this monitor supports a wide DC 12V to 24V power range, making it universally compatible with most cars, trucks, and SUVs. The red port connects to your vehicle's power supply, the white port connects to your rear-view camera (AV1), and the yellow port connects to an optional DVD or VCD source (AV2).
Q: Does this monitor support DVR recording devices?
A: No. This monitor does not support DVR connections. It is designed to work with rear-view camera input and DVD/VCD video display only. Please ensure your setup matches these requirements before purchasing.
Q: What video formats does the monitor support?
A: The monitor automatically detects and switches between PAL and NTSC video formats, so it works with cameras and video sources from virtually any region without manual adjustment.
