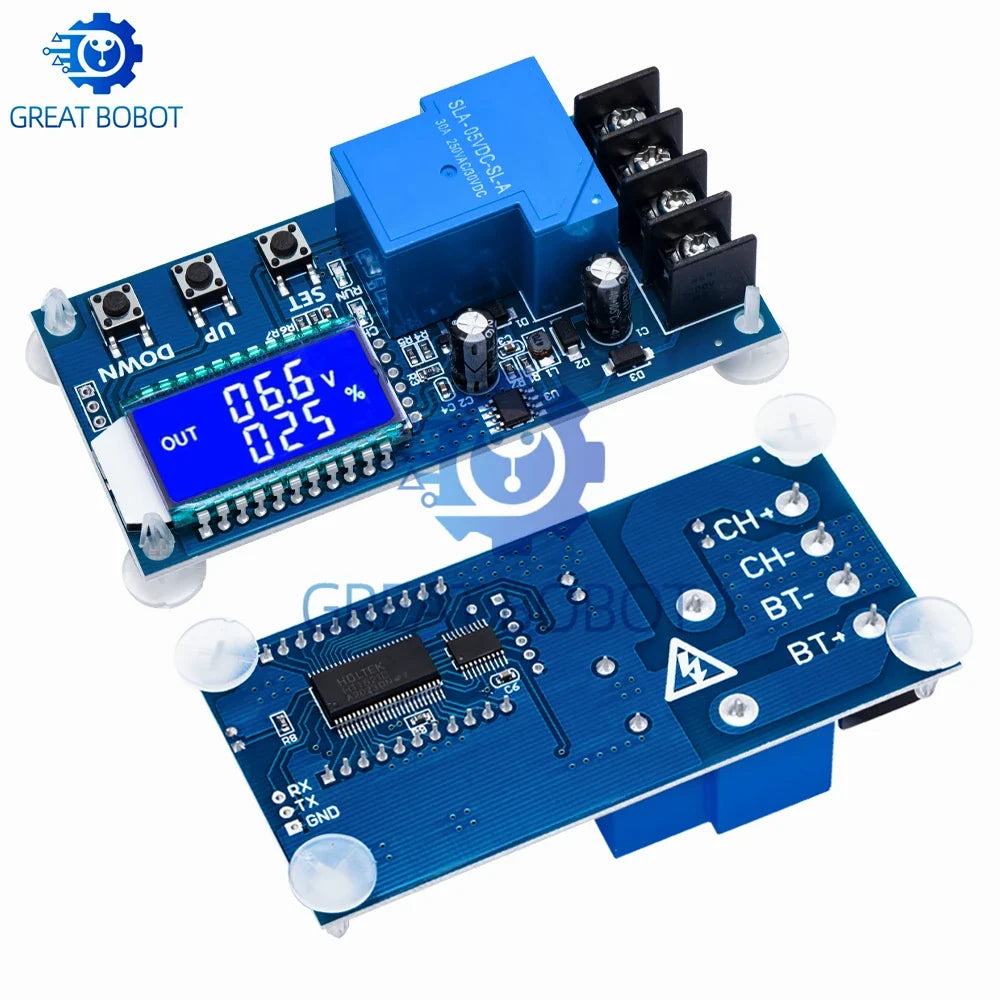

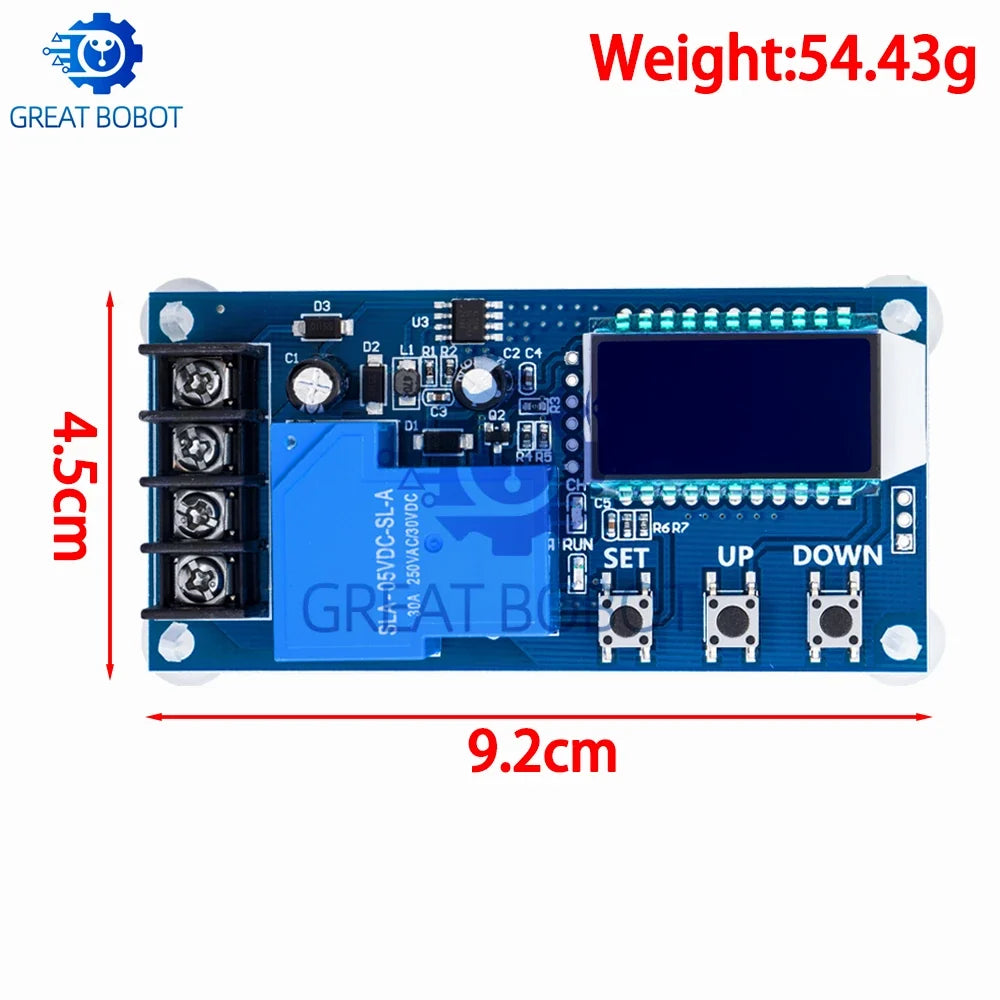

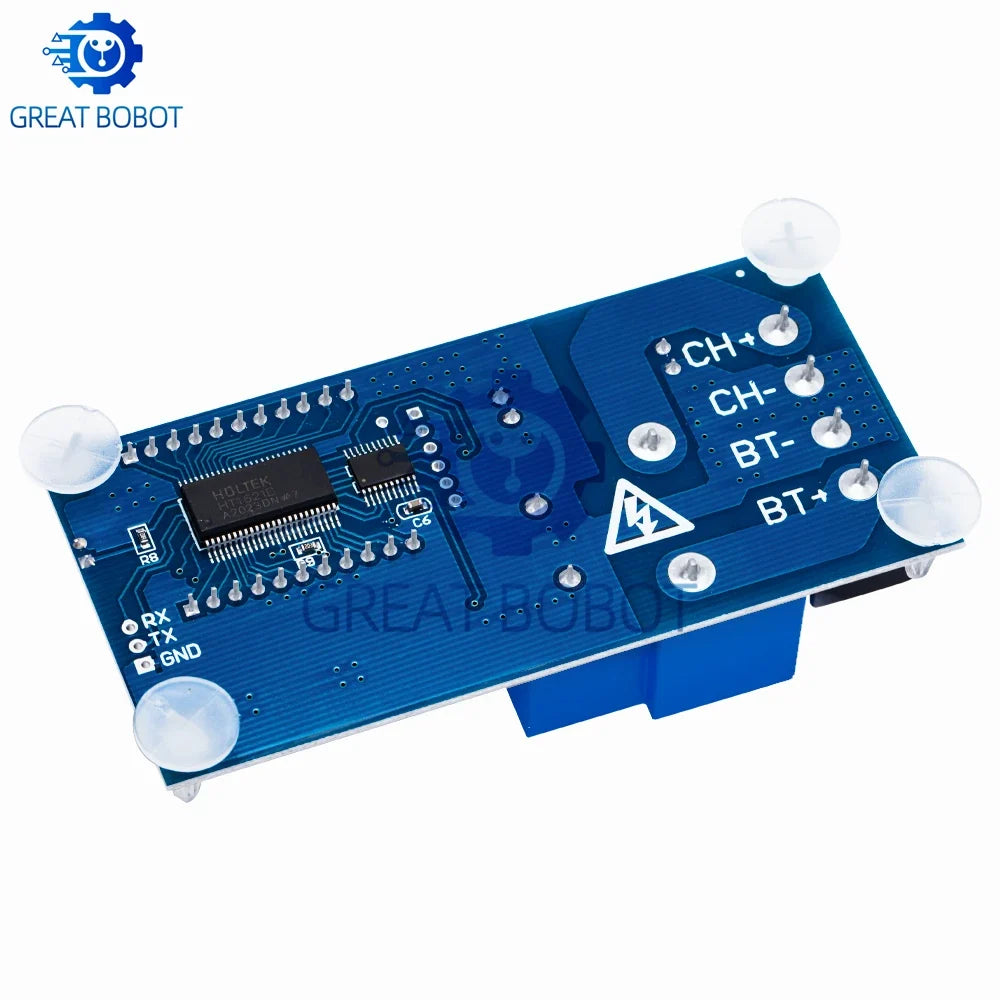

30A Battery Charging Control Module 6-60V LCD Display & Timer

BS XY-L30A Battery Charging Control Module – 6–60V, 30A with LCD Display & Time Switch

Take full control of your battery charging setup with this versatile 6–60V 30A Storage Battery Charging Control Module. Designed for a wide range of 12V, 24V, 36V, and 48V battery systems, this compact module combines an intelligent protection board, programmable time switch, and a clear LCD display — all in one easy-to-install unit.

Whether you're managing solar storage banks, lead-acid batteries, lithium packs, or other rechargeable systems, this controller keeps your batteries operating safely and efficiently. Made in Mainland China.

Key Features

• Wide Voltage Range: Compatible with 6V to 60V battery systems for maximum versatility
• High Current Capacity: Handles up to 30A continuous current
• LCD Display: Real-time readout of voltage, current, and charging status at a glance
• Built-in Protection Board: Safeguards against overcharge, over-discharge, and short circuit
• Programmable Time Switch: Set custom charge start/stop times for fully automated operation
• SMD Construction: Compact, surface-mount design for reliable performance in tight spaces
• Wide Operating Temperature: Rated from -40°C to +80°C for use in demanding environments
• Condition: Brand new

Specifications

Who Is This For?

This module is ideal for electronics hobbyists, DIY solar energy enthusiasts, EV battery maintainers, and anyone who needs precise, automated charging management for rechargeable battery banks. Its broad voltage and current range makes it a go-to solution for both home workshop projects and more demanding off-grid setups.

Related Products You May Like

• Electromagnetic Induction Tester – Coil & Circuit Fault Detector
• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool

Learn more: ENERGY STAR product efficiency guidance

Frequently Asked Questions

Q: What types of batteries is this charging control module compatible with?

A: The BS XY-L30A charging control module is compatible with most common rechargeable battery types operating within 6V to 60V, including lead-acid, lithium-ion, LiFePO4, and gel battery banks. It is widely used in solar storage, backup power, and DIY battery projects.

Q: Does the module protect against overcharging?

A: Yes. The built-in protection board actively monitors the battery and automatically stops or adjusts charging to prevent overcharge, over-discharge, and short-circuit conditions, keeping your battery bank safe and extending its service life.

Q: How does the time switch function work?

A: The programmable time switch allows you to set specific start and stop times for the charging cycle. This is particularly useful for automating overnight charging or scheduling charge sessions during off-peak electricity hours.

Q: What information does the LCD display show?

A: The LCD display provides a real-time readout of key parameters including input voltage, charging current, and current operating status, making it easy to monitor your charging session at a glance without additional measuring equipment.
