3-in-1 Manual Hand Pump Kit – Fuel, Liquid & Air Transfer
3-in-1 Manual Hand Pump Kit – Fuel, Liquid & Air Transfer
3-in-1 Manual Hand Pump Kit – Fuel, Liquid & Air Transfer
Meet the ultimate portable hand pump for home, garage, and outdoor use. This versatile manual siphon pump kit handles fuel transfer, liquid delivery, and air inflation — all in one compact, easy-to-use tool. Whether you're topping off your generator, draining a tank, or inflating a bicycle tire, this kit has you covered.
Key Features

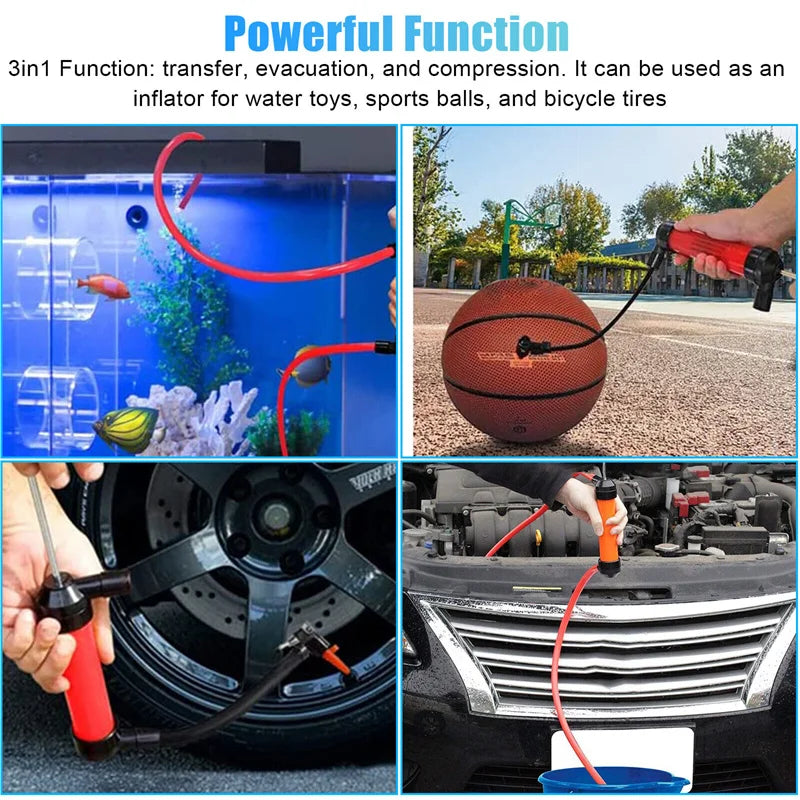

- 3-in-1 Functionality: Transfer liquids, evacuate tanks, and inflate — one pump does it all.
- High Efficiency: Transfers up to 3 gallons (12 litres) of liquid per minute, making quick work of fuelling tasks.
- Durable ABS & PVC Construction: Heavy-duty, lightweight materials built for repeated use in demanding conditions.
- Easy Assembly & Cleaning: Tool-free disassembly for fast cleaning and maintenance between uses.
- Complete Kit Included: Everything you need straight out of the box — no extra purchases required.
- Wide Compatibility: Works with boats, jet skis, generators, lawn tractors, trimmers, snowmobiles, leaf blowers, farm equipment, and more.
- Air Inflator Mode: Inflates bicycle tyres, water toys, air mattresses, and sports balls.

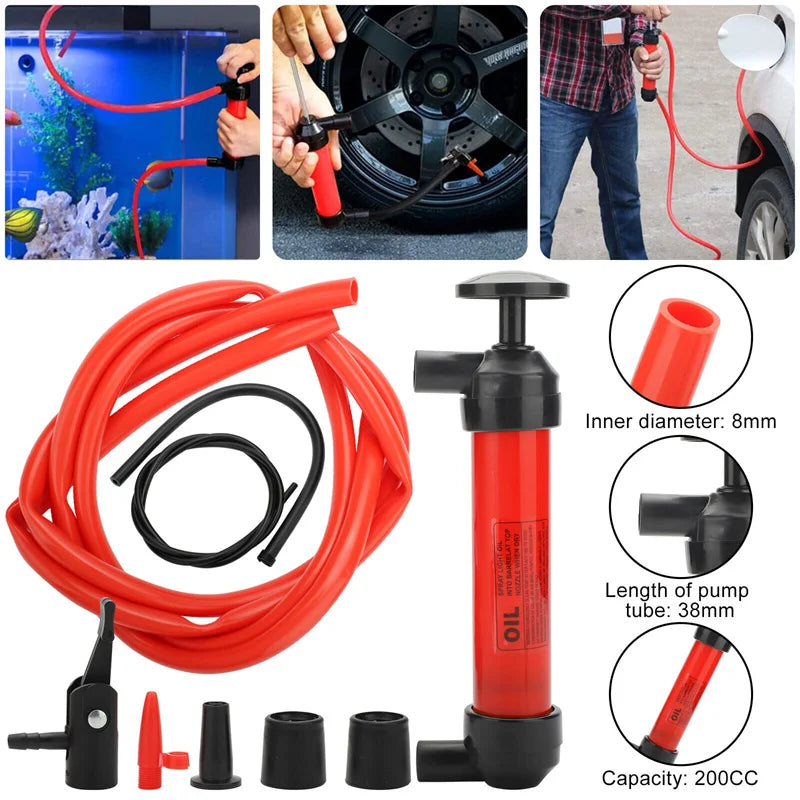

Product Specifications
| Type | Hand Oil Pump Kit |
| Material | PVC / ABS |
| Pump Cylinder Capacity | 200 CC |
| Pump Tube Length | 38 mm |
| Tubing Inner Diameter | 8 mm |
| Tubing Outer Diameter | 12 mm |
| Extension Tube Outer Diameter | 6 mm |
| Air Pump Outer Diameter | 12 mm |
| Liquid Pump Tube Length | 1 m |
| Extended Liquid Pump Tube Length | 1 m |
| Colour | Red |
| Country of Origin | Made in Mainland China |

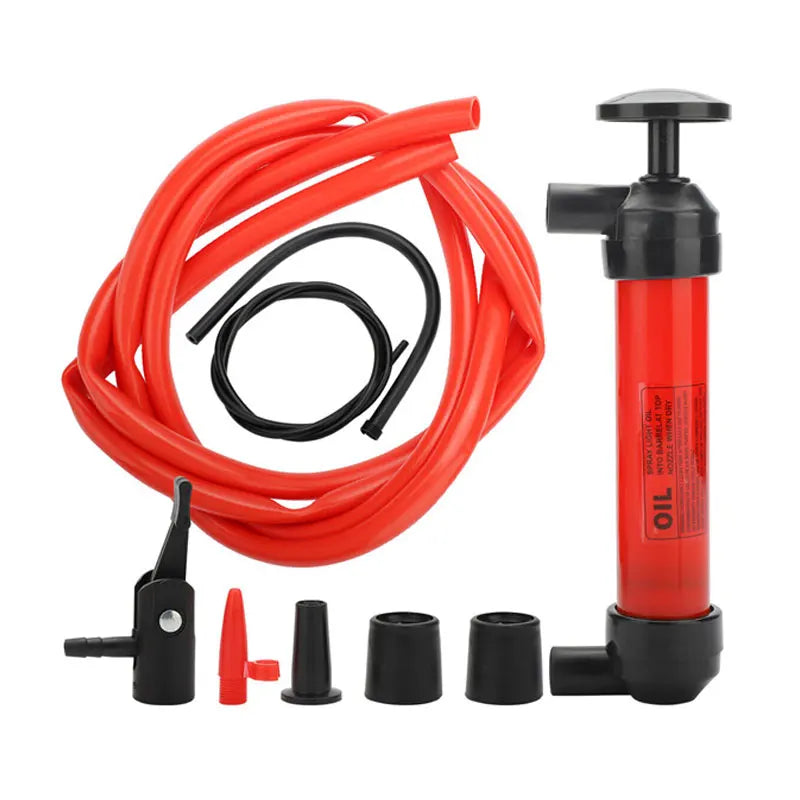

What's in the Box
- 1 × Main Pump Body
- 2 × Liquid Pump Tubes
- 1 × Liquid Pump Extended Tube
- 1 × Pump Tube
- 2 × Protection Covers
- 1 × Pump Head
- 1 × Small Pump Head
- 1 × Extension Tube Connector
How to Assemble — Liquid Transfer Mode
- Insert one end of each red hose into the black fixing sleeves.
- Connect the red hoses to the upper and lower ports of the red pump body.
- Tighten the fixing sleeves securely.
- To extend reach, insert the black thin hose into the extension pipe joint, then connect to the lower red hose port.
How to Assemble — Air Inflator Mode
- Insert the black pumping connector into the air pump.
- Attach the red air nozzle into the black pumping connector and press to lock.
- Slide the protection cover onto the black air pump and insert it into the pump cylinder.
- Secure the protection cover — your inflator mode is ready to use.
You May Also Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
- 60cm Motorcycle Luggage Strap – Elastic Helmet Bungee Net
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What types of liquids can this manual hand pump transfer?
A: This manual siphon pump is designed to transfer fuels such as petrol, diesel, and similar liquids, as well as water. It is also suitable for use with many common chemicals. Always check compatibility with your specific liquid before use, and avoid use with highly corrosive or incompatible substances.
Q: Can I use this pump to inflate car or bicycle tyres?
A: Yes! In air inflator mode, this 3-in-1 pump can inflate bicycle tyres, inflatable water toys, air mattresses, and sports balls. It is not intended as a primary tyre inflator for full-size car tyres, but works well for low-pressure inflation tasks.
Q: How fast does this hand pump transfer fuel?
A: The pump can transfer up to 3 gallons (approximately 12 litres) of liquid per minute, making it efficient for topping off generators, boats, lawn tractors, and other small-engine equipment quickly.
Q: Is any special tool needed to assemble or disassemble the pump?
A: No special tools are required. The pump components connect and lock by hand, and the design allows for easy disassembly for cleaning and storage between uses.
