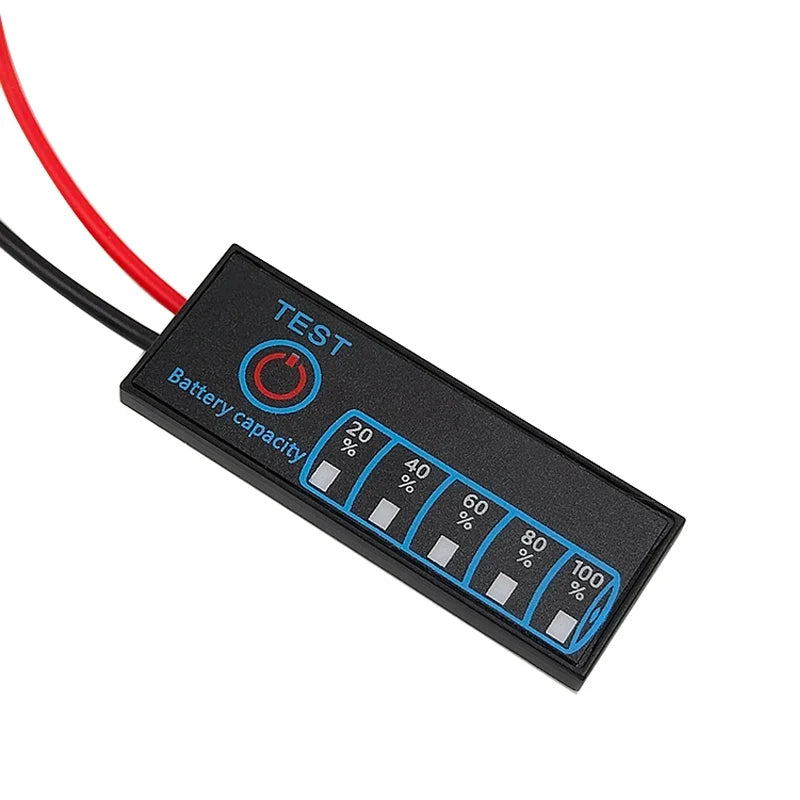

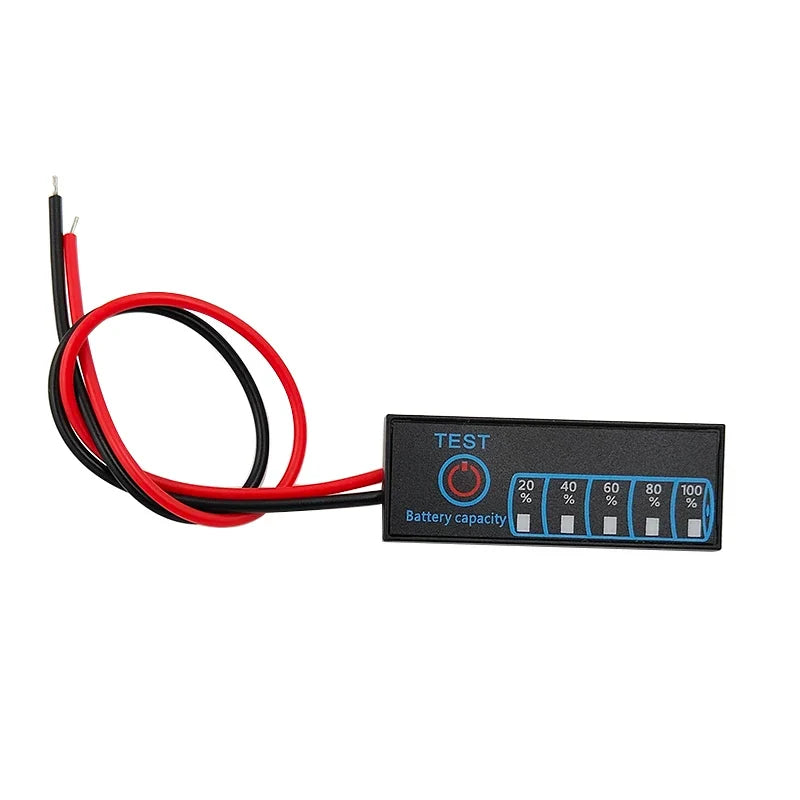

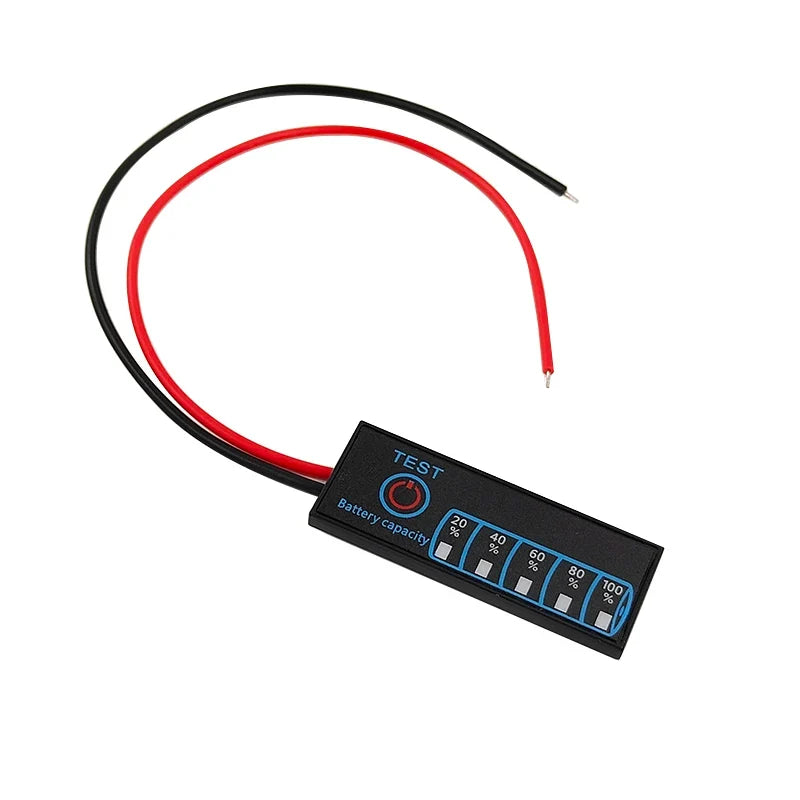

2S–8S Multi-Chemistry Battery Level Indicator & Voltage Meter Module
Keep a precise eye on your battery's charge status with this compact LED battery level indicator and voltage meter module. Compatible with LiPo, Li-ion, 18650 lithium, lithium iron phosphate (LiFePO4), and lead-acid battery packs ranging from 2S to 8S (5V–30V DC), this versatile tester module is an essential addition to any electronics workbench, DIY power project, or RC/EV application.
Made in Mainland China.
Key Features
- Wide Compatibility: Supports 2S–8S LiPo, Li-ion, 18650, lithium ternary, lithium iron phosphate, and lead-acid battery packs.

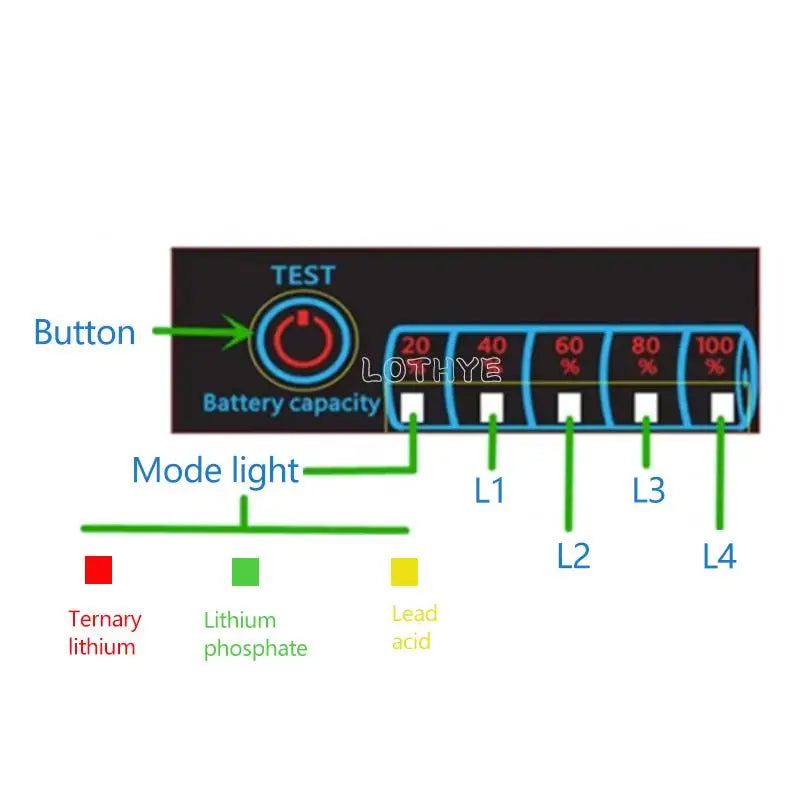

- Multi-Color LED Display: Instantly identifies your battery chemistry — Red = lithium ternary, Green = lithium iron phosphate (LiFePO4), Yellow = lead-acid.
- Fast Refresh Rate: Updates battery status every 500ms for near real-time monitoring.
- Ultra-Low Power Draw: Working current under 10mA — won't noticeably drain your battery during monitoring.
- Easy Button Configuration: Press-and-hold interface lets you select battery type and string count in seconds; auto-saves and returns to display mode after 5 seconds of inactivity.
- Slim & Lightweight: Compact 46mm × 15mm × 3mm form factor fits neatly into enclosures, panels, or custom builds.

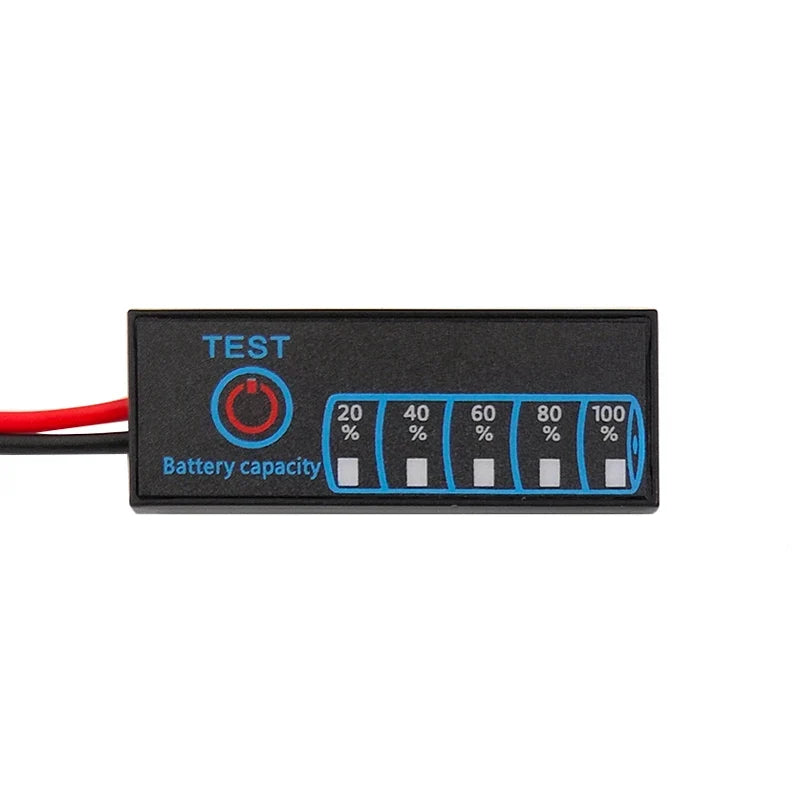

- 4-Level Power Status Display: At a glance, see which of the four charge-level LEDs is lit to understand remaining capacity.
Technical Specifications

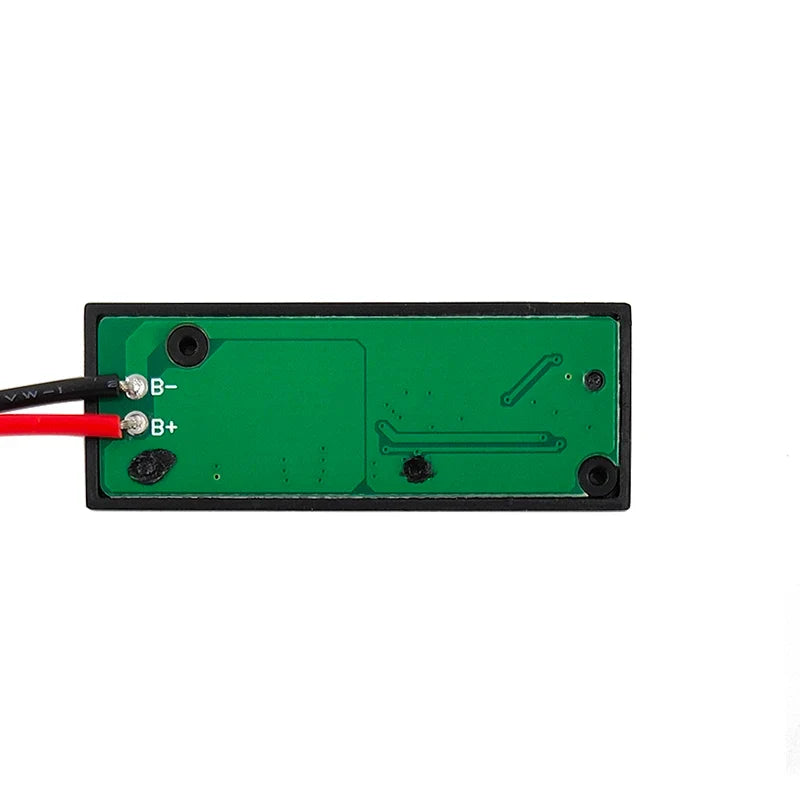

- Working Voltage: DC 5V – 30V
- Working Current: <10mA
- Display Mode: LED indicator (multi-color)
- Refresh Speed: 500ms / reading
- Dimensions: 46mm × 15mm × 3mm
- Battery Type Support: 2S–8S LiPo / Li-ion / 18650 / LiFePO4 / Lead-Acid
- Condition: New
How to Configure
- Enter Setting Mode: Press and hold the button for 2 seconds. The mode indicator (battery type LED) will flash; the string number LED stays on. Briefly press to cycle through battery types.
- Confirm Battery Type: Press and hold for 2 more seconds to advance to the string number / voltage setting step (mode LED stays on, string number LED flashes).
- Set String Number / Voltage: Briefly press to step through the available string number or voltage options. Refer to the setting table for your specific configuration.
- Save Settings: Press and hold for 2 seconds to save and return to the 4-level power status display, or wait 5 seconds for auto-return.
- Auto-Timeout: If no button is pressed within 5 seconds during setup, the module automatically returns to normal display mode.
Perfect For
- RC vehicles, drones, and robotics
- DIY power banks and portable battery packs
- Solar energy storage systems
- Electric bikes, scooters, and EV projects
- Electronics workbench testing and prototyping
