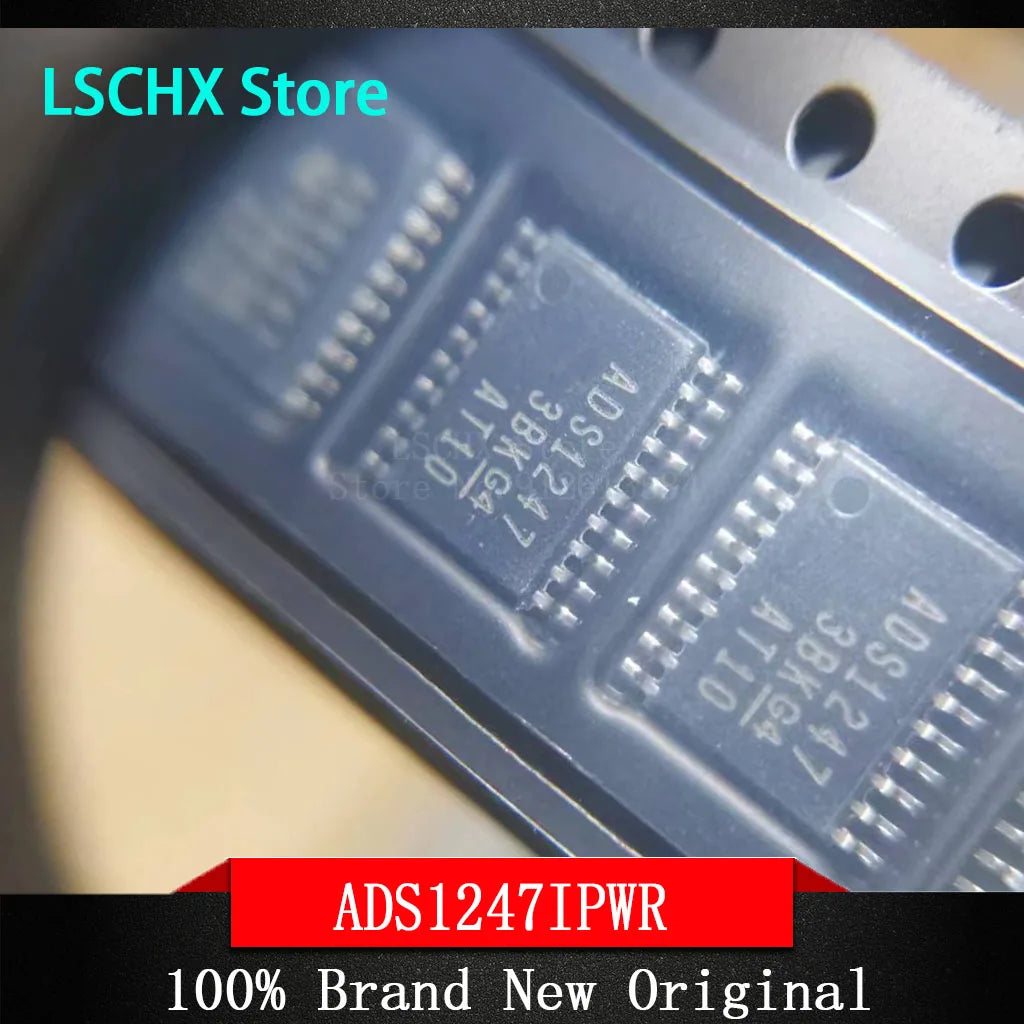

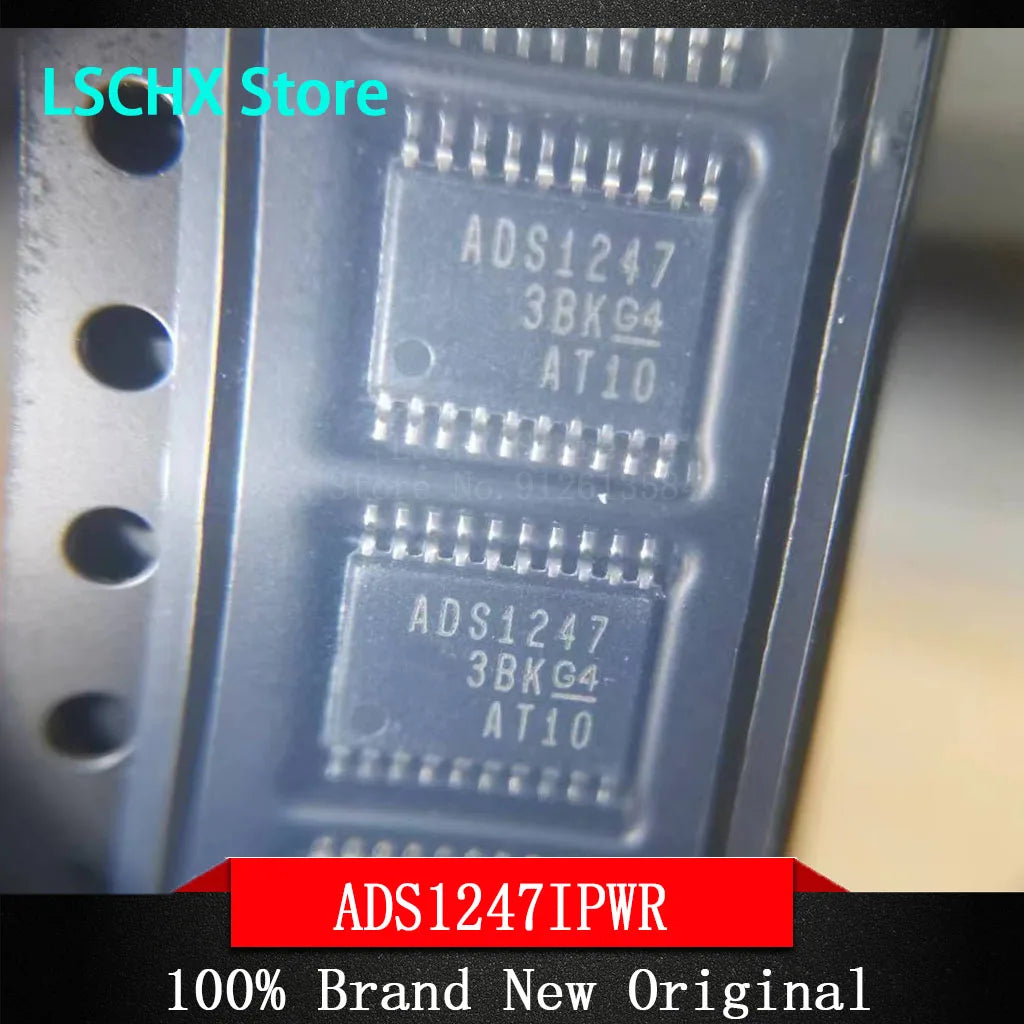

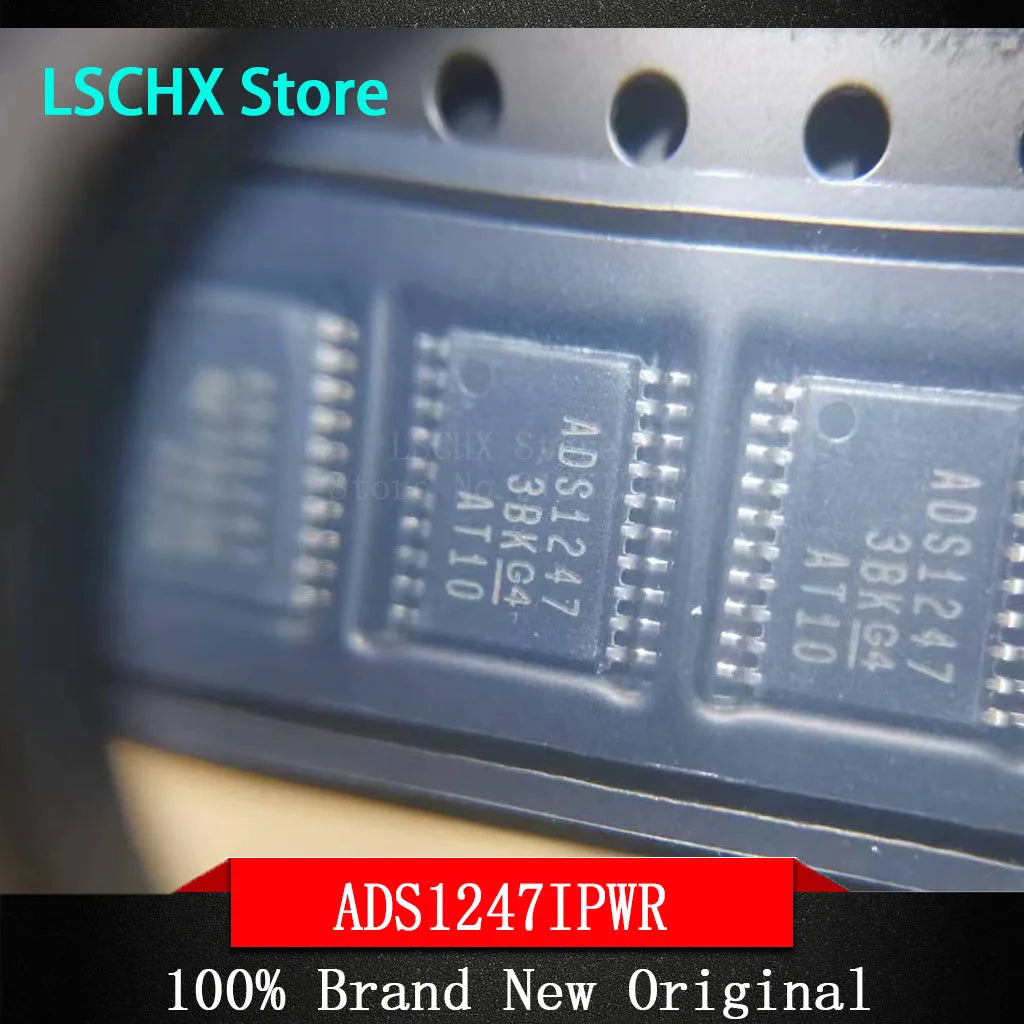

ADS1247IPWR / ADS1247IPW — 2-Pack ADC Chips (TSSOP-20)
Get reliable, precision analog-to-digital conversion with this 2-piece set of ADS1247IPWR / ADS1247IPW ADC chips in the compact TSSOP-20 package. Designed for general-purpose signal conversion applications, these chips support a wide operating voltage range of 2.7V to 5.25V, making them highly versatile for a broad spectrum of electronic designs — from microcontroller-based data acquisition systems to industrial sensing circuits.
Whether you're prototyping a new PCB, replacing a faulty component, or stocking up your electronics lab, this twin-pack offers excellent value and ensures you always have a spare on hand.
Made in Mainland China.
Key Specifications
- Model: ADS1247IPWR / ADS1247IPW
- Package: TSSOP-20
- Function: Analog to Digital Converter (ADC)
- Operating Voltage: 2.7V – 5.25V
- Use: General Purpose
- High-Concern Chemicals: None
- Quantity: 2 pieces per pack
- Compliance: International Standard
Why Choose This ADC Chip?
- ✅ Wide voltage range (2.7V–5.25V) for maximum design flexibility
- ✅ Compact TSSOP-20 footprint — ideal for space-constrained PCB layouts
- ✅ Twin-pack value — get two chips for prototyping or backup
- ✅ General-purpose ADC suitable for data acquisition, sensor interfaces, and signal processing
- ✅ Meets international standards for protection and theory of operation
Compatible Applications
These ADC chips are well-suited for use in temperature sensing, pressure measurement, flow measurement, weigh scales, and other precision data acquisition systems requiring high-accuracy analog signal conversion.
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the ADS1247IPWR and what does it do?
A: The ADS1247IPWR is a precision analog-to-digital converter (ADC) IC in a TSSOP-20 package. It converts analog voltage signals into digital data, making it ideal for high-accuracy measurement applications such as sensor signal processing, data acquisition systems, and industrial instrumentation.
Q: What voltage range does the ADS1247IPWR support?
A: The ADS1247IPWR operates over a wide supply voltage range of 2.7V to 5.25V, allowing it to interface easily with both 3.3V and 5V microcontroller systems.
Q: How many chips are included in this listing?
A: This listing includes 2 pieces of the ADS1247IPWR / ADS1247IPW ADC chip, giving you a spare for prototyping or replacement purposes.
Q: Is the TSSOP-20 package compatible with standard PCB footprints?
A: Yes, the TSSOP-20 (Thin Shrink Small Outline Package, 20-pin) is a widely used industry-standard SMD package. It is compatible with standard TSSOP-20 PCB footprints and can be soldered using standard SMT reflow or hand-soldering techniques.
