256 LED Dot Matrix DIY Soldering & Welding Training Kit

Build your own programmable 16×16 LED dot matrix display from scratch! This hands-on DIY electronic kit is perfect for electronics enthusiasts, students, and hobbyists who want to sharpen their SMD soldering skills while assembling a fully functional advertising screen capable of displaying custom characters, Chinese characters, animations, and more.

Made in Mainland China.

How It Works

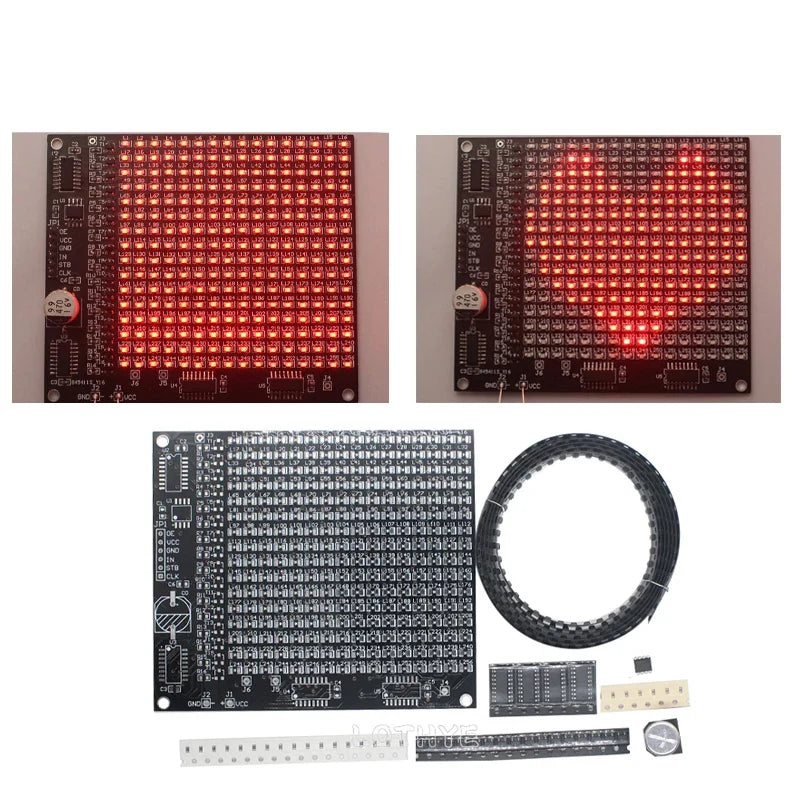

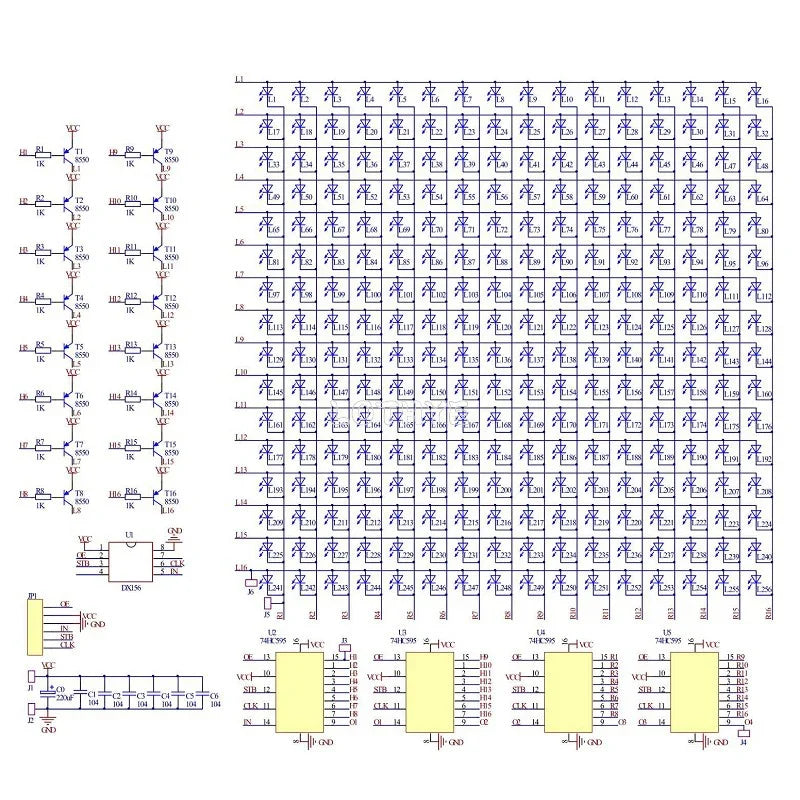

The heart of this kit is a pre-programmed microcontroller (U1) that drives 256 × 0805 SMD LEDs using a row-and-column scanning method. The default boot sequence includes: lighting up row by row → full-screen double flash → scrolling character advertisement display → three-flash heart animation — then it loops continuously. Want to display your own content? Simply connect your control signal via interface JP1 (bypassing the onboard microcontroller) to show anything you like.

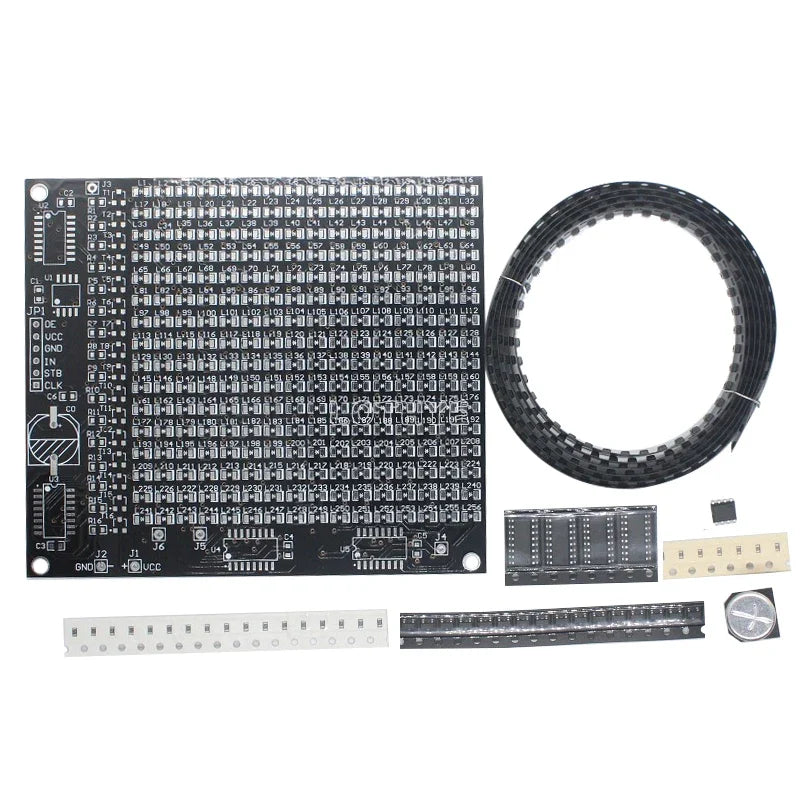

What's Inside the Kit

256 × 0805 chip SMD LEDs
16 × row-drive transistors
16 × current-limiting resistors
4 × serial expansion chips (U2–U5)
1 × pre-programmed microcontroller chip (U1)
1 × chip electrolytic capacitor
6 × chip high-frequency decoupling capacitors
300 total components | 678 solder joints

Key Features

✅ 16×16 = 256 pixel resolution — display any character or pattern
✅ Pre-burned microcontroller — no programming required to get started
✅ Expandable via JP1 interface for fully custom display content

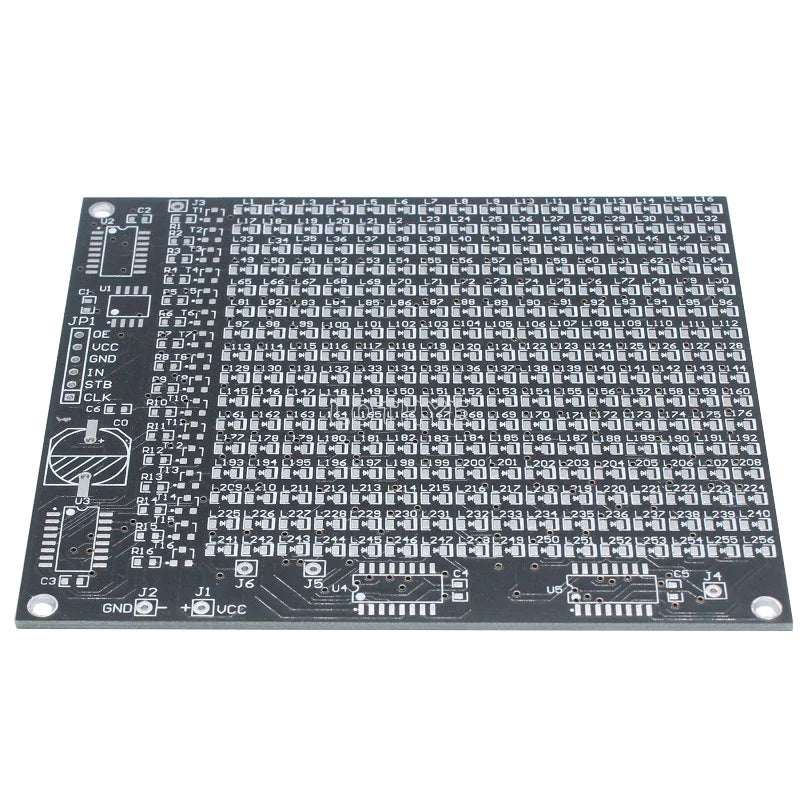

✅ On-board J1–J6 test points for waveform & voltage measurement
✅ Wide operating voltage: 4–5 V DC
✅ Excellent practice platform for SMD soldering technique

Installation Notes

All components must be mounted flush to the PCB surface. Pay close attention to the polarity of ICs, LEDs, transistors, and electrolytic capacitors. Test points J1–J6 are provided for measurement and expansion. A 4–5 V regulated power supply is recommended. This kit requires prior experience with electronics and soldering — please review all documentation before assembly. We verify all components are in good condition before shipment; successful assembly depends on the builder's skill level.

Who Is This Kit For?

Ideal for electronics students, PCB soldering trainees, makers, and DIY hobbyists looking for a challenging yet rewarding build. It doubles as a great teaching aid for circuit theory, microcontroller I/O control, and LED matrix driving principles.

Related Products You May Like

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Do I need to write or upload any code to use this 256 LED dot matrix kit?

A: No coding is required to use the default display. The microcontroller chip included in the kit comes with the program already burned onto it. Simply assemble all 300 components, power the board with 4–5 V, and the pre-set animation sequence will run automatically. If you want to display custom content, connect an external control signal through the JP1 interface instead.

Q: What skill level is needed to assemble this SMD soldering kit?

A: This kit is designed for learners who already have some hands-on electronics and soldering experience. Because it uses 0805 SMD (surface-mount) components and contains 678 solder joints, beginners should practice basic SMD soldering before attempting this build. It is not recommended as a first-ever soldering project.

Q: What power supply does this LED dot matrix kit need?

A: The board operates on a regulated DC voltage of 4–5 V. A standard USB power source (5 V) works well. Make sure to use a stable, regulated supply to protect the SMD components and ensure consistent LED brightness.
