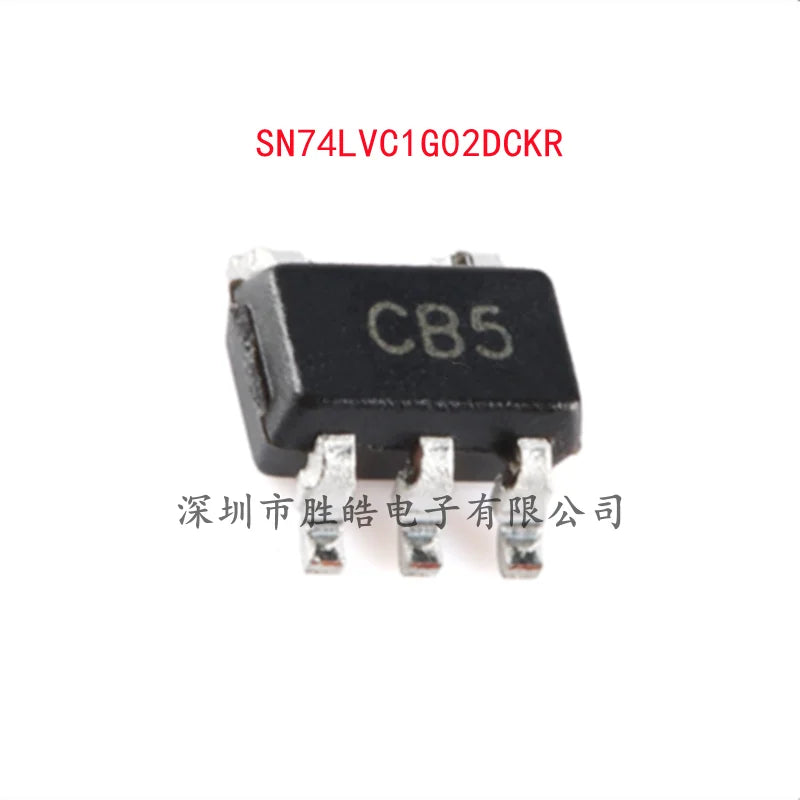

20-Pack SN74LVC1G02DCKR Single 2-Input NOR Gate Integrated Circuit – SC-70-5 Package
Get reliable logic performance with this 20-piece lot of SN74LVC1G02DCKR (74LVC1G02) single 2-input NOR gate chips. Housed in the compact SC-70-5 (DCK) package, these low-voltage CMOS logic ICs are ideal for digital design, prototyping, repair, and small-batch production runs. Each unit is brand new and in excellent condition.
Key Features
- Function: Single 2-Input Positive NOR Gate
- Series: 74LVC1G02 / SN74LVC1G02DCKR
- Package: SC-70-5 (DCK) — ultra-compact 5-pin surface-mount
- Logic Family: LVC (Low-Voltage CMOS) — operates down to 1.65V
- Supply Voltage: 1.65V – 5.5V wide operating range
- Quantity: 20 pieces per order
- Condition: New
- High-Concern Chemicals: None
Why Choose These NOR Gate ICs?
The SN74LVC1G02DCKR is a trusted single-gate logic device widely used in consumer electronics, microcontroller interfacing, signal inversion, and embedded system design. The LVC family provides fast propagation speeds, low power consumption, and broad voltage compatibility — making these chips an excellent fit for modern 3.3V and 5V logic systems alike. Buying in a 20-pack ensures you always have spares on hand for prototyping and rework.
Applications
- Digital logic design and prototyping
- Microcontroller and FPGA interfacing
- Signal level translation circuits
- PCB repair and component replacement
- DIY electronics and maker projects
- Educational and lab use
Package Contents
- 20 × SN74LVC1G02DCKR NOR Gate IC (SC-70-5)
Made in Mainland China.
