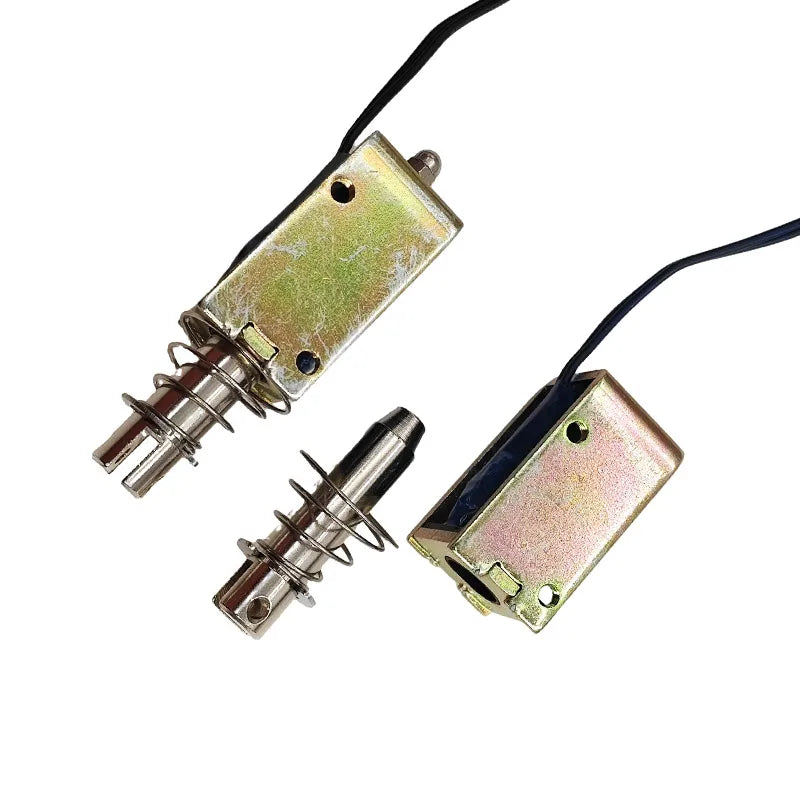

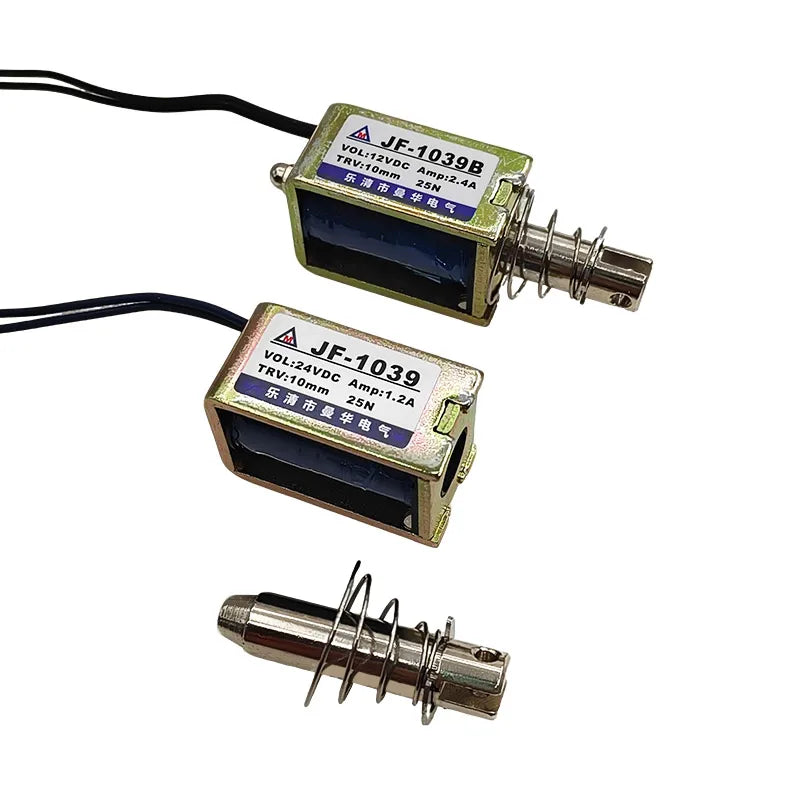

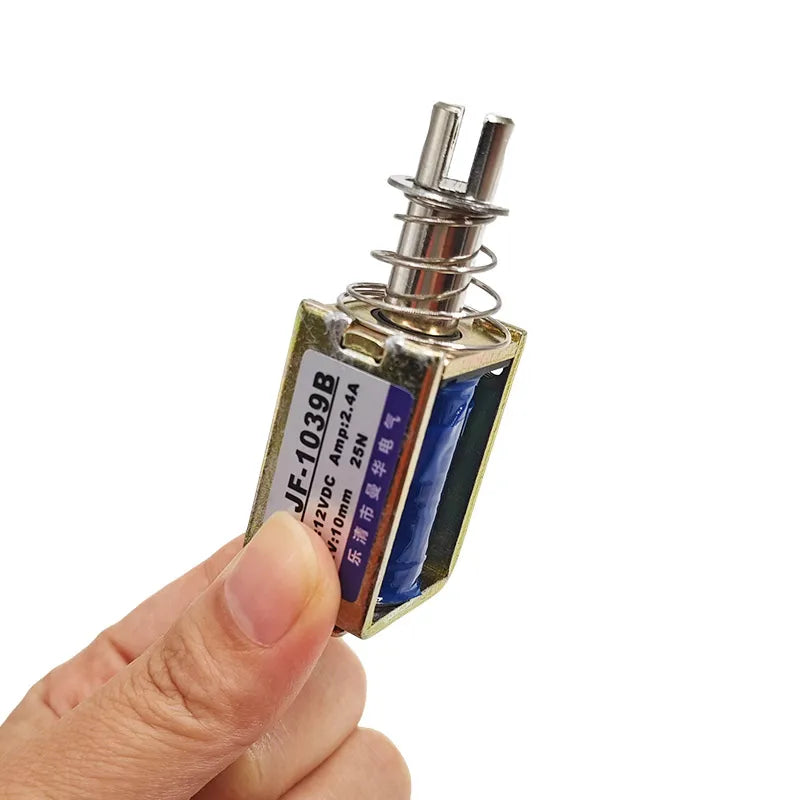

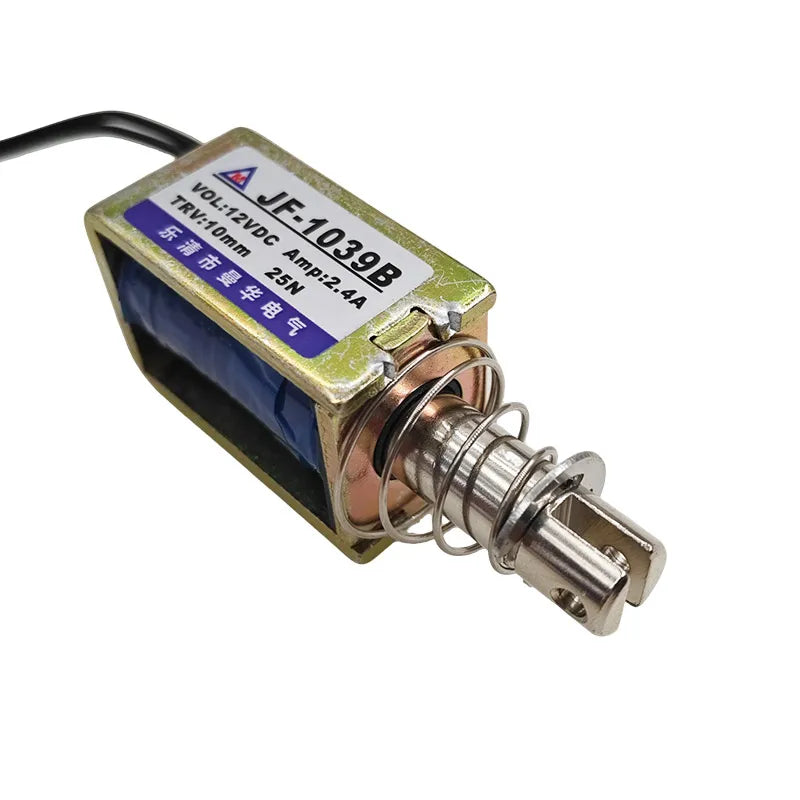

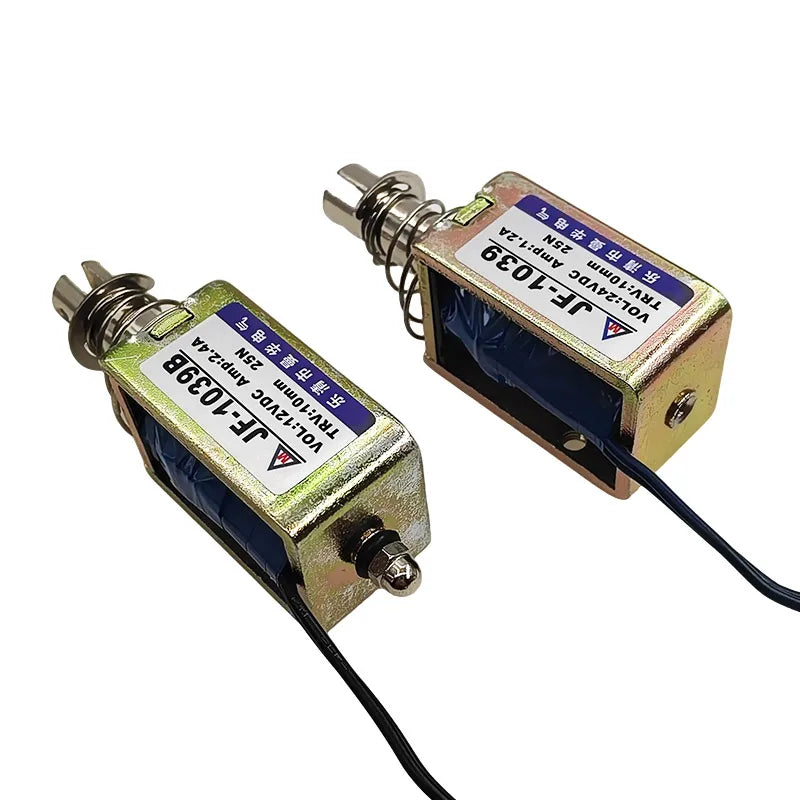

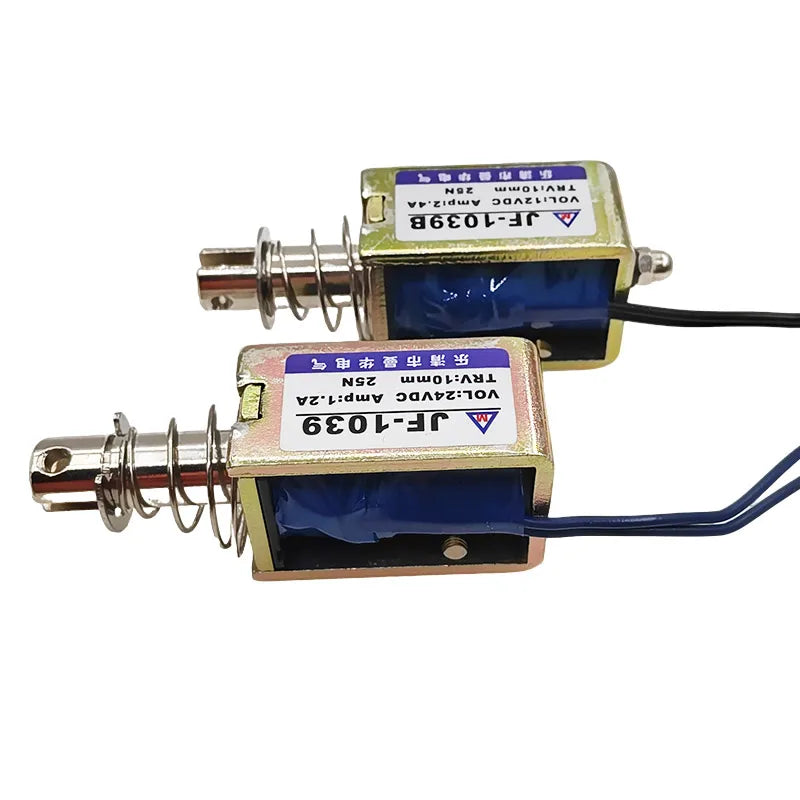

2-Pack JF-1039 / JF-1039B DC 12V Linear Push-Pull Solenoid Actuator
Get reliable electromagnetic actuation for your automation projects with this 2-piece set of JF-1039 / JF-1039B Linear Push-Pull Solenoids. Delivering 25N of force over a 10mm stroke at 12V DC, these compact coil-type actuators are engineered for consistent intermittent-duty performance in a wide range of industrial and commercial equipment.
Key Specifications
- Model: JF-1039 / JF-1039B
- Voltage: 12V DC (24V version available — contact us)
- Current Draw: 2.2A (12V) / 0.8A (24V)
- Force Output: 25N
- Stroke: 10mm
- Shape: Coil (Electromagnetic)
- Quantity: 2 units per pack
- Made in: Mainland China
Designed for Intermittent-Duty Operation
These solenoids are optimised for intermittent duty cycles — for example, 1 second ON followed by 1 second OFF — and can maintain this pattern continuously throughout the day without issue. Like all electromagnetic actuators, the coil will generate some heat during operation; this is completely normal. The temperature will stabilise at a safe level, and operating in a well-ventilated or cooler environment will further extend the service life of the unit.
Wide Range of Applications
These versatile actuators are well-suited for integration into:
- Arcade and amusement game machines
- Slot machines and ticket dispensers
- Cash registers and point-of-sale equipment
- Automated office and printing equipment
- General industrial automation systems
- Robotics and DIY electronics projects
Need a Different Voltage?
We also supply these solenoids in 6V, 12V, 24V, and 36V configurations. If you require a different voltage, please reach out via the store's contact form or leave a message with your order.
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Can I run the JF-1039 solenoid continuously without stopping?
A: These solenoids are designed for intermittent-duty cycles, such as 1 second ON and 1 second OFF. Continuous non-stop operation is not recommended as it can cause the coil to overheat. With proper intermittent use, they can operate reliably all day long.
Q: Is the JF-1039B compatible with 24V systems?
A: Yes — the JF-1039B is available in a 24V variant that draws approximately 0.8A. If you need a 24V, 6V, or 36V version, please contact the store before ordering so we can ensure you receive the correct unit.
Q: What does the 25N force rating mean for my application?
A: 25N (approximately 2.5 kg-force) is the maximum pulling or pushing force the solenoid can exert at full stroke. For best performance, match the required force of your mechanism to this rating, keeping in mind that force may decrease slightly at the extended end of the 10mm stroke.
Q: How many solenoids are included in this listing?
A: This listing includes 2 solenoid units (2-pack), giving you a spare or allowing you to use them in a dual-actuator setup.
