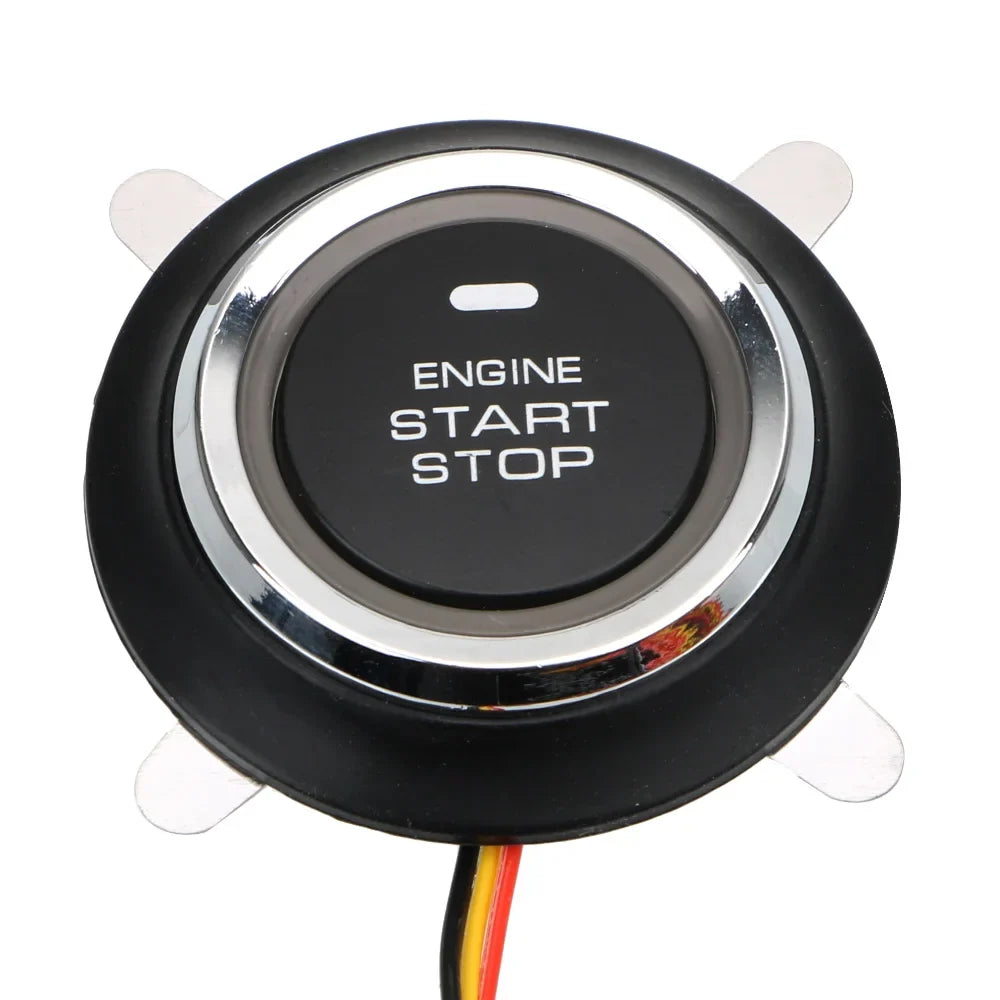

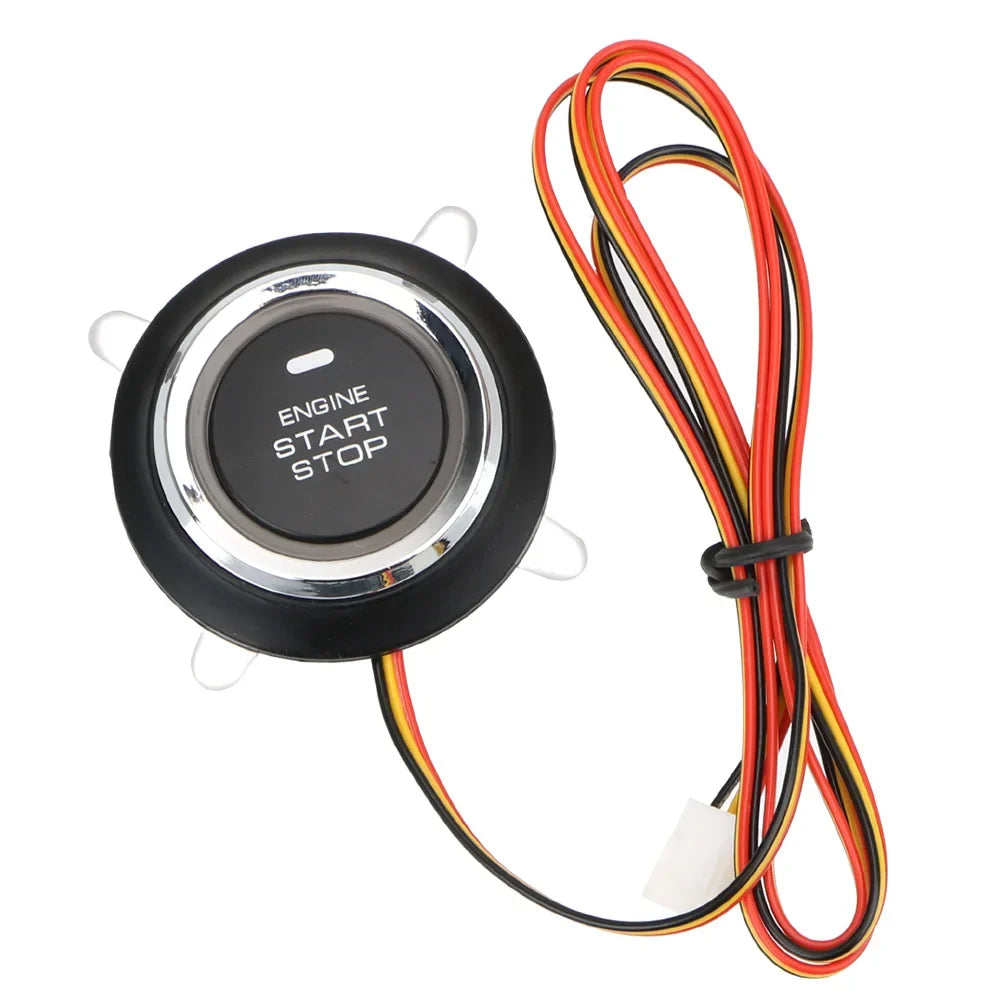

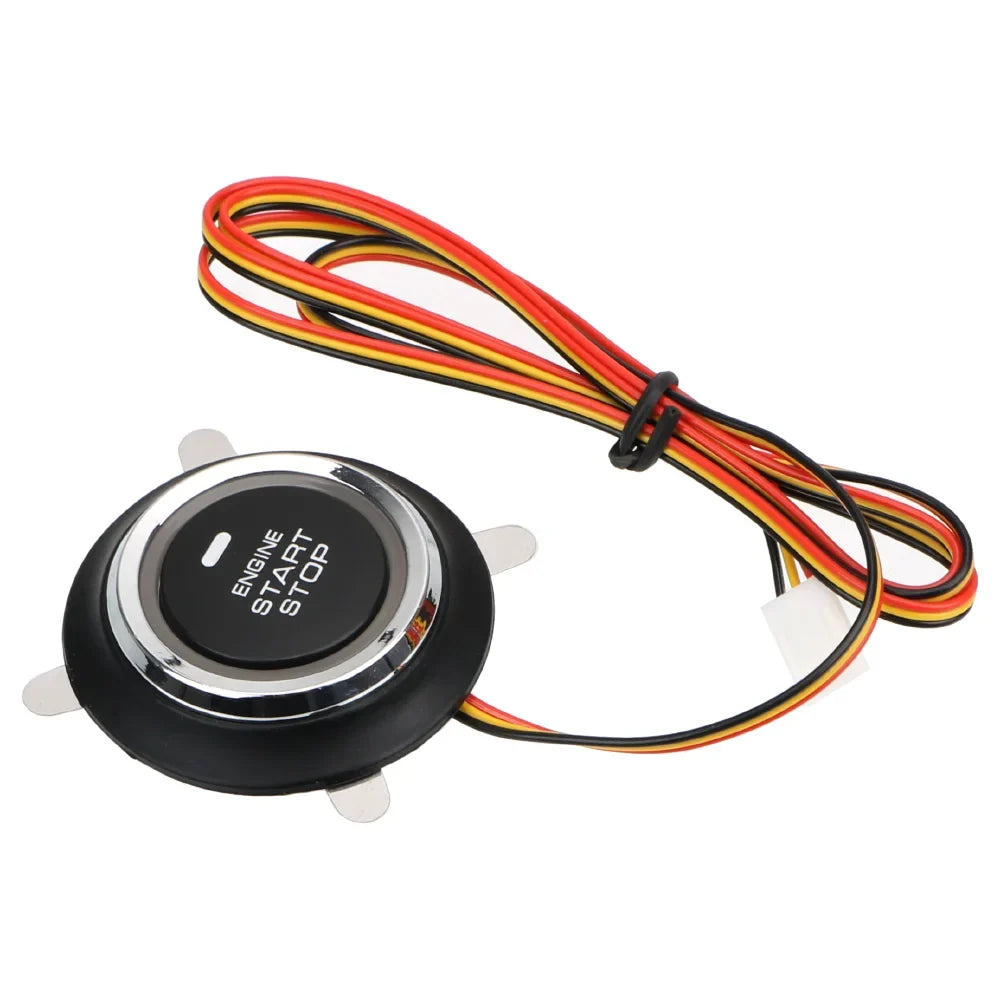

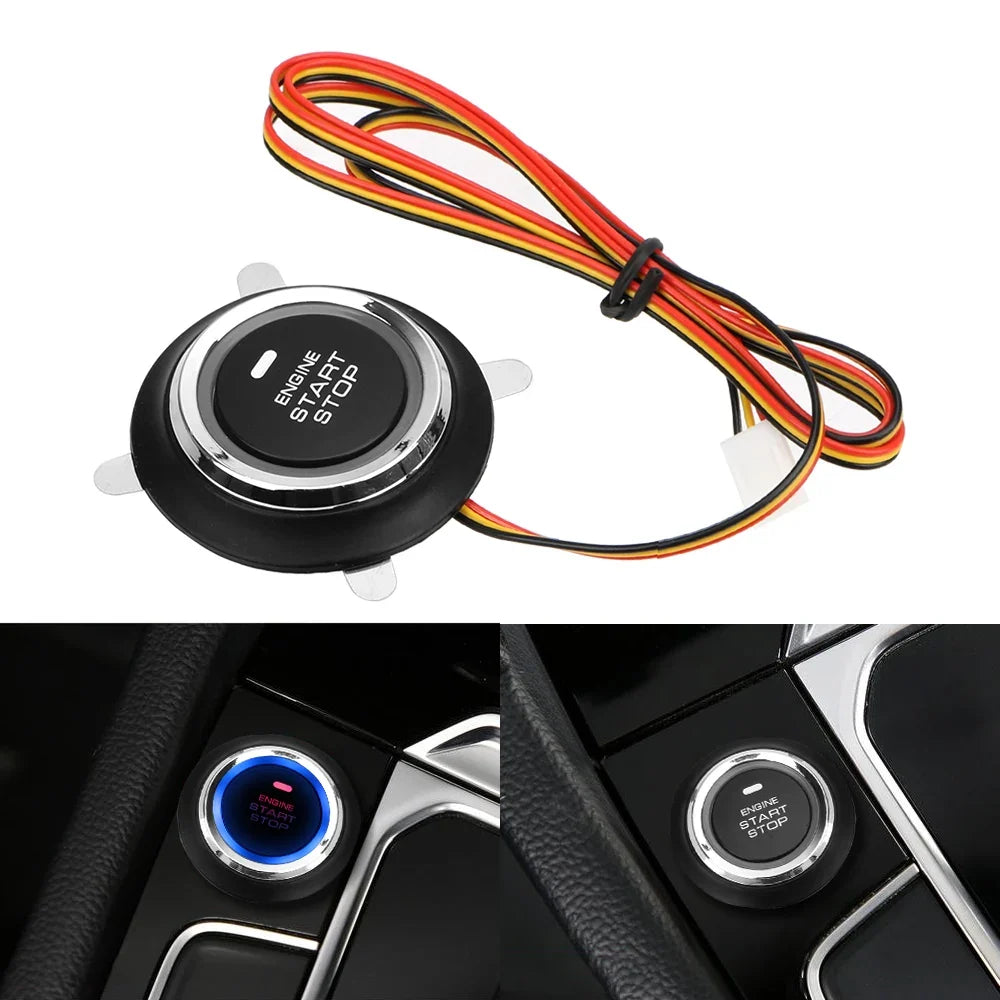

12V Keyless Push Button Car Engine Start Stop Switch
12V Keyless Push Button Car Engine Start Stop Switch
12V Keyless Push Button Car Engine Start Stop Switch
Upgrade your vehicle's ignition setup with this sleek 12V Keyless Push Button Engine Start Stop Switch. Designed for universal fitment, this easy-to-install push button replaces your traditional key ignition with a modern, responsive momentary switch — complete with a built-in LED indicator light for a clean, professional look in any cockpit or custom build.
Made in Mainland China.
Key Features
- Universal 12V Compatibility: Works with most 12V automotive, marine, and custom electrical systems.
- Built-In LED Illumination: The button lights up when active, providing clear visual confirmation of status.
- Compact & Slim Design: 10mm thickness and 40.8mm outer diameter (excluding mounting hardware) for easy panel mounting.
- Simple 3-Wire Setup: Color-coded wiring makes installation straightforward — no specialist tools required.
- Momentary Action: Press to trigger — yellow line outputs +12V positive trigger signal; LED activates simultaneously.
- Lightweight: Only 38g, ideal for custom builds and retrofits.
Wiring Guide
- Red Wire: Button +12V power supply input
- Black Wire: Button LED light negative control
- Yellow Wire: Key switch positive power trigger output control — outputs +12V when button is pressed
Specifications
- Voltage: 12V DC
- Thickness: 10mm (excluding corner brackets)
- Outer Diameter: 40.8mm (excluding black silicone ring)
- Item Weight: 38g
- Special Feature: Universal fitment
- Model: 23254
What's in the Box
- 1 × 12V Keyless Push Button Car Engine Start Stop Switch
Related Products You May Like
Looking to complete your vehicle setup? Check out these handy accessories:
- 60cm Motorcycle Luggage Strap – Elastic Helmet Bungee Net
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- All-Season Cooling Car Seat Cushion – Breathable & Ergonomic
Learn more: FuelEconomy.gov driving efficiency guidance
Frequently Asked Questions
Q: Is this push button start switch compatible with all vehicles?
A: This 12V keyless push button engine start stop switch is designed for universal fitment and is compatible with most 12V automotive, motorcycle, marine, and custom electrical systems. Always verify your vehicle's wiring configuration before installation.
Q: How do I wire the 12V push button start stop switch?
A: The switch uses a simple 3-wire, color-coded system. Connect the red wire to your 12V power supply, the black wire to the LED light negative control, and the yellow wire to the positive trigger output — it will output +12V when the button is pressed, activating your ignition circuit and illuminating the LED simultaneously.
Q: Does the push button include an LED indicator light?
A: Yes! The button features a built-in LED indicator that illuminates when the button is activated, giving a clear visual signal and a modern look to your dash or control panel.
Q: What are the physical dimensions of this start stop button?
A: The switch measures 10mm in thickness (excluding the 4 corner angle brackets) and has an outer diameter of 40.8mm (excluding the black silicone ring), making it suitable for standard panel cutouts.
