12V 8L/min Self-Priming Diaphragm Pump – High Pressure Electric Water Pump
Tackle agricultural spraying, garden irrigation, vehicle washing, water pressurization, and more with this versatile 12V electric diaphragm pump. Delivering up to 6.0 BAR of high pressure and a flow rate of 8 litres per minute, this compact self-priming pump is engineered for demanding tasks across farming, industrial, and domestic applications. CE-certified and running on low-voltage DC power, it's a safe and efficient choice for off-grid, solar, and battery-powered setups.
Key Features
- High Pressure Output: Up to 6.0 BAR — ideal for effective fine-mist spraying and pressurised water delivery
- Self-Priming Design: Starts pumping without manual priming, saving time and effort in the field
- 8 L/min Flow Rate: Handles a wide range of liquid transfer and spraying tasks efficiently
- 12V DC Low Voltage: Compatible with car batteries, portable battery packs, and solar energy systems
- CE Certified: Meets European safety standards for low-voltage electrical equipment
- Diaphragm Pump Structure: Durable construction handles water, pesticide solutions, and other compatible liquids
- Compact & Lightweight: Easy to mount on backpack sprayers, boats, vehicles, and small farming equipment
- 6,500 RPM Motor Speed: Delivers consistent, reliable performance across extended use

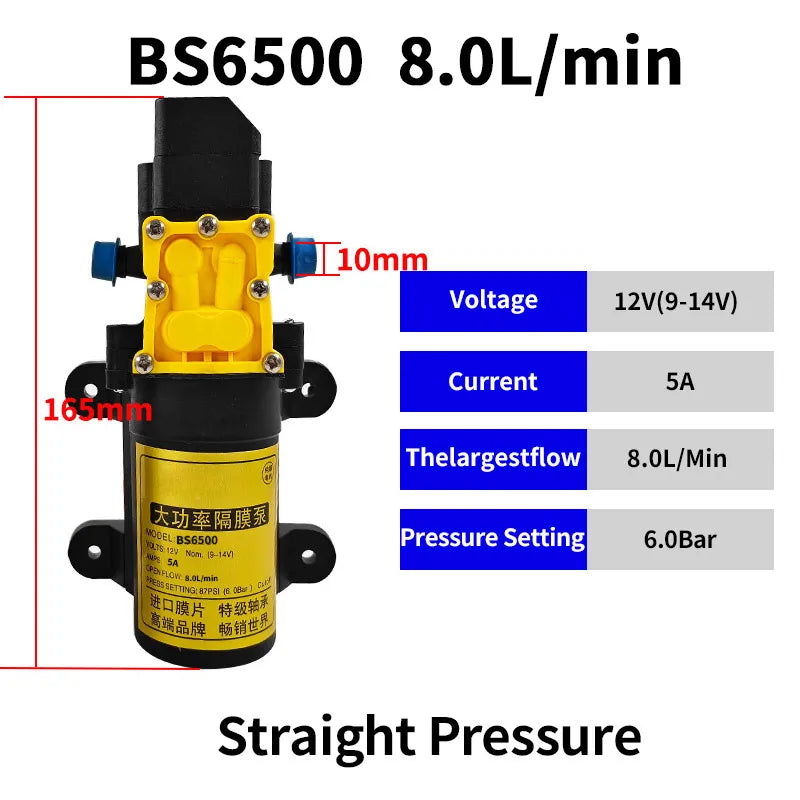

Specifications
| Voltage | 12V DC |
| Flow Rate | 8 L/min |
| Max Pressure | 6.0 BAR |
| Motor Speed | 6,500 RPM |
| Structure | Diaphragm Pump |
| Power Source | Electric (DC) |
| Certification | CE |
| Batteries Included | No |
| Country of Origin | Made in China |
Where Can You Use This Pump?
This multi-purpose diaphragm pump is widely used across many industries and settings:
- Agriculture & Horticulture: Pesticide spraying, lawn irrigation, garden watering, orchard misting
- Vehicle & Marine: Drinking water supply, washing, bathing, and toilet systems on RVs, boats, yachts, and caravans
- Industrial & Chemical: Liquid transfer, distribution, and metering in manufacturing and chemical processing
- Food & Beverage: Liquid food transfer, filling, and dispensing equipment
- Home Water Systems: Pipe pressurisation, water-saving systems, and water purifier support
- Solar Energy Systems: Solar-powered water circulation and distribution
- Cleaning Equipment: Carpet cleaners, floor washers, vehicle cleaning rigs, dishwashers
- Sanitation & Disinfection: Disinfection sprayers, cooling systems, and sterilisation equipment
Troubleshooting Guide
Pump does not run with power connected: Check that all wiring connections at the rear of the motor are secure and properly seated.
Low spray volume or reduced pressure: Inspect the pump chamber for debris blockages. Verify that the motor bracket screws are tight. Ensure the inlet and outlet valves are installed in the correct orientation (they must not be reversed).
Pressure drops after extended use (6–12 months): Tighten the motor bracket screws, and rotate or replace the small diaphragm pieces inside the pump cavity to restore full performance.
Related Products You May Like
- 100 PCS Plant Support Clips for Orchid, Flower & Vine Stems
- Garden Pruner Shears – Secateurs for Bonsai & Fruit Trees
- BALASHOV 2500W Handheld Steam Cleaner – Kitchen, Car & Home
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What voltage does this diaphragm pump require, and can it run on a solar battery?
A: This pump operates on 12V DC, which falls within the low-voltage range (below 75V DC). It is fully compatible with standard 12V car batteries, portable power stations, and solar energy storage batteries — making it an excellent choice for off-grid agricultural or remote applications.
Q: Is this pump suitable for spraying pesticides or fertiliser solutions?
A: Yes. This self-priming diaphragm pump is designed for agricultural spraying, including pesticide and fertiliser liquid transfer. Always flush the pump with clean water after use with chemical solutions to preserve pump life and performance.
Q: Does the pump require priming before first use?
A: No manual priming is required. The self-priming diaphragm design means the pump can draw liquid automatically from the source without needing to be pre-filled, making setup quick and hassle-free in the field.
Q: What is the maximum pressure this pump can achieve?
A: This pump delivers a maximum pressure of 6.0 BAR (approximately 87 PSI), making it suitable for high-pressure spraying applications including fine misting nozzles, pressurised cleaning, and irrigation systems.
