CNMAWAY 12V/24V Linear Actuator – Powerful, Quiet & Versatile Electric Drive
The CNMAWAY Linear Actuator delivers reliable, smooth linear motion for a wide range of DIY, industrial, and home automation projects. Available in stroke lengths from 50mm to 500mm and force ratings from 100N to 2000N, this compact gear motor is engineered for precision and durability. Made in Mainland China.
Key Features
- Versatile Voltage: Compatible with 12V and 24V DC power supplies for flexible installation in a variety of setups
- Multiple Stroke Options: Choose from 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, or 500mm strokes to suit your specific application
- High Force Range: Available in 100N, 200N, 300N, 500N, 700N, and up to 2000N thrust force for both light-duty and heavy-duty tasks
- Low Noise Design: Operates at under 42dB for quiet, unobtrusive movement — ideal for home and office environments
- IP54 Protection Rating: Drip-proof and dust-resistant construction ensures reliable performance in various conditions
- Durable Aluminum Alloy Body: Lightweight yet robust housing for longevity and heat dissipation
- Self-Locking Force: Approximately 80% self-locking capability — holds position securely without continuous power draw
- Wide Temperature Range: Operates effectively from -20°C to +75°C
- CE Certified: Meets European safety and quality standards

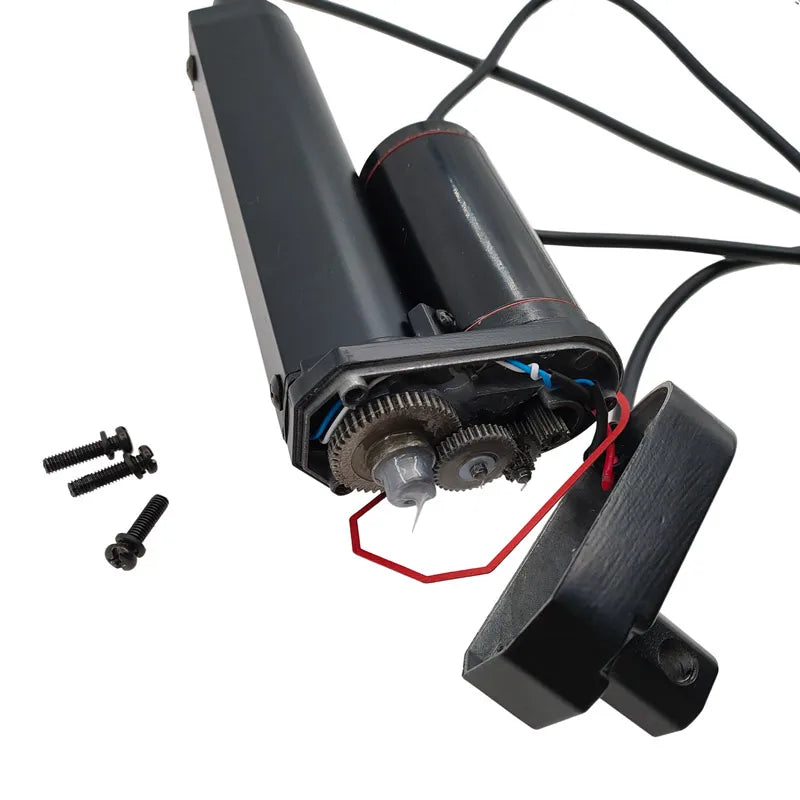

- Permanent Magnet DC Motor: Efficient IE2-rated brush motor with smooth commutation
Technical Specifications
| Rated Power | 20W (Max 30W) |
| Voltage | 12V DC / 24V DC |
| Current Draw | 1–2A (continuous) |

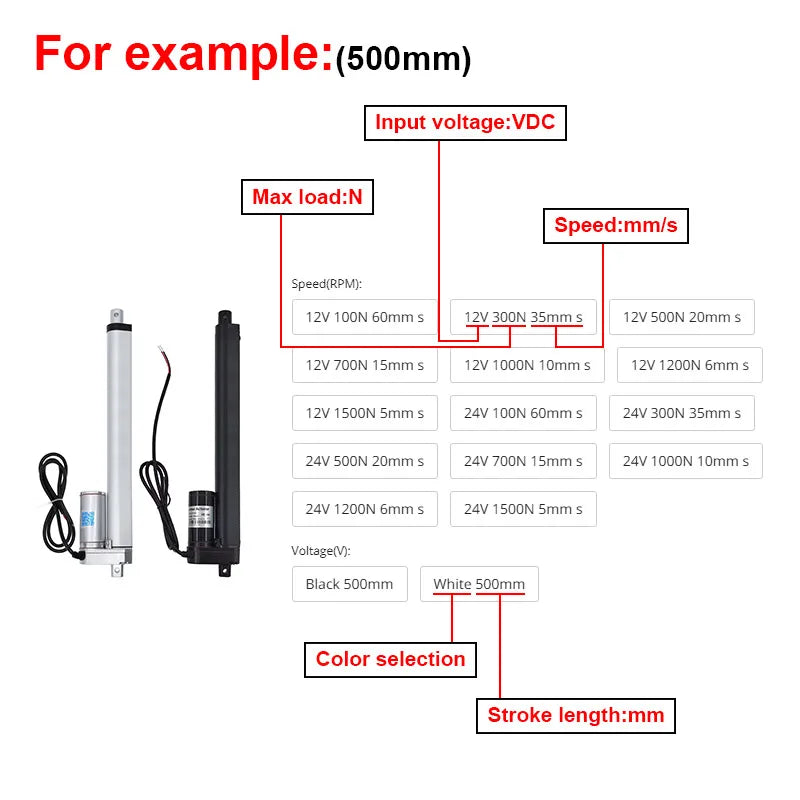

| Speed Options | 4 / 8 / 10 / 13 / 15 / 18 / 20 / 30 / 45 / 90 mm/s |
| Force / Thrust | 100 / 200 / 300 / 500 / 750 / 800 / 900 / 1100 / 1300 / 1500 / 2000 N |
| Stroke Lengths | 50 / 100 / 150 / 200 / 250 / 300 / 400 / 500 mm |
| Protection Grade | IP54 (Drip-proof) |
| Material | Aluminum Alloy |
| Noise Level | < 42dB |
| Ambient Temperature | -20°C to +75°C |
| Certification | CE |
| Color | Black |
Stroke Length Dimensions Guide
| Stroke | Retracted Length | Extended Length |
|---|---|---|
| 50mm | 155mm | 205mm |
| 100mm | 205mm | 305mm |
| 150mm | 255mm | 405mm |
| 200mm | 305mm | 505mm |
| 250mm | 355mm | 605mm |
| 300mm | 405mm | 705mm |
Common Applications
- TV console / entertainment unit lifts
- Electric beds and adjustable furniture
- Massage and recliner chairs
- Industrial and agricultural equipment automation
- Solar panel tracking systems
- DIY automation and robotics projects
- Electric gates, vents, and hatches
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What stroke lengths are available for this linear actuator?
A: This CNMAWAY linear actuator is available in stroke lengths of 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, and 500mm. Each stroke length corresponds to a specific retracted and extended length — for example, the 200mm stroke has a retracted length of 305mm and an extended length of 505mm.
Q: Can this linear actuator be used with both 12V and 24V systems?
A: Yes. This electric linear actuator is fully compatible with both 12V DC and 24V DC power supplies, making it easy to integrate into a wide range of existing electrical systems, vehicles, or DIY builds.
Q: Is this linear actuator suitable for outdoor or wet environments?
A: The actuator features an IP54 protection rating, which means it is drip-proof and resistant to dust ingress. It is suitable for light outdoor use and mildly humid conditions, and it can operate in temperatures ranging from -20°C to +75°C. It is not designed for full submersion in water.
Q: What is the self-locking capability of this actuator?
A: The linear actuator has a self-locking force of approximately 80% of its rated thrust. This means it will hold its extended or retracted position securely without requiring continuous power, which is ideal for applications like adjustable furniture and equipment positioning.
